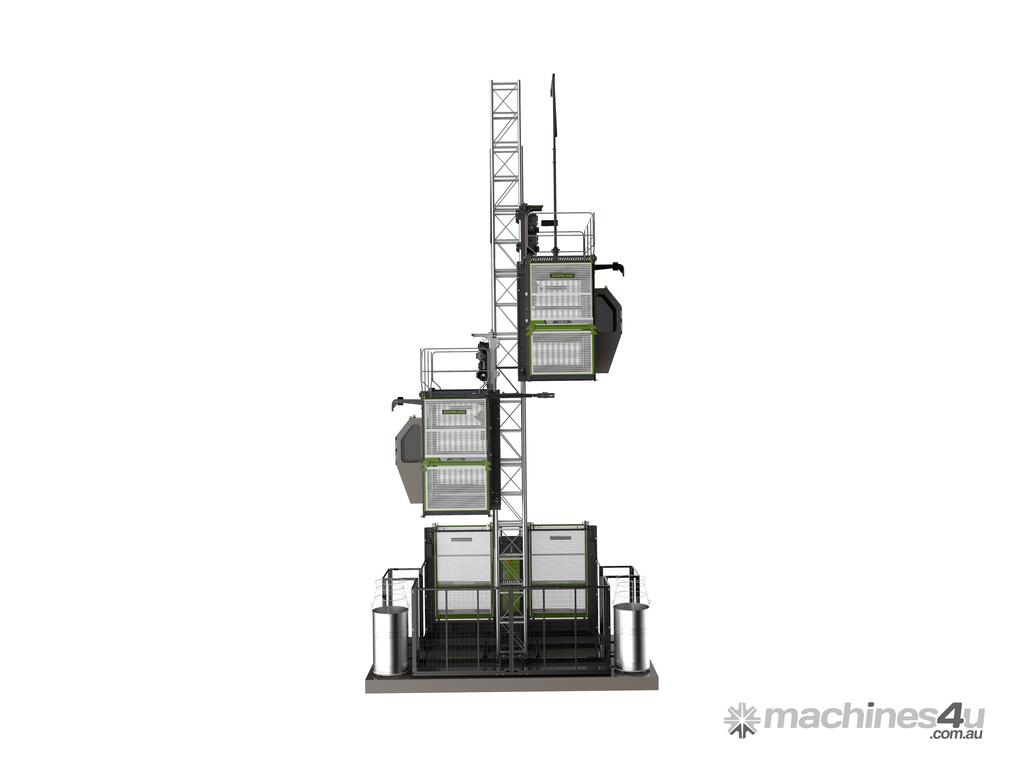

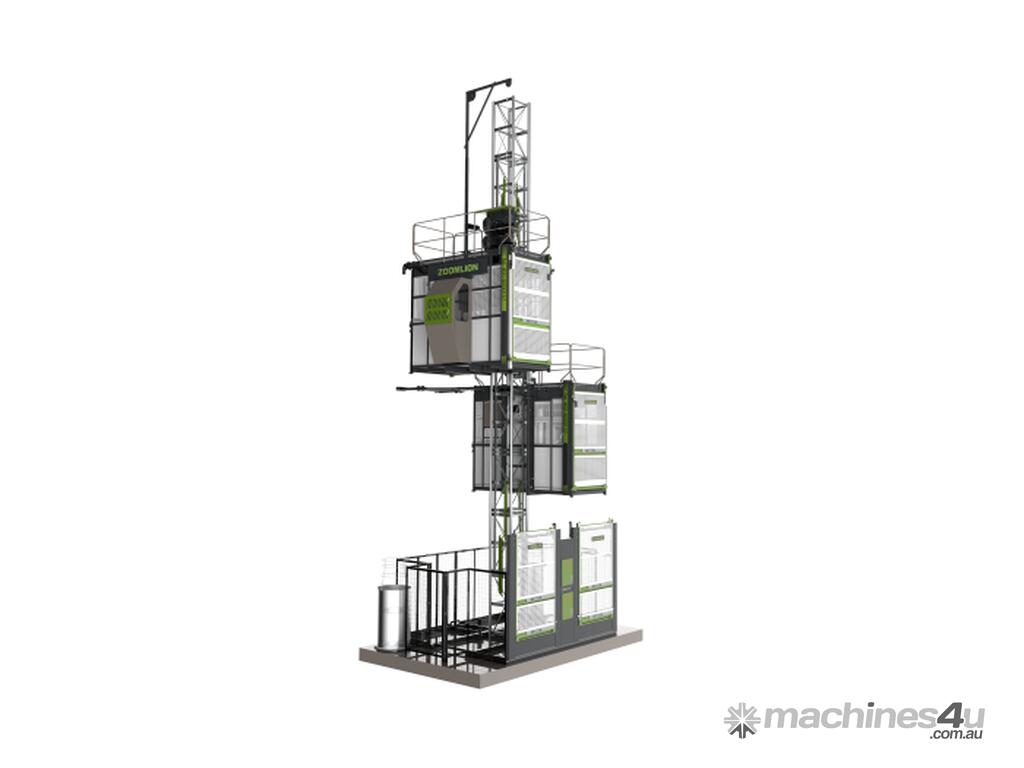

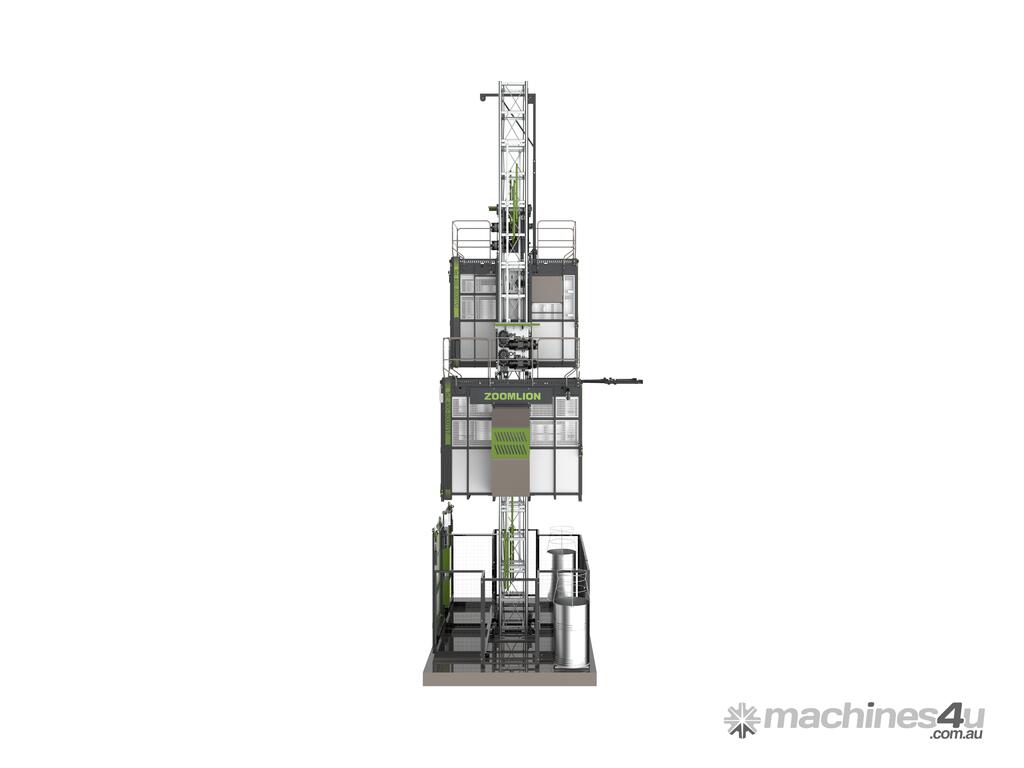

ZOOMLION SC200 General Construction Hoist

ZOOMLION SC200 General Construction Hoist.
In 1998, ZOOMLION developed and produced SCD200/200 construction hoist and SCD200/200T variable frequency speed regulation construction hoist.

In 2010, ZOOMLION Shanghai Construction Hoist Company was established, specializing in the development and production of construction hoists.

In 2013, the annual sales volume reached 4,878 units, surpassing Guangzhou JING LONG ENG. Machinery Co., Ltd. to become the world's largest construction hoist manufacturer.

2014 Acquired the Dutch RAXTAR company to accelerate the internationalization process; In the same year, the energy-saving BWM-3 series construction hoists were launched, leading the development of construction hoists with the technical theme of "energy saving and intelligence"

BWM-3 series construction hoists have been well received by customers; For overseas markets, the development of a low cage suitable for overseas markets, greatly saving freight, enhance the competitiveness of the product, overseas sales accounted for 13%.

ADVANTAGE INTRODUCTION
Two Drives with High-efficiency and Energy-saving
- The efficiency of the reducer reaches 95% and the reducer just need to renewal the oil once in the life cycle;
- The efficiency of the motor reaches 90%.

Single Flexible Connection+Multi-support Roller System+Wide Column Structure
- Traction force vertically upward without bias load;
- Low vibration, small gear wear;
- Drive and cage can be exchanged arbitrarily;
- Simple and efficient installation and debugging.

Integrated Intelligent Control System
- Automatic landing function to reduce the driver’s work load;
- Manual and automatic can be exchanged freely;
- Double systems to increase the operating reliability;
- Variable frequency driving: reduce impact, increase lifetime of component.

Intelligent
- Identity verification function: operator identity verification and attendance management;
- Intelligent control system: fault self-diagnosis and intelligent maintenance;
- APP management system: remote diagnosis and status inquiry.

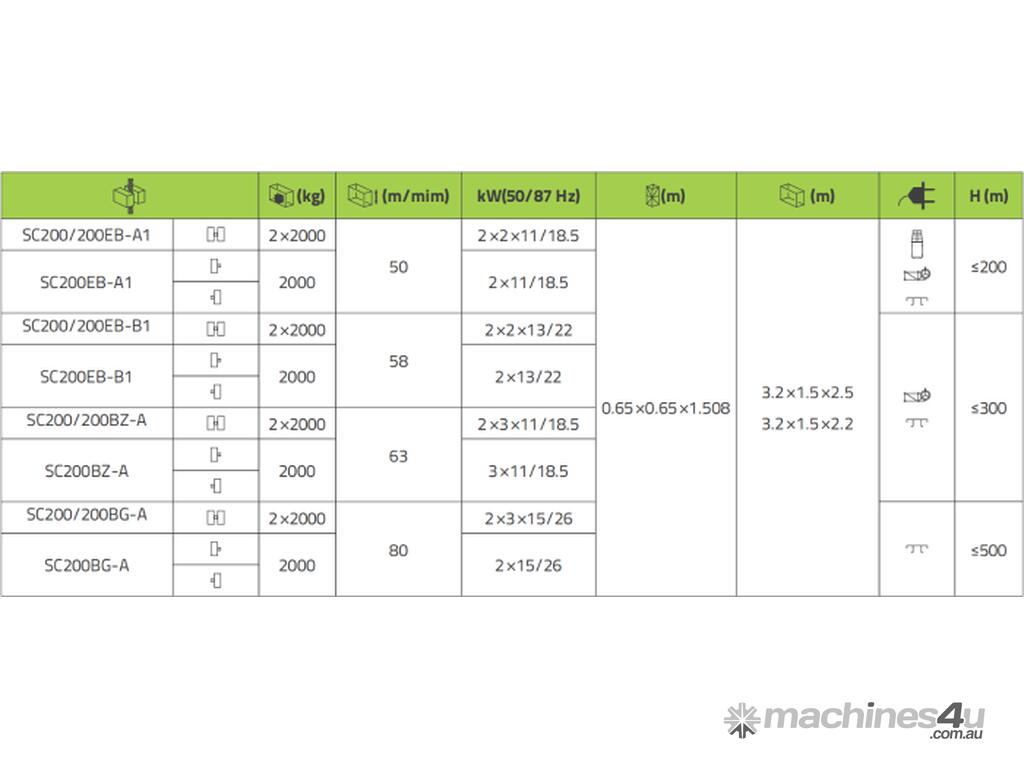

Capacity : 2000kg/cage
Speed : 50~80m/min
Cage Size : 3.2x1.5x2.2/2.5m
