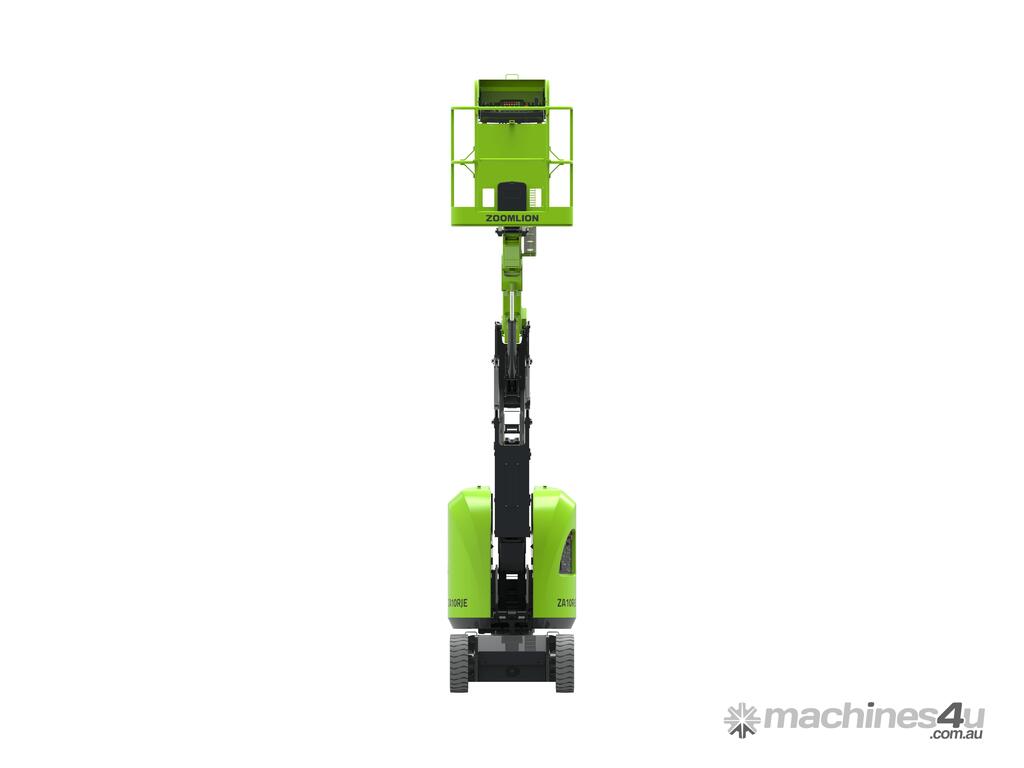

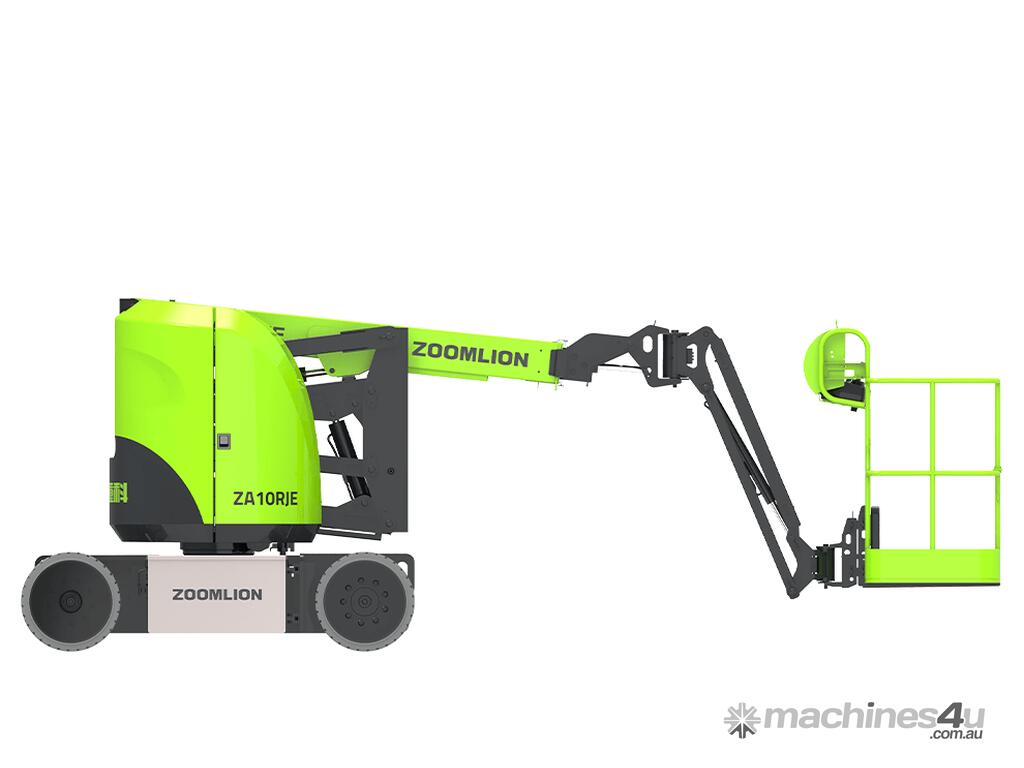

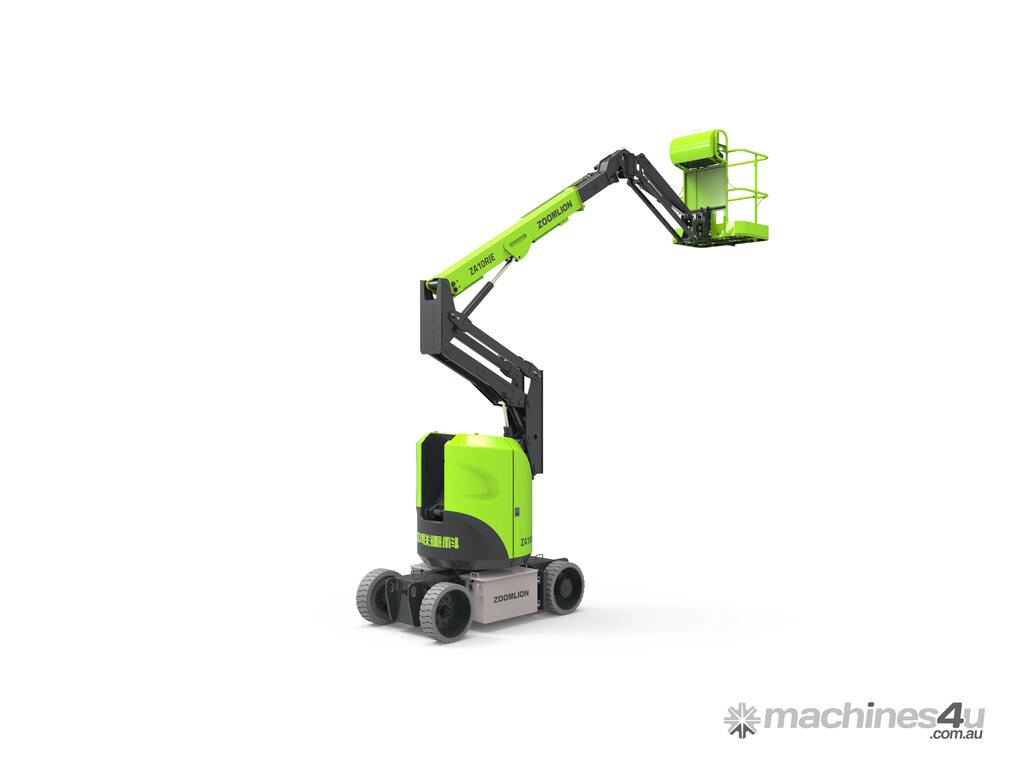

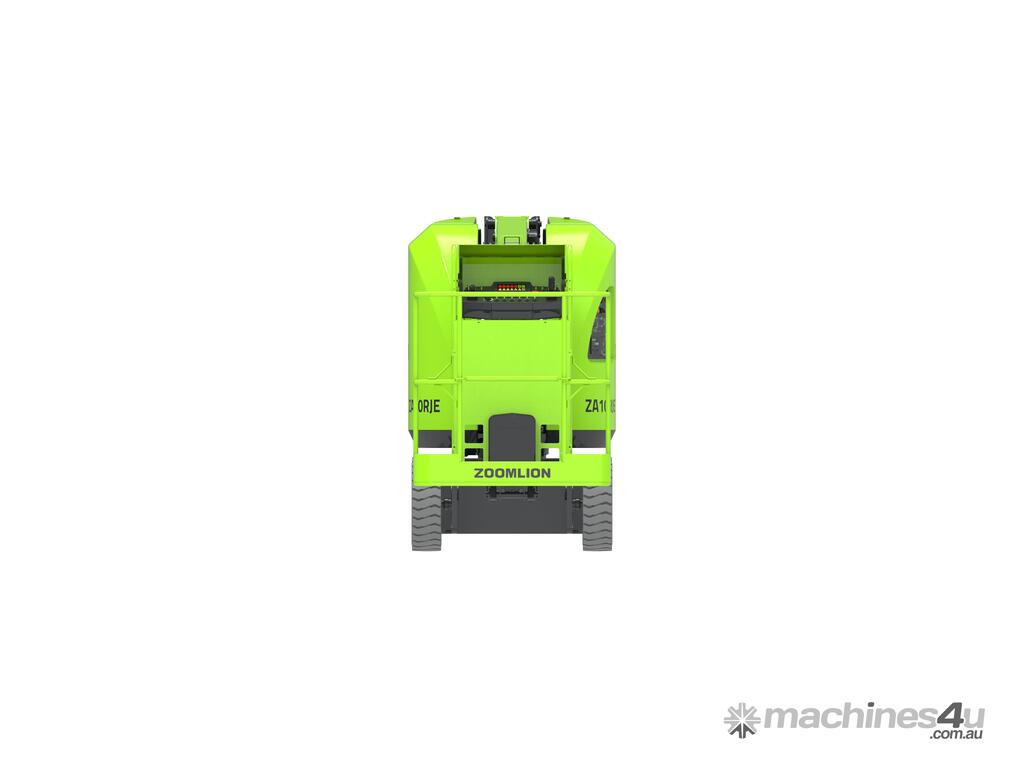

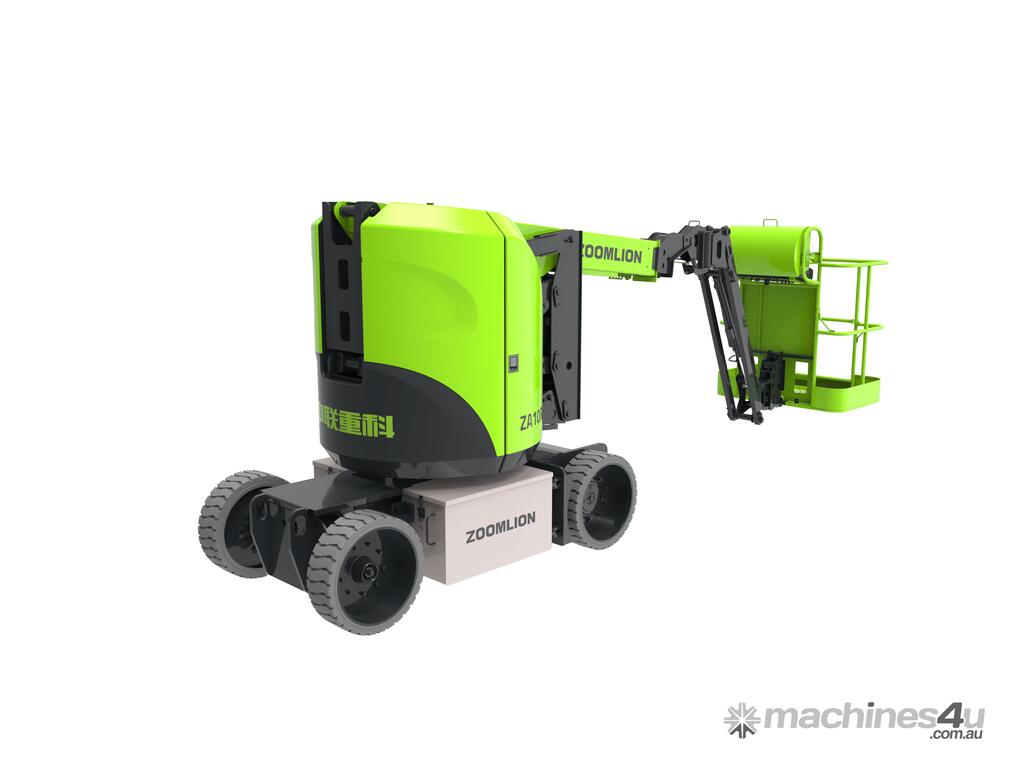

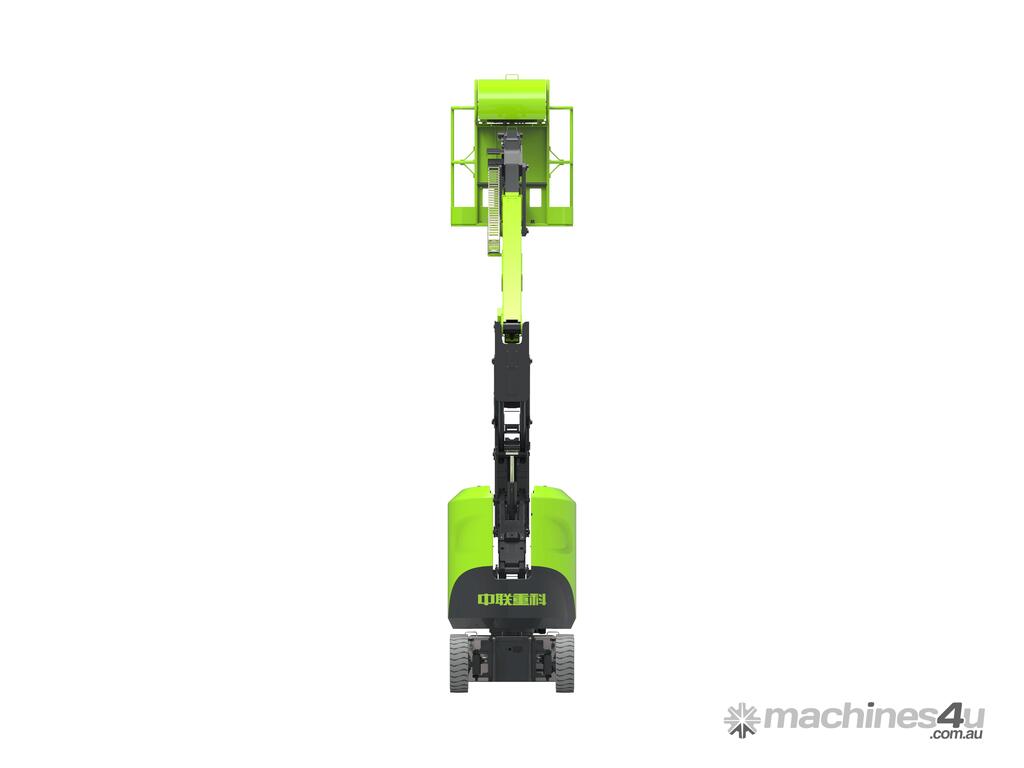

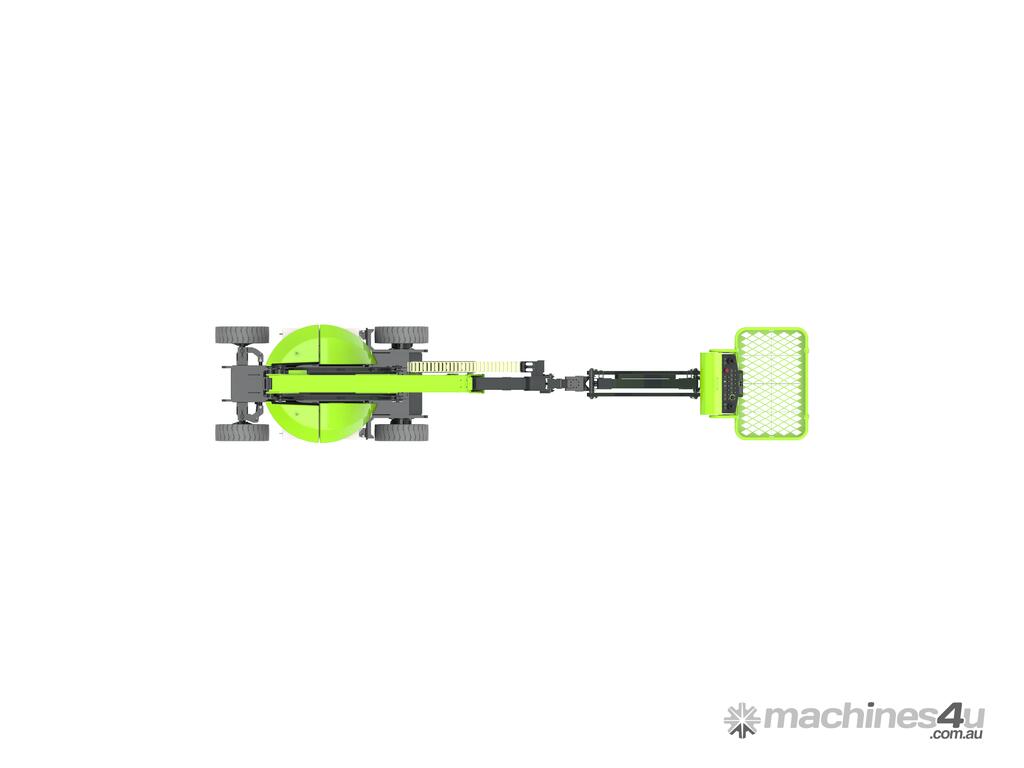

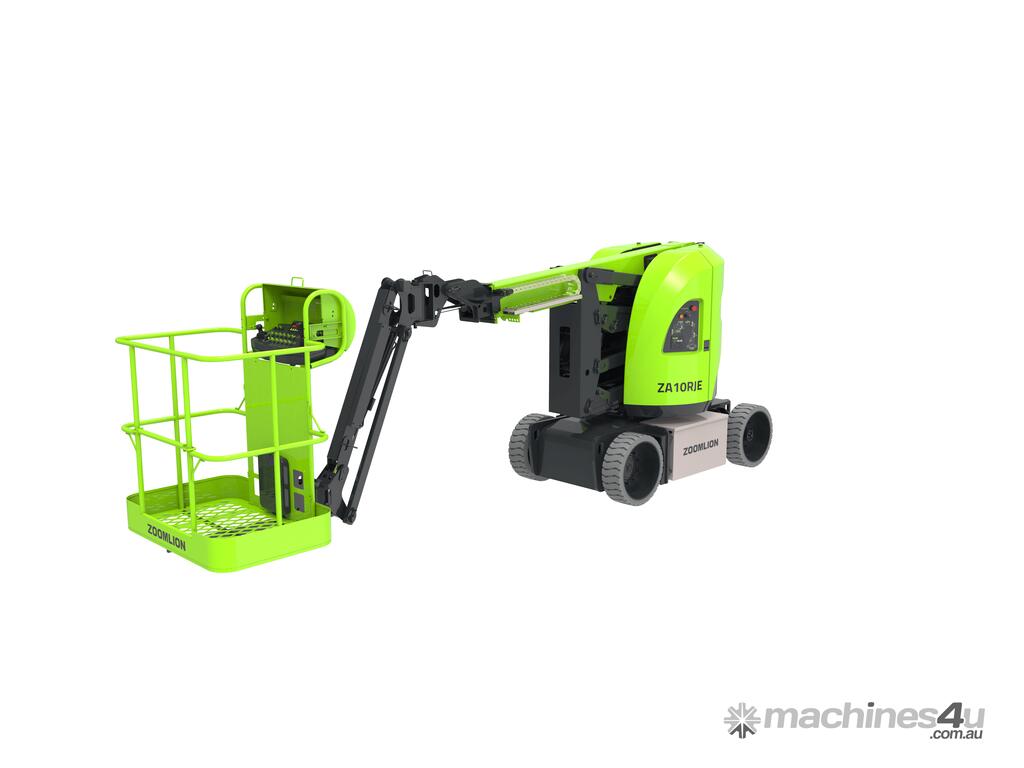

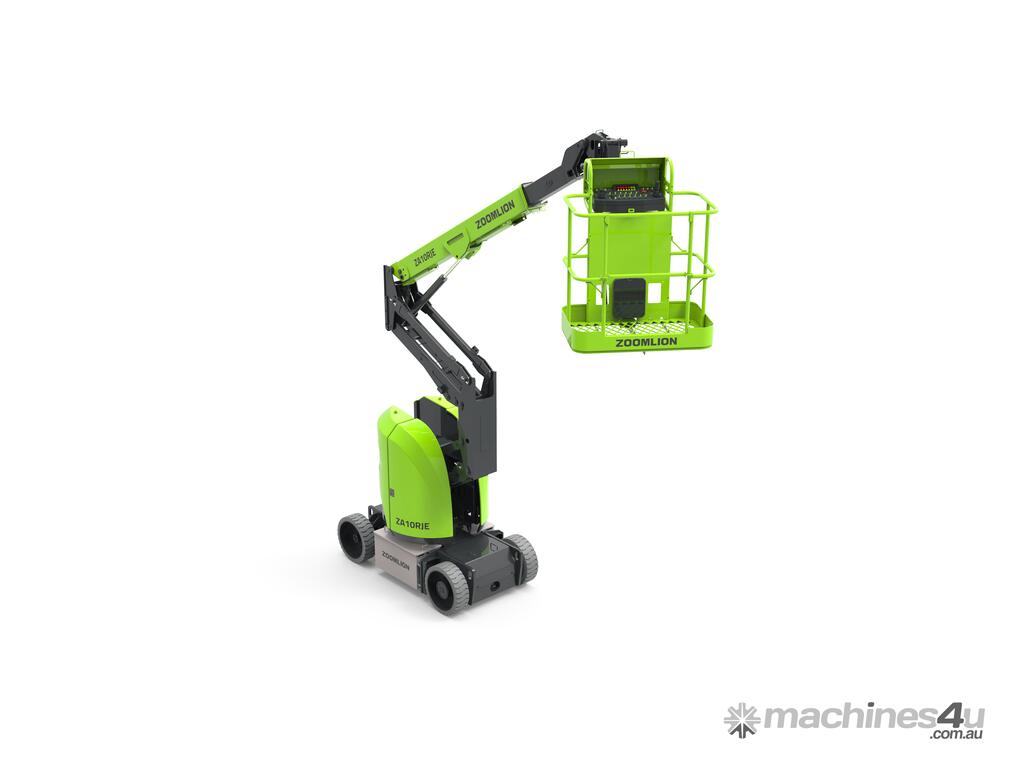

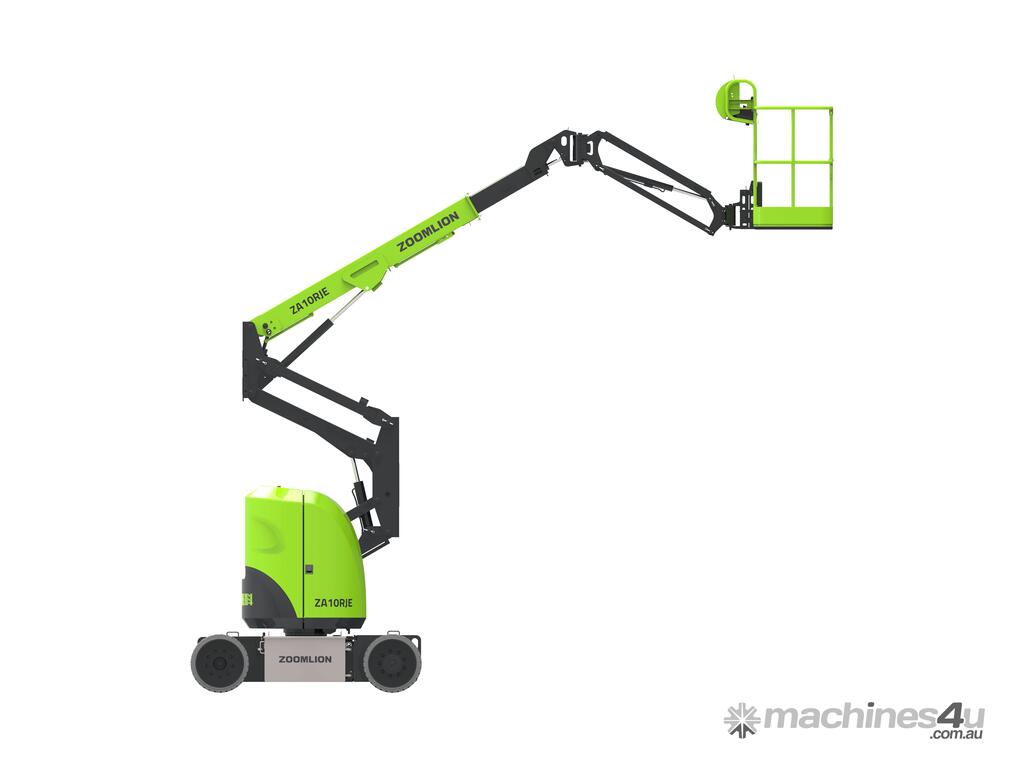

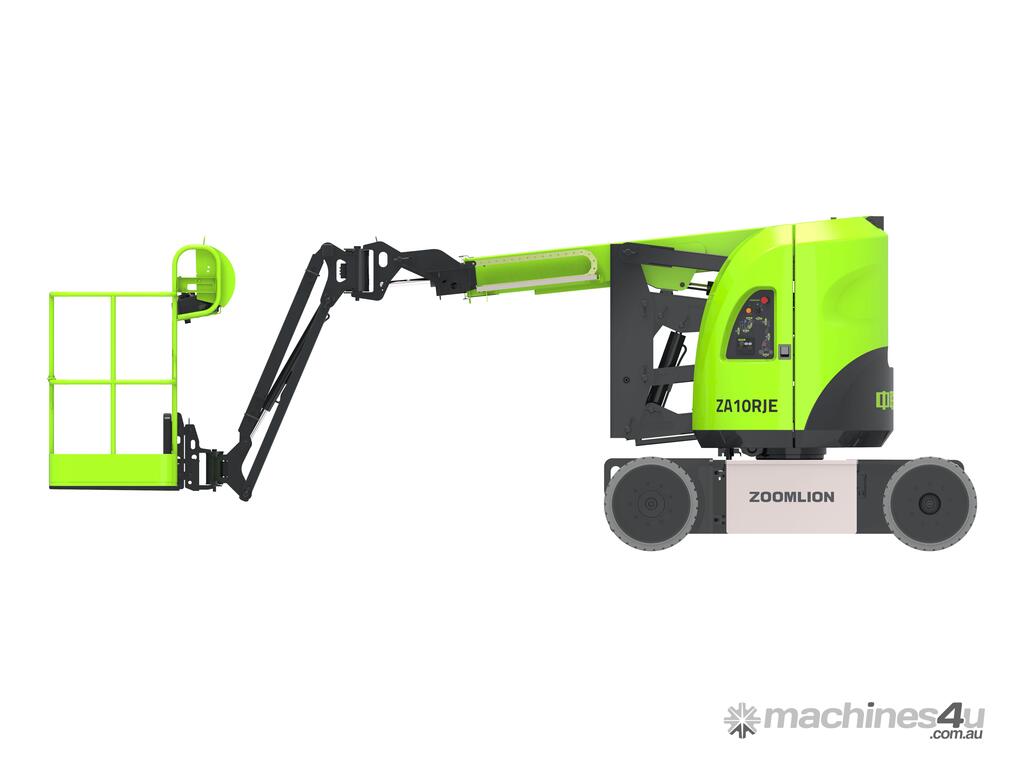

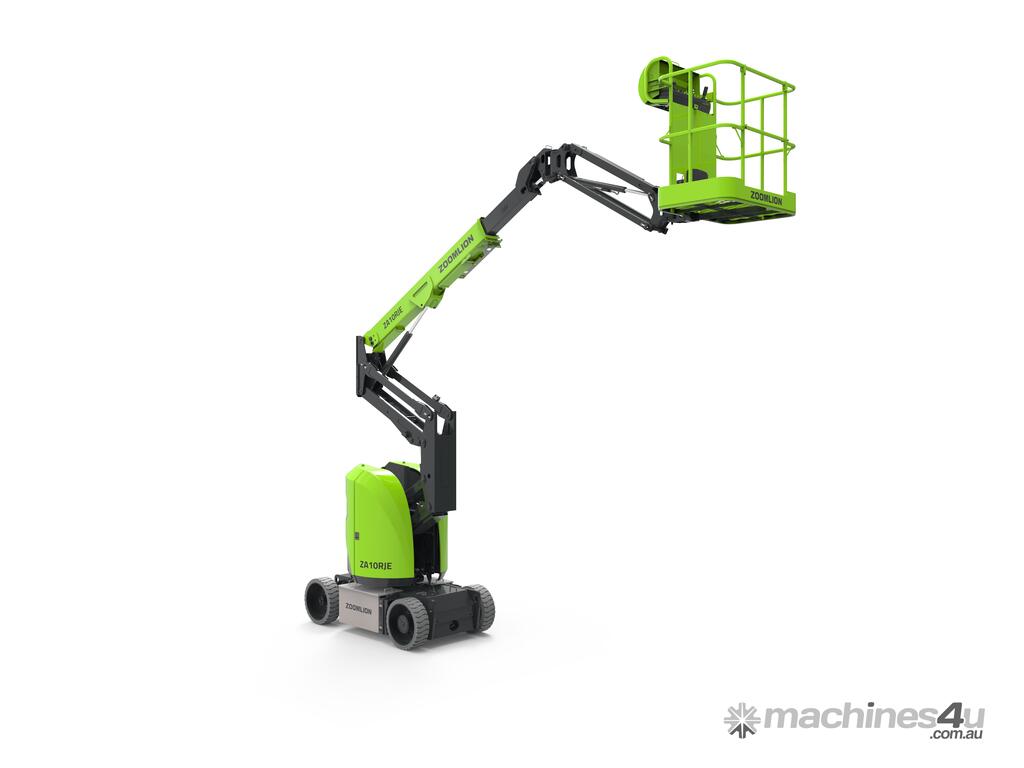

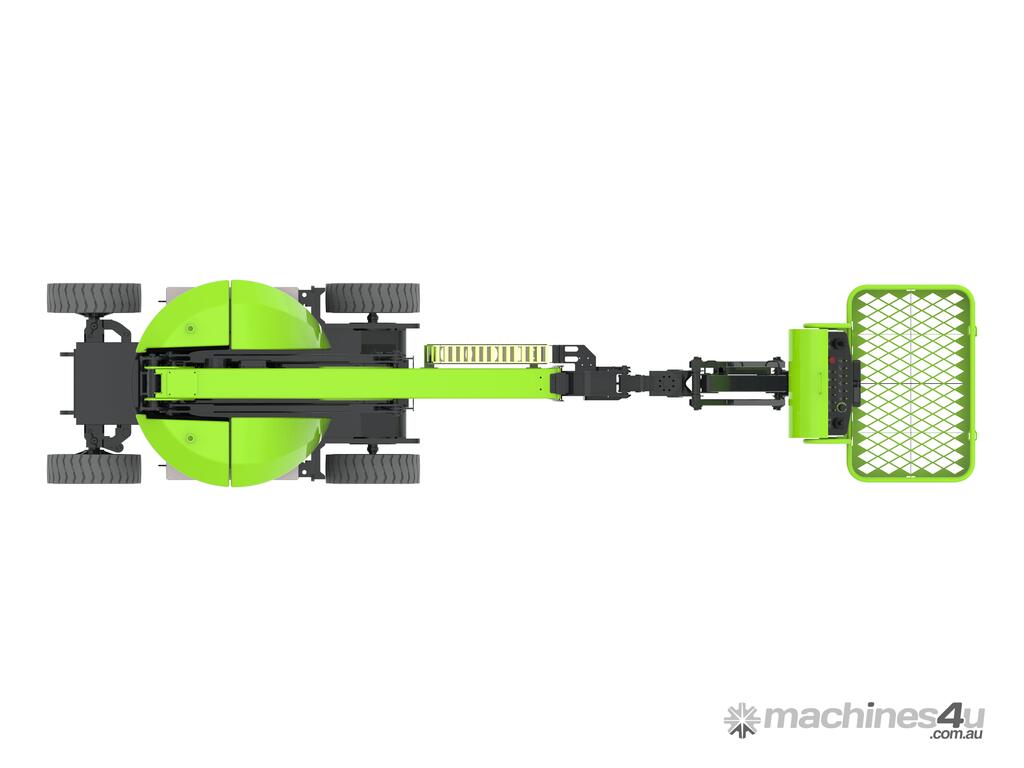

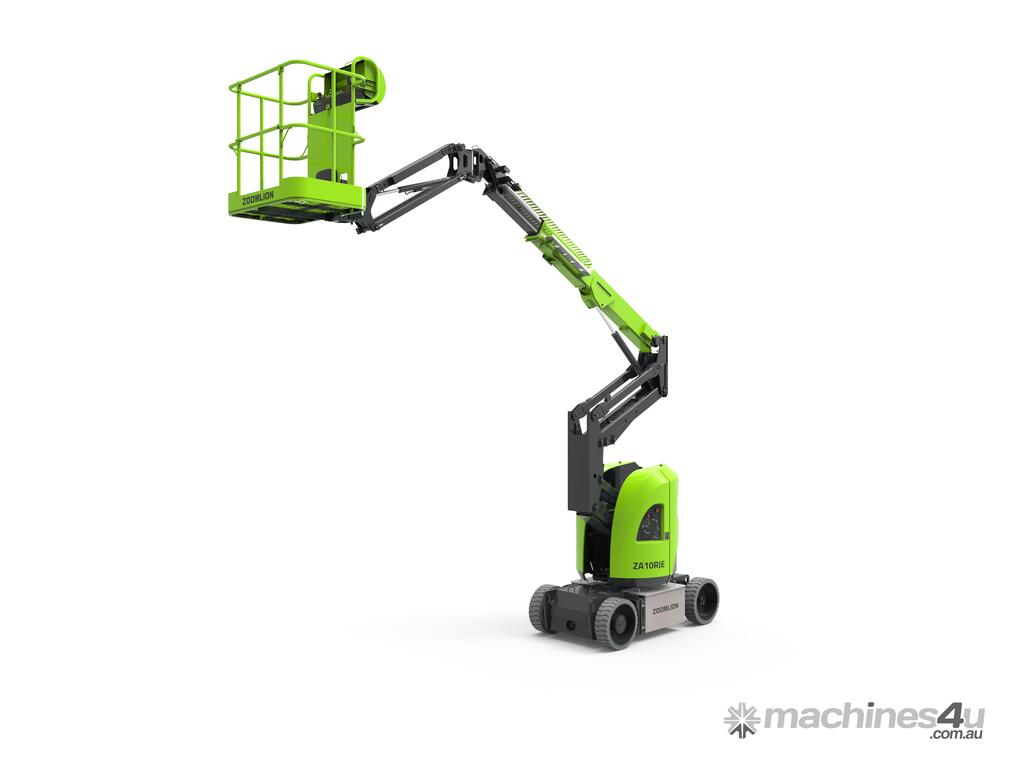

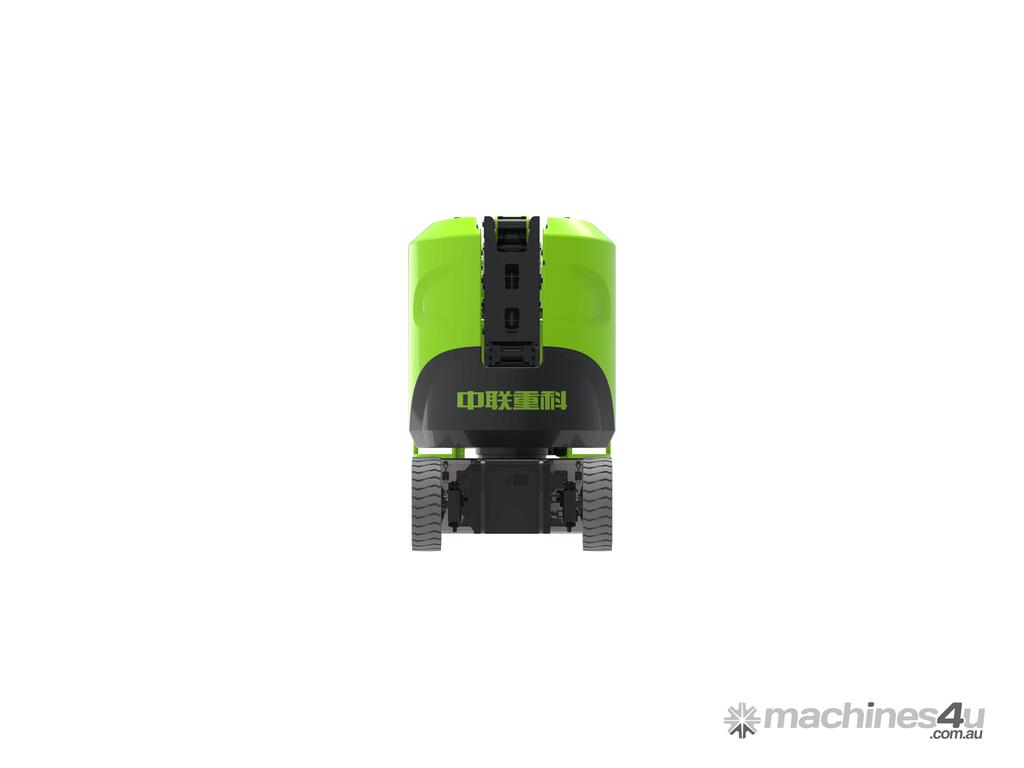

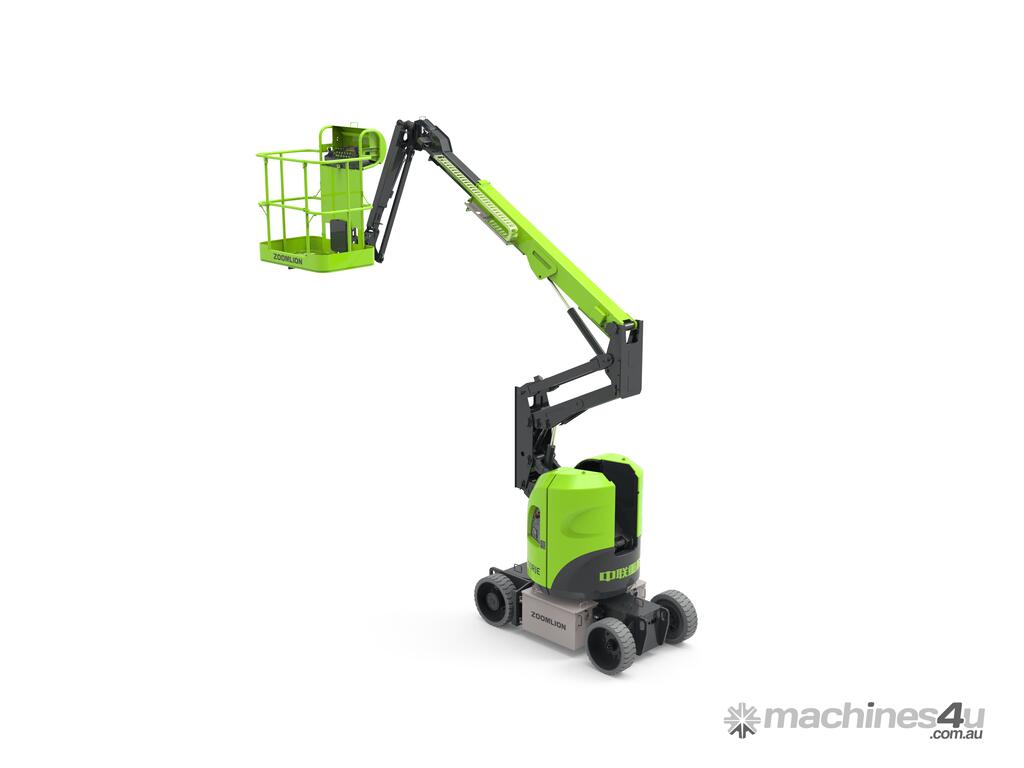

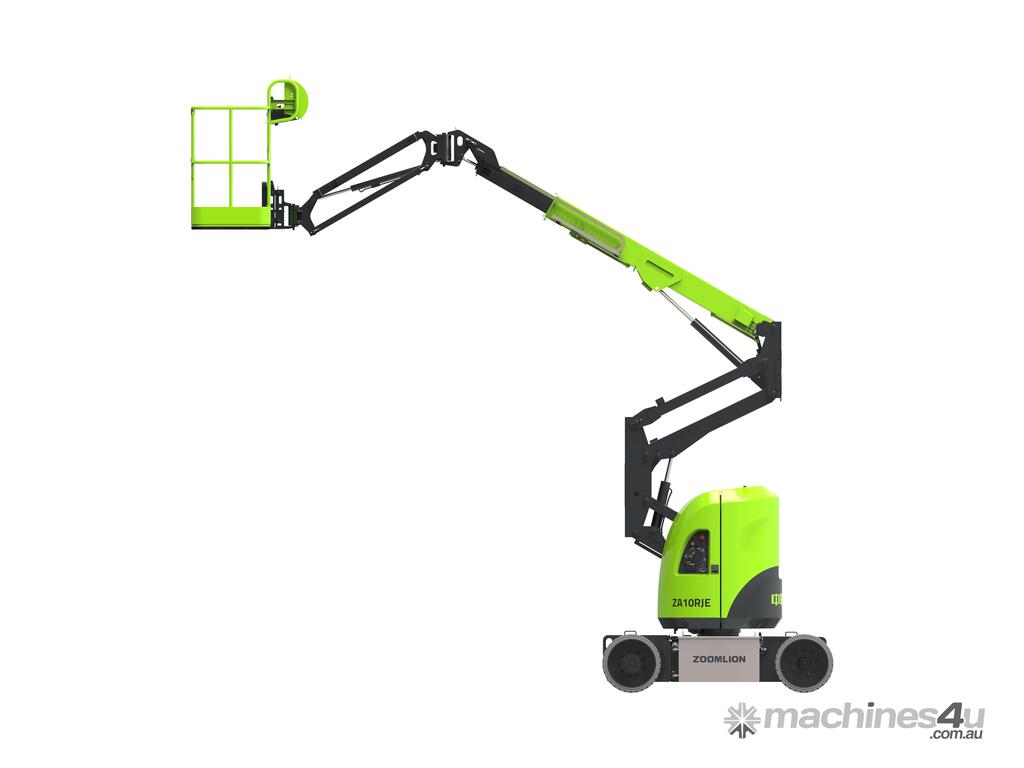

ZOOMLION ZA10RJE Electric Articulating Boom Lift

ZOOMLION ZA10RJE Electric Articulating Boom Lift.
Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.

ADVANTAGE INTRODUCTION
- Center layout, great structural rigidity, and small boom deflection
- Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control
- ±90degrees Jib rotation offers great up and over height
- Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions
- Tubular batteries feature long working time and lifespan, and easy for maintenance

Size
Work Height: 11.55m
Platform Height: 9.55m
Horizontal Outreach: 6.85m
Up and Over Height: 4.6m

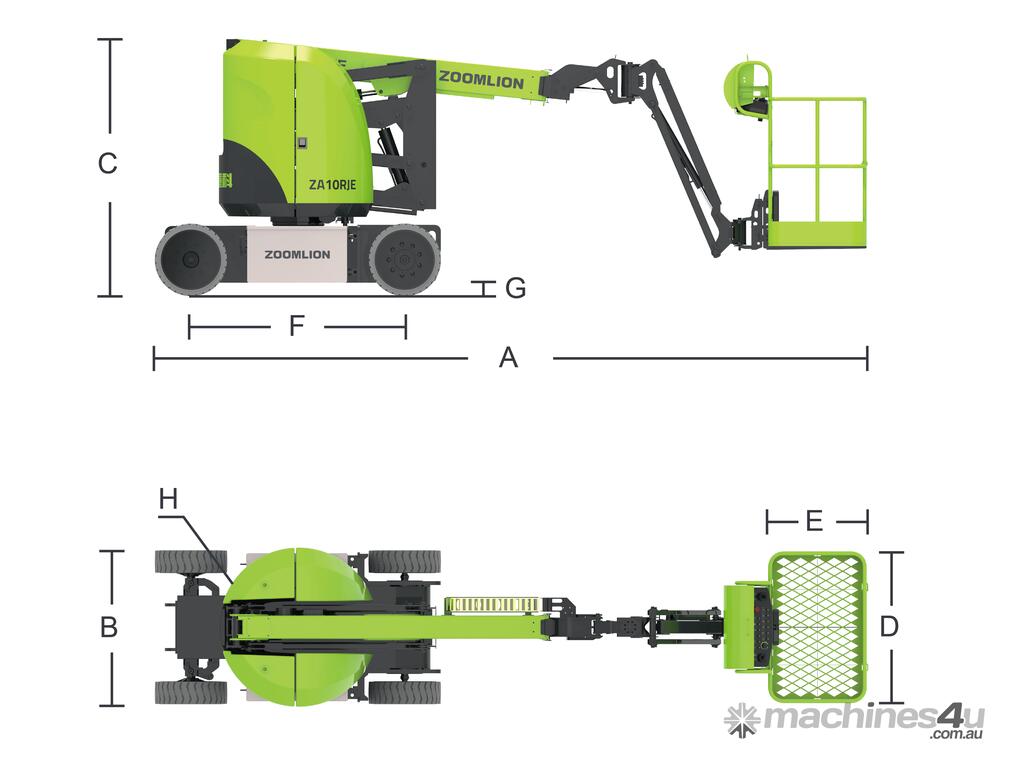

A - Stowed Length: 5.5m
B - Stowed Width: 1.19m
C - Stowed Height: 1.98m
D - Platform Length: 1.17m
E - Platform Width: 0.76m
F - Wheelbase: 1.65m
G - Ground Clearance: 0.1m
Jib length: 1.24m
Transport Length (jib tucked under): 3.95m
Transport Height (jib tucked under): 2.45m

Performance
Platform Capacity: 230kg
Drive Speed: 5km/h
Gradeability: 35% (19degrees)
Axles Oscillation: -
Turning Radius (Inside): 1.7m
Turning Radius (Outside): 3.25m
Jib Swing: 355degrees non-continuous
Turntable Swing: ±90degrees
Platform Rotation: ±90degrees
H-Tail Swing: 0m
Max. Working Slope: -
Max. Wind Speed: 12.5m/s

Power
Battery: 24x2V/330Ah
Charger: 48V/35A
Drive Motor: AC 32V/3.3kW
Lift Motor: DC 48V/4.5kW
Auxiliary Power: Electric pump DC
Hydraulic Tank Capacity: 15L

Tire
Type: 22x7x17.75 seamless tire

Weight
Gross: 6550kg

Features
Standard
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Over tilt protection system
- Solid seamless tire
- Load sensing system
- 4.3' LED display
- Horn
- Timer
- Jib rotation
- Vertical lifting function
- Thumb joystick for steering
- 35A battery smart charger
- Battery level display
- Low electric quantity protection

Option
- Platform light
- AC power to platform
- Airline to platform
- Electric auxiliary pump
- Platform console cover (Rated capacity reduced by 10kg)
- Anti-crushing device (Rated capacity reduced by 10kg)
