ZOOMLION ZA14J Diesel Articulating Boom Lift - 15.80m Work Height & 300kg Platform Capacity

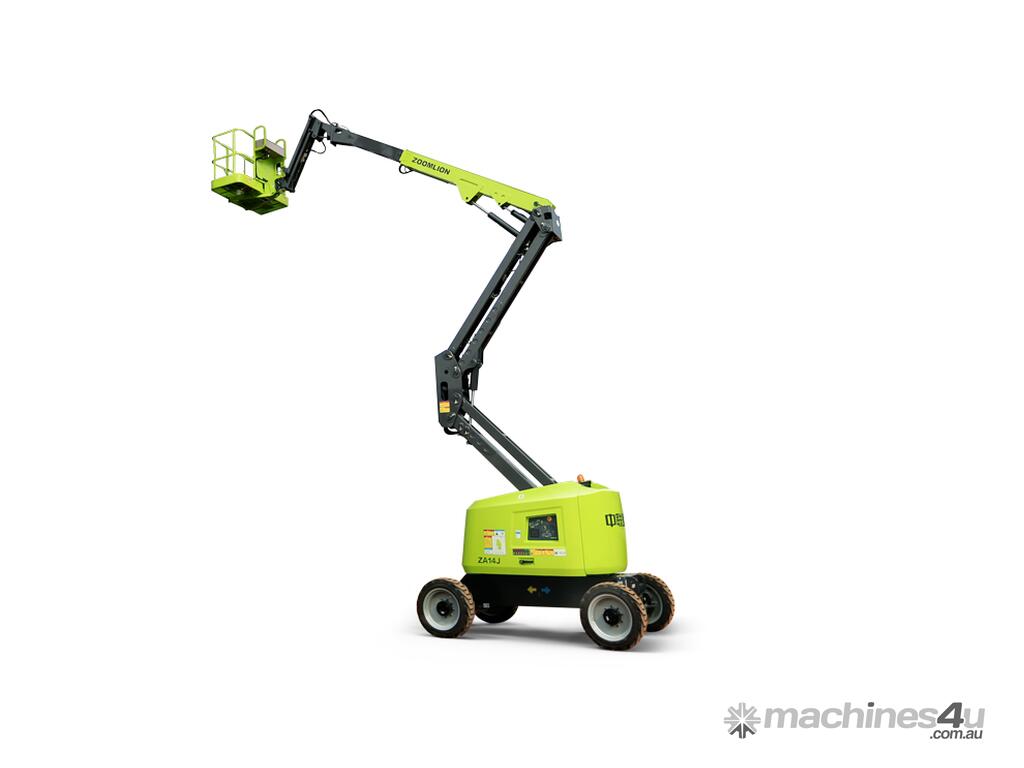

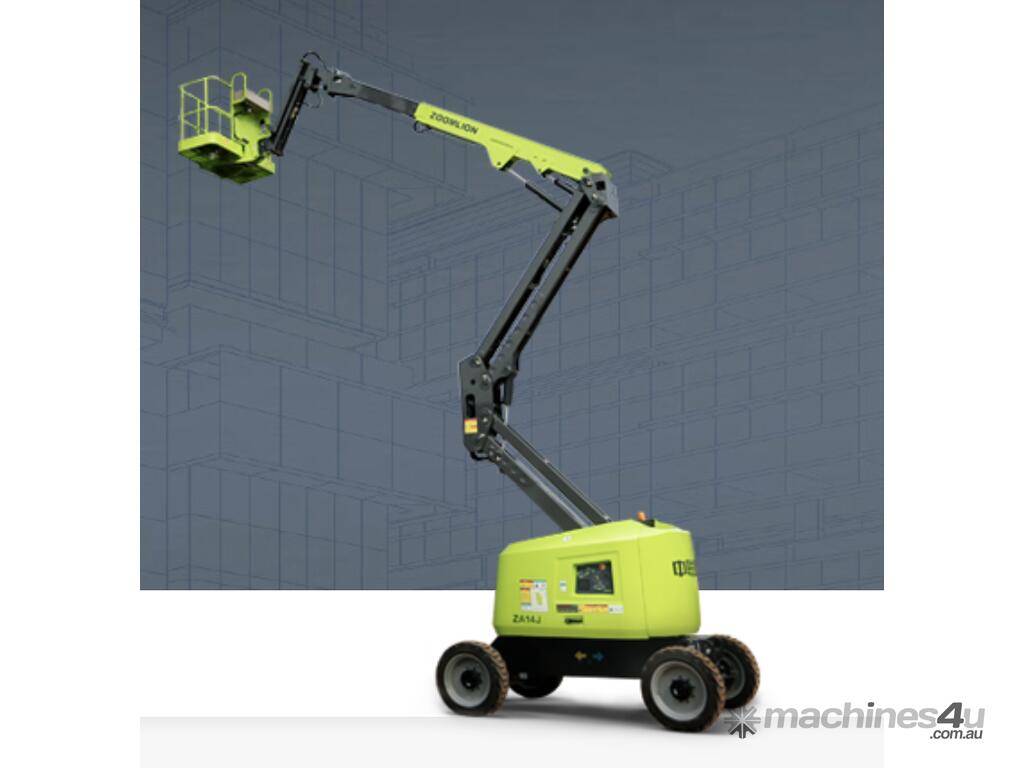

ZOOMLION ZA14J Diesel Articulating Boom Lift.
Diesel powered articulating boom lifts for precise position and extreme flexibility.

ADVANTAGE INTRODUCTION
- 300kg platform capacity for higher efficiency
- Build-in multiple pressure control leveling system to enhance stability
- Precise load sensing system to improve overload safety operations
- Integrated with rotary reducer to enhance rotation stability
- Hostile Kits available for dusty working environment
- Deadweight Lowering System for smooth operation and energy efficiency

Size
Work Height: 15.80m
Platform Height: 13.80m
Horizontal Outreach: 8.30m
Up and Over Height: 7.55m

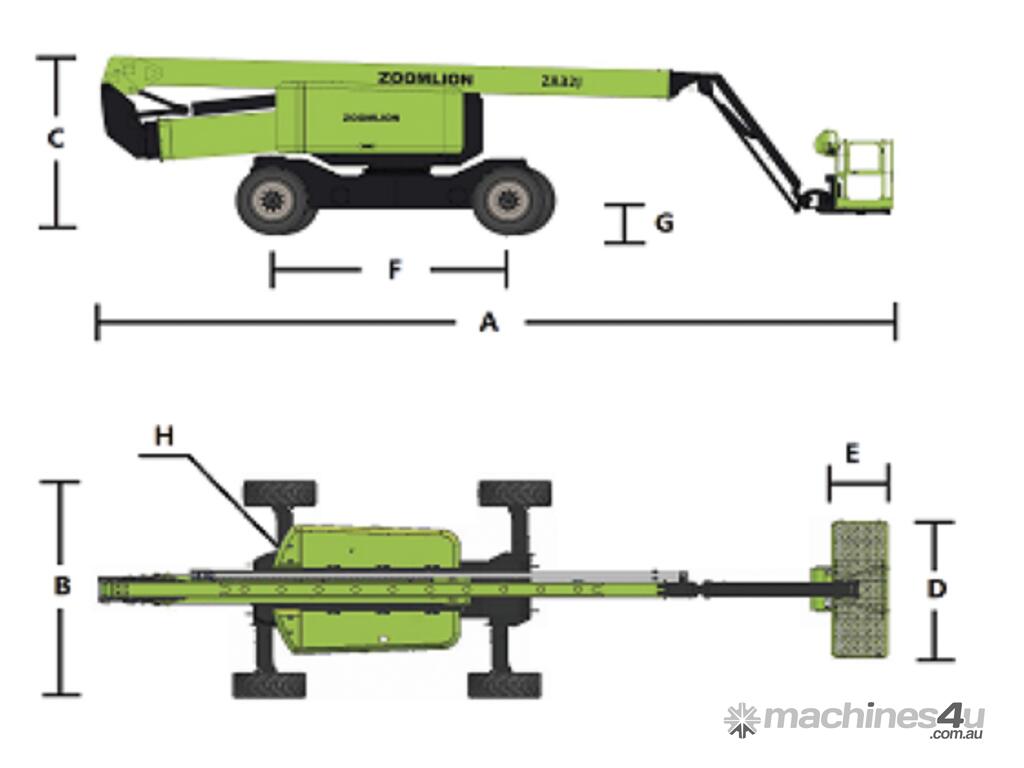

A - Stowed Length: 6.57m
B - Stowed Width: 2.30m
C - Stowed Height: 2.27m
D - Platform Length: 1.83m
E - Platform Width: 0.76m
F - Wheelbase: 2.36m
G - Ground Clearance: 0.42m

Performance
Platform Capacity: 300kg
Drive Speed: 6.8km/h
Gradeability: 45%(24degrees)
Axles Oscillation: 0.1m
Turning Radius (Inside): 2.06m
Turning Radius (Outside): 4.78m
Turntable Swing: 355degrees non-continuous
Platform Rotation: ±90degrees
H-Tail Swing: 0
Max. Working Slope: -
Max. Wind Speed: 12.5m/s

Power

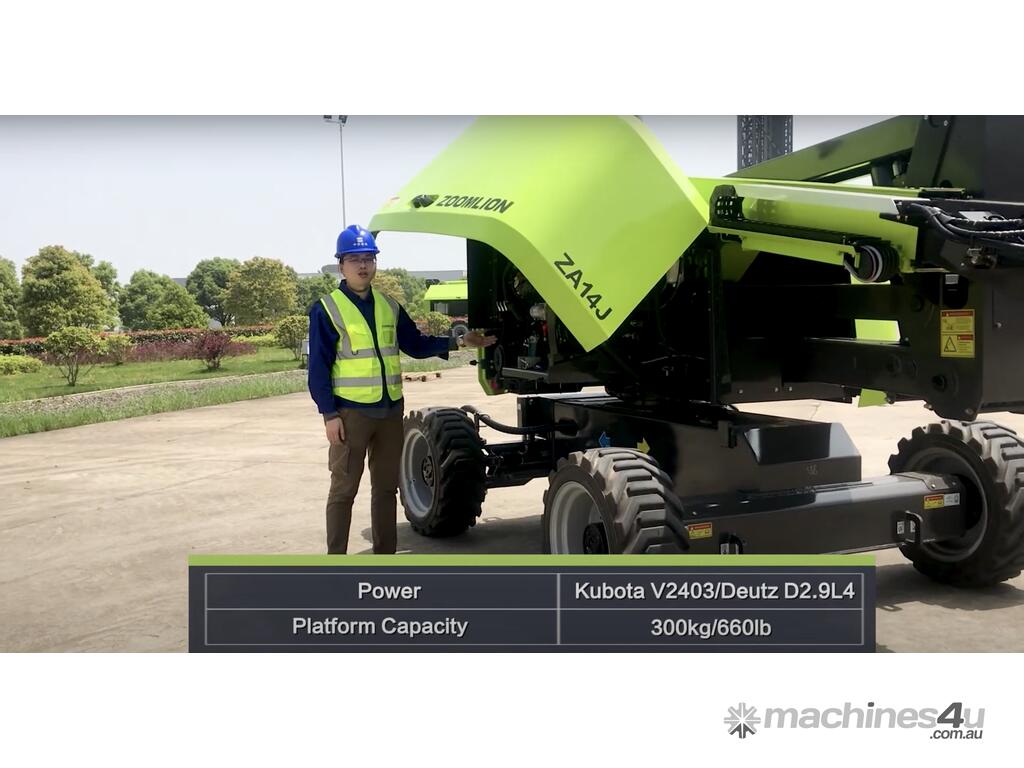

Diesel Engine: Kubota V2403 36kw/2600rpm, Kubota V2403 36.8kw/2700rpm(EU V)
Engine Power: -
Fuel Tank Capacity: 65L
Auxiliary Power: 12V
Control Voltage: 12V
Hydraulic System Capacity: 150L
Hydraulic Tank Capacity: 76L

Tire
Type: 315/55 D20 Foam-filled Tires 33x12-20 Solid Tires

Weight
Gross: 7100kg

Features
Standard
- Horn
- All motion alarm
- Proportional control
- Self-closing entry gate
- Flashing beacon
- Auto-leveling system
- Emergency stop button
- Over tilt protection system
- Emergency descent system
- On-board diagnostic system
- Oscillating axle
- 4.3' LED display
- Load sensing system
- Swing-out engine tray

Option
- Platform work lights
- Anti-collision device
- AC power to platform
