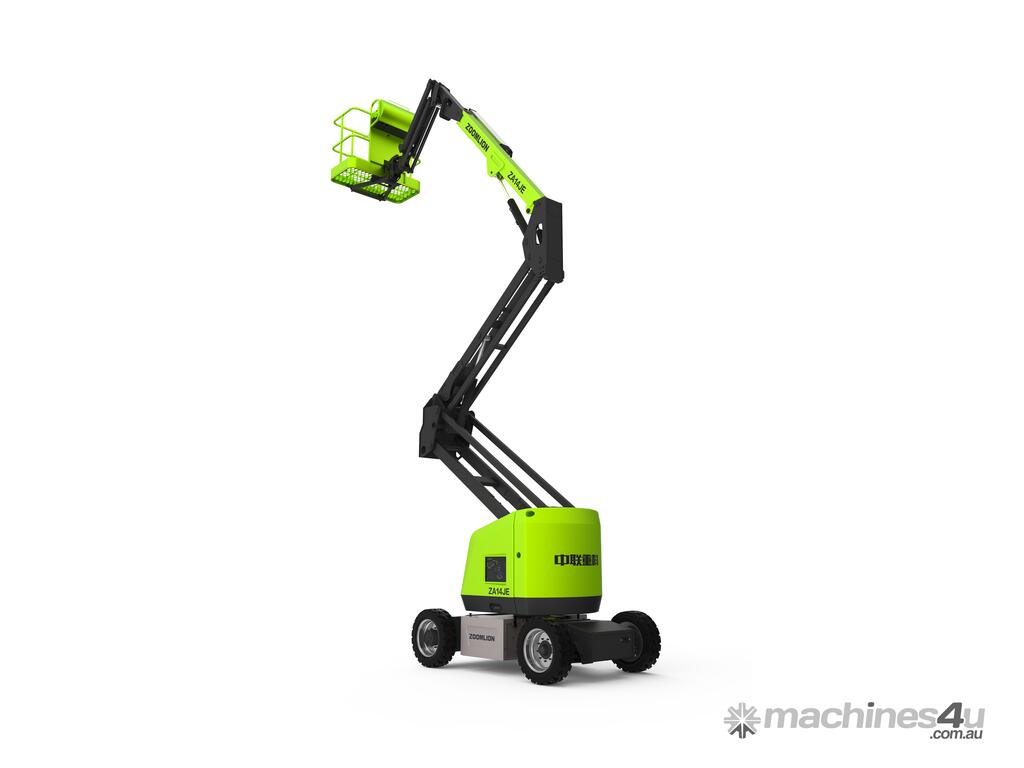

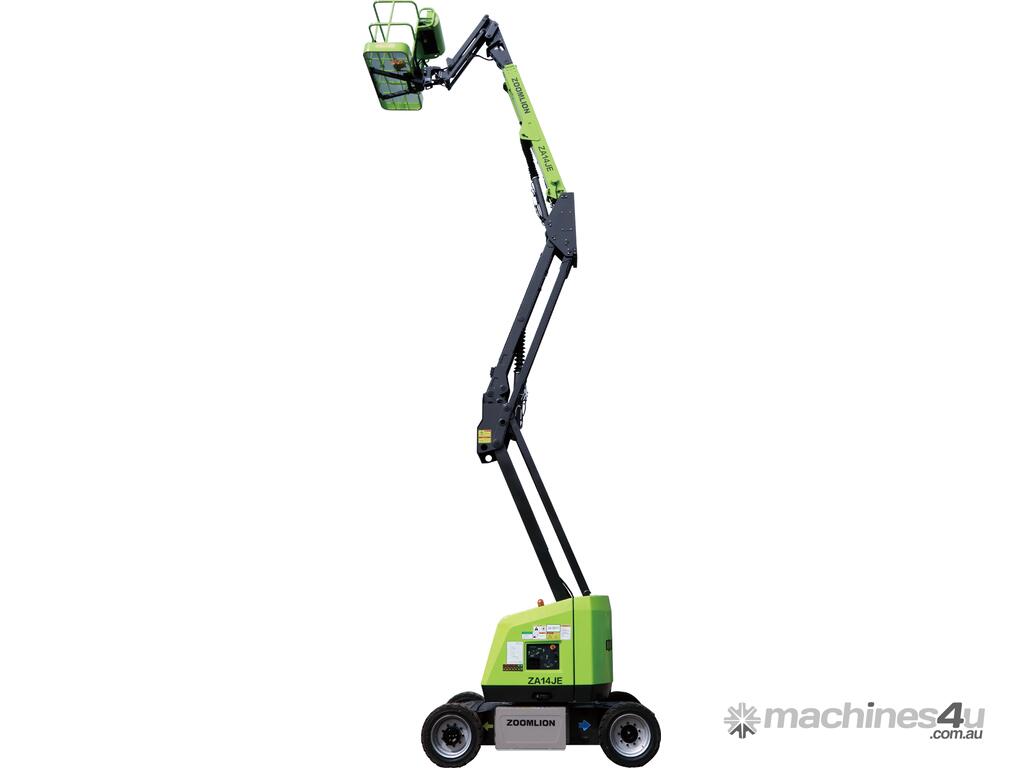

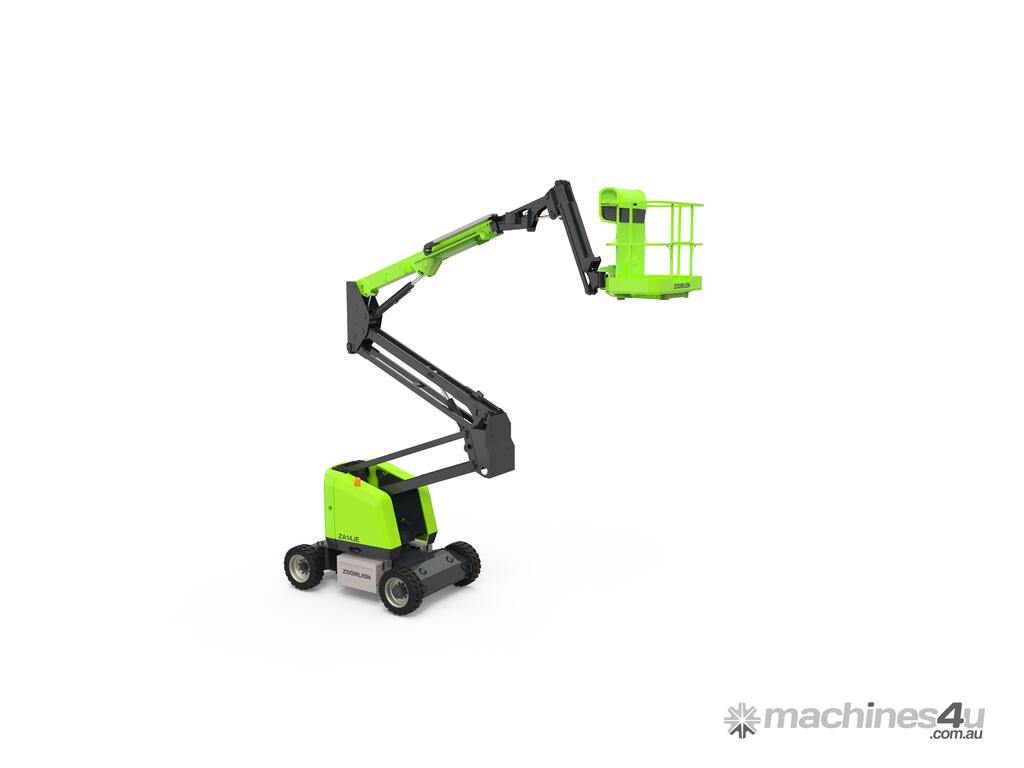

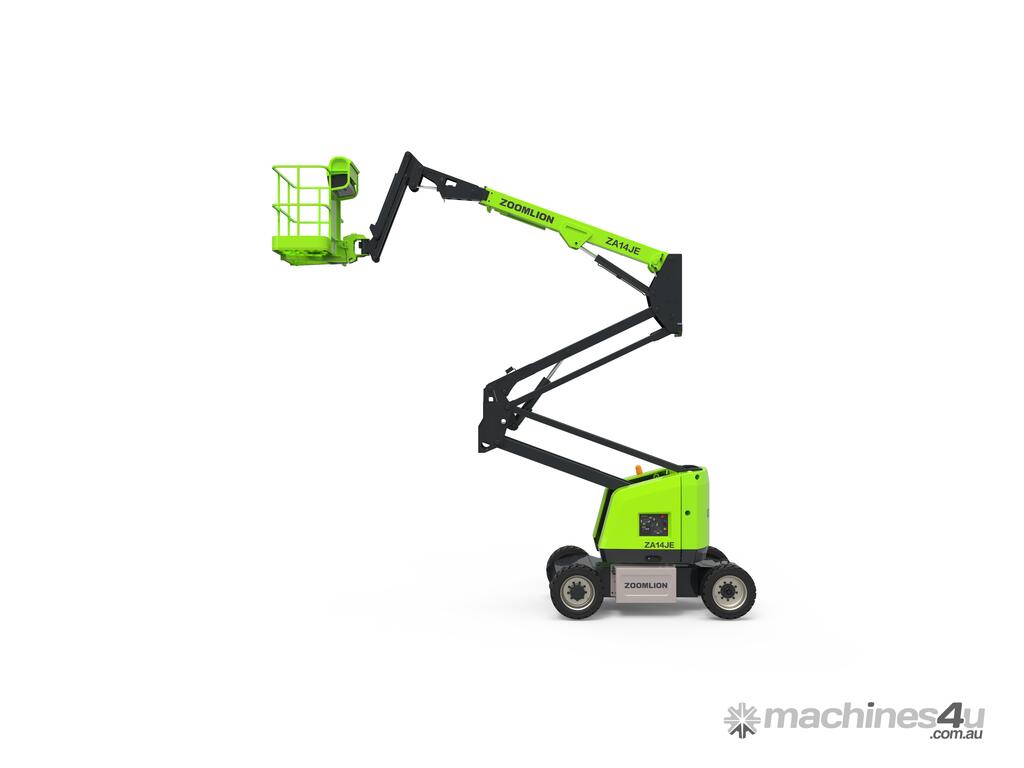

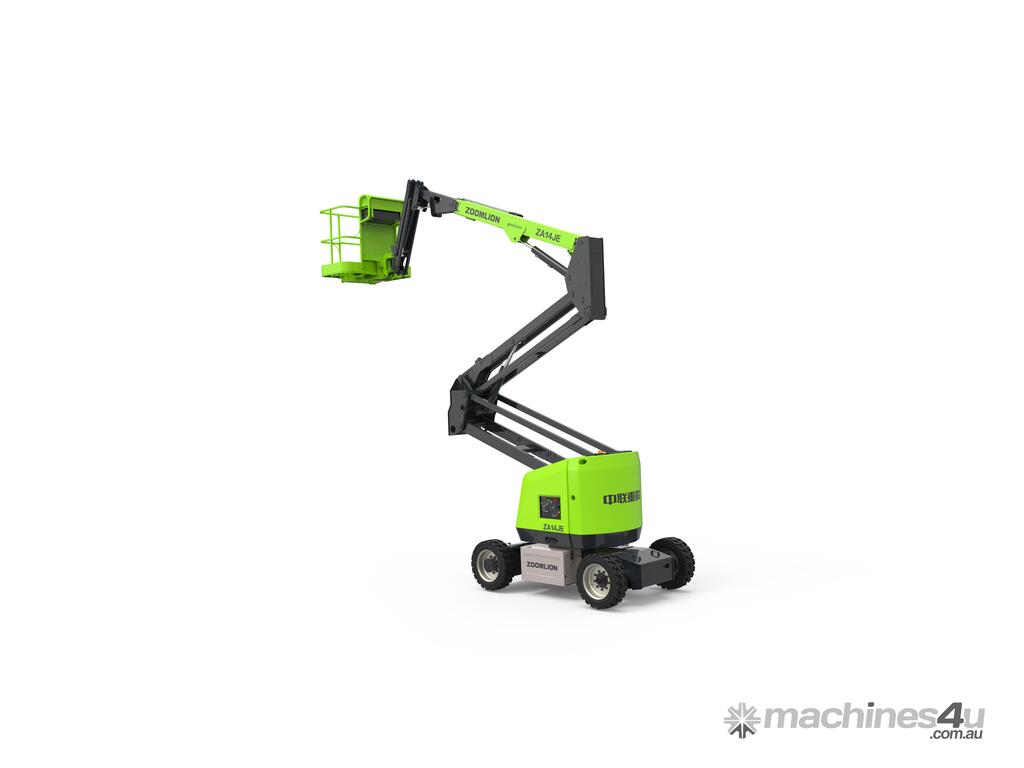

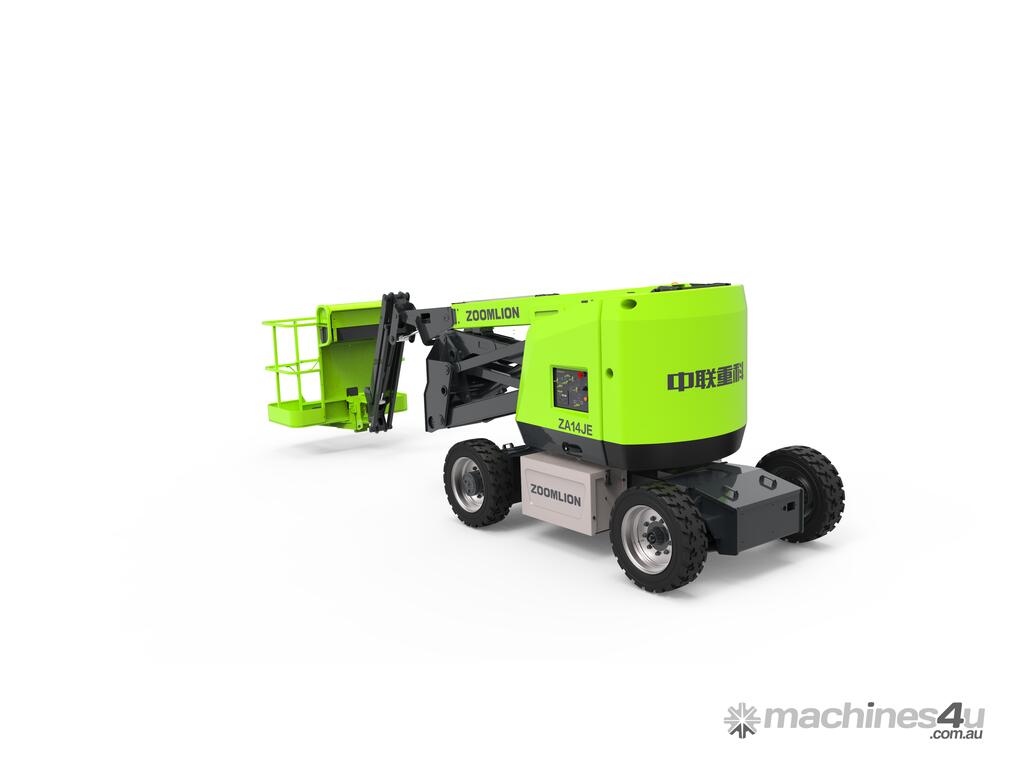

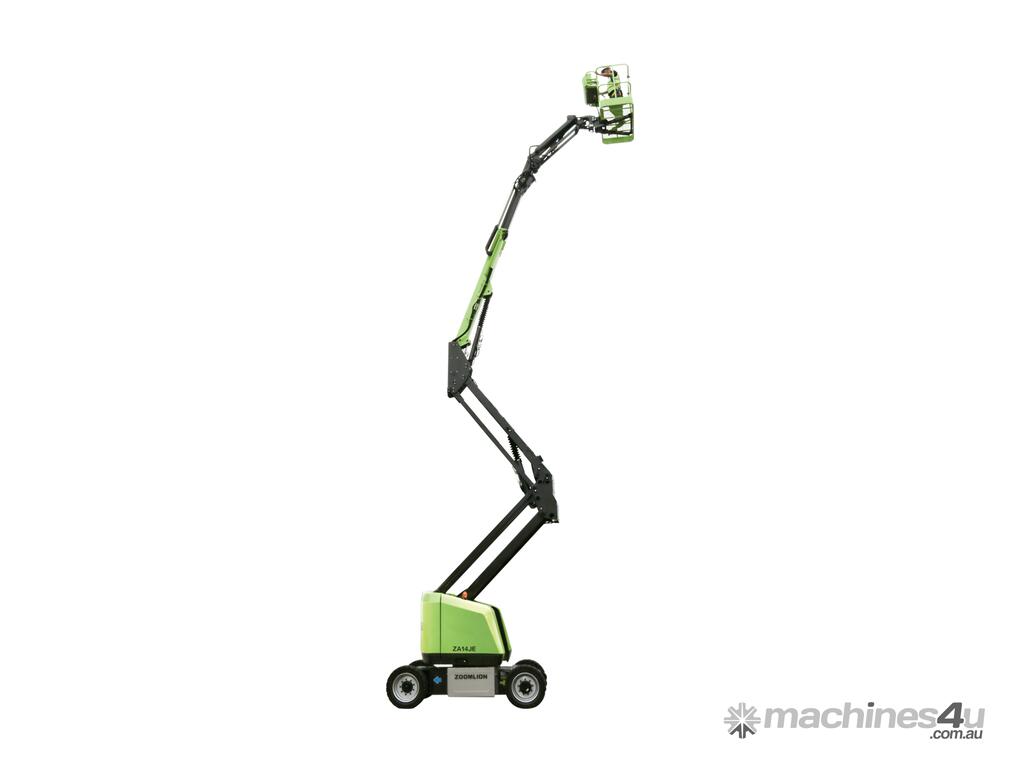

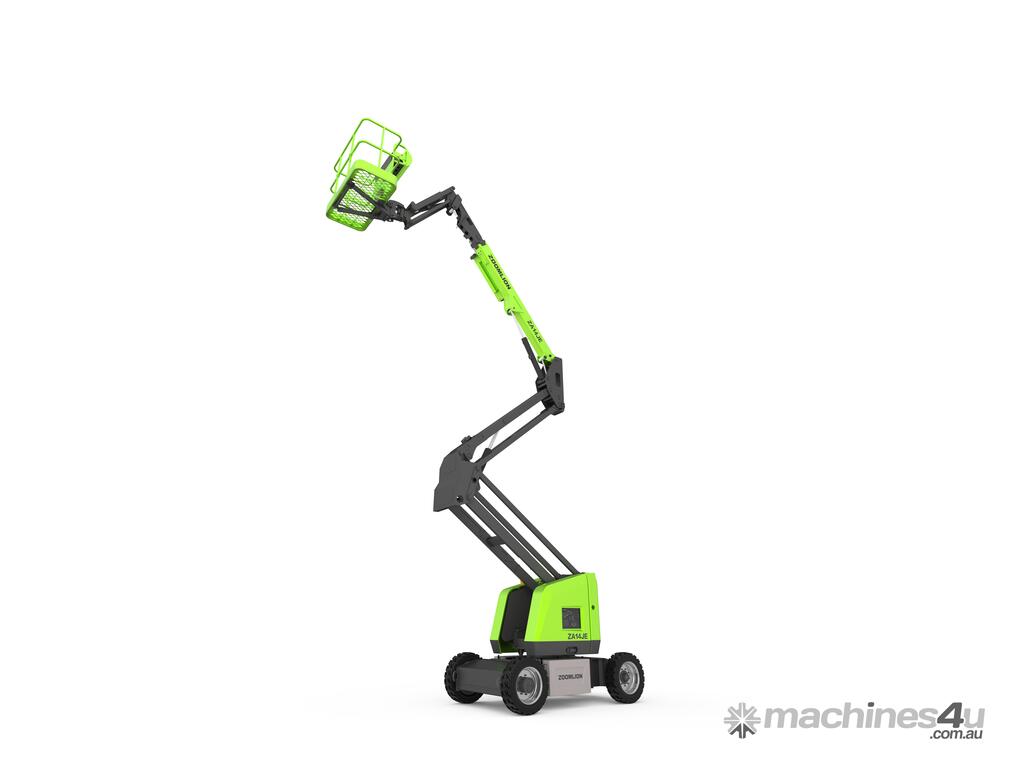

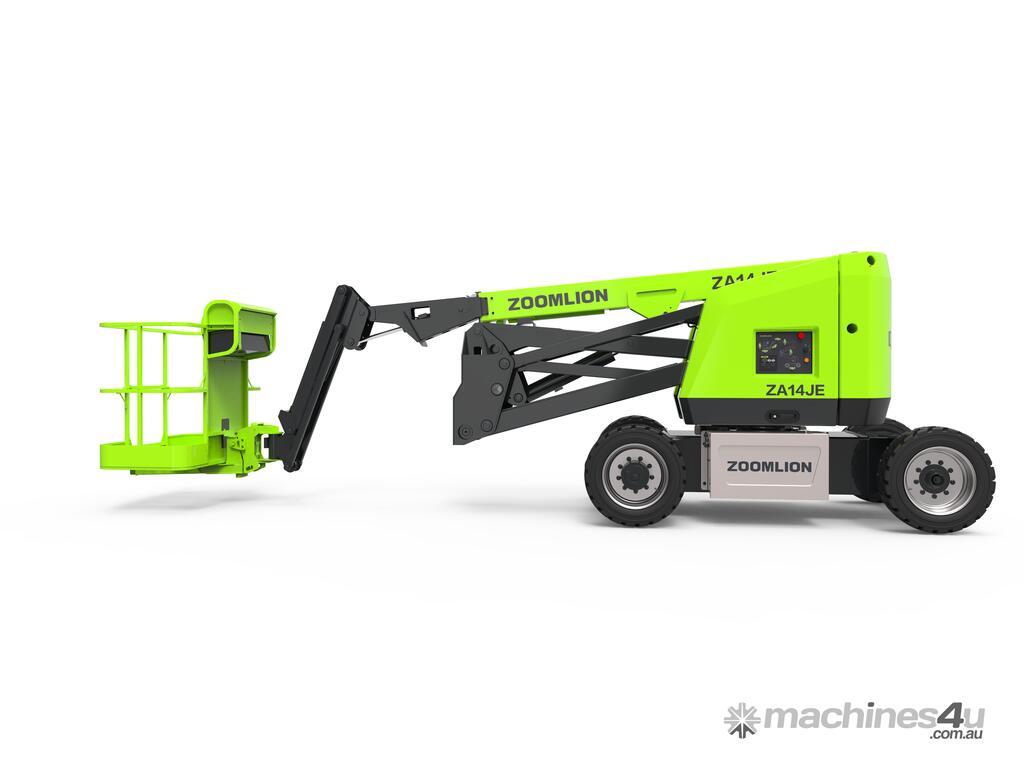

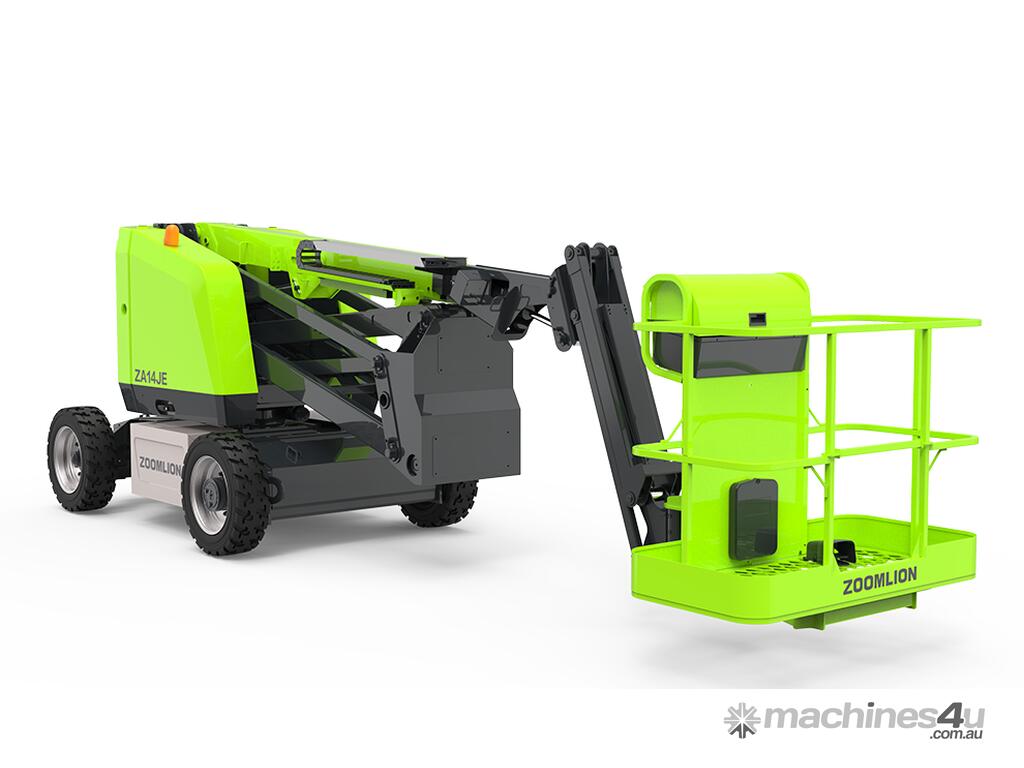

ZOOMLION ZA14JE Electric Articulating Boom Lift

ZOOMLION ZA14JE Electric Articulating Boom Lift.
ZA14JE adopts a center layout and has a great structural rigidity. Excellent energy management system gives longer running time and improved battery life. Features accurate and efficient AC drive system to provide strong power and smooth control. The advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control. Low noise, zero emission, long battery life and easy maintenance ideal for indoor jobsite.

ADVANTAGE INTRODUCTION
- Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control.
- Accurate and efficient traveling AC drive system provides strong power and stable control
- Large capacity tube battery + fast charger for longer battery lift of 5 years and working time, the charging time is less than 8 hours.
- Only model with standard 360degreescontinuous rotation in the same meter class features higher work efficiency.

Size
Work Height: 16m
Platform Height: 14m
Horizontal Outreach: 8.10m
Up and Over Height: 7.74m
A - Stowed Length: 6.6m
B - Stowed Width: 1.75m
C - Stowed Height: 2m
D - Platform Length: 1.52m
E - Platform Width: 0.76m
F - Wheelbase: 2.05m
G - Ground Clearance: 0.20m

Performance
Platform Capacity: 230kg
Drive Speed: 6.1km/h
Gradeability: 30%(17degrees)
Axles Oscillation: /
Turning Radius (Inside): 0.79m
Turning Radius (Outside): 3.15m
Turntable Swing: 360degrees non-continuous
Platform Rotation: ±90degrees
H-Tail Swing: 0m
Max. Working Slope: 3degrees/4degrees
Max. Wind Speed: 12.5m/s

Power
Battery: 24x2V/320Ah (C5)
Charger: 48V/35A 48V/60A
Drive Motor: AC 32V
Lift Motor: DC 48V
Auxiliary Power: Manual Pump
Hydraulic Tank Capacity: 30L

Tire
Type: 250/15 Solid Tires

Weight
Gross: 6800kg

Features
Standard
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Over tilt protection system
- Oscillating axle (ZA20JE)
- Load sensing system
- 4.3' LED display
- Horn

Option
- AC power to platform
- Airline to platform
- 2.44x0.91m/8ftx2.98ft work platform (ZA20JE)
- Non-marking tire
