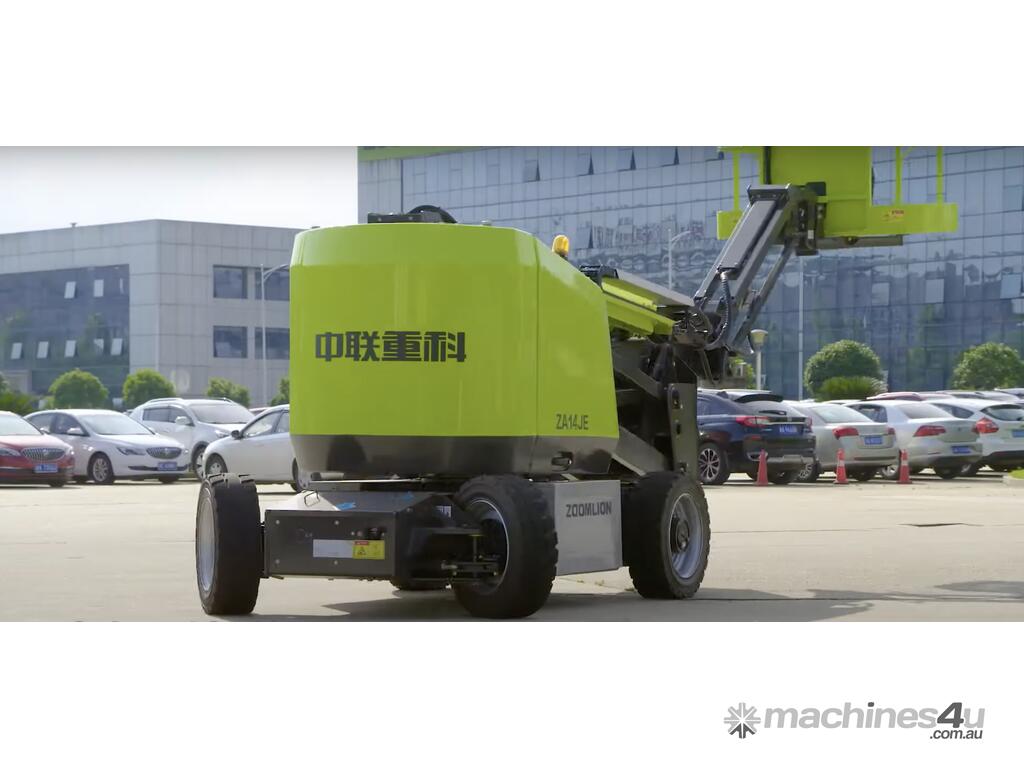

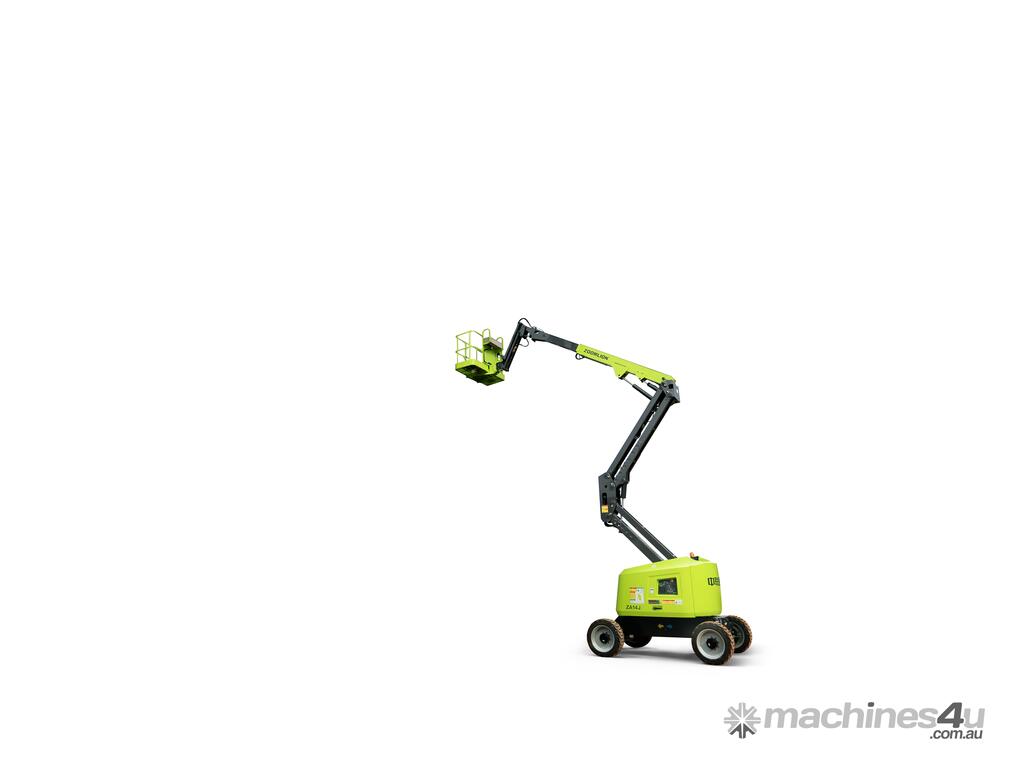

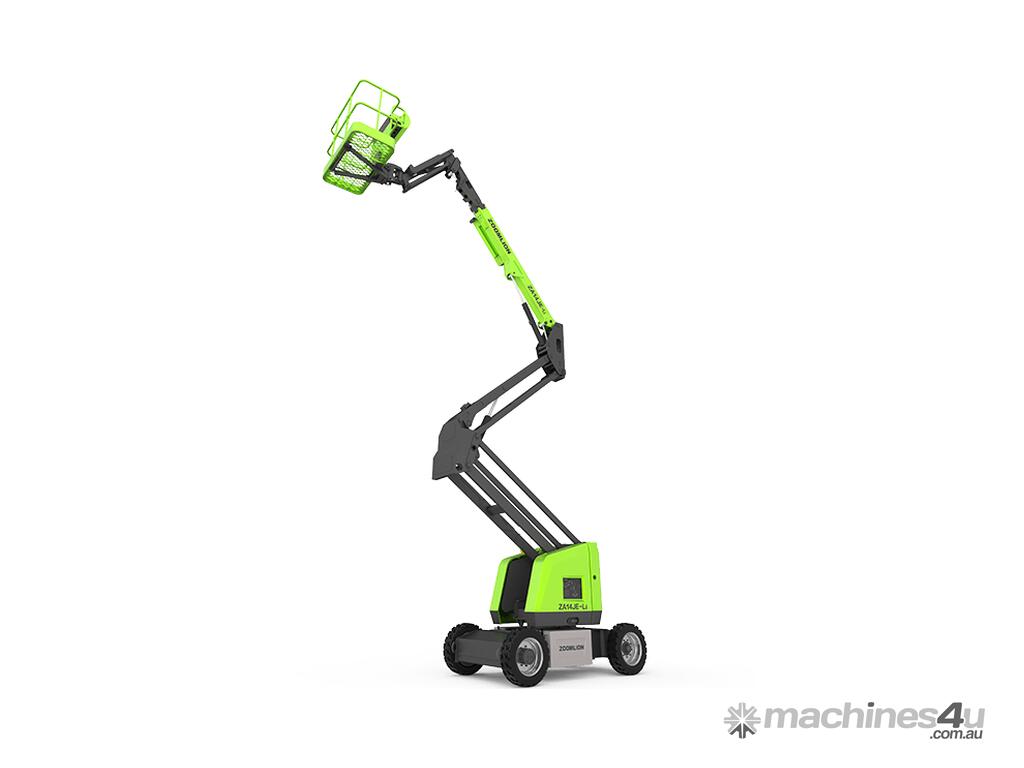

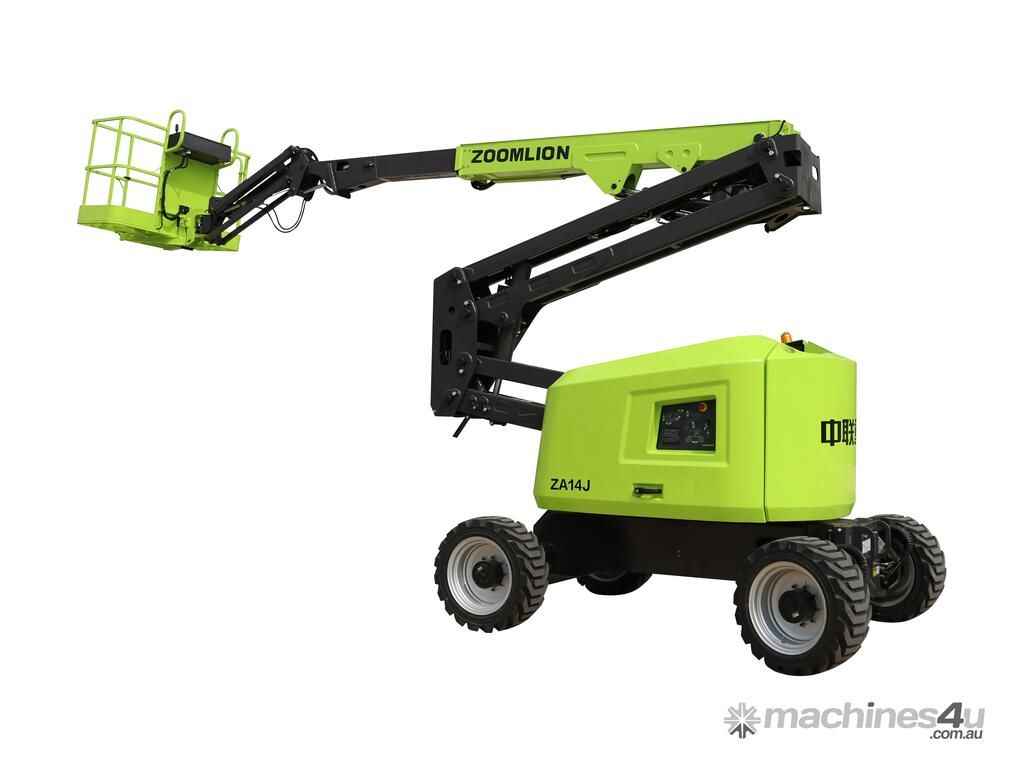

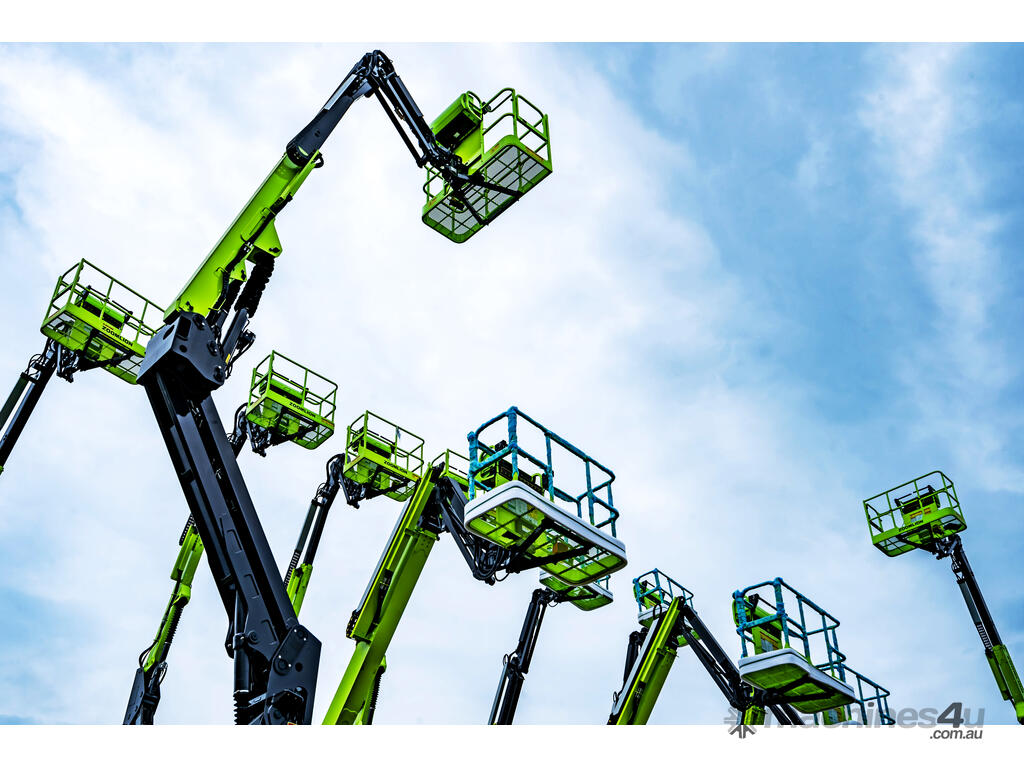

ZOOMLION ZA14JE-LI Electric Articulating Boom Lift.

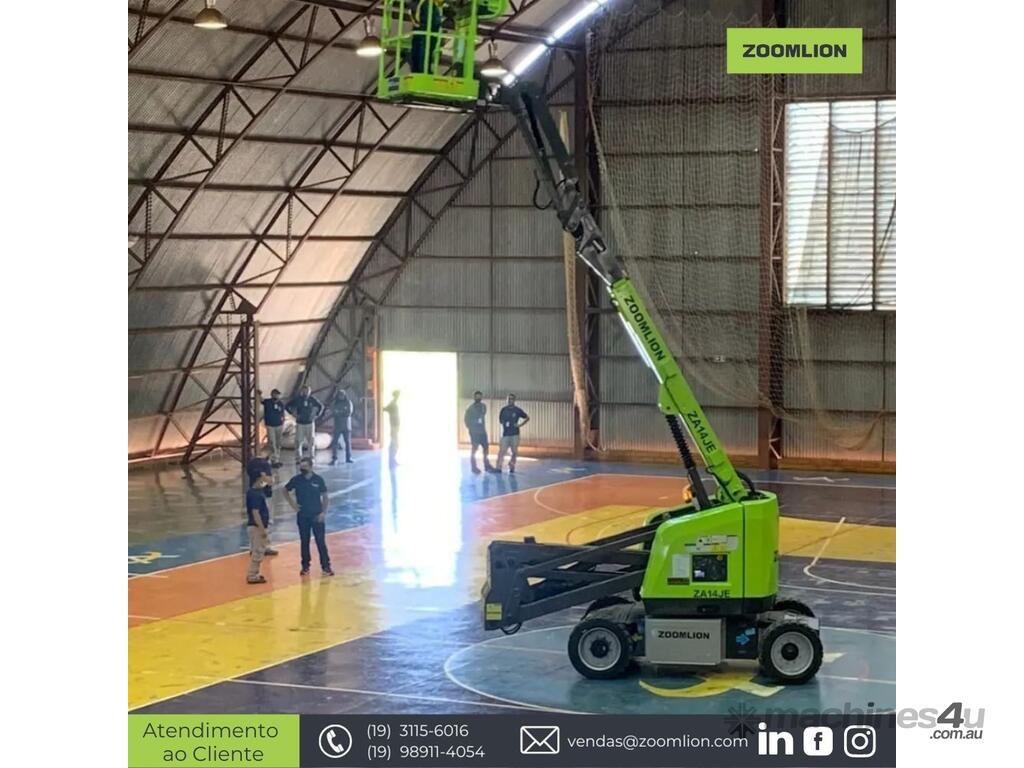

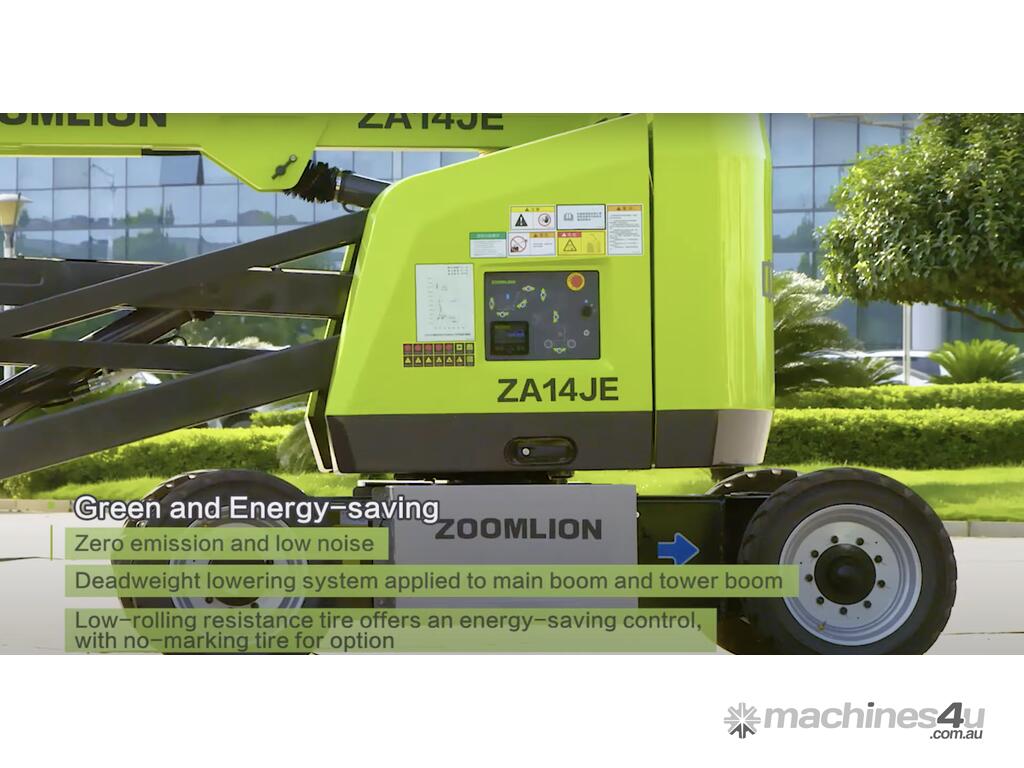

ZA14JE-Li features compact dimensions, 360degrees continuous rotation, dual controll system, certer layout and energy conservation and environment protection. It is the industry's first lithium-ion articulating boom lift with longer running time and maintenance-free advantage compared with lead batteries. Also the BMS (battery management system) and the pulse current recovery module equipped with weight patent technology greatly extends battery life of 8 years, ideal for indoor use and pavement road application.
Size
Work Height: 16m
Platform Height: 14m
Horizontal Outreach: 8.10m
Up and Over Height: 7.74m
A - Stowed Length: 6.6m
B - Stowed Width: 1.75m
C - Stowed Height: 2m
D - Platform Length: 1.52m
E - Platform Width: 0.76m
F - Wheelbase: 2.05m
G - Ground Clearance: 0.20m
Performance
Platform Capacity: 230kg
Drive Speed: 5.4km/h
Gradeability: 30%(17degrees)
Axles Oscillation: /
Turning Radius (Inside): 0.79m
Turning Radius (Outside): 3.15m
Turntable Swing: 360degrees continuous
Platform Rotation: ±90degrees
H-Tail Swing: 0m
Max. Working Slope: 3degrees/4degrees
Max. Wind Speed: 12.5m/s
Power
Battery: 48V/315Ah Li-ion
Charger: 48V/60A
Drive Motor: AC 32V
Lift Motor: DC 48V
Auxiliary Power: Electric Pump
Hydraulic Tank Capacity: 30L
Tire
Type: 240/55D17.5 Foam-filled Tires
Weight
Gross: 6800kg
Features
Standard
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Over tilt protection system
- Oscillating axle (ZA20JE)
- Load sensing system
- 4.3' LED display
- Horn
Option
- AC power to platform
- Airline to platform
- 2.44x0.91m/8ftx2.98ft work platform (ZA20JE)
- Non-marking tire
