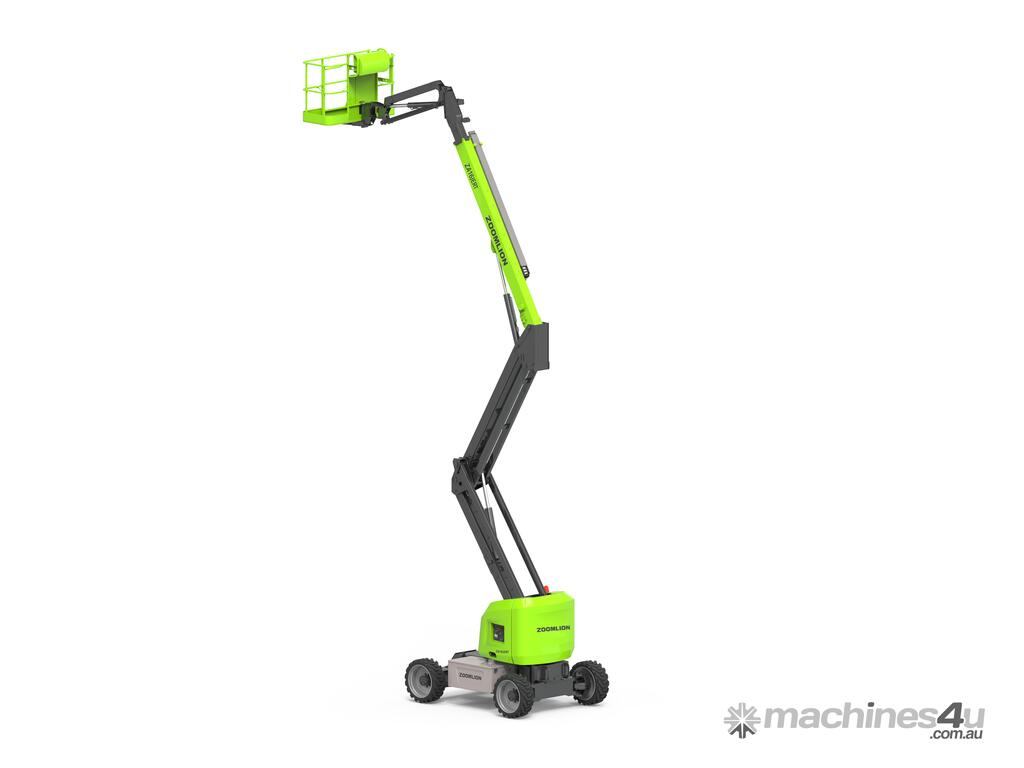

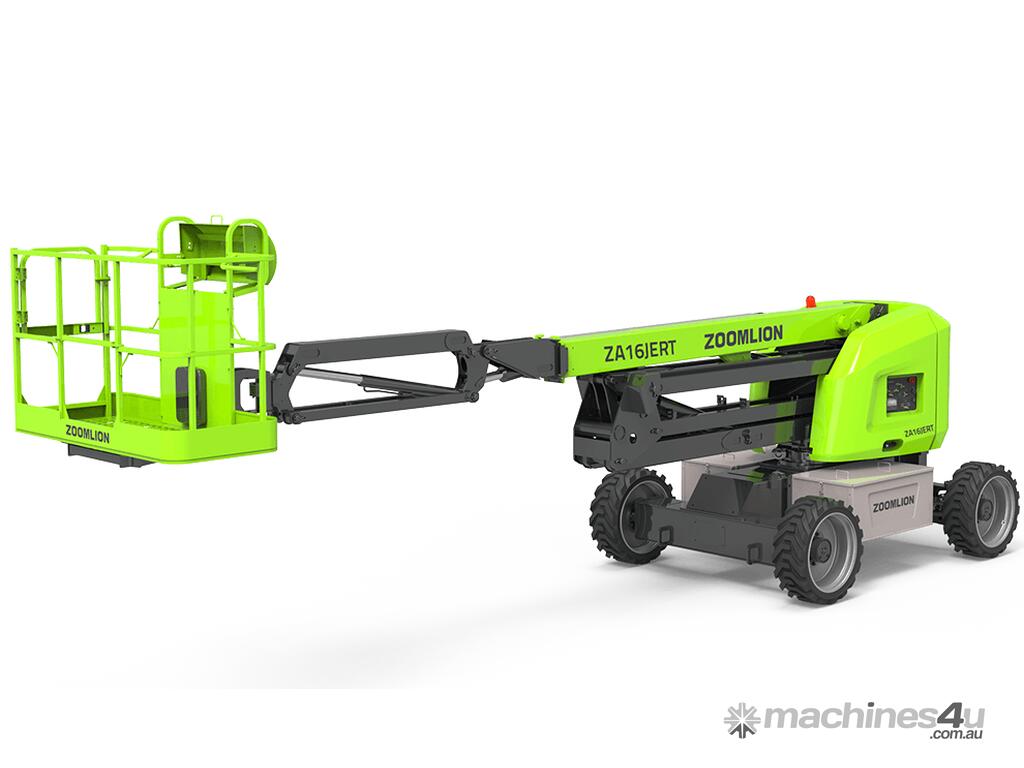

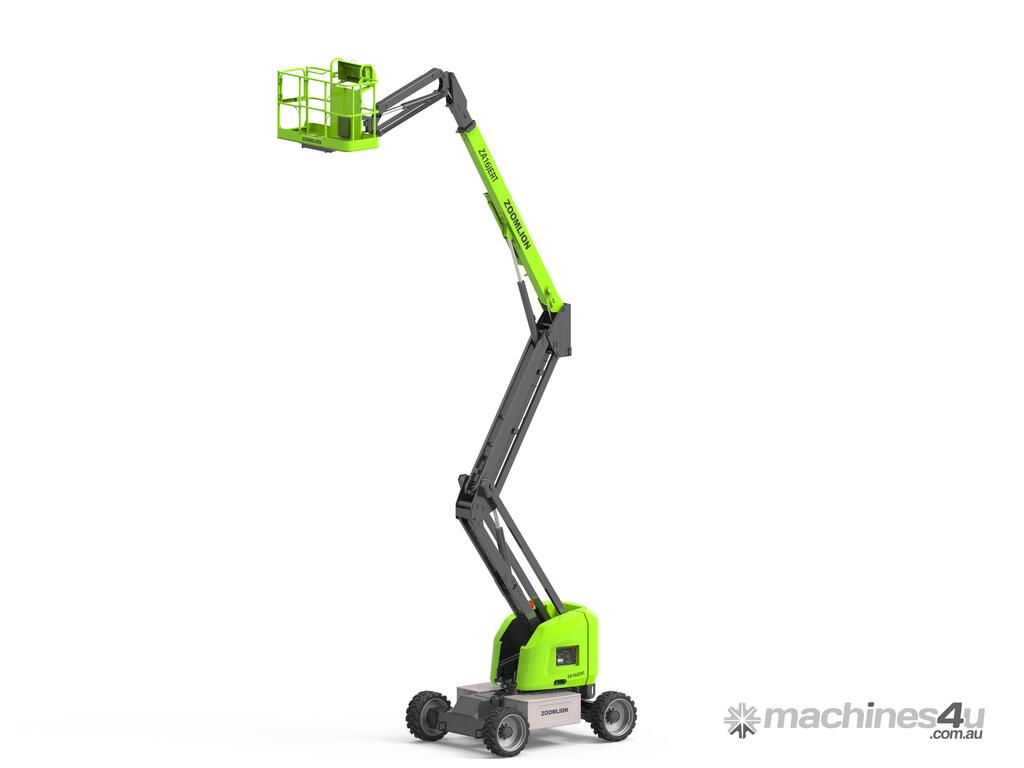

ZOOMLION ZA16JERT Rough Terrain Electric Articulating Boom Lift

ZOOMLION ZA16JERT Rough Terrain Electric Articulating Boom Lift.
RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.

Size
Work Height: 17.8m
Platform Height: 15.8m
Horizontal Outreach: 9.72m
Up and Over Height: 8m
A - Stowed Length: 7.7m
B - Stowed Width: 2.3m
C - Stowed Height: 2.23m
D - Platform Length: 1.83m
E - Platform Width: 0.76m
F - Wheelbase: 2.36m
G - Ground Clearance: 0.36m

Performance
Platform Capacity: 250kg
Drive Speed: 5.5km/h
Gradeability: 45%(24degrees)
Axles Oscillation: 0.20m
Turning Radius (Inside): 2.06m
Turning Radius (Outside): 4.78m
Turntable Swing: 360degrees non-continuous
Platform Rotation: ±90degrees
H-Tail Swing: 0.2m
Max. Working Slope: 5degrees
Max. Wind Speed: 12.5m/s

Power
Battery: 24x2V/320Ah
Charger: 48V/35A, 48V/60A
Drive Motor: AC 32V
Lift Motor: AC 32V
Auxiliary Power: 12V DC Electrical pump
Hydraulic Tank Capacity: 30L

Tire
Type: 33x12 Foam-filled tire

Weight
Gross: 7300kg

Features
Standard
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Over tilt protection system
- Oscillating axle (ZA20JE)
- Load sensing system
- 4.3' LED display
- Horn

Option
- AC power to platform
- Airline to platform
- 2.44x0.91m/8ftx2.98ft work platform (ZA20JE)
- Non-marking tire
