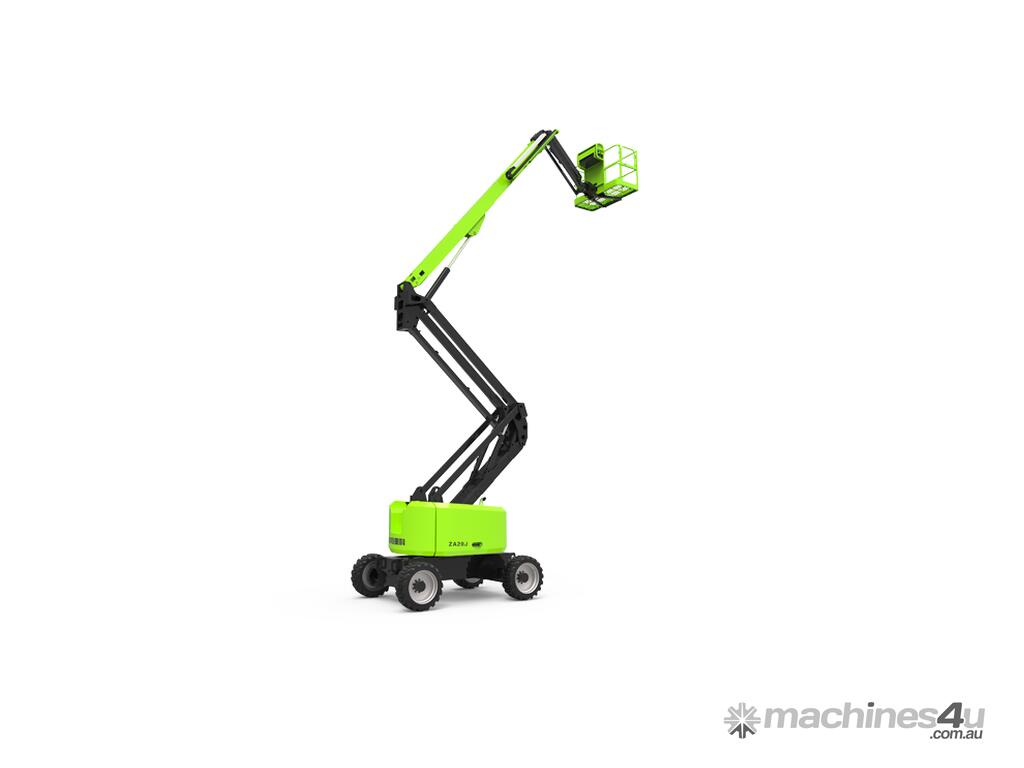

ZOOMLION ZA20J Diesel Articulating Boom Lift

ZOOMLION ZA20J Diesel Articulating Boom Lift.
Diesel powered articulating boom lifts for precise position and extreme flexibility.

ADVANTAGE INTRODUCTION
- 250/360kg platform capacity for higher efficiency
- Build-in multiple pressure control leveling system to enhance stability
- Precise load sensing system to improve overload safety operations
- Integrated with rotary reducer to enhance rotation stability
- Hostile Kits available for dusty working environment
- Deadweight Lowering System for smooth operation and energy efficiency
- Platform fast lifting function provides high-efficient performance without tower boom operation
- Lightweight design, low energy consumption

Size
Work Height: 21.38m
Platform Height: 19.38m
Horizontal Outreach: 12.3m
Up and Over Height: 8.25m
A - Stowed Length: 8.82m
B - Stowed Width: 2.46m
C - Stowed Height: 2.52m
D - Platform Length: 2.44/1.83m
E - Platform Width: 0.91/0.76m
F - Wheelbase: 2.52m
G - Ground Clearance: 0.42m

Performance
Platform Capacity: 250kg/360kg
Drive Speed: 6.1km/h
Gradeability: 45%(24 degrees)
Axles Oscillation: 0.2m
Turning Radius (Inside): 2.51m
Turning Radius (Outside): 5.47m
Turntable Swing: 360 degrees continuous
Platform Rotation: ±90 degrees
H-Tail Swing: 0.4m
Max. Working Slope: -
Max. Wind Speed: 12.5m/s

Power
Diesel Engine: Kubota V2403 36kw/2600rpm
Engine Power: -
Fuel Tank Capacity: 150L
Auxiliary Power: 12V
Control Voltage: 12V
Hydraulic System Capacity: 160L
Hydraulic Tank Capacity: 75L

Tire
Type: 33x12/D610 Foam-filled Tires

Weight
Gross: 10000kg

Features
Standard
- Horn
- All motion alarm
- Proportional control
- Self-closing entry gate
- Flashing beacon
- Auto-leveling system
- Emergency stop button
- Over tilt protection system
- Emergency descent system
- On-board diagnostic system
- Oscillating axle
- 4.3' LED display
- Load sensing system
- Swing-out engine tray

Option
- Platform work lights
- Anti-collision device
- AC power to platform
