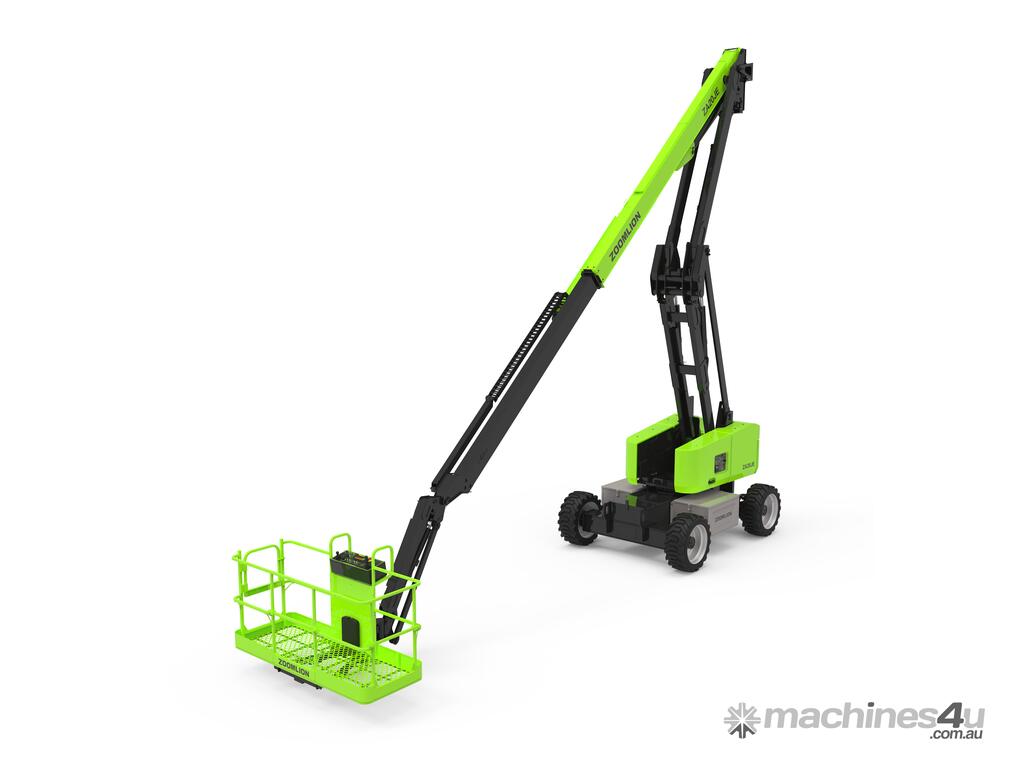

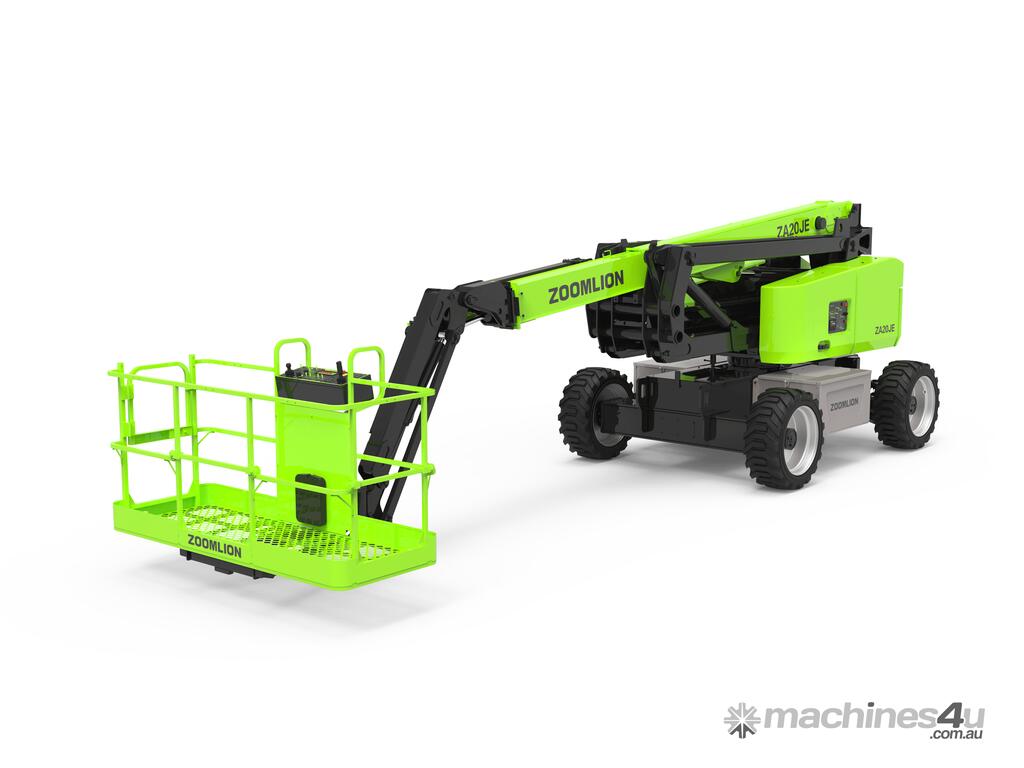

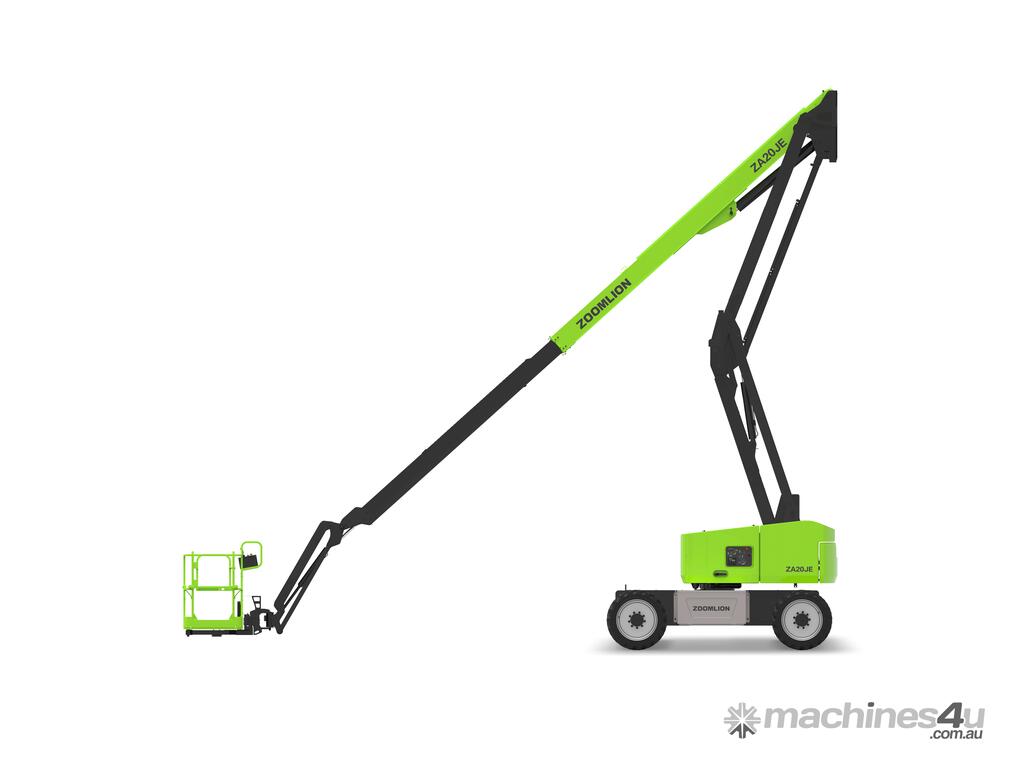

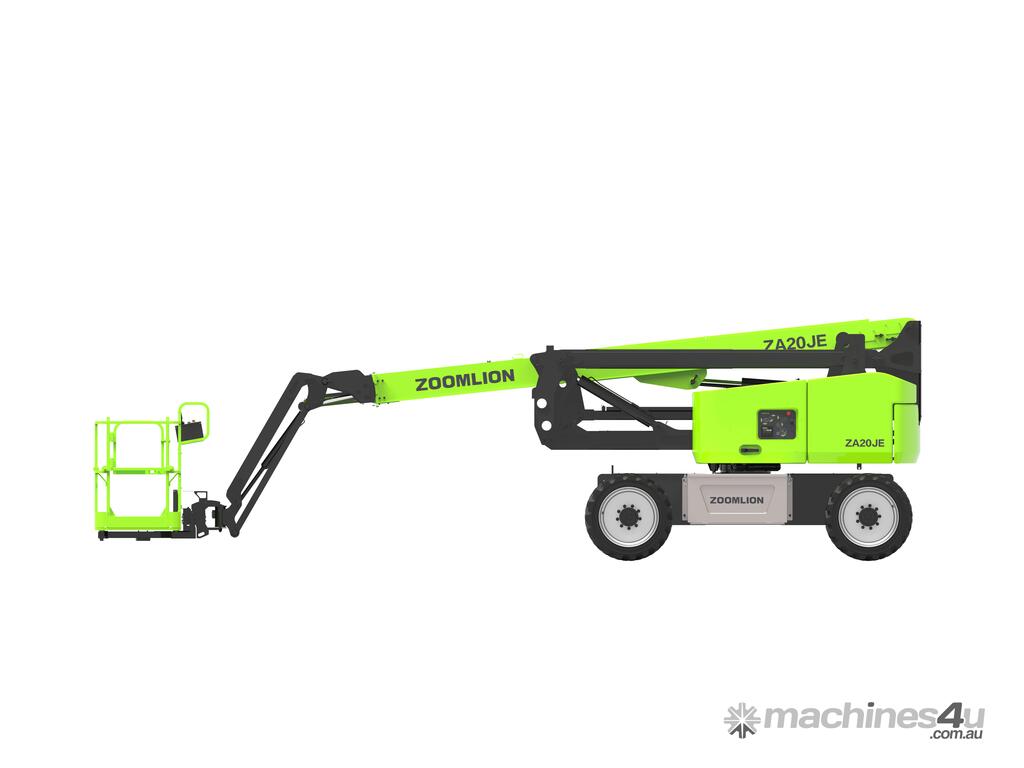

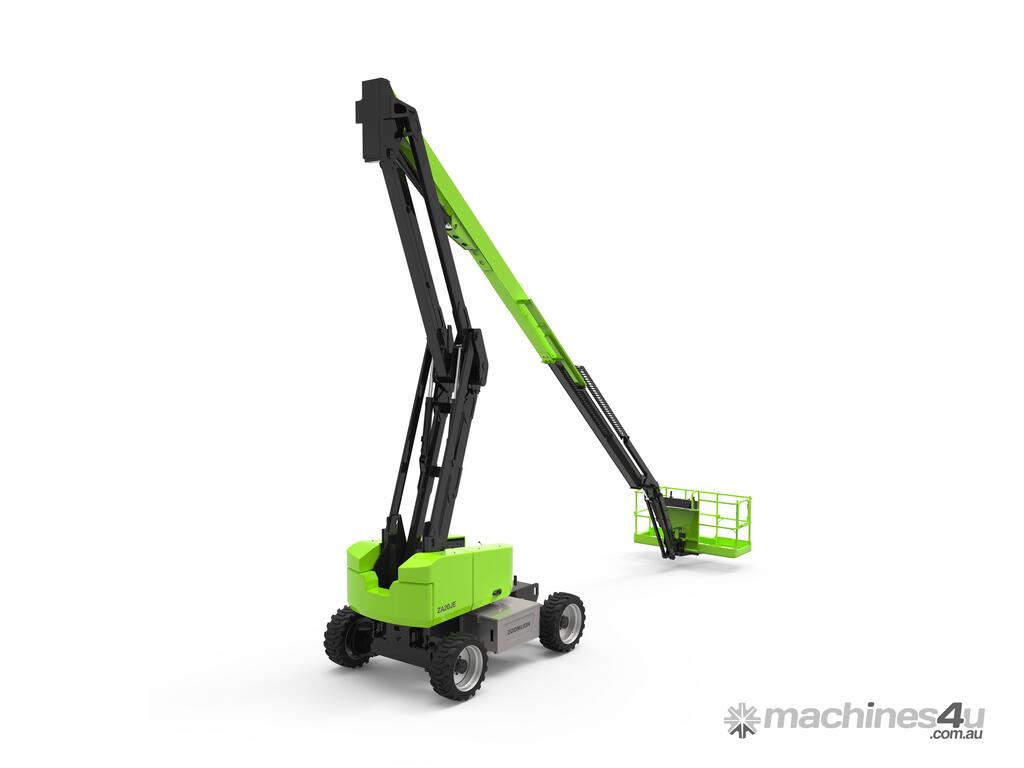

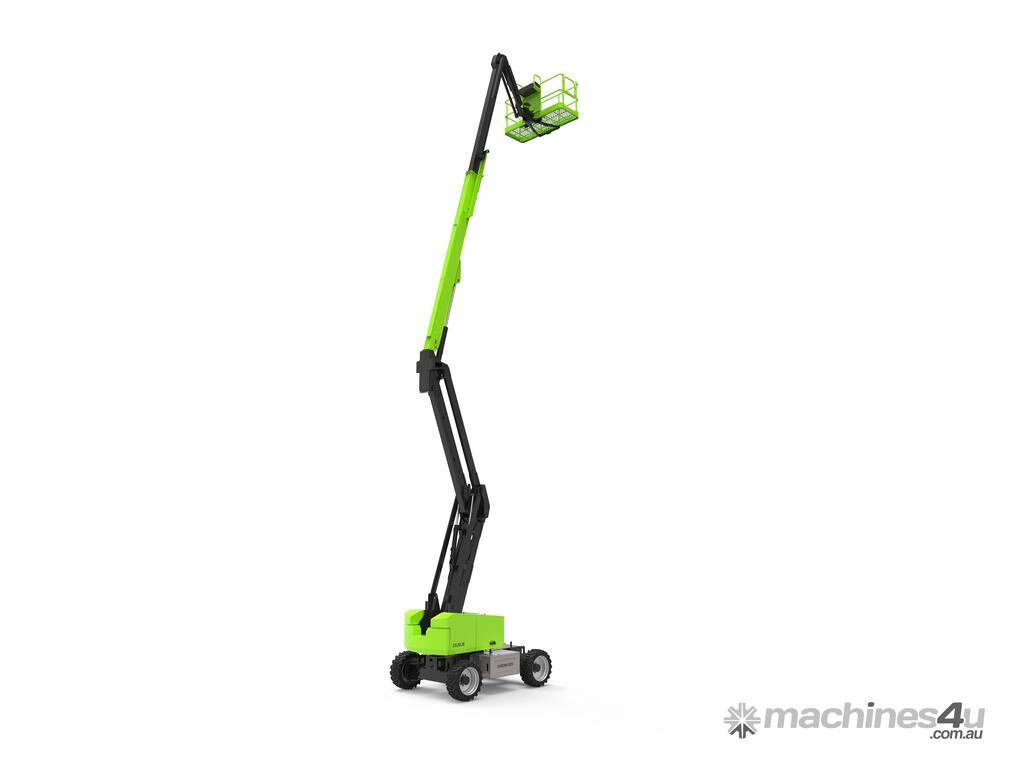

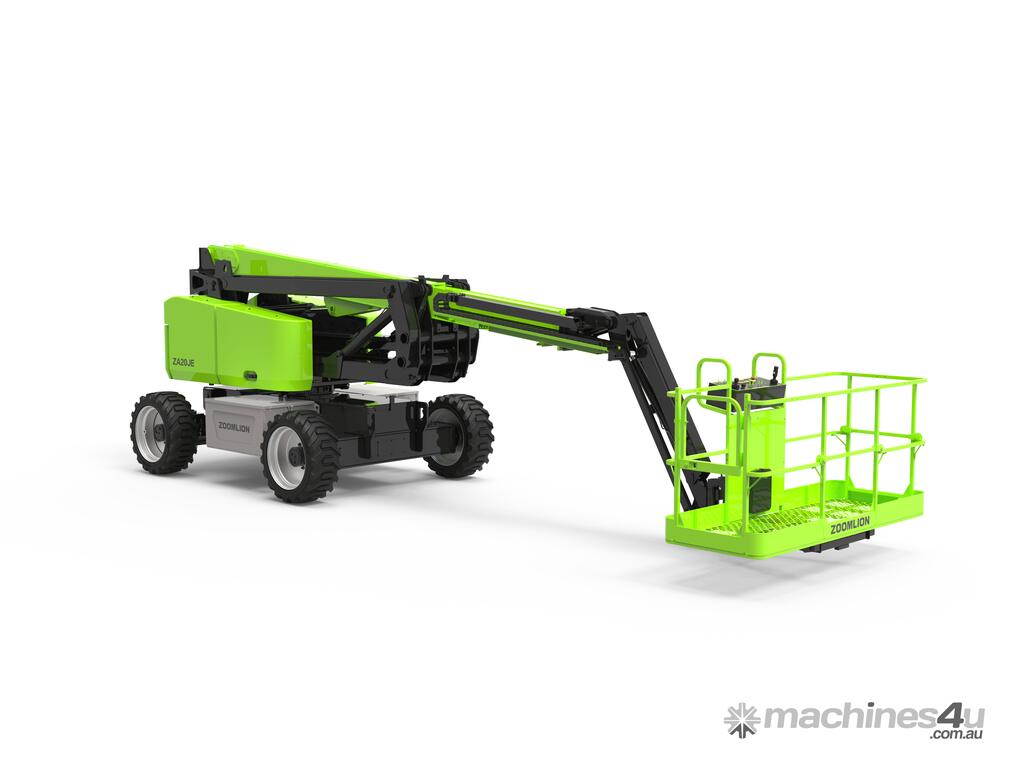

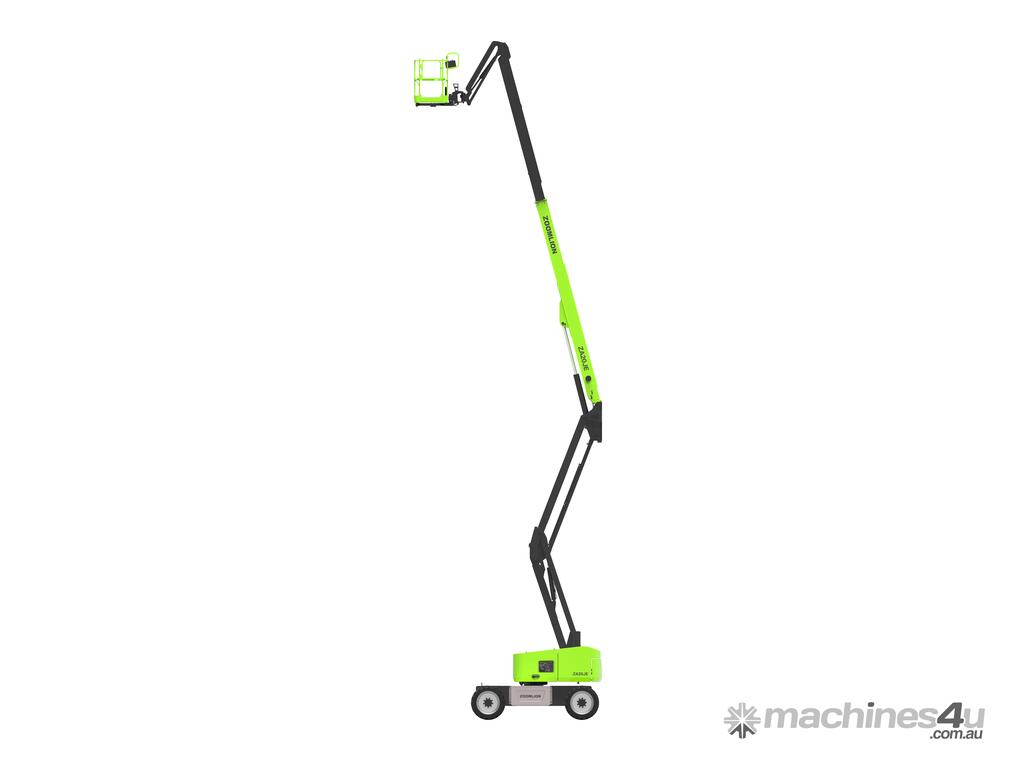

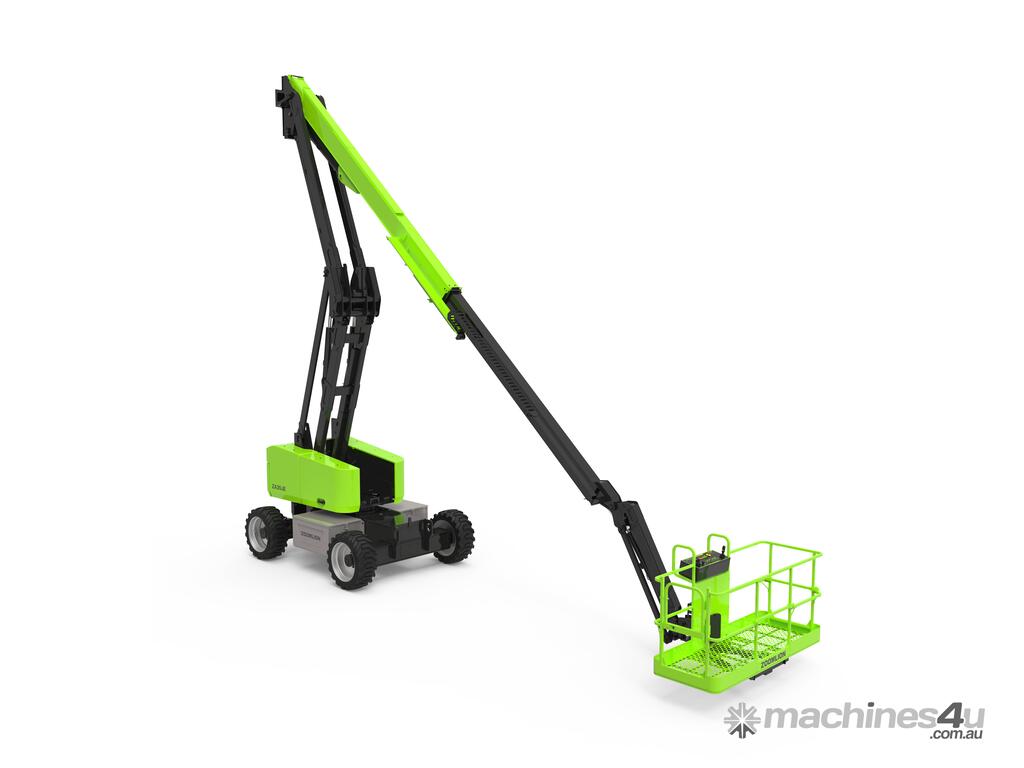

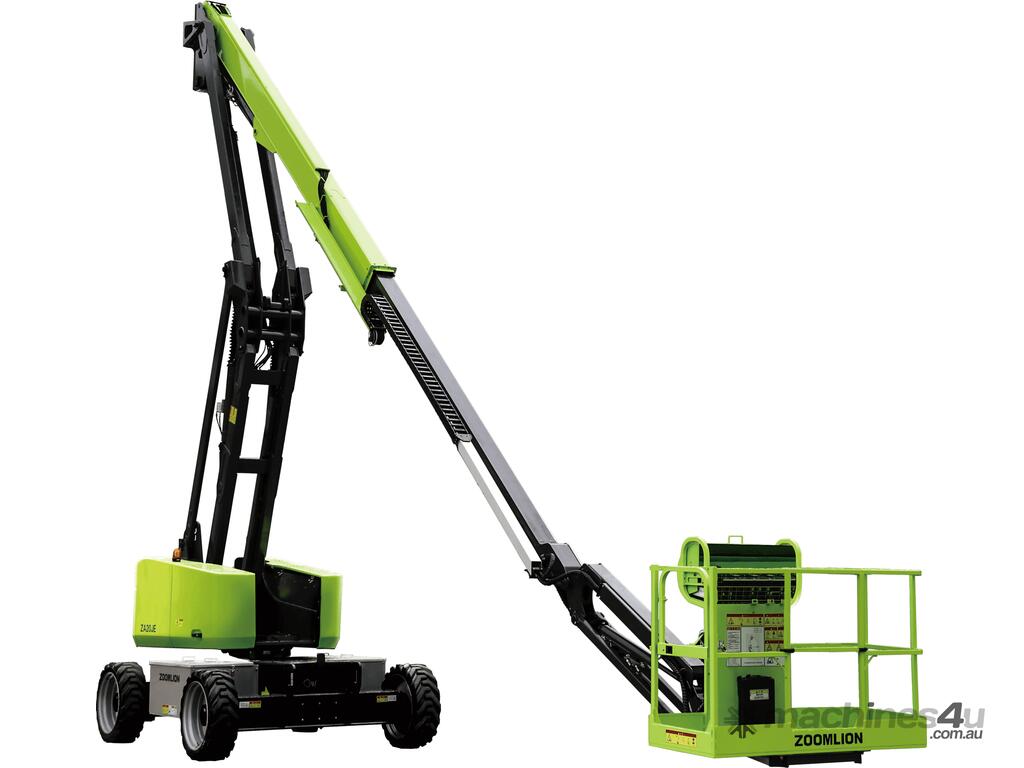

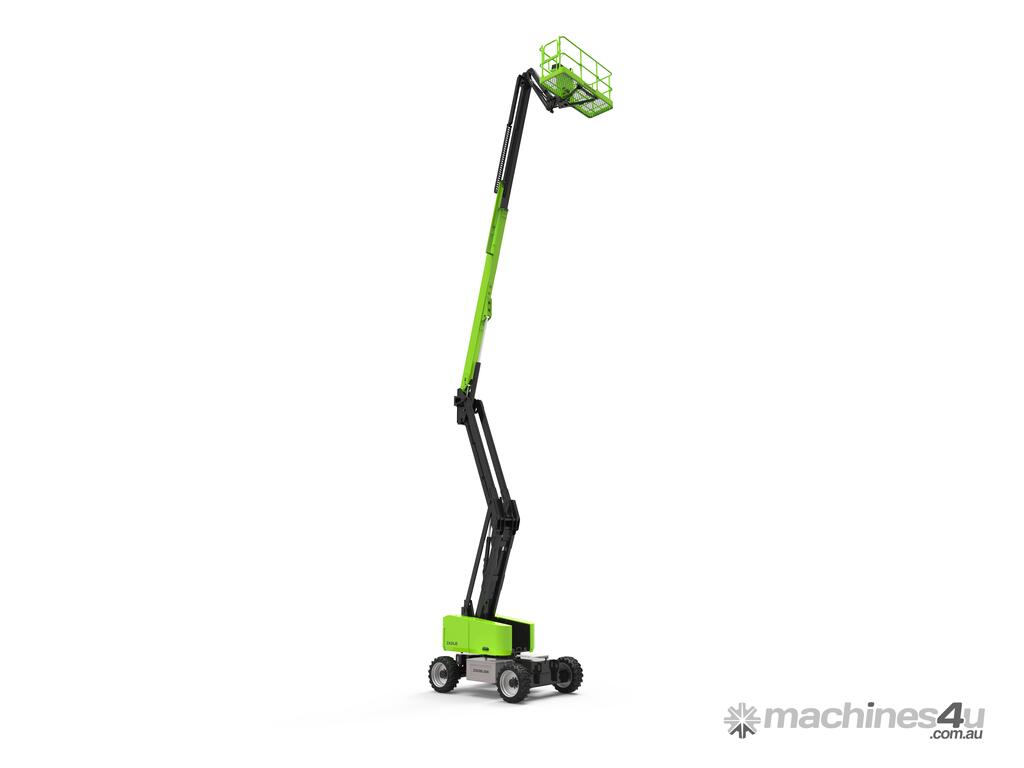

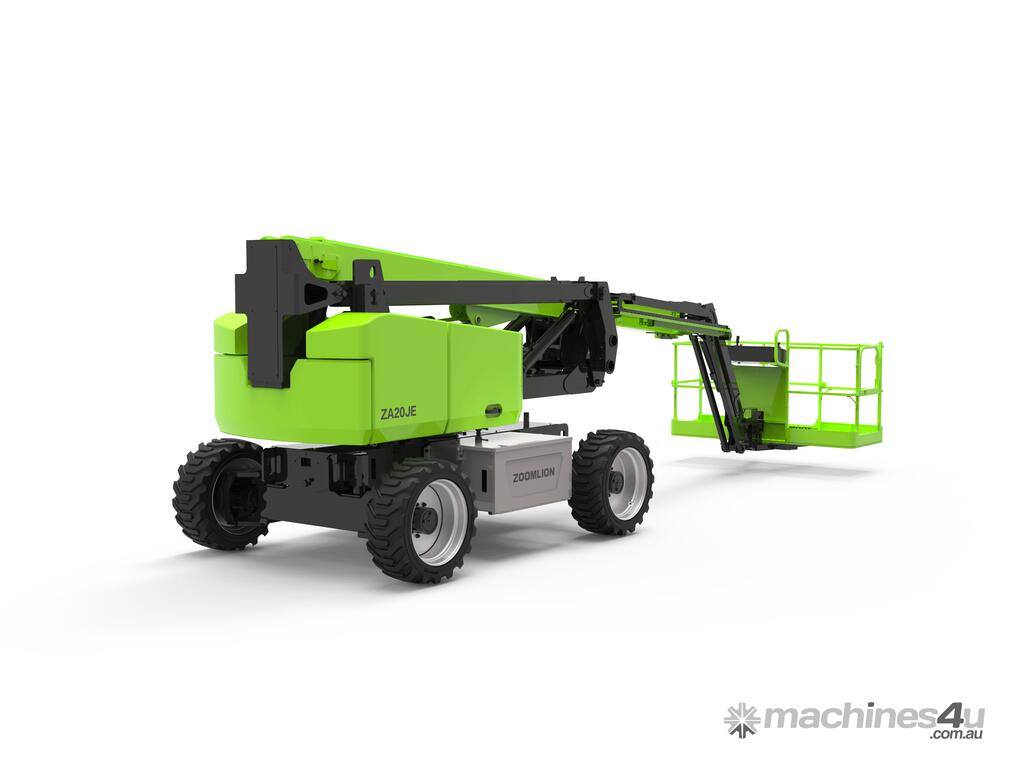

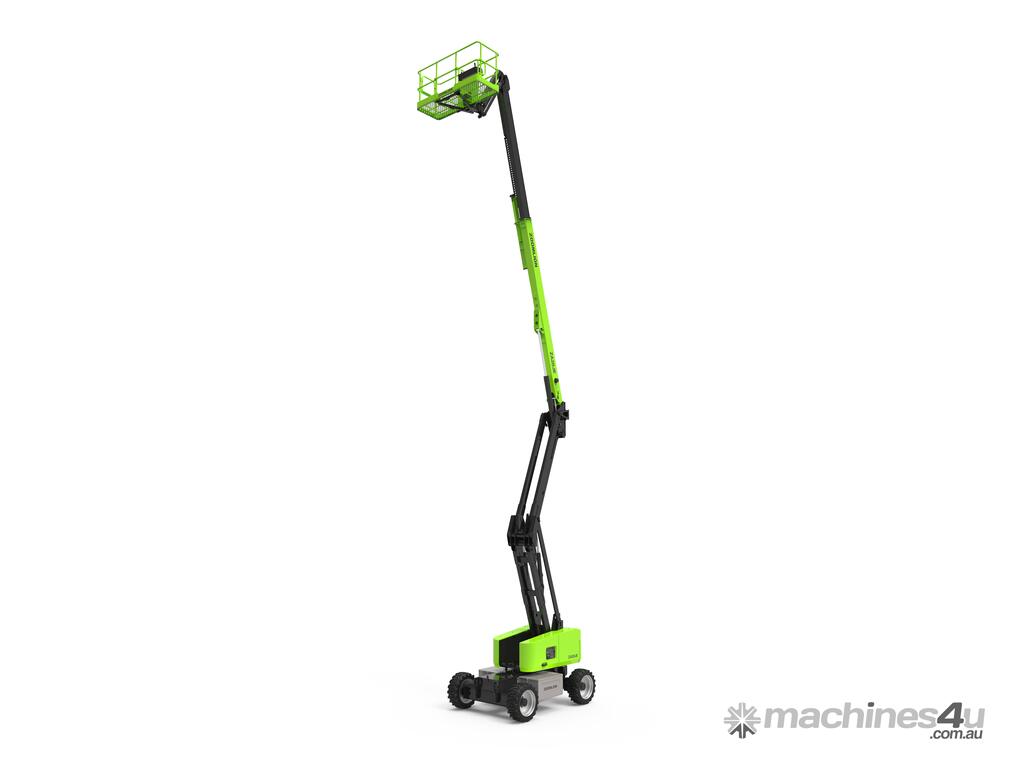

ZOOMLION ZA20J Electric Articulating Boom Lift - Swift Lifting System!

ZA20JE provides greater work height of 21.45m (70ft 4in) and lift capacity of 250kg (550 lb) than the similar products in industry. Fast lift system lowers the boom from the highest position to the ground, no need to fold the boom to improve work efficiency. Excellent energy management system improves running time and extends battery life. Accurate and efficient traveling AC drive system and on-board motion AC drive system provides strong power, stable control and maintenance-free motor. The advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control. ZA20JE features low noise, zero emission, strong power and high ground clearance, ideal for outdoor rough terrain or indoor applications.

Size
Work Height: 21.45m
Platform Height: 19.45m
Horizontal Outreach: 12.05m
Up and Over Height: 8.25m
A - Stowed Length: 8.72m
B - Stowed Width: 2.46m
C - Stowed Height: 2.52m
D - Platform Length: 2.44 m
E - Platform Width: 0.91m
F - Wheelbase: 2.52m
G - Ground Clearance: 0.33m

Performance
Platform Capacity: 250kg
Drive Speed: 6.1km/h
Gradeability: 45%
Axles Oscillation: 0.20m
Turning Radius (Inside): 2.78m
Turning Radius (Outside): 5.49m
Turntable Swing: 360degrees continuous, 400degrees non-continuous
Platform Rotation: ±90degrees
H-Tail Swing: 0.6m
Max. Working Slope: 3degrees/5degrees
Max. Wind Speed: 12.5m/s

Power
Battery: 24x2V/440Ah
Charger: 48V/60A
Drive Motor: AC 32V
Lift Motor: AC 32V
Auxiliary Power: 12V DC
Hydraulic Tank Capacity: 75L

Tire
Type: 33x12 D610 Foam-filled tire

Weight
Gross: 9200kg

Features
Standard
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Over tilt protection system
- Oscillating axle (ZA20JE)
- Load sensing system
- 4.3' LED display
- Horn

Option
- AC power to platform
- Airline to platform
- 2.44x0.91m/8ftx2.98ft work platform (ZA20JE)
- Non-marking tire
