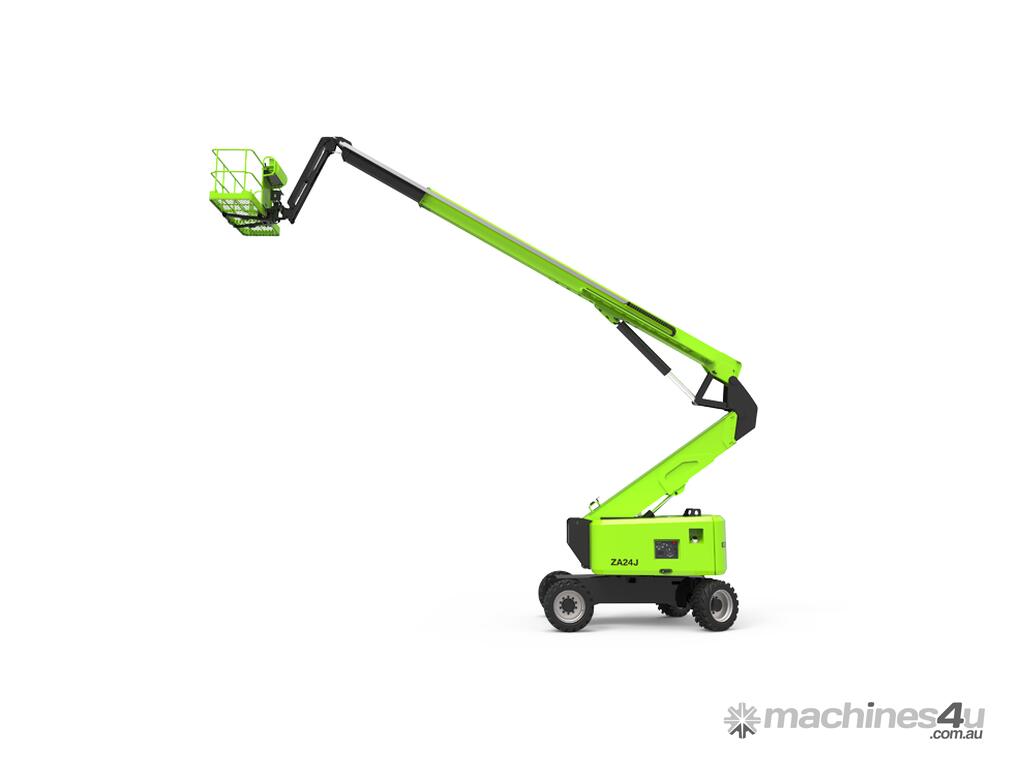

ZOOMLION ZA24J Diesel Articulating Boom Lift

ZOOMLION ZA24J Diesel Articulating Boom Lift.
Diesel powered articulating boom lifts for precise position and extreme flexibility.

ADVANTAGE INTRODUCTION
- Provide a work height of 26.23m, horizontal outreach of 18.9m,up and over height of 9.29m, and lift capacity of 250kg for higher efficiency
- Build-in multiple pressure control leveling system to enhance stability
- Precise load sensing system to improve overload safetyoperations
- Platform fast lifting function provides high-efficient performance without tower boom operation
- Outstanding below ground reach of 5.1m

Size
Work Height: 26.23m
Platform Height: 24.23m
Horizontal Outreach: 18.9m
Up and Over Height: 9.29m
A - Stowed Length: 11.27m
B - Stowed Width: 2.49m
C - Stowed Height: 2.82m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 3.05m
G - Ground Clearance: 0.42m

Performance
Platform Capacity: 250kg
Drive Speed: 5.0km/h
Gradeability: 45%(24degrees)
Axles Oscillation: 0.2m
Turning Radius (Inside): 3.14m
Turning Radius (Outside): 6.48m
Turntable Swing: 360 degrees continuous
Platform Rotation: ±90 degrees
H-Tail Swing: 1.022m
Max. Working Slope: 4 degrees
Max. Wind Speed: 12.5m/s

Power
Diesel Engine: Cummins QSF2.8 54kw/2400rpm, Kubota V2607 55.4kw/2700rpm
Engine Power: -
Fuel Tank Capacity: 150L
Auxiliary Power: 12V
Control Voltage: 12V
Hydraulic System Capacity: 240L
Hydraulic Tank Capacity: 180L

Weight
Gross: 18140kg

Features
Standard
- Horn
- All motion alarm
- Proportional control
- Self-closing entry gate
- Flashing beacon
- Auto-leveling system
- Emergency stop button
- Over tilt protection system
- Emergency descent system
- On-board diagnostic system
- Oscillating axle
- 4.3' LED display
- Load sensing system
- Swing-out engine tray

Option
- Platform work lights
- Anti-collision device
- AC power to platform
