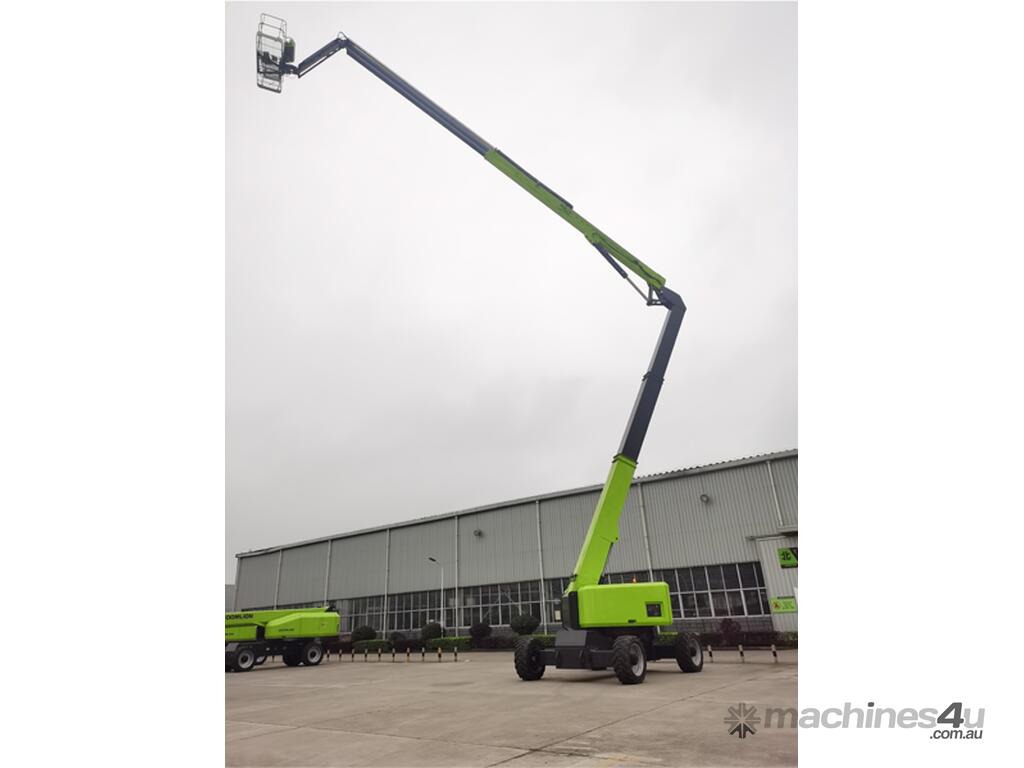

ZOOMLION ZA32J Diesel Articulating Boom Lift - 33.85 Work Height & 250kg Platform Capacity

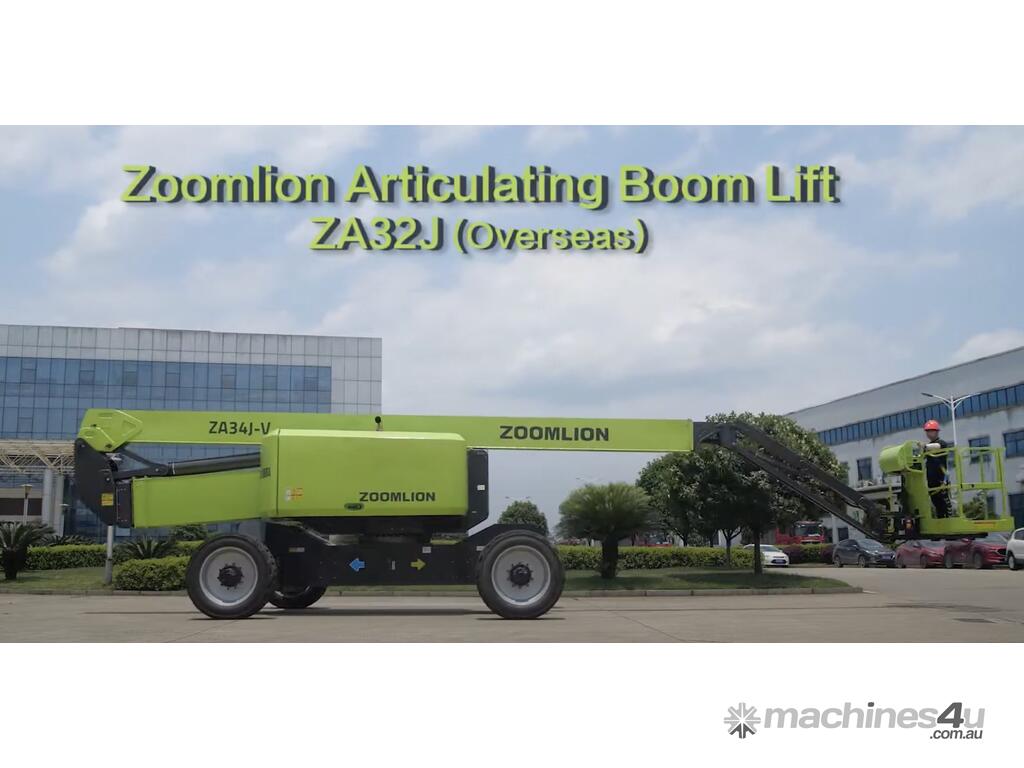

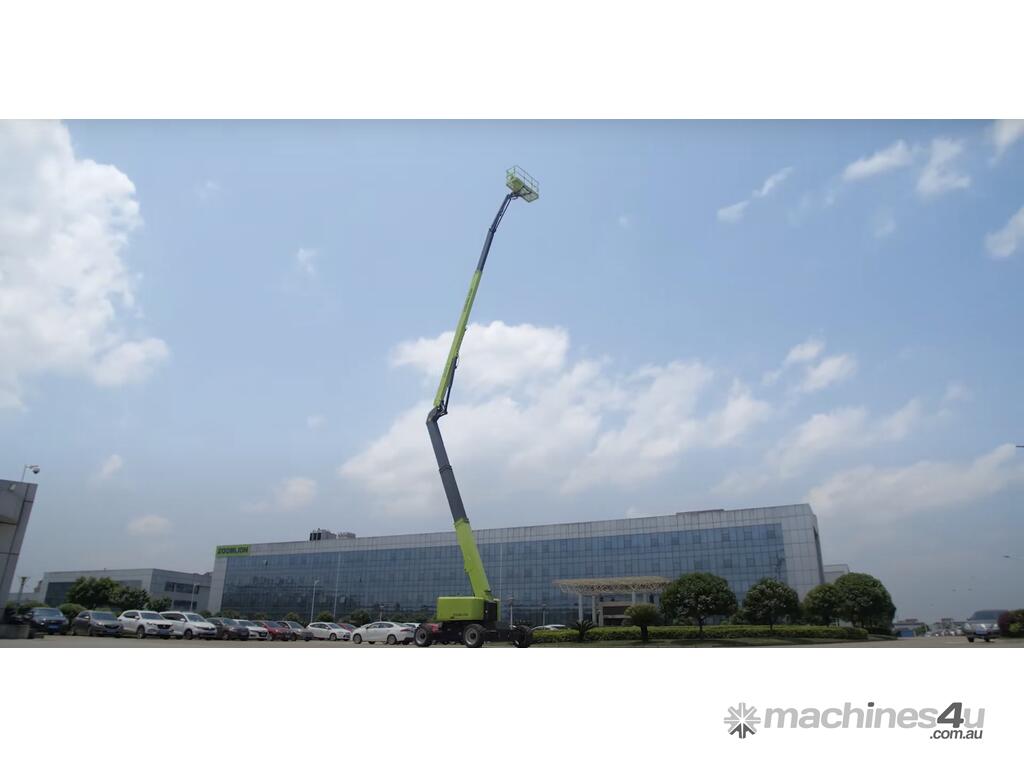

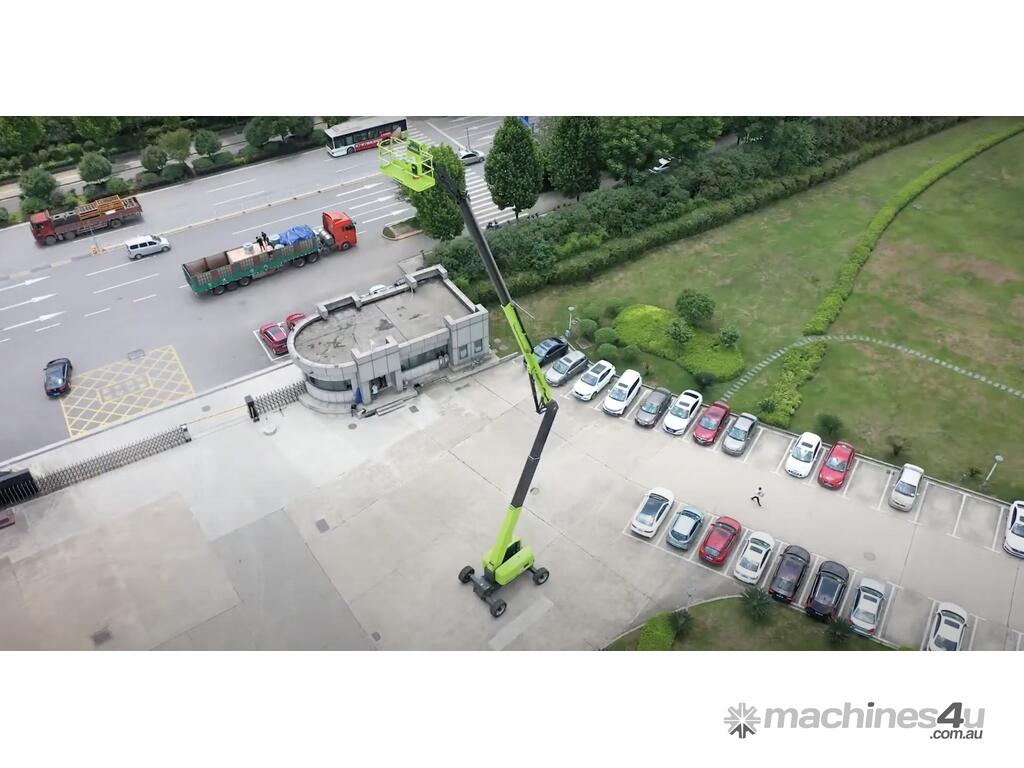

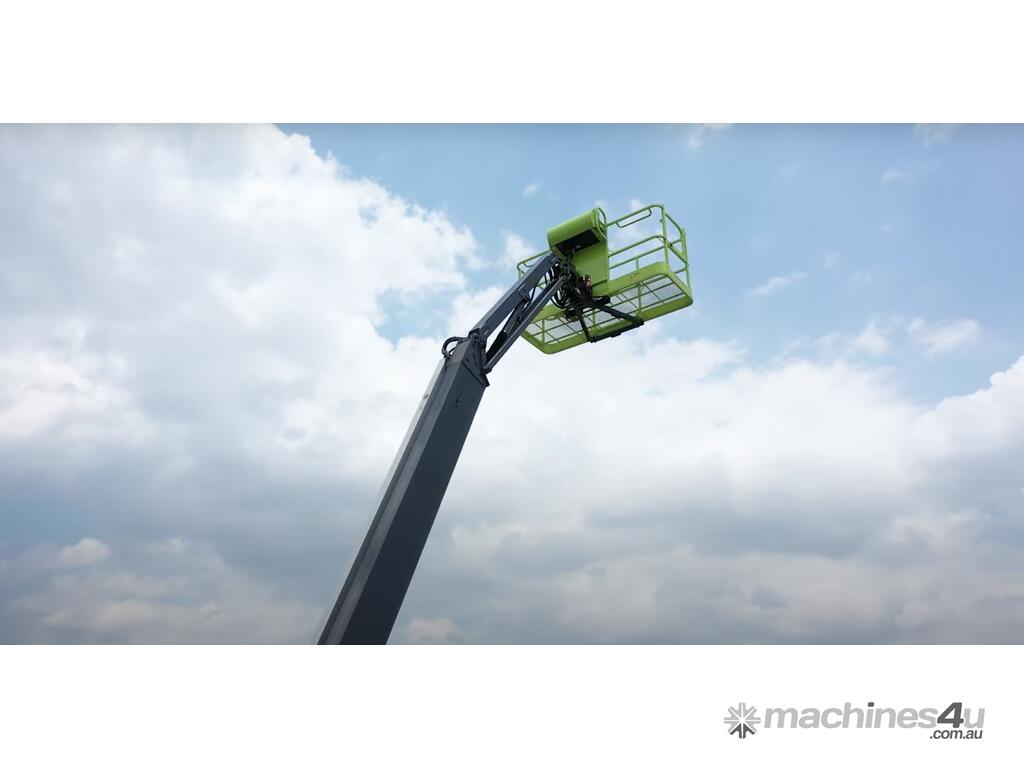

ZOOMLION ZA32J Diesel Articulating Boom Lift.
Diesel powered articulating boom lifts for precise position and extreme flexibility.

ADVANTAGE INTRODUCTION
- Provide heavy lifting of 250kg load for 28% higher efficiency
- Build-in multiple pressure control leveling system to enhance stability
- Precise load sensing system to improve overload safety operations
- Deadweight Lowering System for smooth operation and energy efficiency

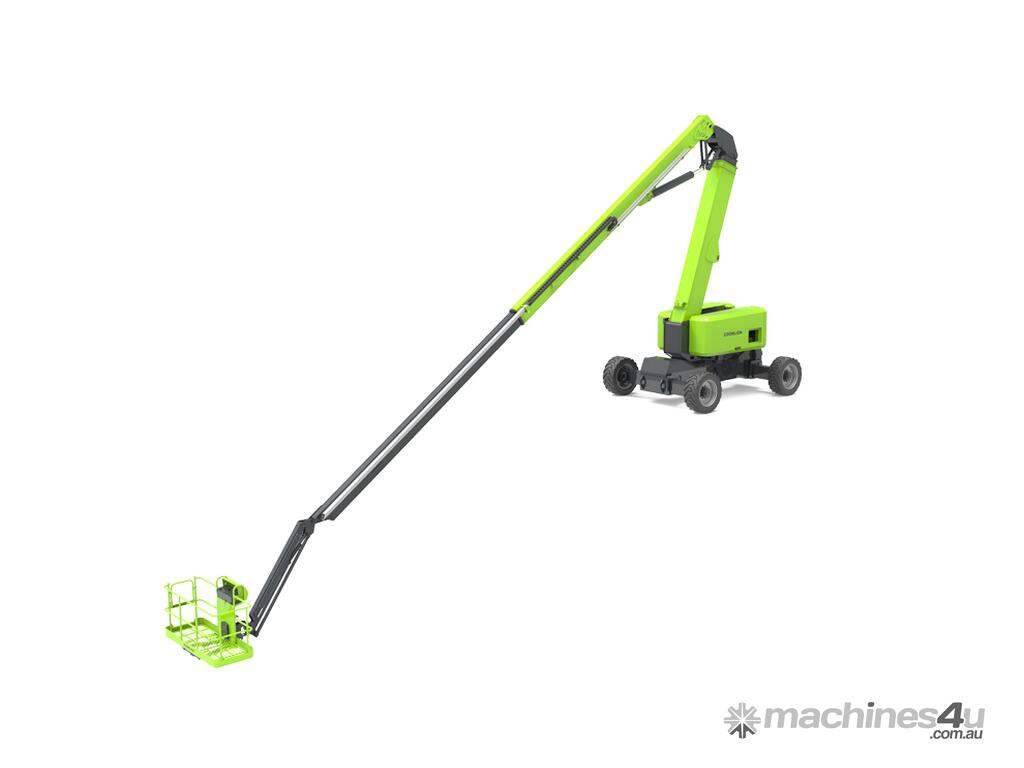

- Outstanding below ground reach of 5.7m

Size

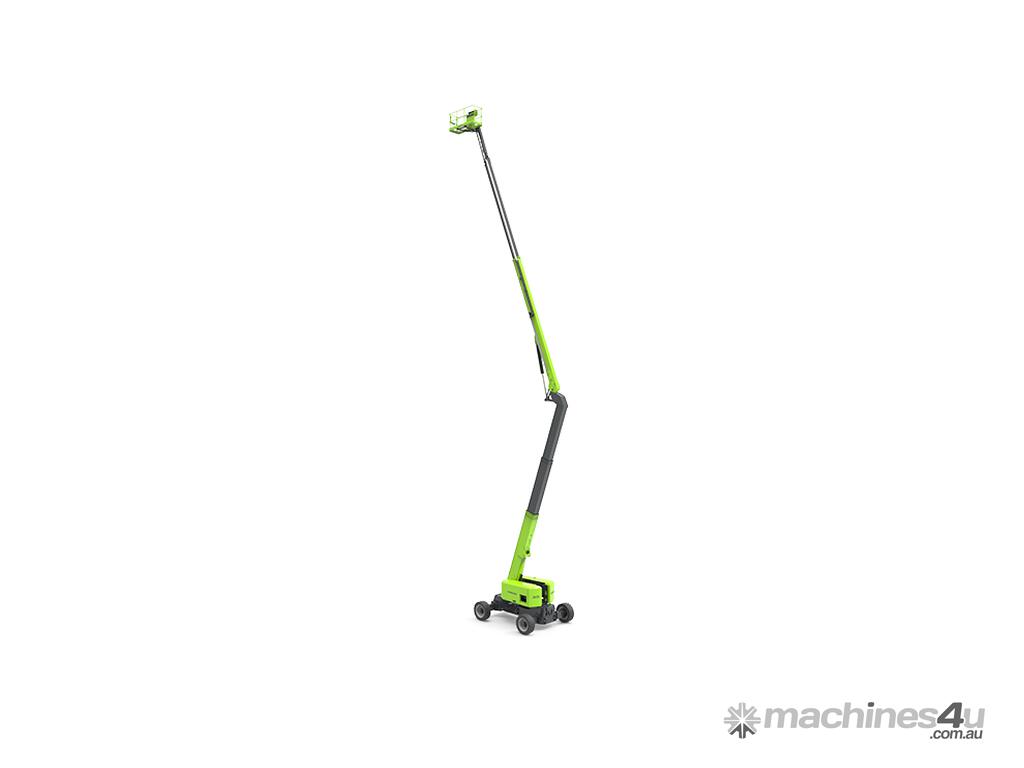

Work Height: 33.85m
Platform Height: 31.85m

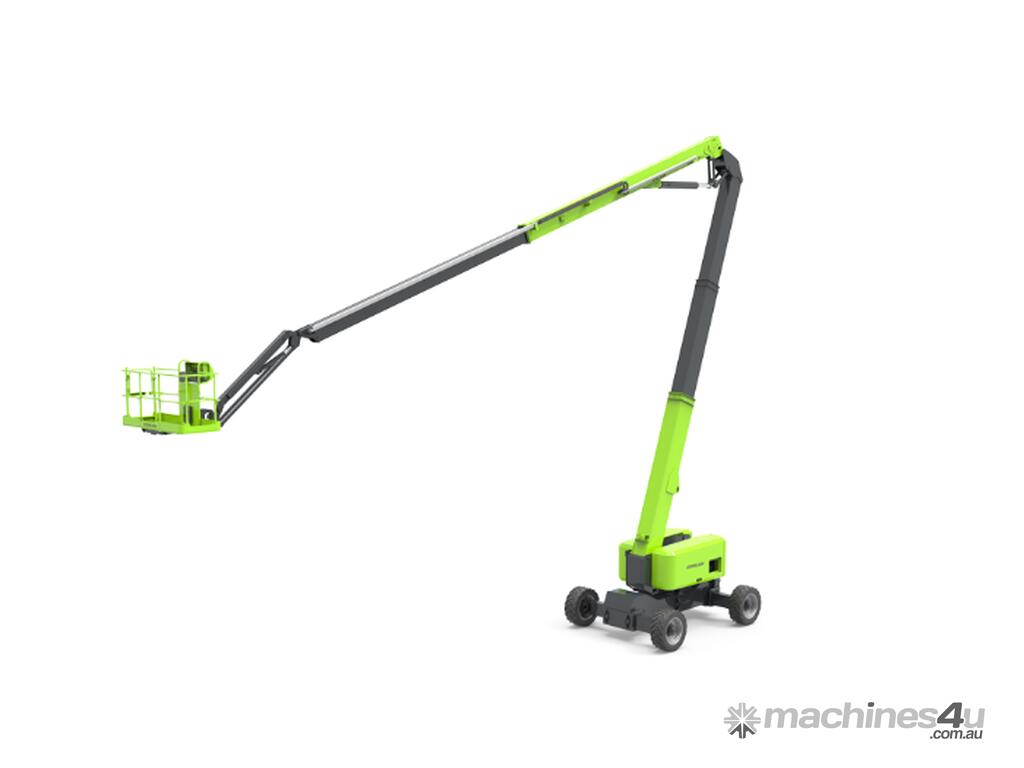

Horizontal Outreach: 21.17m
Up and Over Height: 14.52m
A - Stowed Length: 12.6m
B - Stowed Width: 2.49m
C - Stowed Height: 3.1m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 3.81m
G - Ground Clearance: 0.42m

Performance
Work Height: 33.85m
Platform Height: 31.85m
Horizontal Outreach: 21.17m
Up and Over Height: 14.52m
A - Stowed Length: 12.6m
B - Stowed Width: 2.49m
C - Stowed Height: 3.1m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 3.81m
G - Ground Clearance: 0.42m

Power
Diesel Engine: Cummins QSF2.8 54kw/2400rpm, Kubota V2607 55.4kw/2700rpm
Engine Power: -
Fuel Tank Capacity: 200L
Auxiliary Power: 12V
Control Voltage: 12V
Hydraulic System Capacity: 300L
Hydraulic Tank Capacity: 200L

Tire
Type: 445/50D710 Foam-filled Tires

Weight
Gross: 19200kg

Features
Standard
- Horn
- All motion alarm
- Proportional control
- Self-closing entry gate
- Flashing beacon
- Auto-leveling system
- Emergency stop button
- Over tilt protection system
- Emergency descent system
- On-board diagnostic system
- Oscillating axle
- 4.3' LED display
- Load sensing system
- Swing-out engine tray

Option
- Platform work lights
- Anti-collision device
- AC power to platform
