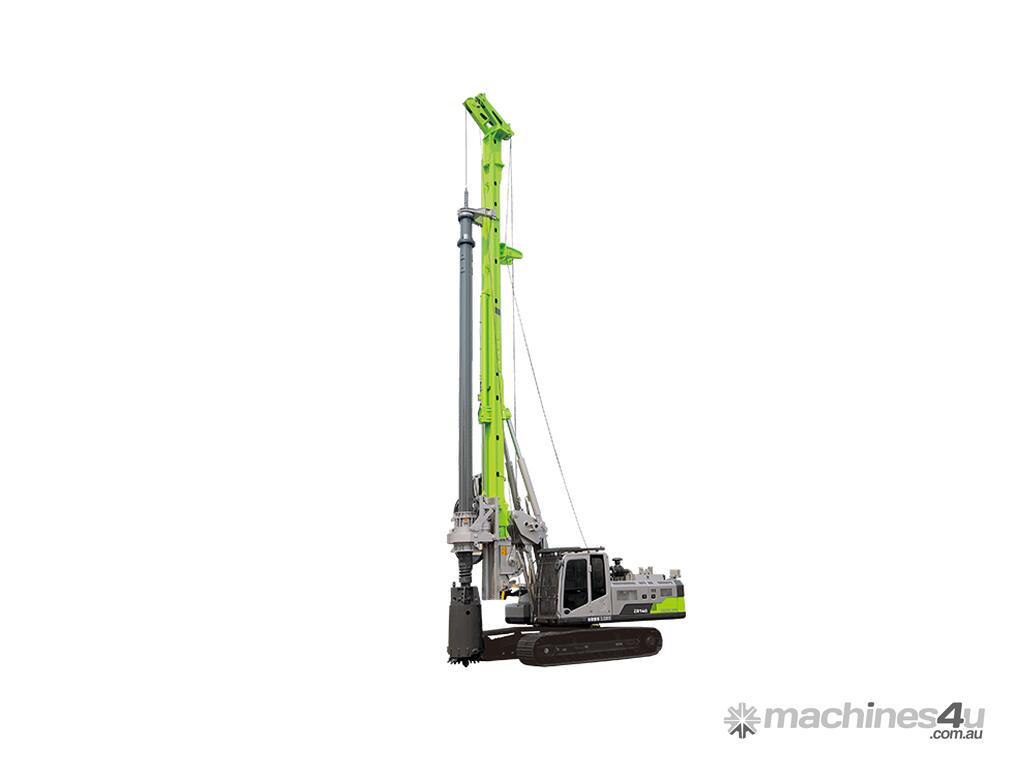

ZOOMLION ZR140 Rotary Drilling Rig

ZOOMLION ZR140 Rotary Drilling Rig.
The newly upgraded ZR140 is not only highly efficient in construction and retains its value, but is also transported with rods, has a small grounding ratio pressure, comes standard with 355*10 drill rods, has a hole diameter of 1300mm and a maximum drilling depth of 44m, making it a real helper for you to get rich.

ADVANTAGE INTRODUCTION
- The whole machine can be transported with Kelly bar to realize quick transfer between operation and transportation.
- Cummins engine with reliable performance and strong output power.
- High construction efficiency, thanks to adoption of large displacement main pump and optimizing power system.
- Less fuel consumption, thanks to adoption of a new generation of electronic control platform and proportional control hydraulic system.
- The auxiliary winch can lift Dia.0.8m steel cage (with a Kelly bar).
- Automatic multi-self-checking, safety and performance monitoring.
- Options: Spin-off, auto-lubrication.

Drilling
Max.drilling diameter 1300mm
Max.drilling depth 44/35m

Rotary drive
Max. output torque 140kN .m
Rotary speed range 6~33rpm

Crowd system
Crowd method Cylinder
Crowd force push 130kN
Crowd force pull 160kN
Max. stroke crowd 3500mm

Main winch
Max. line pull 140kN
Max. speed of line 80m/min
Diameter of wire rope 22mm

Aux. winch
Max. line pull 80kN
Max. speed of line 70m/min
Diameter of wire rope 22mm

Inclination angle of mast
Forward/backward 5/90degrees
Left/right ±5degrees

Engine
Model Cummins QSB5.9-C16
Rate power of engine 119kW
Emission standard Stage II
Displacement of engine 5.9L

Undercarriage
Distance of tracks 3000~4000mm
Width of track shoe 700mm
Slewing radius 3660mm

Overall main machine
Operation weight 40t
Max. traction force 250kN
Max. travelling speed 2.2km/h
Overall height 16.7/(14.7)m
Transport with Kelly bar Yes
Transport height 3587mm

Other
Kelly bar Types and Drilling depth(m):
Friction355-5x10m 44
Inter-locking355-4x10m 35
Friction355-5x8m 35
Inter-locking355-4x8m 28
