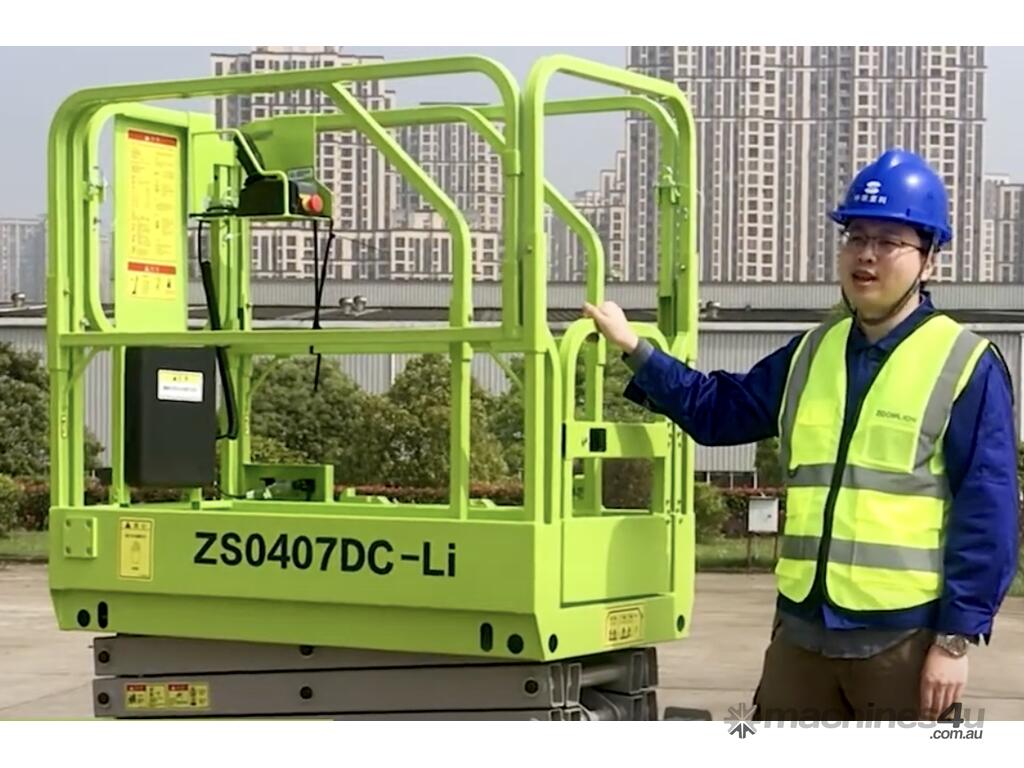

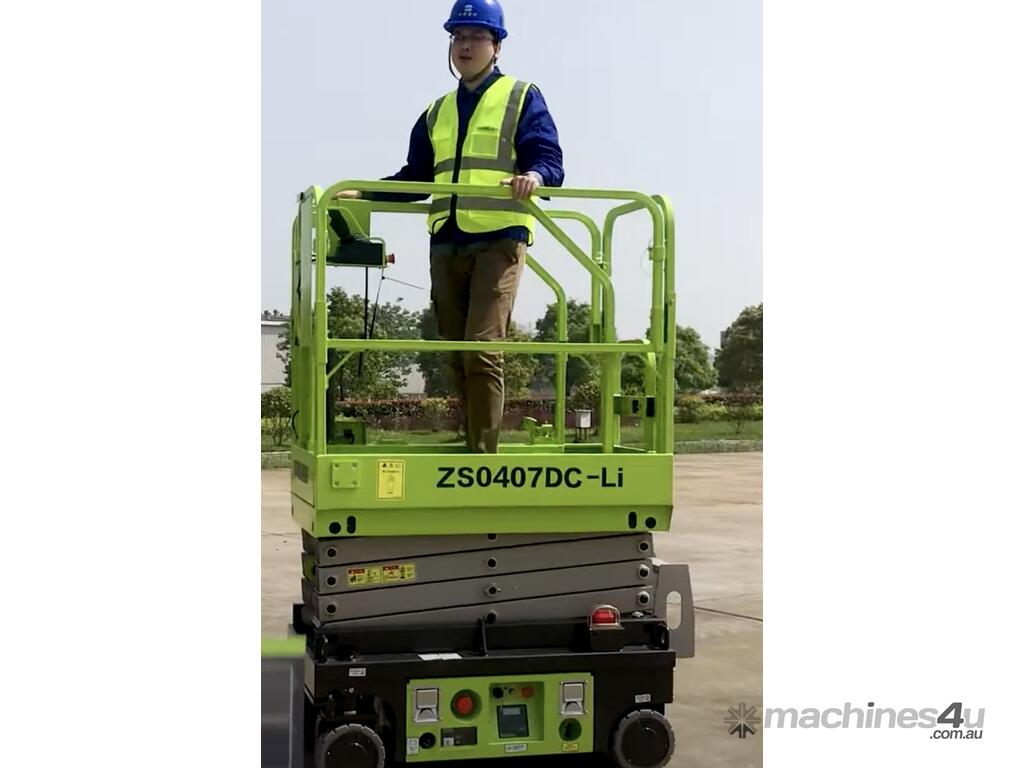

ZOOMLION ZS0407DC-LI Micro Scissor Lift
Electric-powered scissor lifts for high productivity with zero emissions and low noise working conditions.
Key Advantages
High Performance
Efficient electric direct drive system
Compact design for low and tight access applications
Lightweight: 895kg (1975lbs)
Capable of climbing 30% grade slopes in a stowed position
Maximum work height: 6.5m (21ft 4in)
Cost-Effectiveness
Modularized, unitized parts design for easy maintenance
Drawer-type tray for ease of servicing
Robust, reliable, and safe construction
Dimensions
Work Height: 6.5m / 5.6m
Platform Height (Elevated): 4.5m / 3.6m
Platform Height (Stowed): 0.95m
Platform Length: 1.29m
Platform Width: 0.7m
Platform Extension: 0.6m
Overall Height (Rails Up): 2.05m
Overall Height (Rails Down): 1.7m
Overall Length: 1.44m
Overall Width: 0.76m
Wheelbase: 1.05m
Ground Clearance (Stowed): 0.06m
Ground Clearance (Raised): 0.017m
Performance
Platform Capacity: 240kg
Capacity on Deck Extension: 100kg
Max. Number of Workers: 2
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.4m
Turning Radius (Outside): 1.6m
Lifting Motor: 24V / 1.2KW
Drive Motor: 2 x 0.45KW
Up/Down Time: 23/25 seconds
Gradeability: 30% (17 degrees)
Max. Working Slope (Lateral/Vertical): 1.5° / 3°
Control: Proportional Control
Drive: Rear Wheels
Brake: Rear Wheels
Tire: 230mm x 80mm
Power
Battery: 80Ah Li-ion
Charger: 24V / 15A
Weight
Gross Weight: 895kg
Standard Features
Battery Management System (BMS)
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Horn
Autobrake system
Emergency descent system
Emergency stop button
On-board diagnostic
Over-tilt protective system
Active pothole protection system
Load sensing system
Drivable at full height
Hour meter
Extension deck (unidirectional)
Charging protection system
Scissor maintenance prop
Forklift pockets
AC power to platform
Optional Features
Platform work lights
Airline to platform
Overhead protection bar
