ZOOMLION ZS0407DC Micro Scissor Lift - 6.50/5.60m Work Height & 240kg Platform Capacity

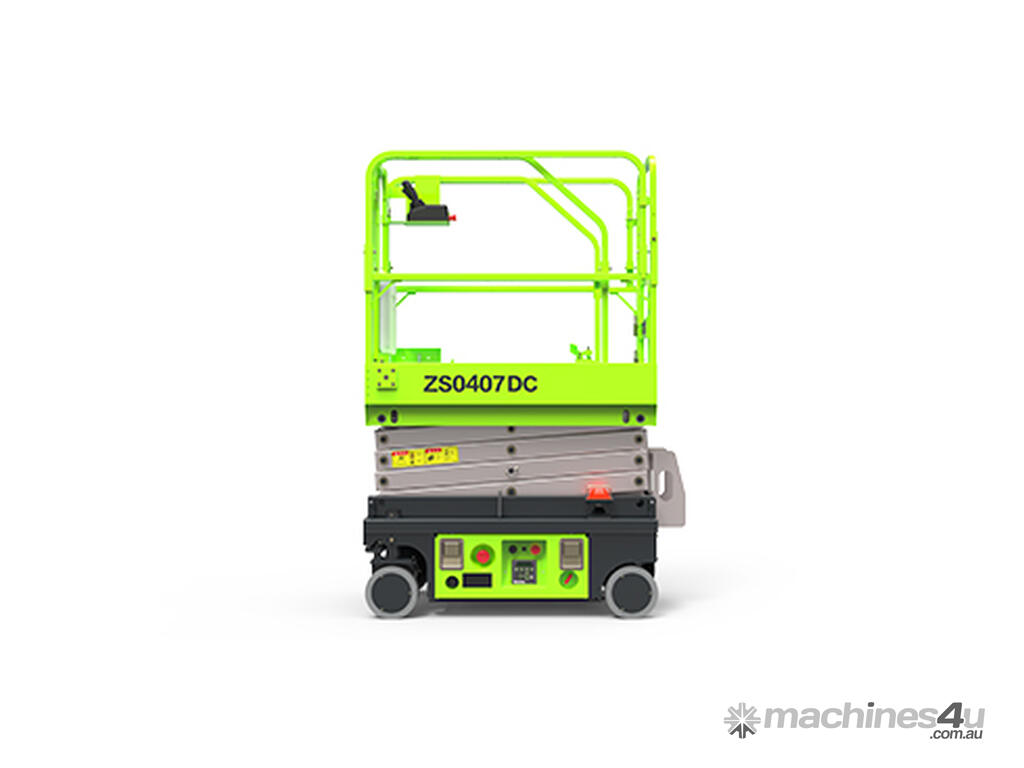

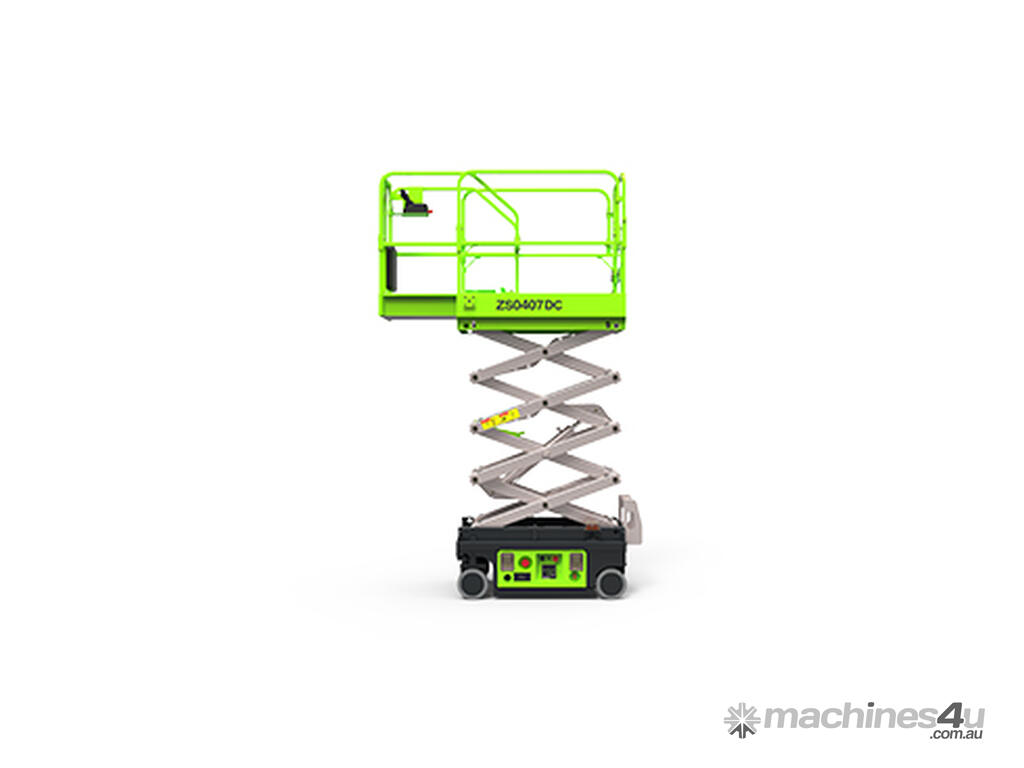

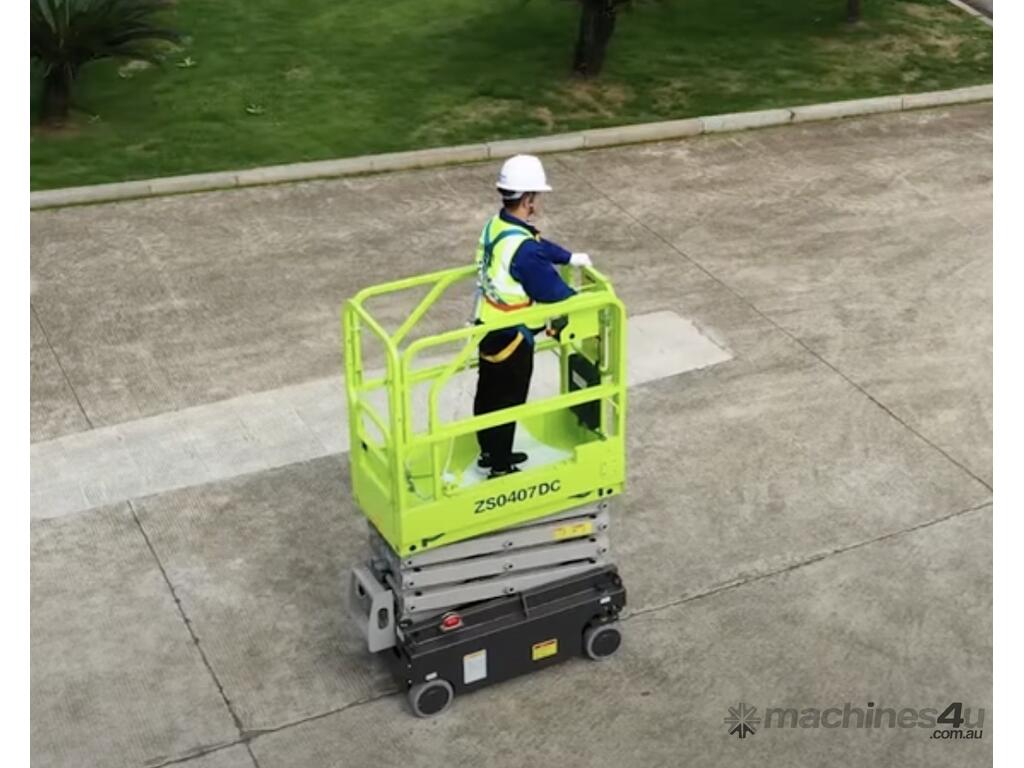

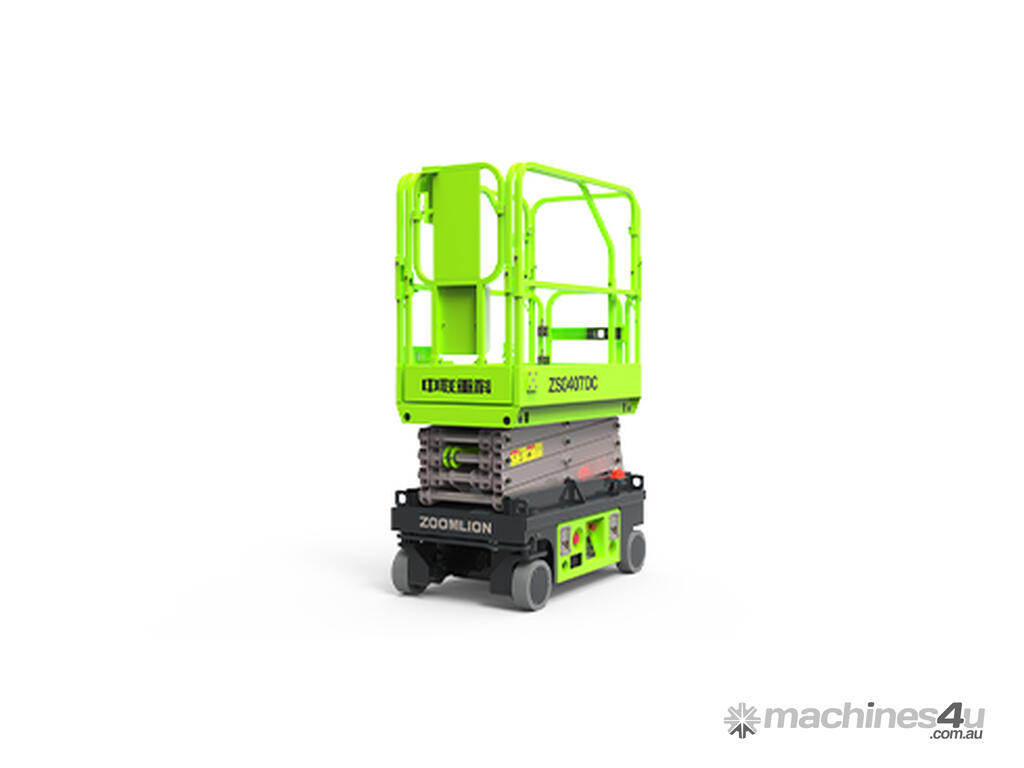

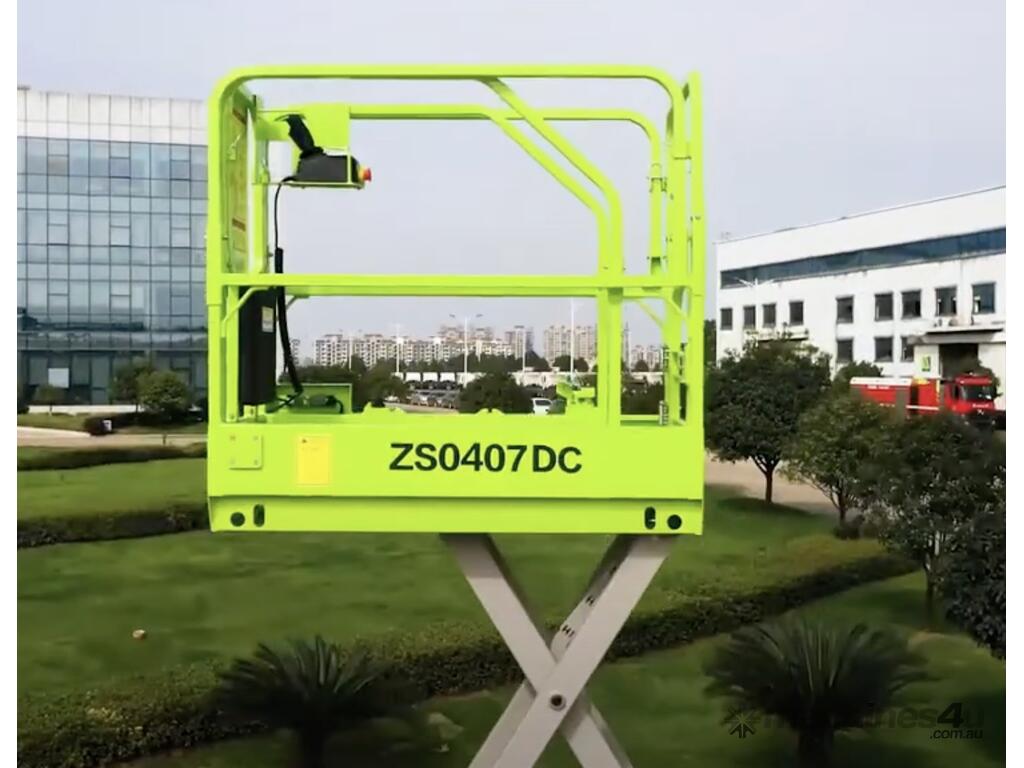

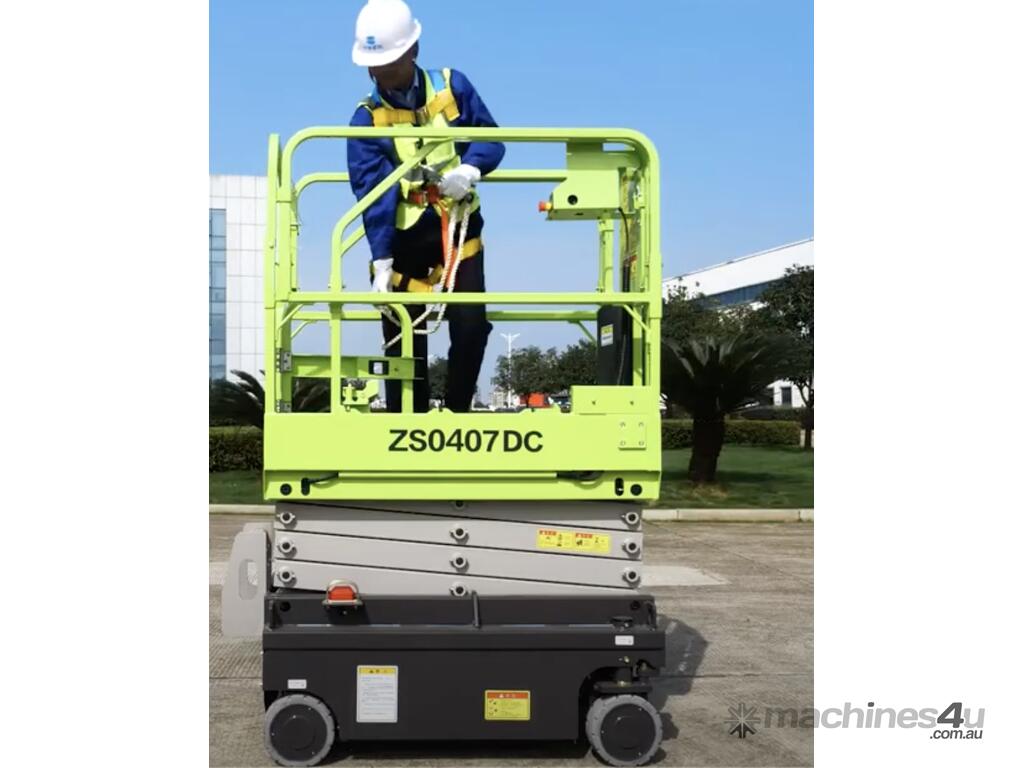

ZOOMLION ZS0407DC Micro Scissor Lift.
Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

ADVANTAGE INTRODUCTION
High Performance
- Efficient electric direct drive system
- Compact dimensions ideal for low and tight access applications
- Lightweight only1975lb/895kg

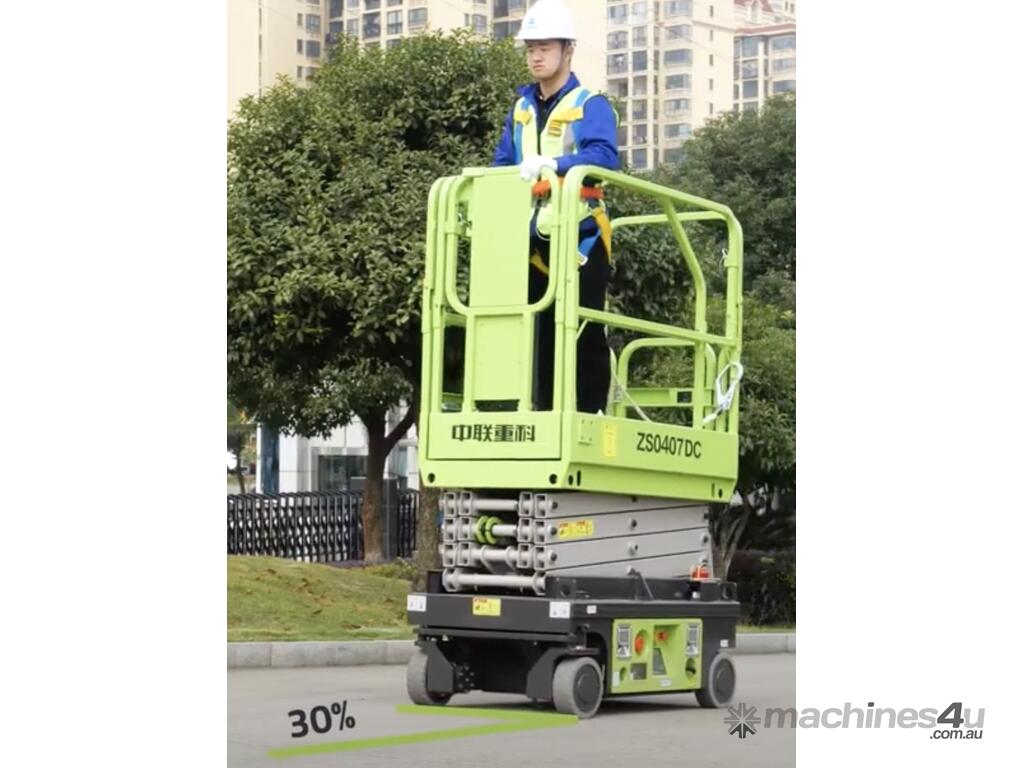

- Climbing up 30 percent grade slopes in a stowed position

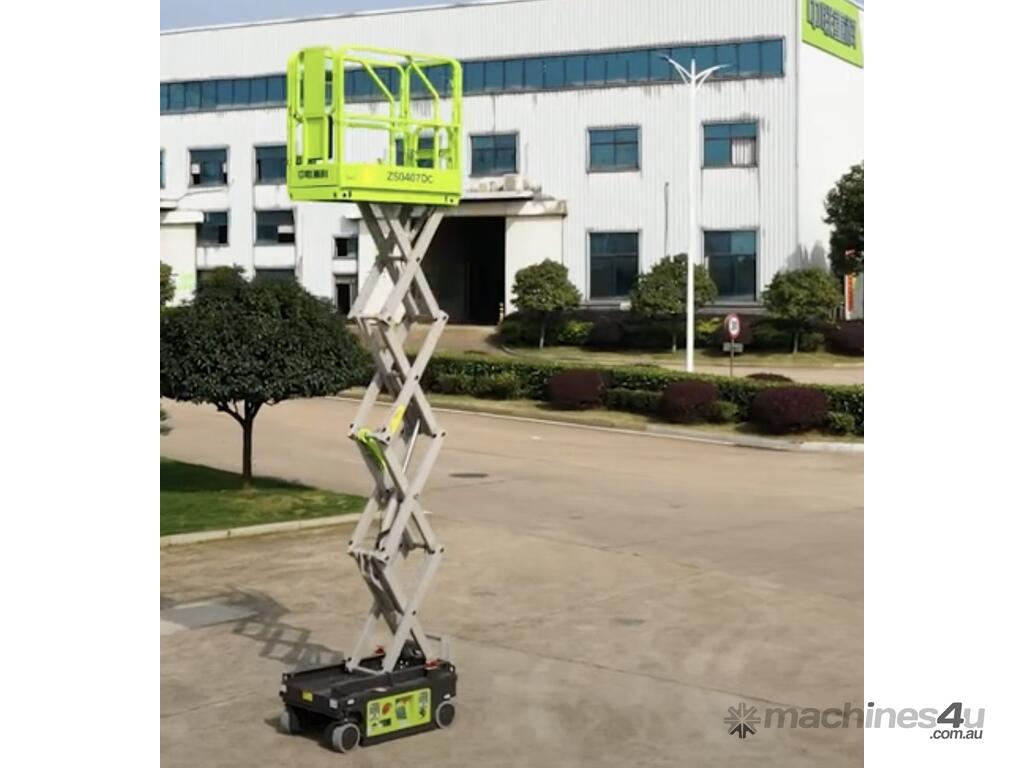

- A maximum work height of 21ft 4in/6.5m

Cost-Effectiveness
- Modularized and unitized parts design ideal for maintenance
- Drawer type tray easy to service
- Robust & build to last, reliable, and safe

Size
Work Height: 6.5m/5.6m
A - Platform Height-Elevated: 4.5m/3.6m
B - Platform Height-Stowed: 0.95m
C - Platform Length: 1.29m
D - Platform Width: 0.7m, Platform Extension: 0.6m
E - Overall Height (Rails Up): 2.05m, Overall Height (Rails Down): 1.7m
F - Overall Length: 1.44m
G - Overall Width: 0.76m
H - Wheelbase: 1.05m
I - Ground Clearance (Stowed): 0.06m
J - Ground Clearance (Raised): 0.017m

Performance
Platform Capacity: 240kg
Capacity on Deck Extension: 100kg
Max. Number of Workers: Indoor: 2, Outdoor: 1
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.4m
Turning Radius (Outside): 1.6m
Lifting Motor: 24V/1.2KW
Drive Motor: 2x0.45KW
Up/Down Time: 23/25s
Gradeability: 30% (17 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Rear Wheels
Brake: Rear Wheels
Tire: 230mmX80mm

Power
Battery: 2x12V/85Ah (HOPPECKE), 2x12V/70Ah (FULLRIVER)
Charger: 24V/15A

Weight
Gross: 895kg

Features
Standard
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Active pothole protection system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Forklift pockets
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop

Option
- Platform work lights
- Load sensing system
- AC power to platform
- Airline to platform
- Horn
