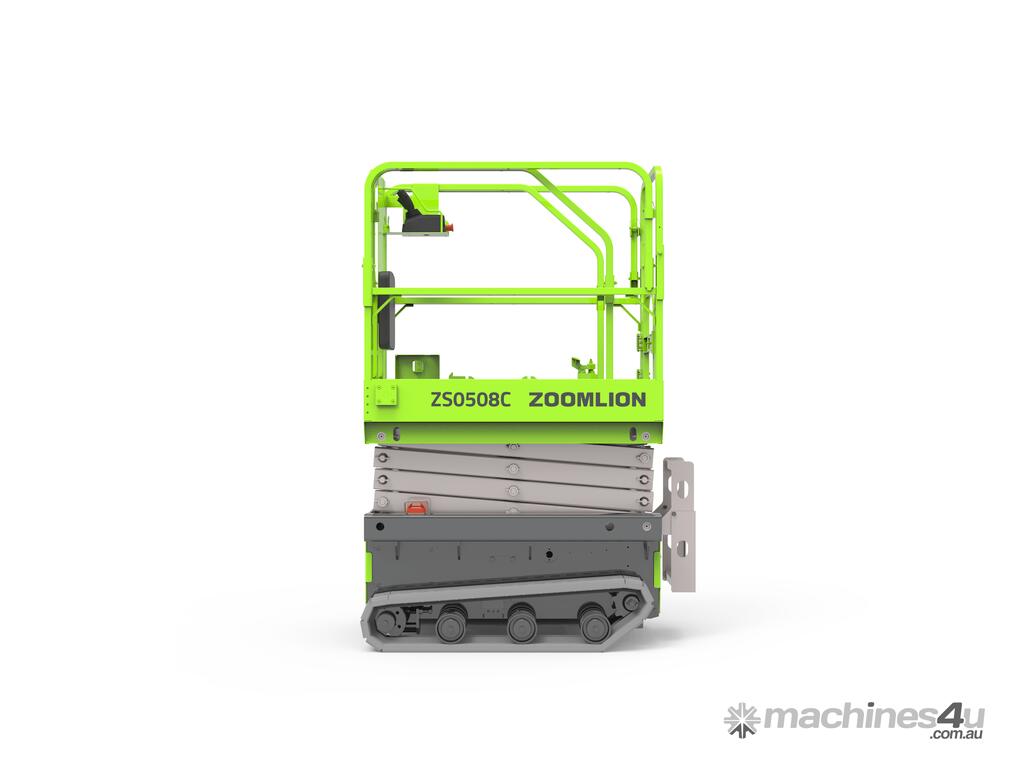

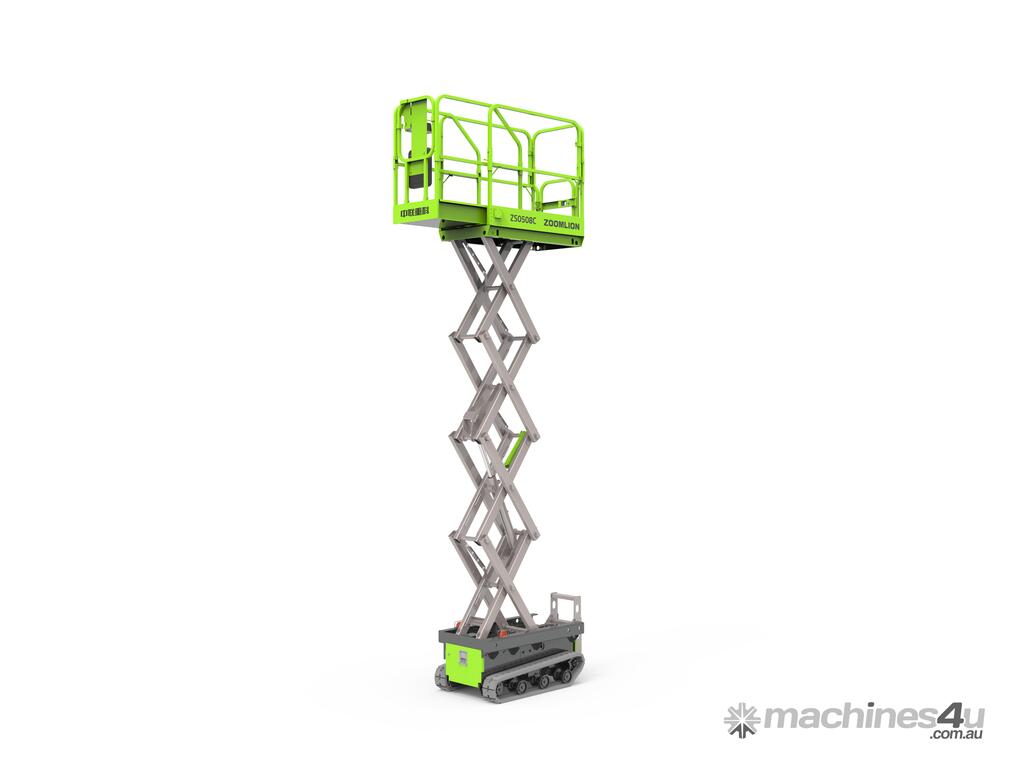

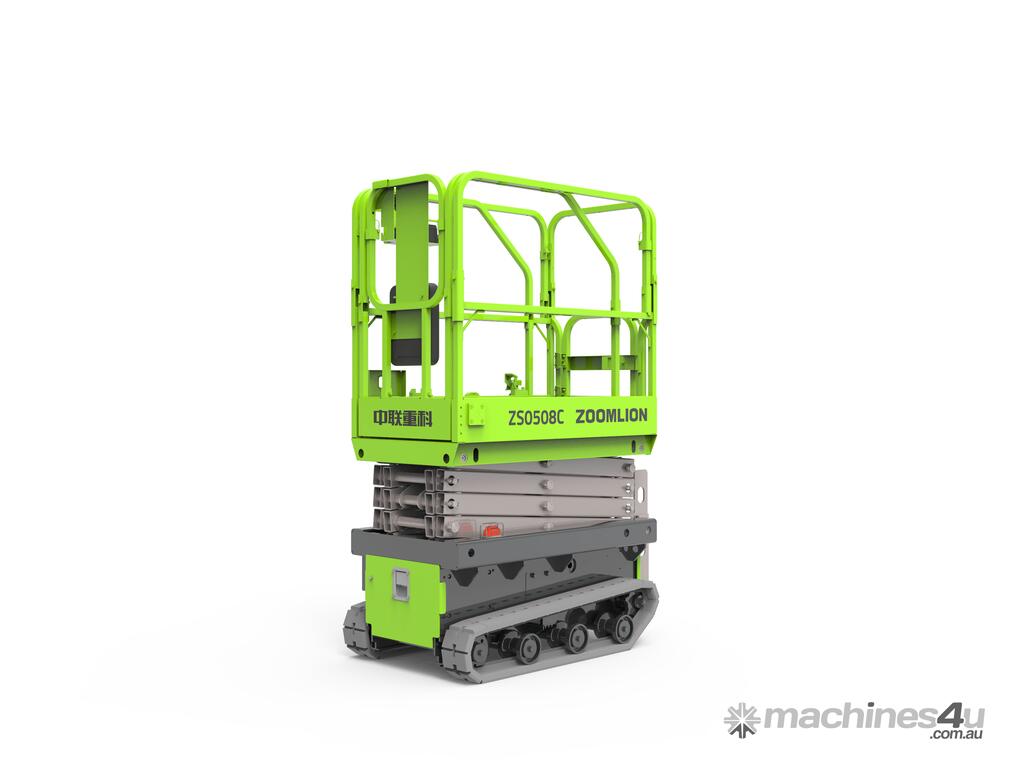

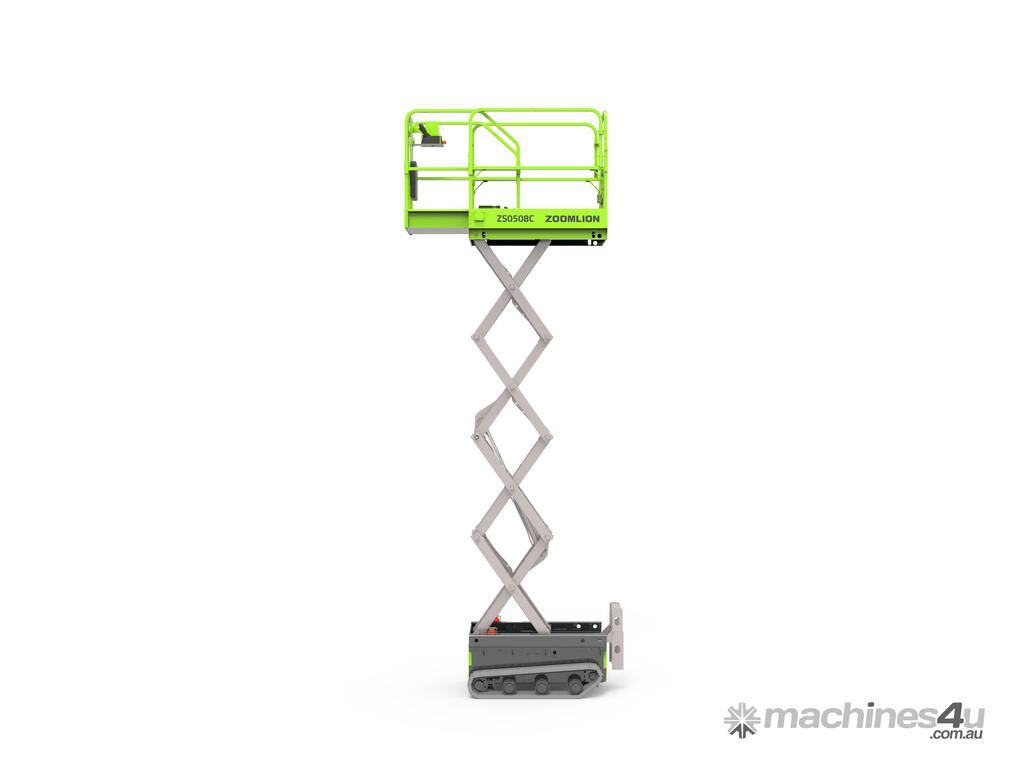

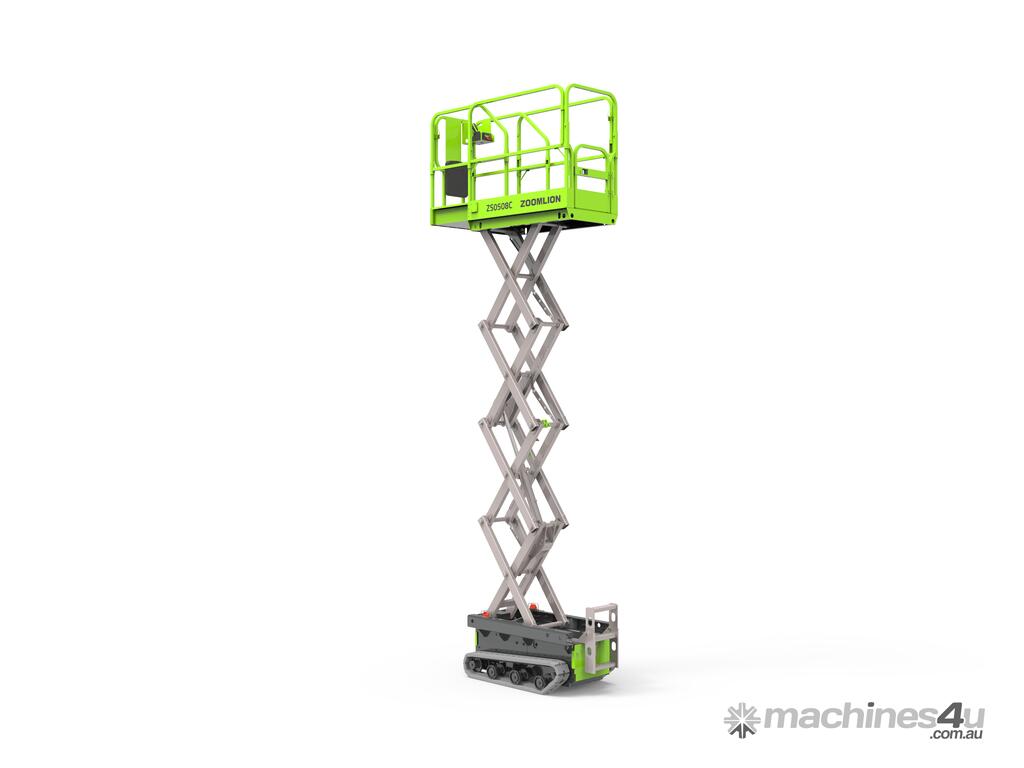

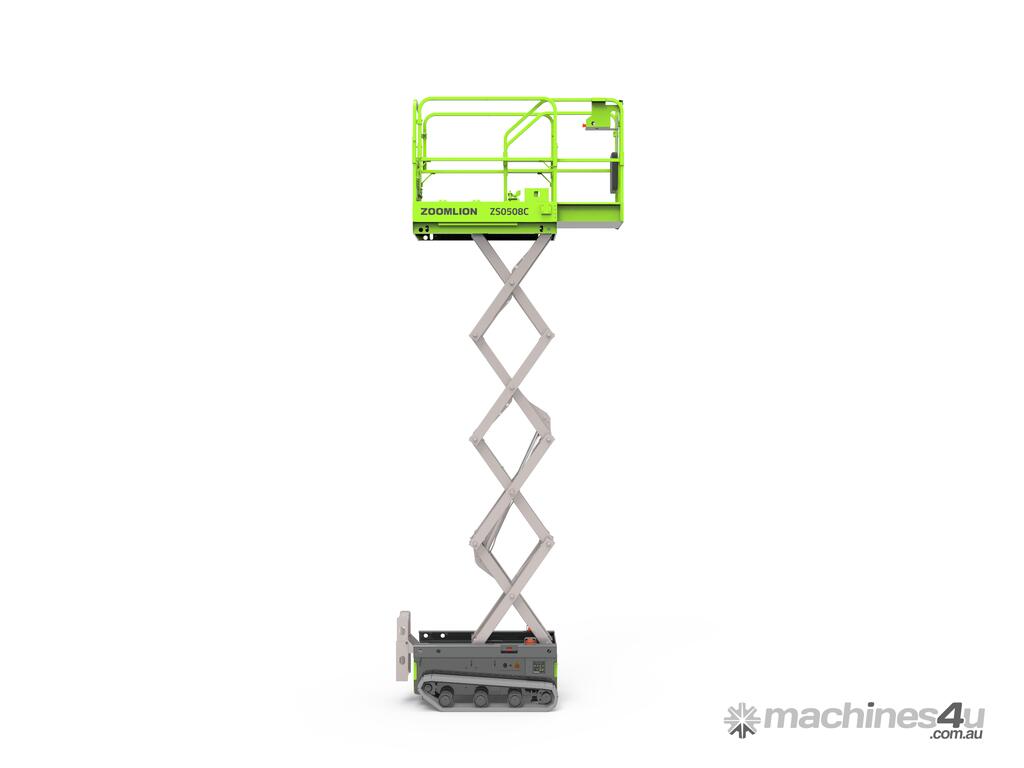

ZOOMLION ZS0508C Crawler Scissor Lift.

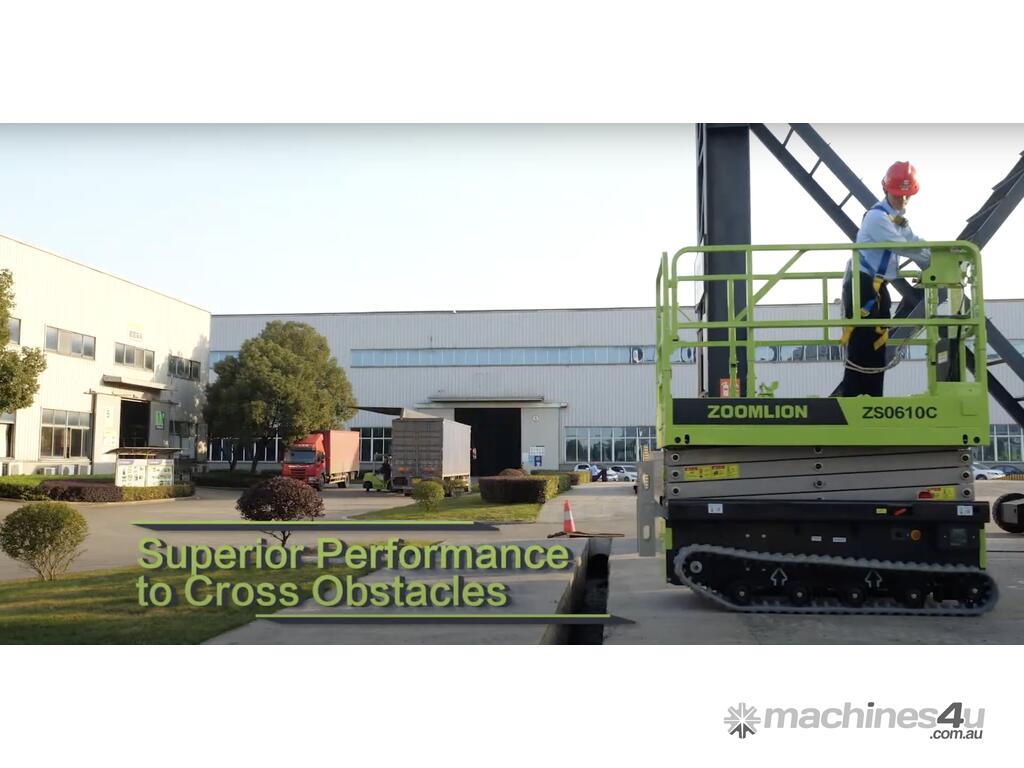

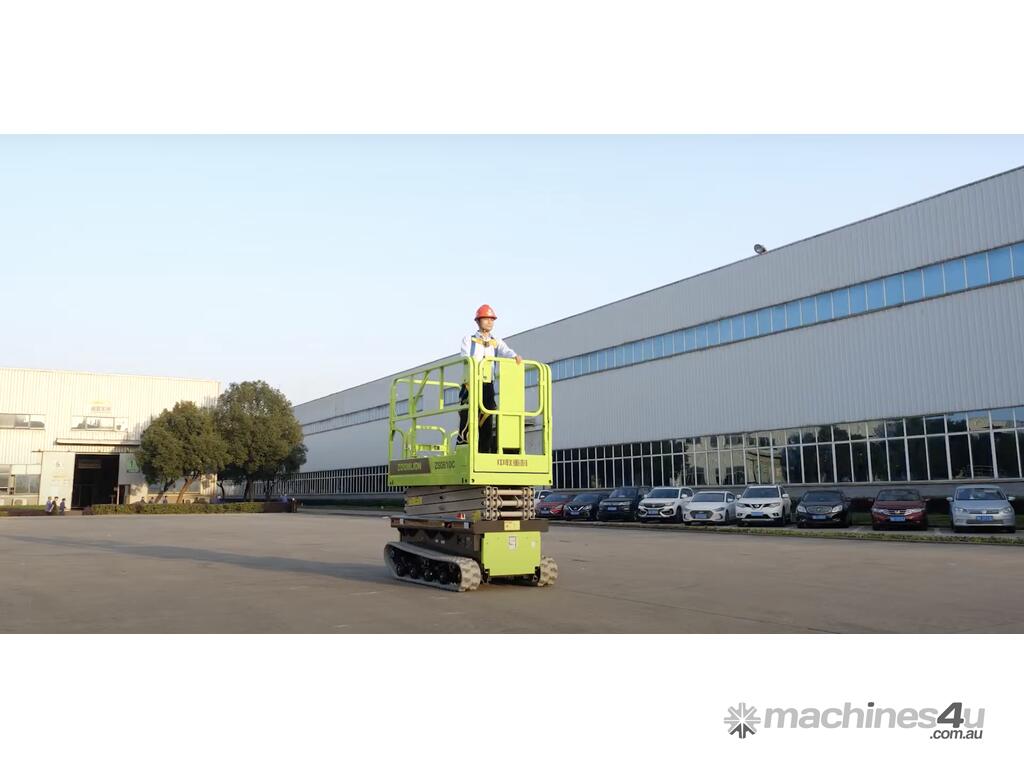

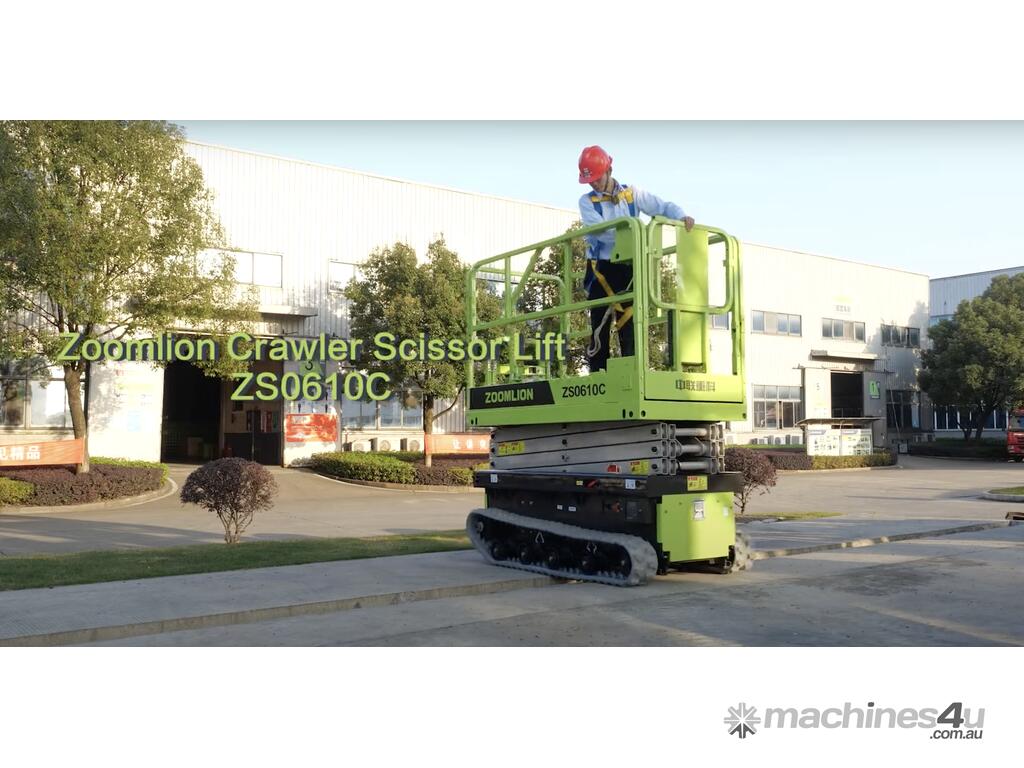

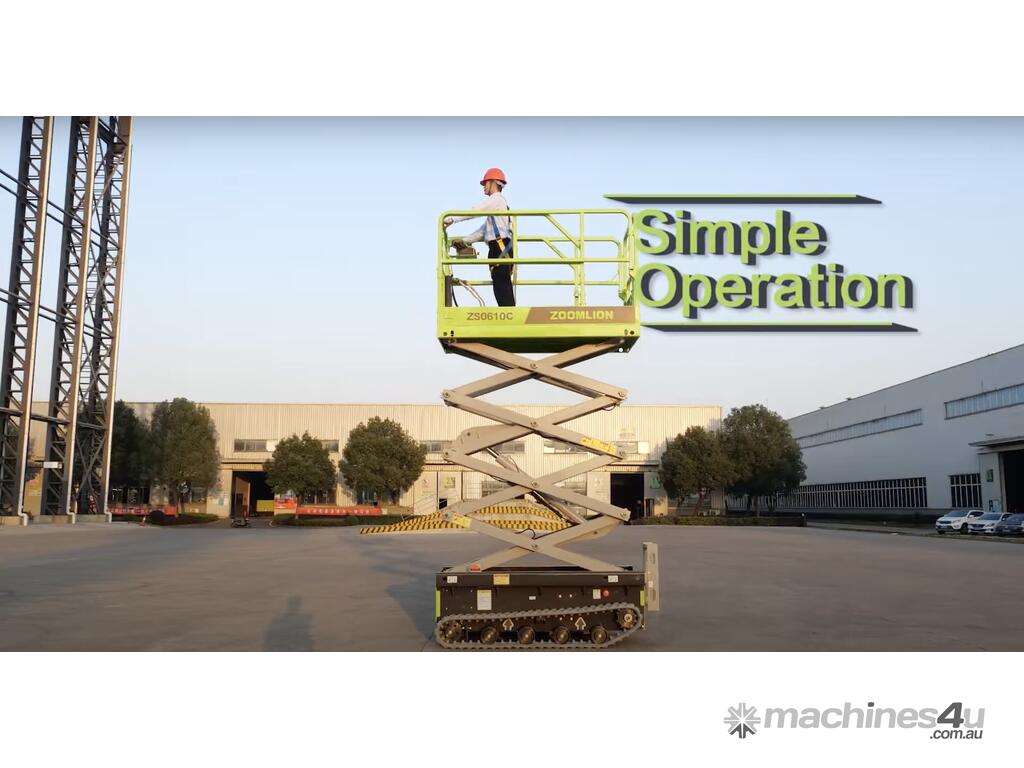

Crawler scissor lift adopts rubber crawler featuring small ground pressure and great obstacle crossing ability, ideal for harsh working conditions. The crawler scissor can realize pivot steering with good maneuverability. Breaking the traditional crawler operation mode, it uses a single handle to control steering and walking, and features a simple operation. AC motor driver provides high efficiency and long running time. Maintenance-free battery for option.
ADVANTAGE INTRODUCTION
- Rubber crawler provides small ground pressure and great obstacle crossing ability;
- Pivot steering with good maneuverability;
- Simple single handle control for steeting and walking.
- Knuckles lubrication-free and maintenance-free;
- AC motor full lifecycle maintenance-free.
Size
Work Height: 6.5m
A Platform Height-Elevated: 4.5m
B Platform Height-Stowed: 0.99m
C Platform Length: 1.29m
D Platform Width: 0.7m
Platform Extension: 0.6m
E Overall Height (Rails Up): 2.1m
Overall Height (Rails Down): 1.74m
F Overall Length: 1.46m
G Overall Width: 0.81m
H Ground Clearance: 0.07m
Performance
Platform Capacity: 240kg
Capacity on Deck Extension: 100kg
Max. Number of Workers: 1
Drive Speed (Stowed): 2km/h
Drive Speed (Raised): 0km/h
Turning Radius: 0m
Drive Motor: 24V/2x0.77KW
Up/Down Time: 23/25s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.7 degrees/1.7degrees degrees
Drive: Rear Wheels
Brake: Rear Wheels
Power
Battery: 2x12V/115Ah
Charger: 24V/30A
Weight
Gross: 895kg
Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- Horn
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- AC power to platform
Option
- Platform work lights
- Airline to platform
- Overhead protection bar
