ZOOMLION ZS0607AC-LI Scissor Lift - 7.80/6.40m Work Height & 230kg Platform Capacity

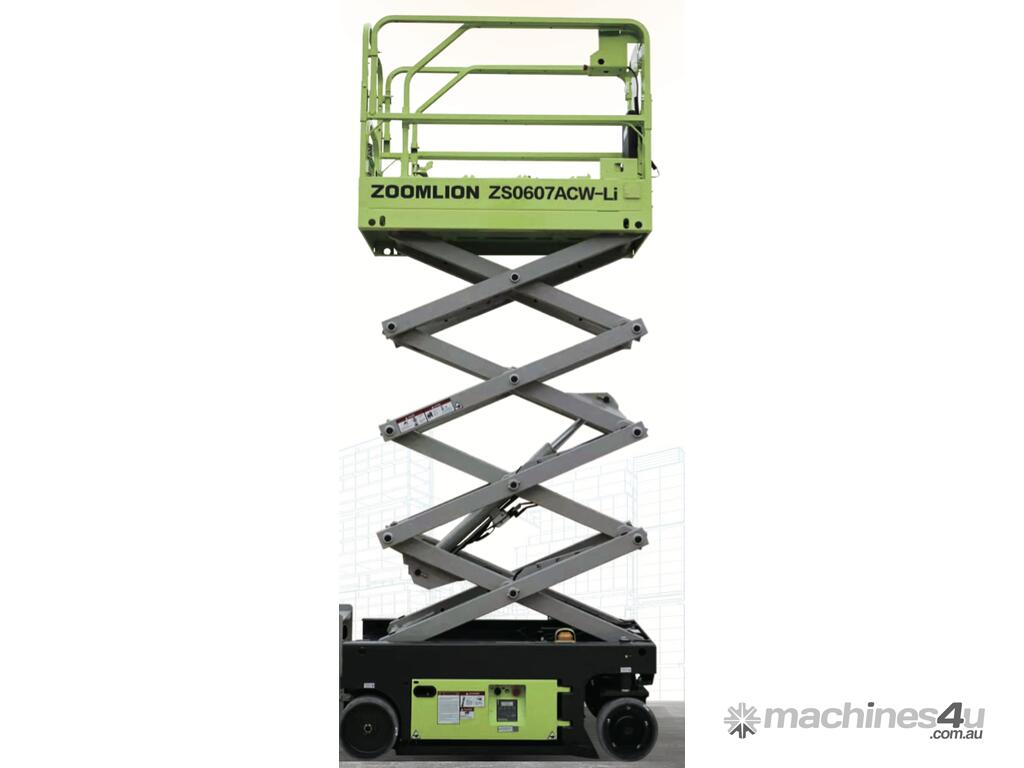

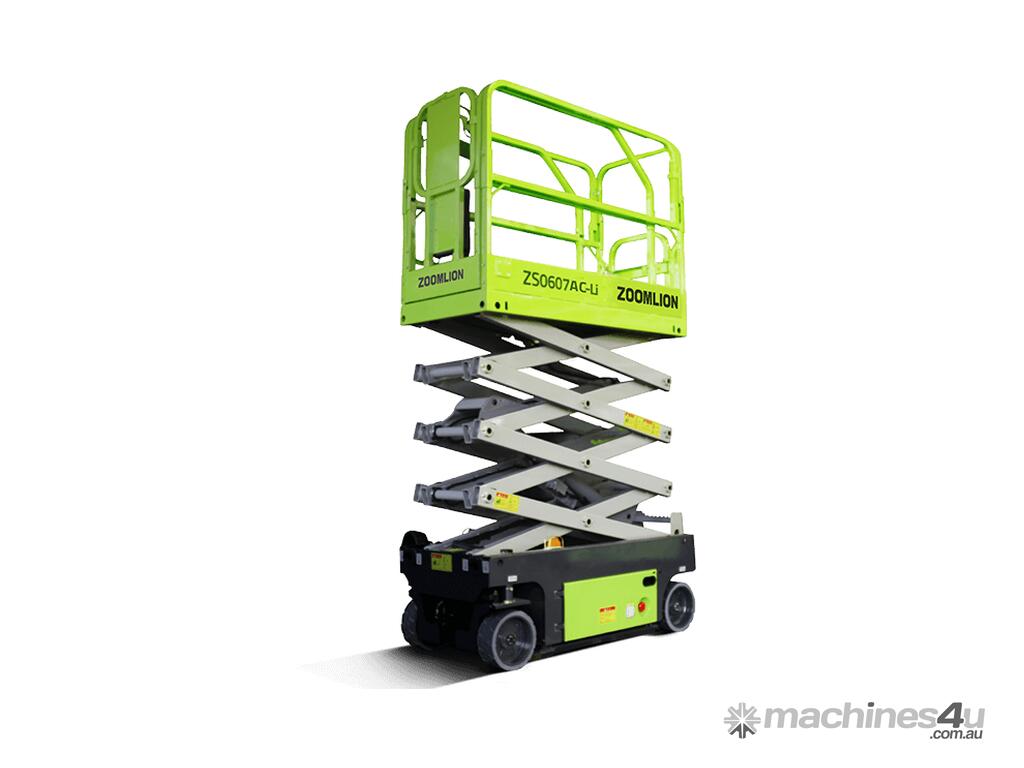

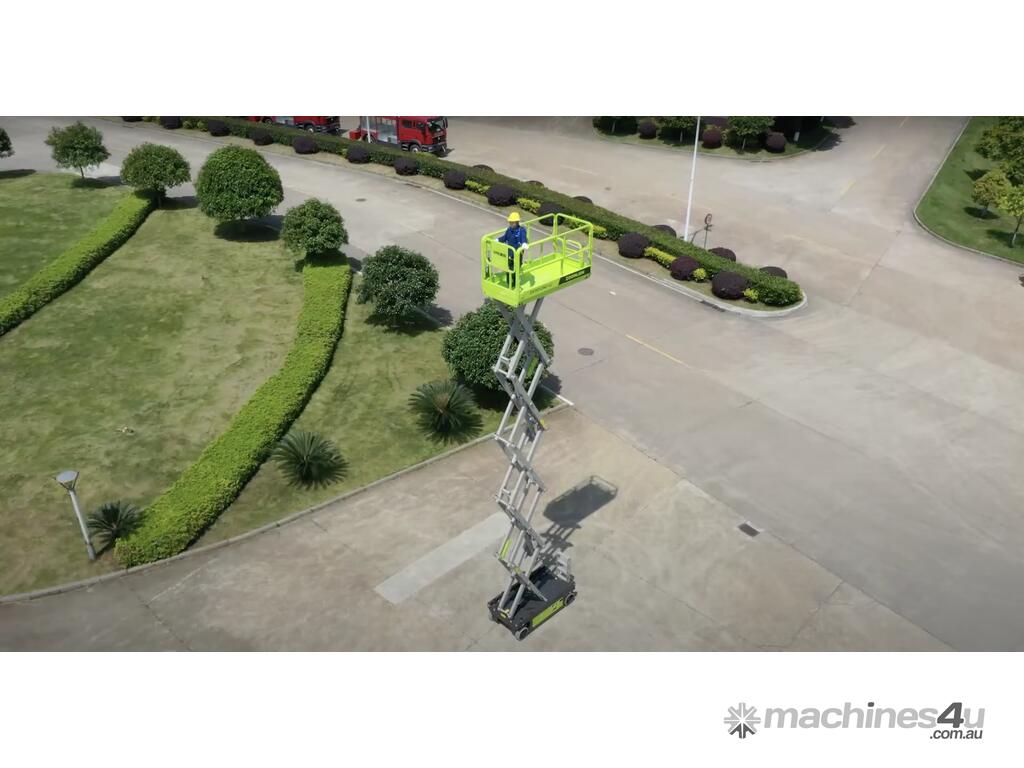

ZOOMLION ZS0607AC-LI Scissor Lift.
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

ADVANTAGE INTRODUCTION
High Performance
1. AC system offers higher working efficiency;
2. IP67 reached that AC motor offers longer lifespan;

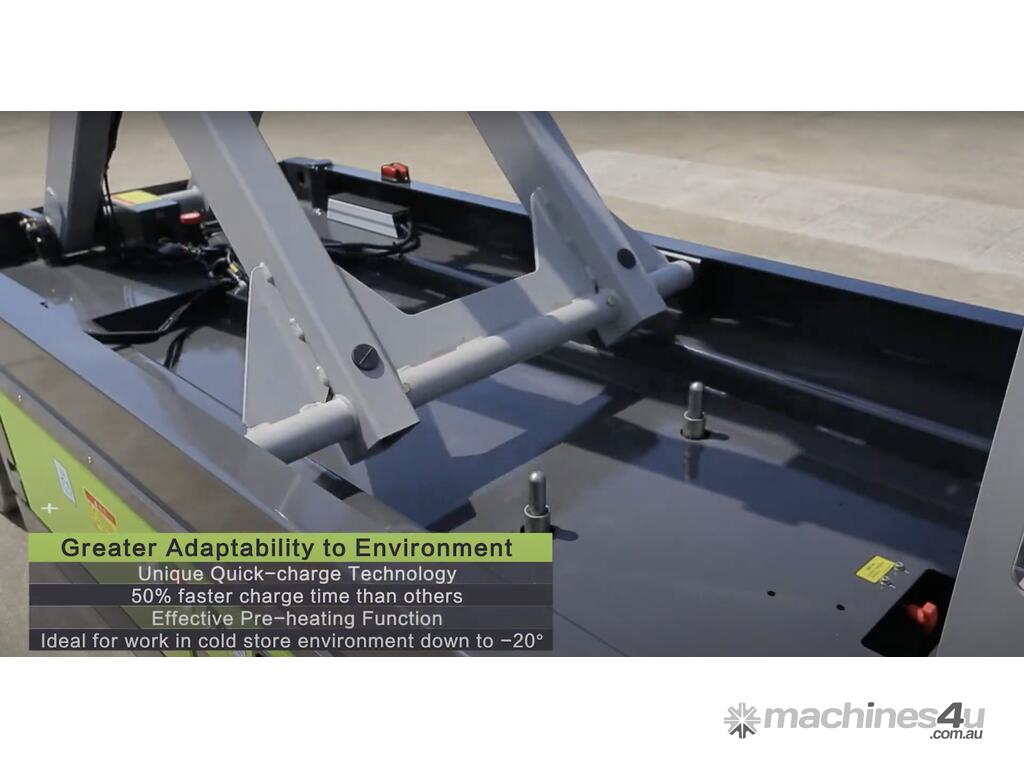

3. Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20 degree Celsius cold working conditions.

Cost Effectiveness
1. Knuckles lubrication-free and maintenance-free;
2. AC motor full lifecycle maintenance-free;

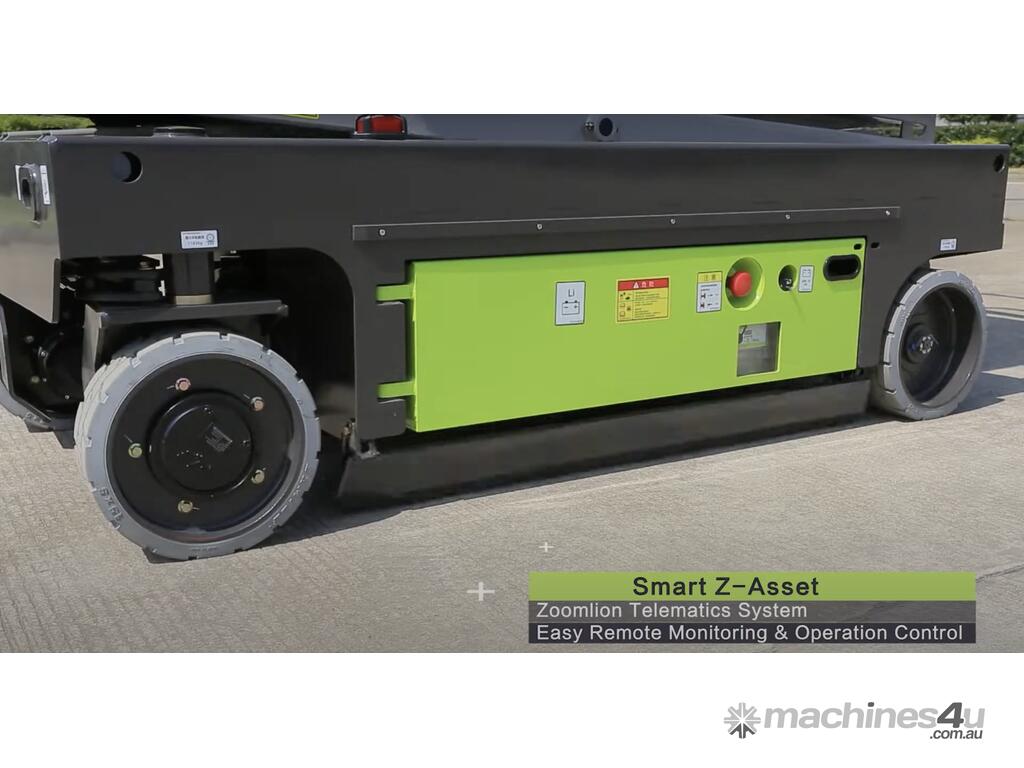

3. Swing-out tray easy to service.

Intelligent Connectivity
1. Battery Management System (BMS) + Machine control system provide dual protection

Size
Work Height: 7.8m/6.4m
A - Platform Height-Elevated: 5.8m/4.4m
B - Platform Height-Stowed: 1.05m
C - Platform Length: 1.65m
D - Platform Width: 0.74m, Platform Extension: 0.91m
E - Overall Height (Rails Up): 2.20m, Overall Height (Rails Down): 1.79m
F - Overall Length: 1.85m
G - Overall Width: 0.76m
H - Wheelbase: 1.37m
I - Ground Clearance (Stowed): 0.06m
J - Ground Clearance (Raised): 0.016m

Performance
Platform Capacity: 230kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2/1
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 1.6m
Lifting Motor: 24V/3.3KW
Drive Motor: 2×0.65KW
Up/Down Time: 20s/24s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees

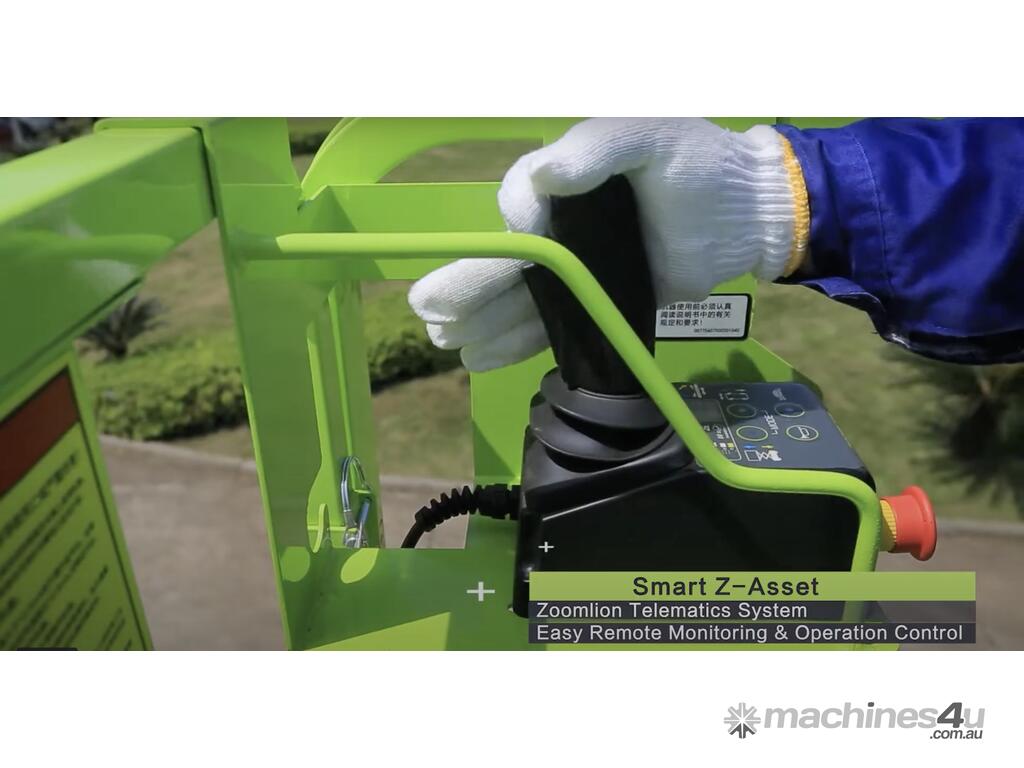

Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 323mm×100mm

Power
Battery: 160Ah Li-ion
Charger: 24V/30A

Weight
Gross: 455kg

Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- AC power to platform
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- Horn

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
