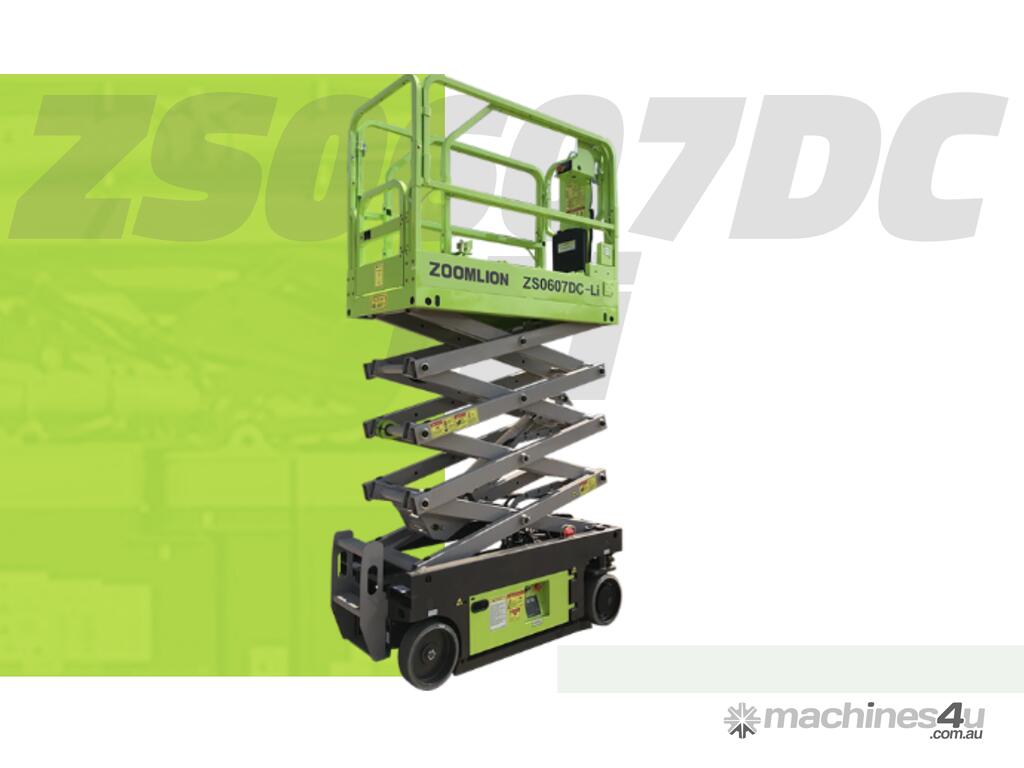

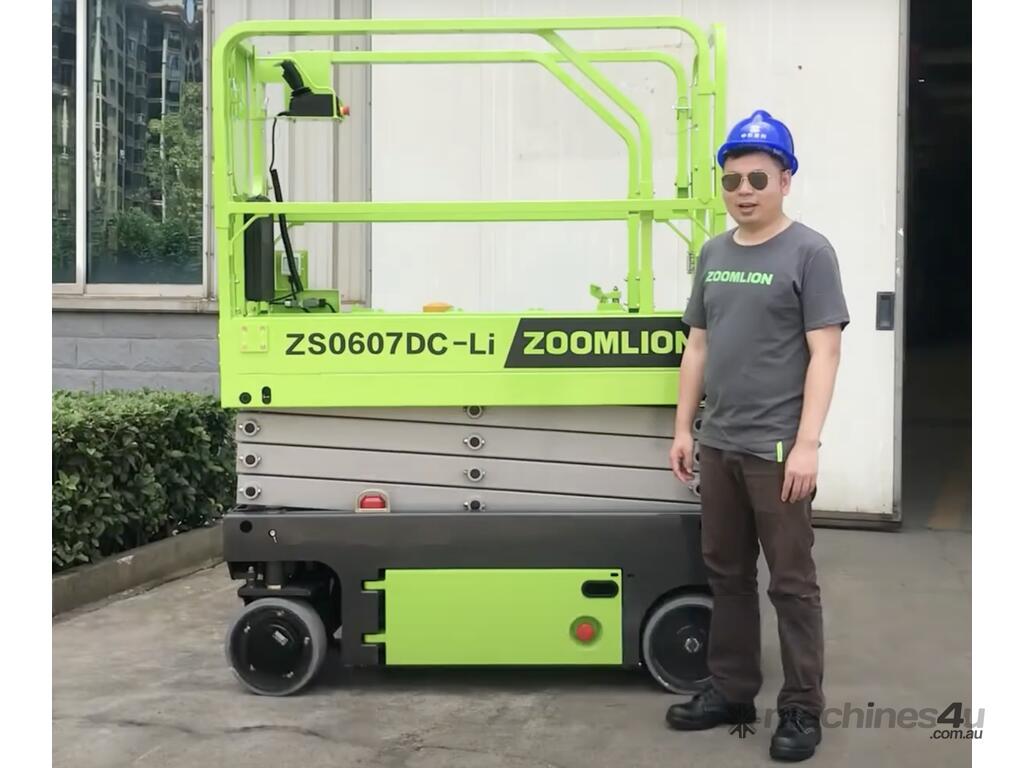

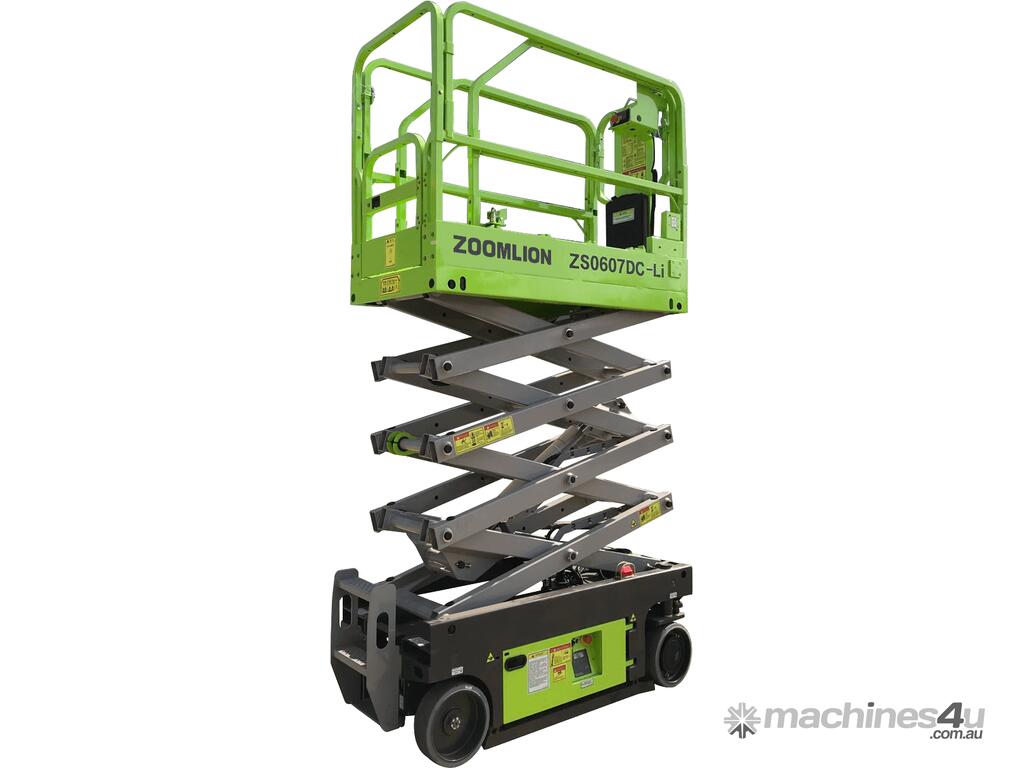

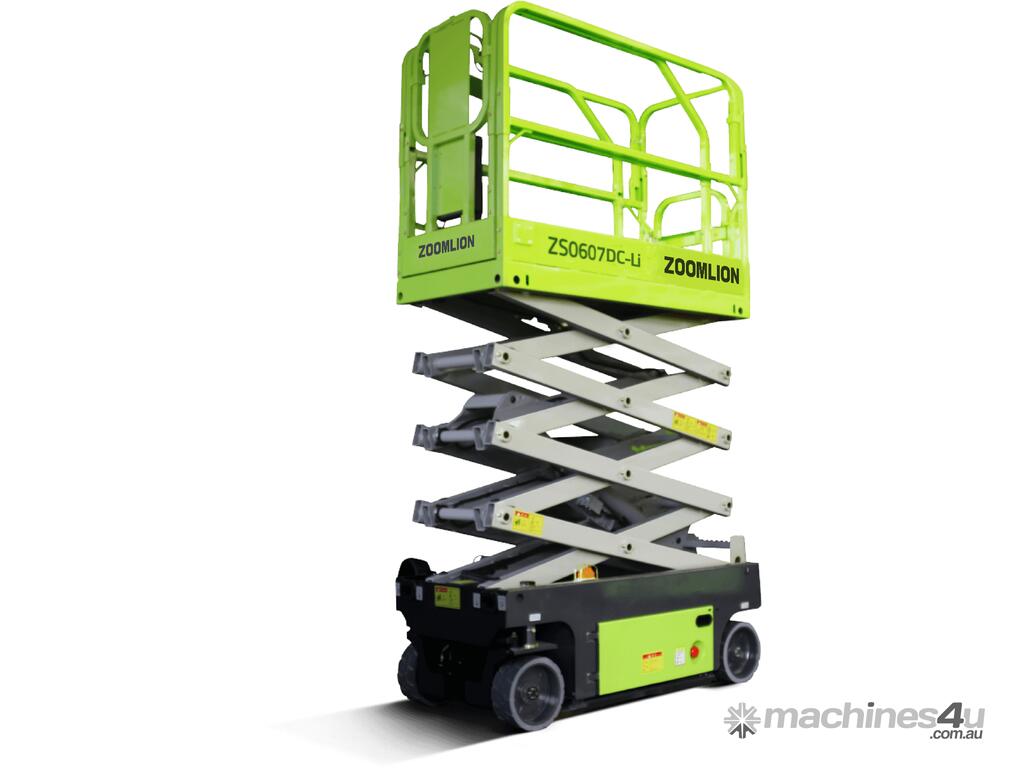

ZOOMLION ZS0607DC-LI Scissor Lift - 7.80m Work Height & 230kg Platform Capacity

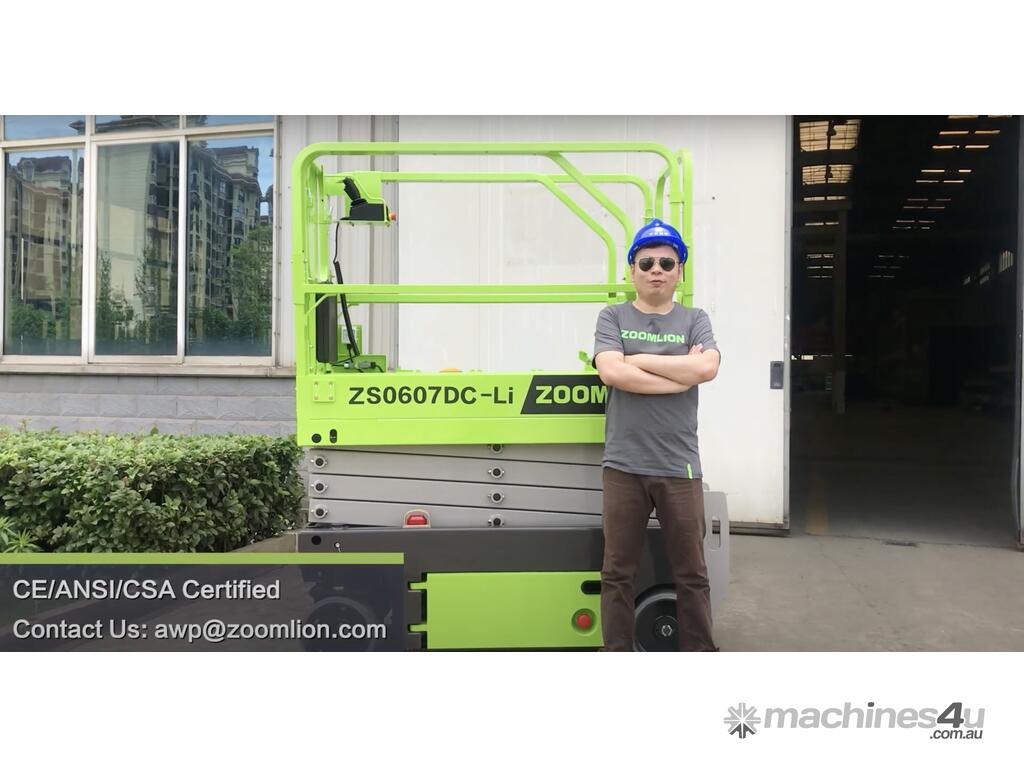

ZOOMLION ZS0607DC-LI Scissor Lift.

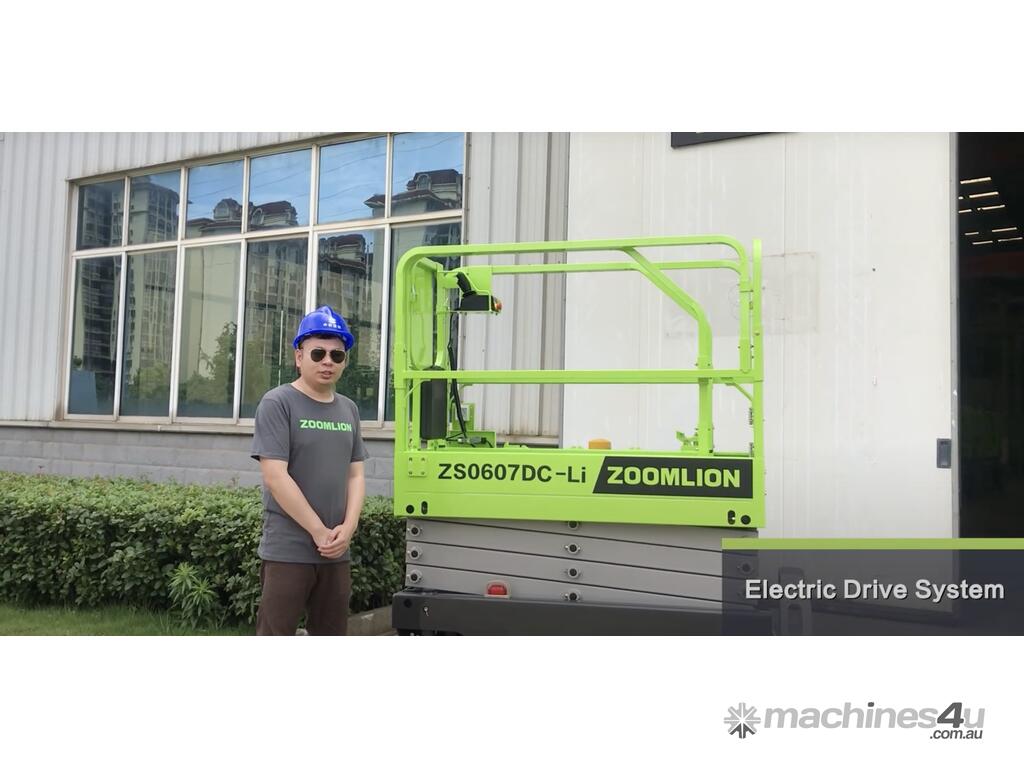

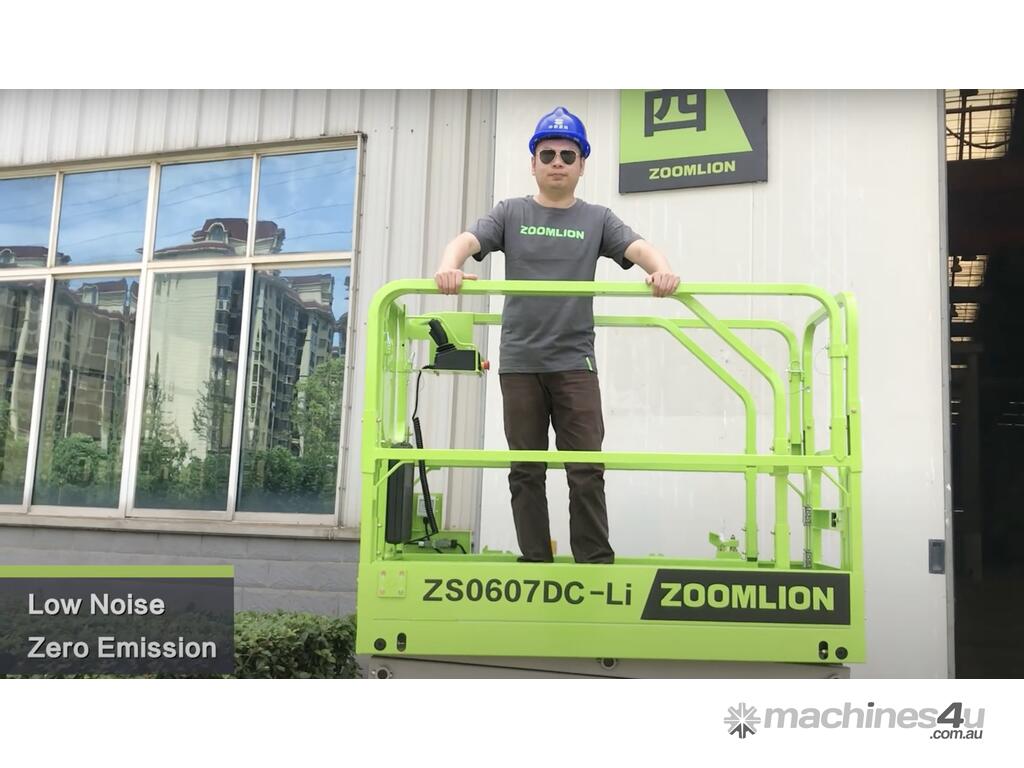

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

ADVANTAGE INTRODUCTION

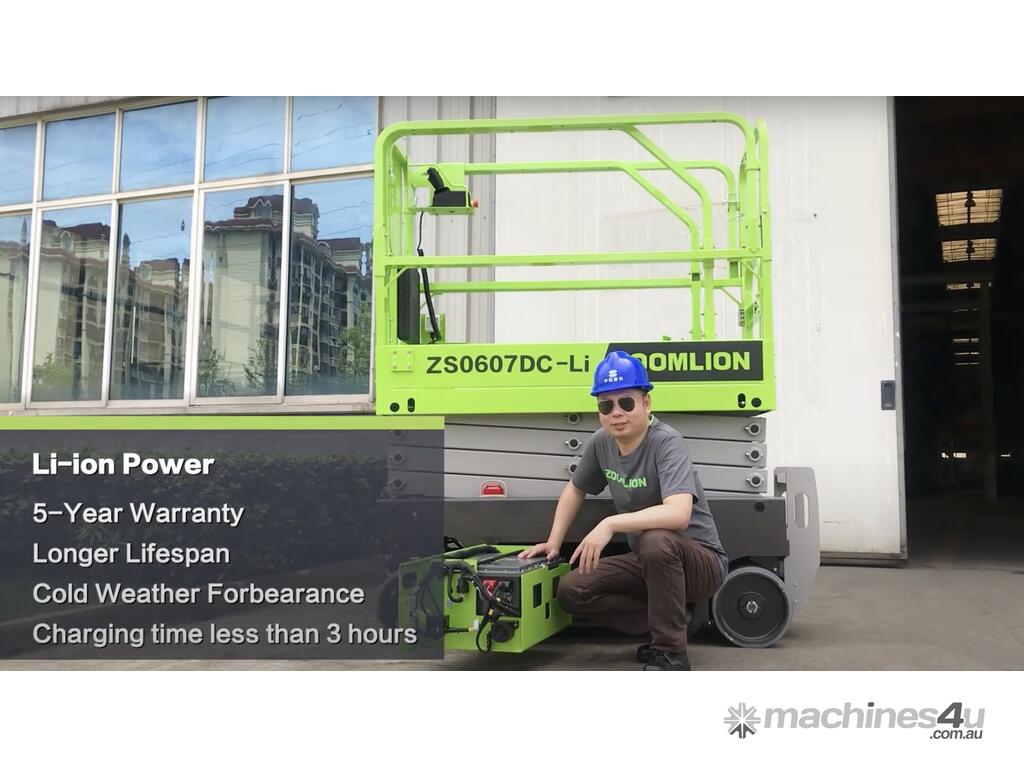

- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with a triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System(BMS) guarantees safety power

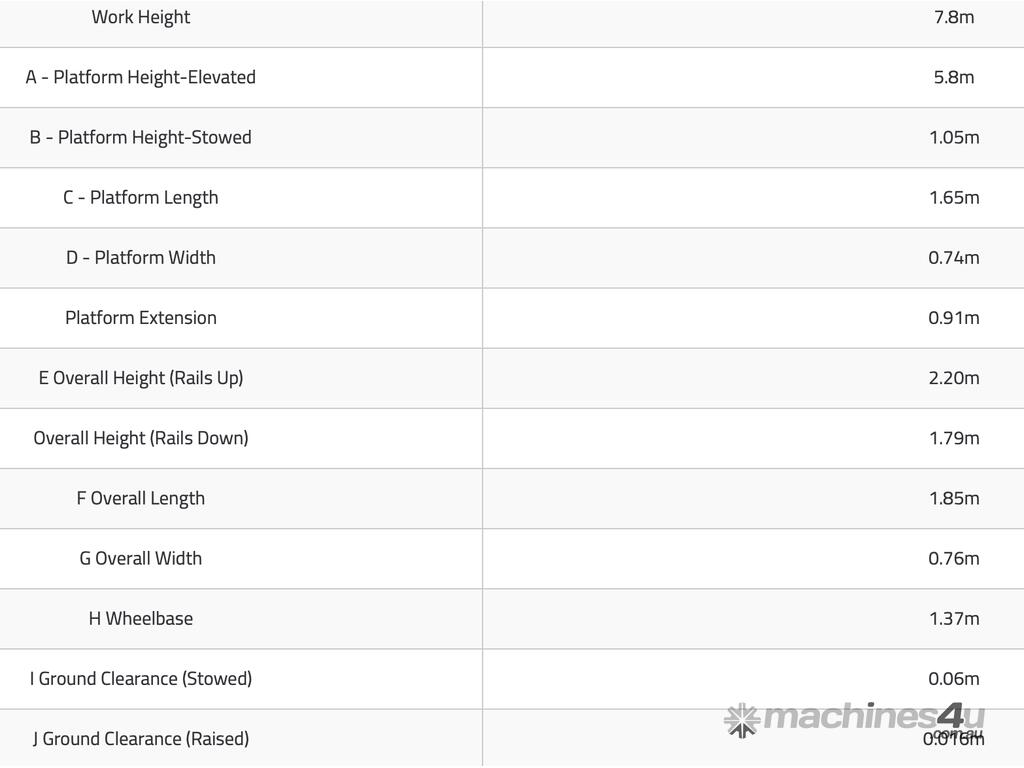

Size
Work Height: 7.8m
A - Platform Height-Elevated: 5.8m
B - Platform Height-Stowed: 1.05m
C - Platform Length: 1.65m
D - Platform Width: 0.74m, Platform Extension: 0.91m
E Overall Height (Rails Up): 2.20m, Overall Height (Rails Down): 1.79m
F Overall Length: 1.85m
G Overall Width: 0.76m
H Wheelbase: 1.37m
I Ground Clearance (Stowed): 0.06m
J Ground Clearance (Raised): 0.016m

Performance
Platform Capacity: 230kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 1.6m
Lifting Motor: 24V/3.3KW
Drive Motor: 2×0.65KW
Up/Down Time: 20s/24s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 323mm×100mm

Power
Battery: 160Ah Li-ion
Charger: 24V/30A

Weight
Gross: 1455kg

Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Horn
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- Load sensing system
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- AC power to platform

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
