ZOOMLION ZS0610C Crawler Scissor Lift - 8.80m Work Height & 250kg Platform Capacity

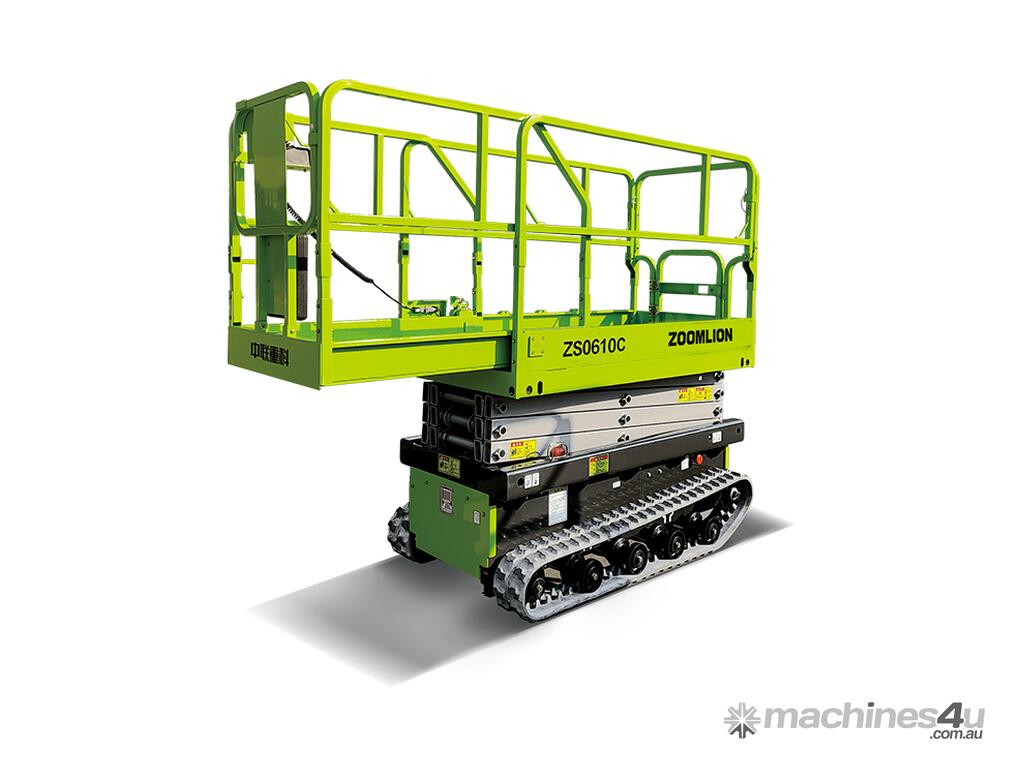

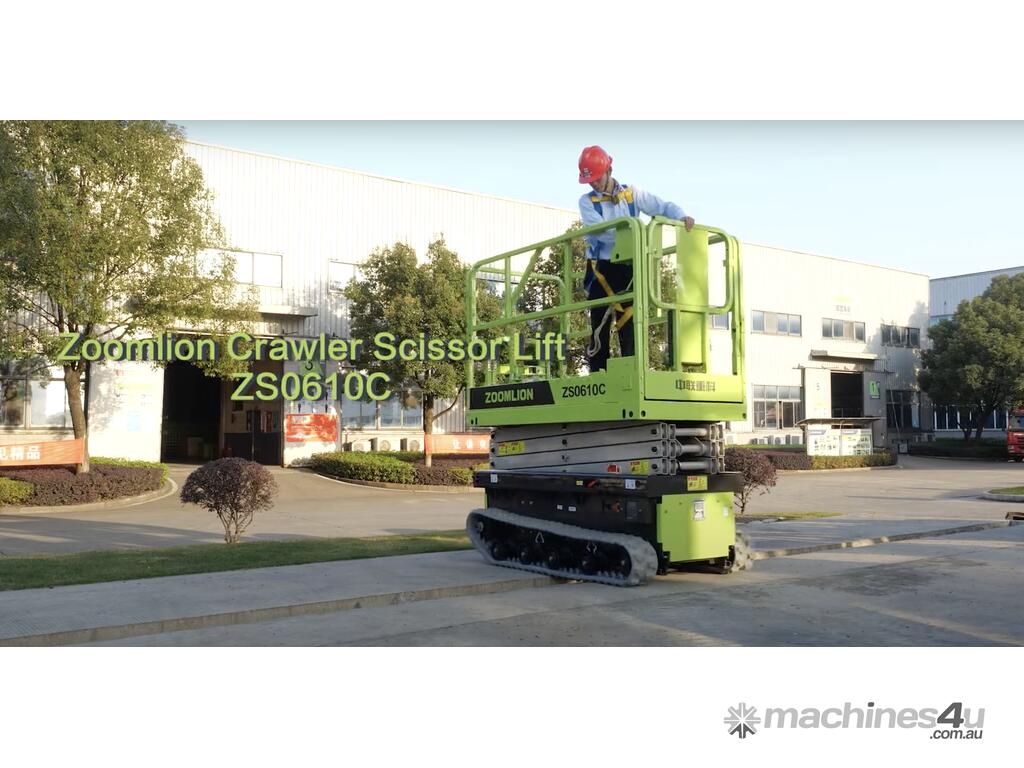

ZOOMLION ZS0610C Crawler Scissor Lift.
Crawler scissor lift adopts rubber crawler featuring small ground pressure and great obstacle crossing ability, ideal for harsh working conditions. The crawler scissor can realize pivot steering with good maneuverability. Breaking the traditional crawler operation mode, it uses a single handle to control steering and walking, and features a simple operation. AC motor driver provides high efficiency and long running time. Maintenance-free battery for option.

ADVANTAGE INTRODUCTION

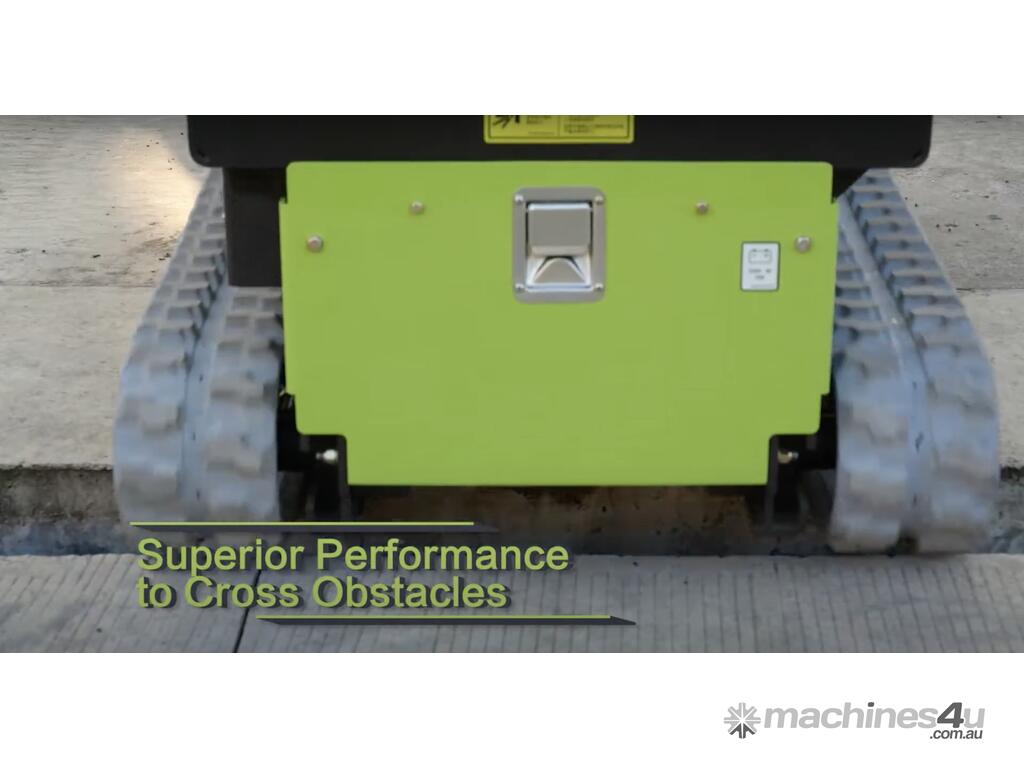

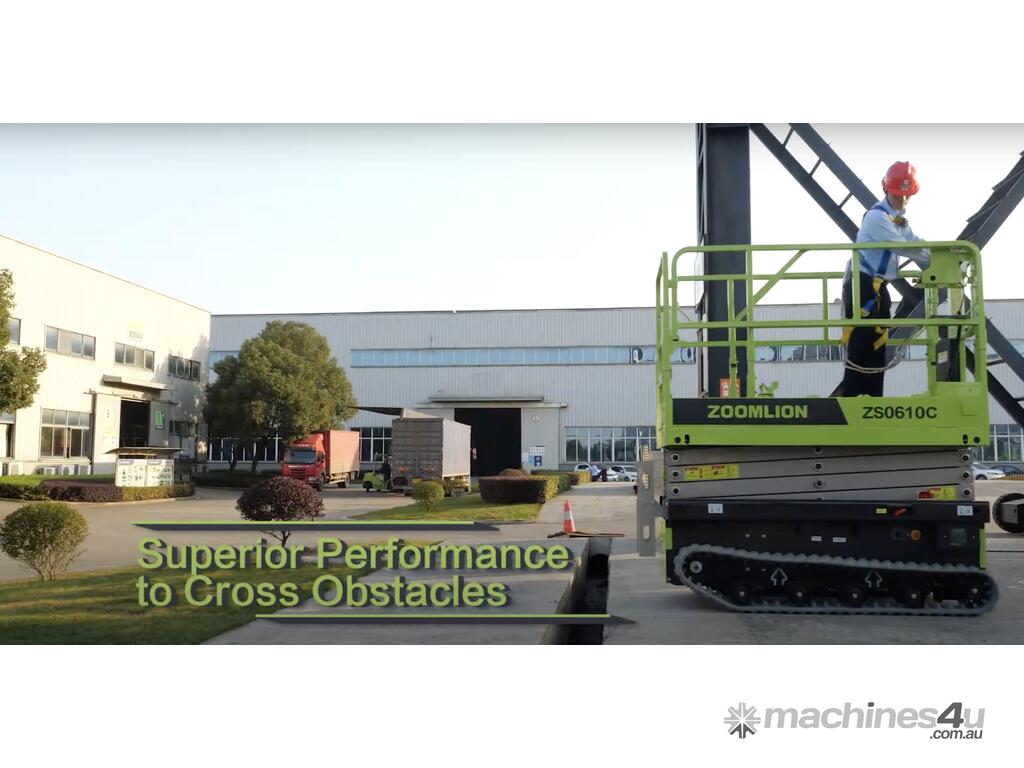

- Rubber crawler provides small ground pressure and great obstacle crossing ability;

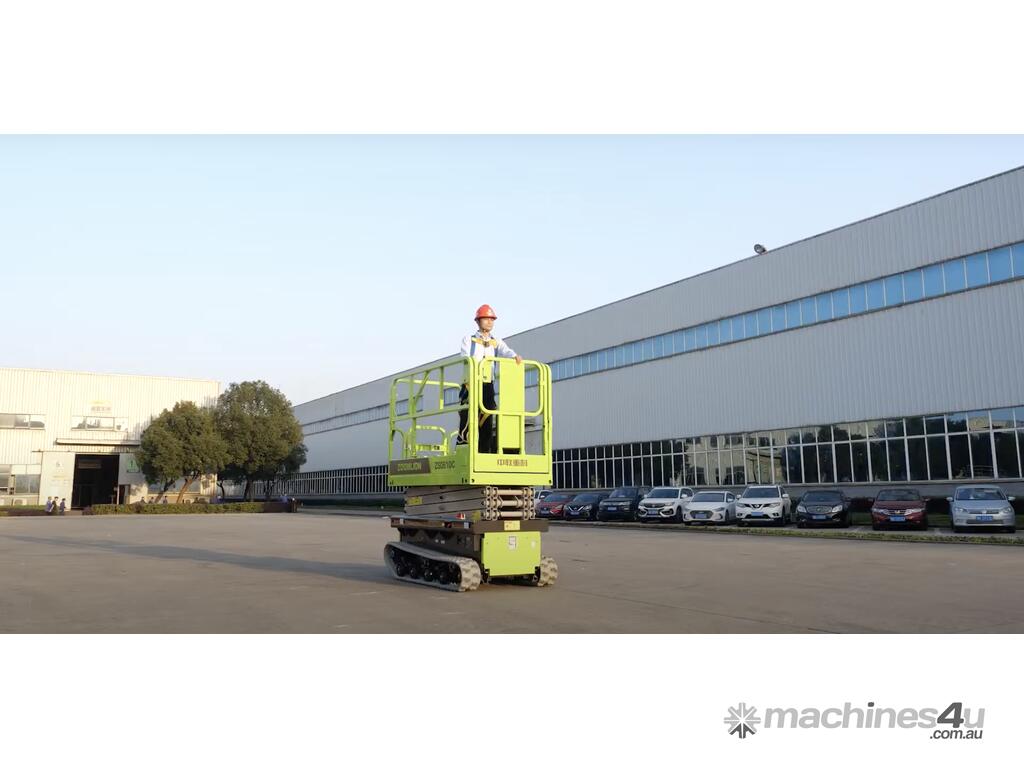

- Pivot steering with good maneuverability;

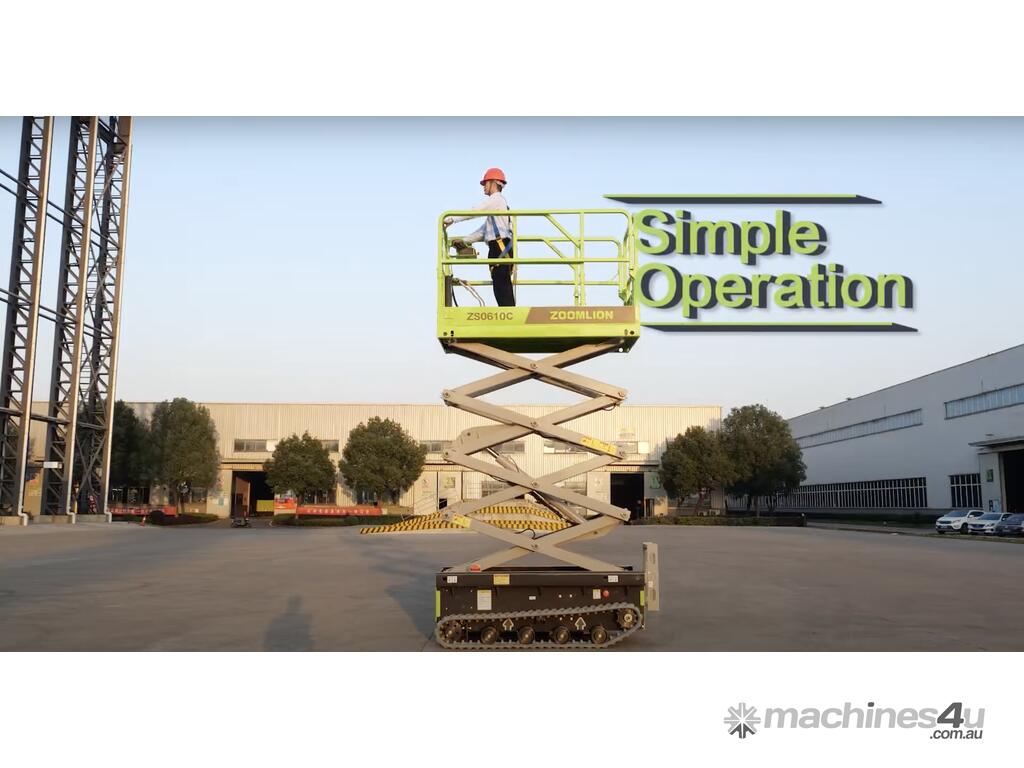

- Simple single handle control for steeting and walking.
- Knuckles lubrication-free and maintenance-free;
- AC motor full lifecycle maintenance-free.

Size

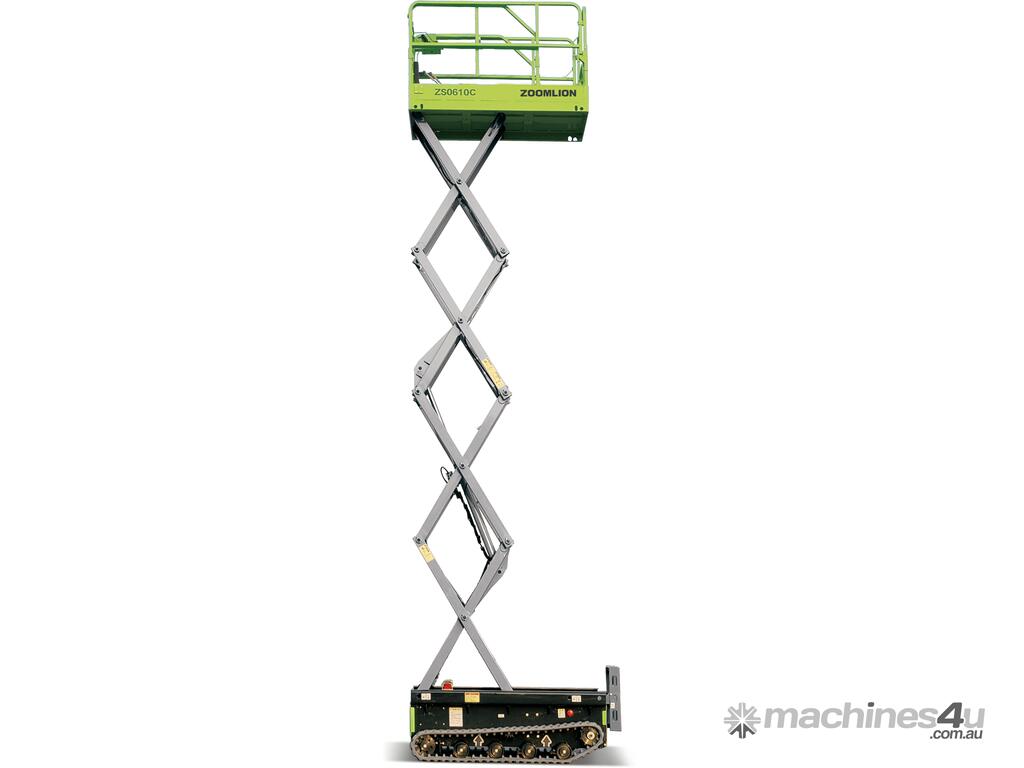

Work Height: 8.80m
A Platform Height-Elevated: 6.80m
B Platform Height-Stowed: 1.12m
C Platform Length: 1.94m
D Platform Width: 0.95m
Platform Extension: 0.91m
E Overall Height (Rails Up): 2.26m
Overall Height (Rails Down): 1.77m
F Overall Length: 2.1m
G Overall Width: 1.05m
H Ground Clearance: 0.127m

Performance
Platform Capacity: 250kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2
Drive Speed (Stowed): 2km/h
Drive Speed (Raised): 0km/h
Turning Radius: 0m
Drive Motor: 24V/2x1.8KW
Up/Down Time: 34s/30s
Gradeability: 30%(17 degrees)
Max. Working Slope (Lateral/Vertical): 2 degrees/2 degrees
Drive: Rear Wheels
Brake: Rear Wheels

Power
Battery: 4x6V/220Ah 4x12V/300Ah (US)
Charger: 24V/30A

Weight
Gross: 1700kg

Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm

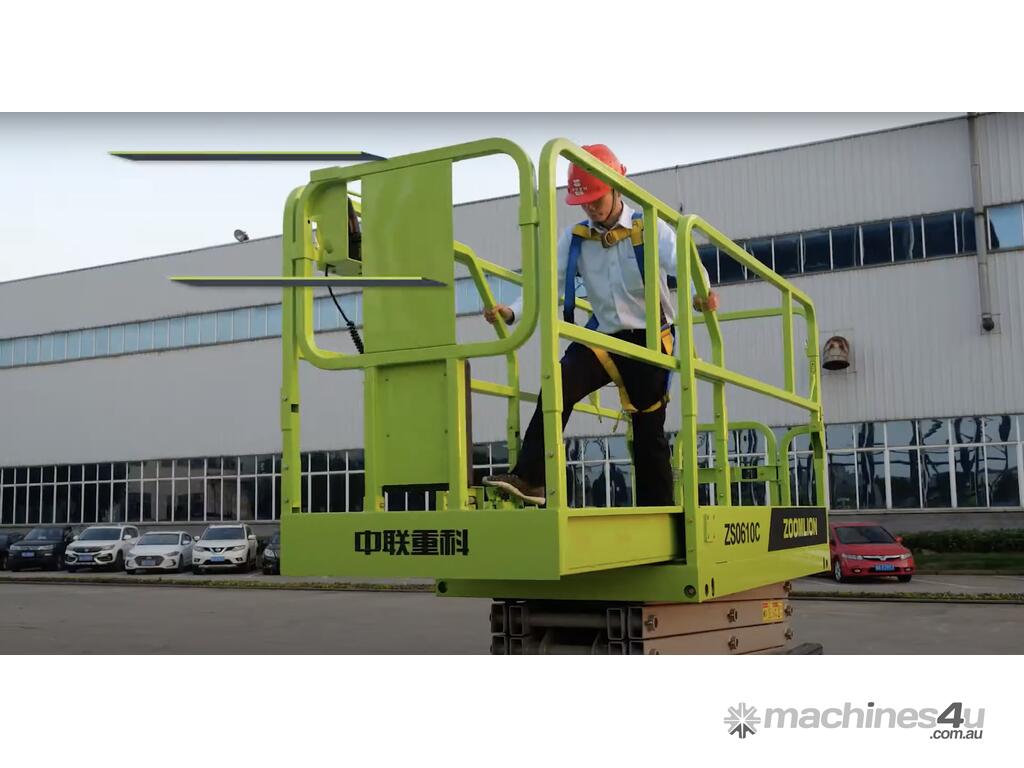

- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- Horn
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- AC power to platform

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
