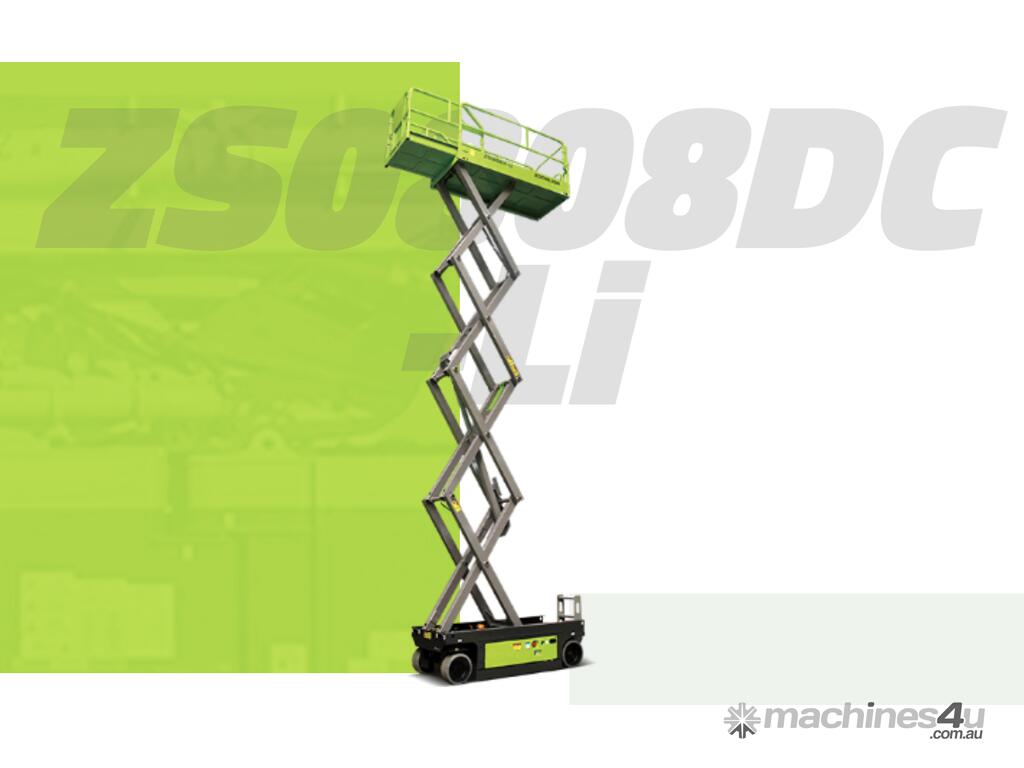

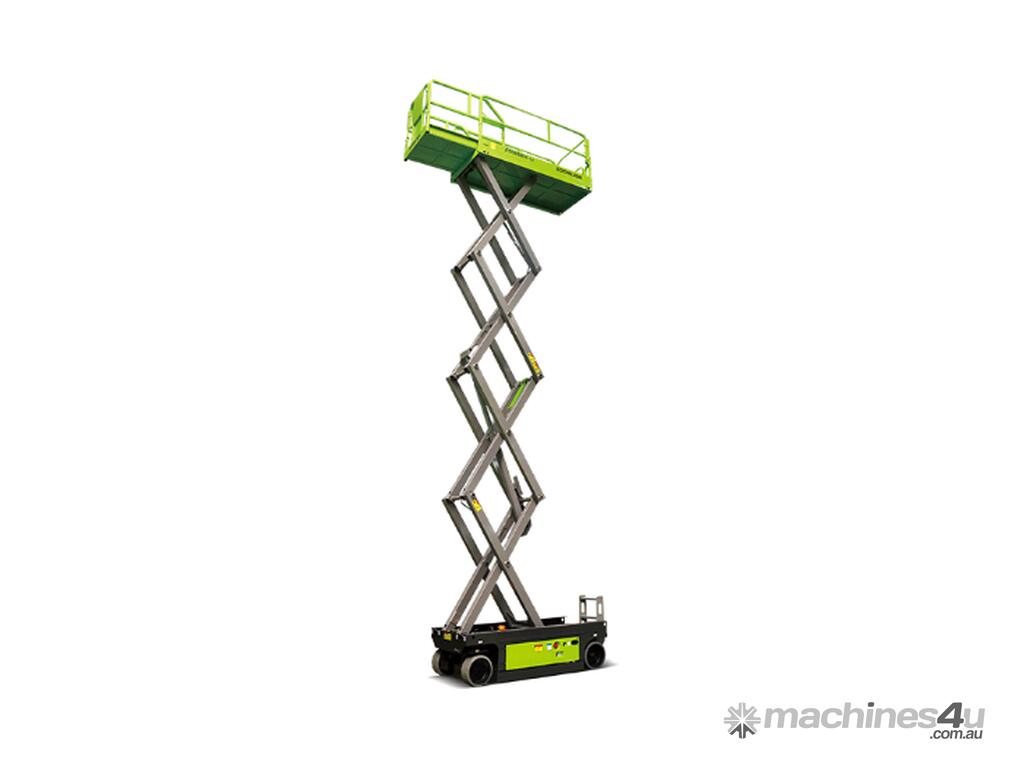

ZOOMLION ZS0808DC-LI Scissor Lift - 10.00m Work Height & 230kg Platform Capacity

ZOOMLION ZS0808DC-LI Scissor Lift.

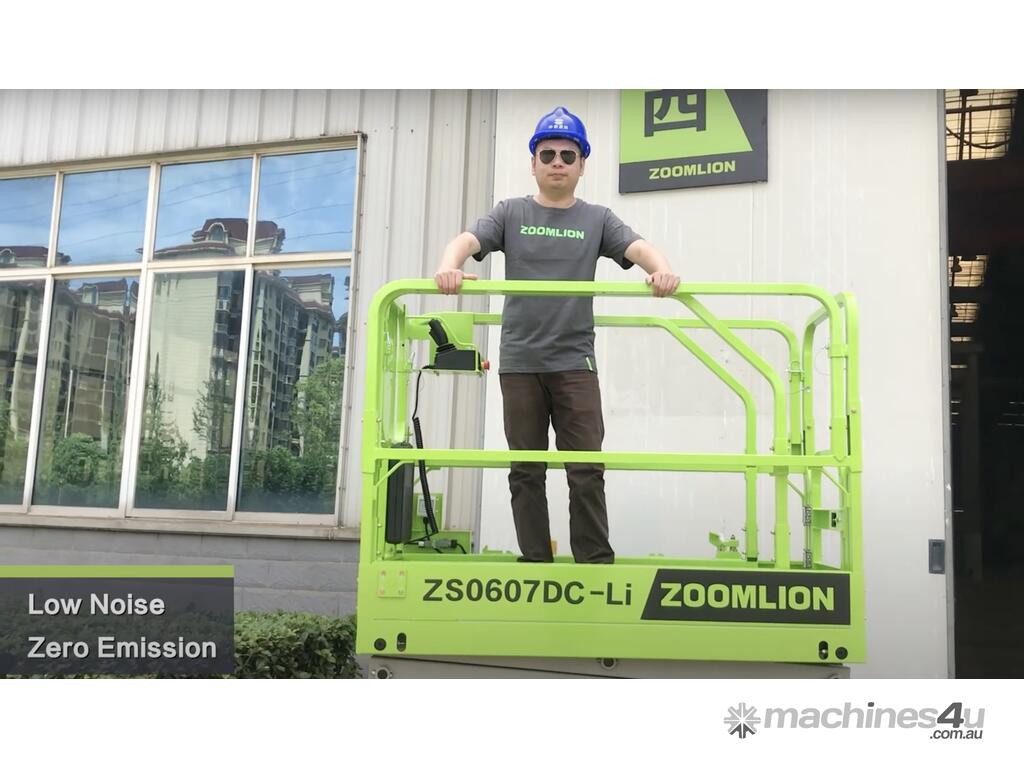

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

ADVANTAGE INTRODUCTION

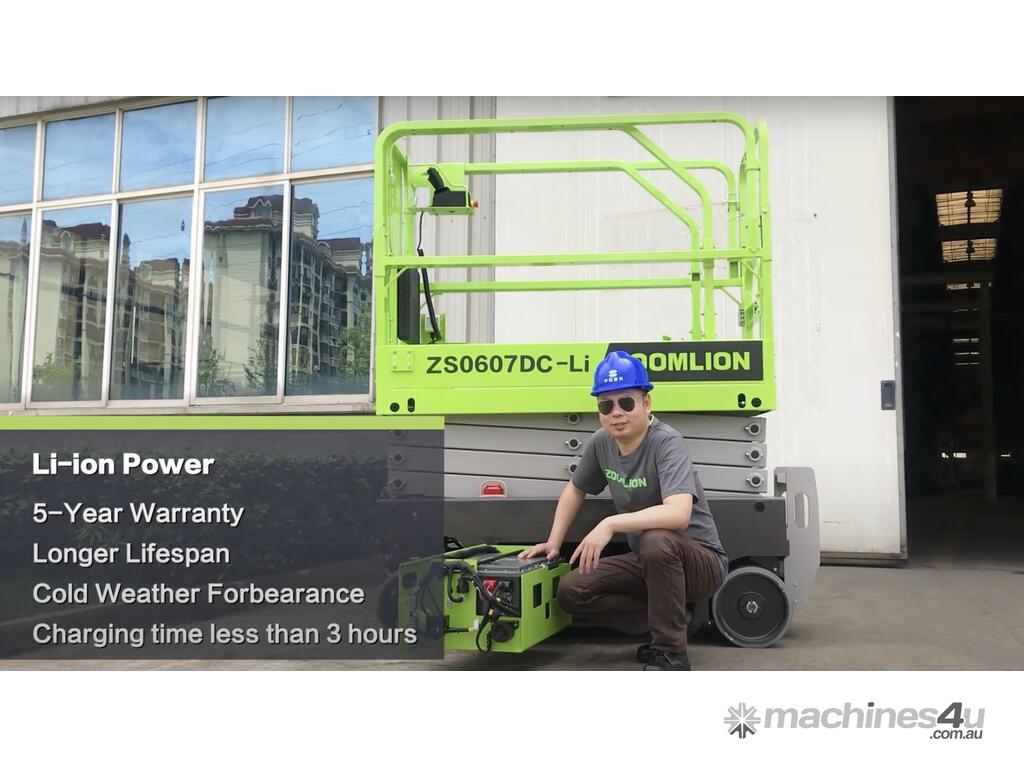

- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with a triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System(BMS) guarantees safety power

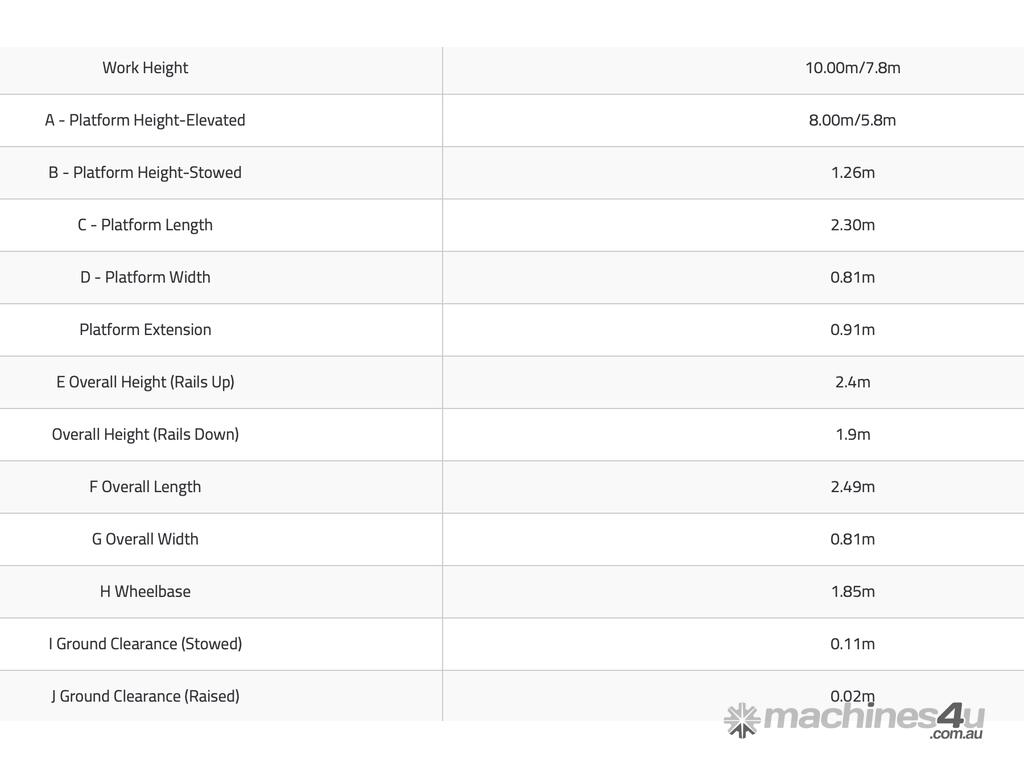

Size
Work Height: 10.00m/7.8m
A - Platform Height-Elevated: 8.00m/5.8m
B - Platform Height-Stowed: 1.26m
C - Platform Length: 2.30m
D - Platform Width: 0.81m, Platform Extension: 0.91m
E Overall Height (Rails Up): 2.4m, Overall Height (Rails Down): 1.9m
F Overall Length: 2.49m
G Overall Width: 0.81m
H Wheelbase: 1.85m
I Ground Clearance (Stowed): 0.11m
J Ground Clearance (Raised): 0.02m

Performance
Platform Capacity: 230kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2/1
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.1m
Lifting Motor: 24V/3.3KW
Drive Motor: 2×0.75KW
Up/Down Time: 31s/40s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 381mm×127mm

Power
Battery: 160Ah Li-ion
Charger: 24V/30A
Charger (Option): 24V/60A

Weight
Gross: 2090kg

Features
Standard
- BMS (Battery Management System)
- Autobrake system
- Drivable at full height
- Proportional controls
- Emergency descent system
- Hour meter
- All motion alarm
- Emergency stop button
- Extension deck (unidirectional)
- Fold-down handrails
- On-board diagnostic
- Charging protection system
- Flashing beacon
- Over tilt protective system
- Scissor maintenance prop
- Self-closing entry gate
- Active pothole protection system
- Forklift pockets
- Horn
- Load sensing system
- AC power to platform

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
