ZOOMLION ZS1212AC Scissor Lift - 13.80/10.00m Work Height & 350kg Platform Capacity

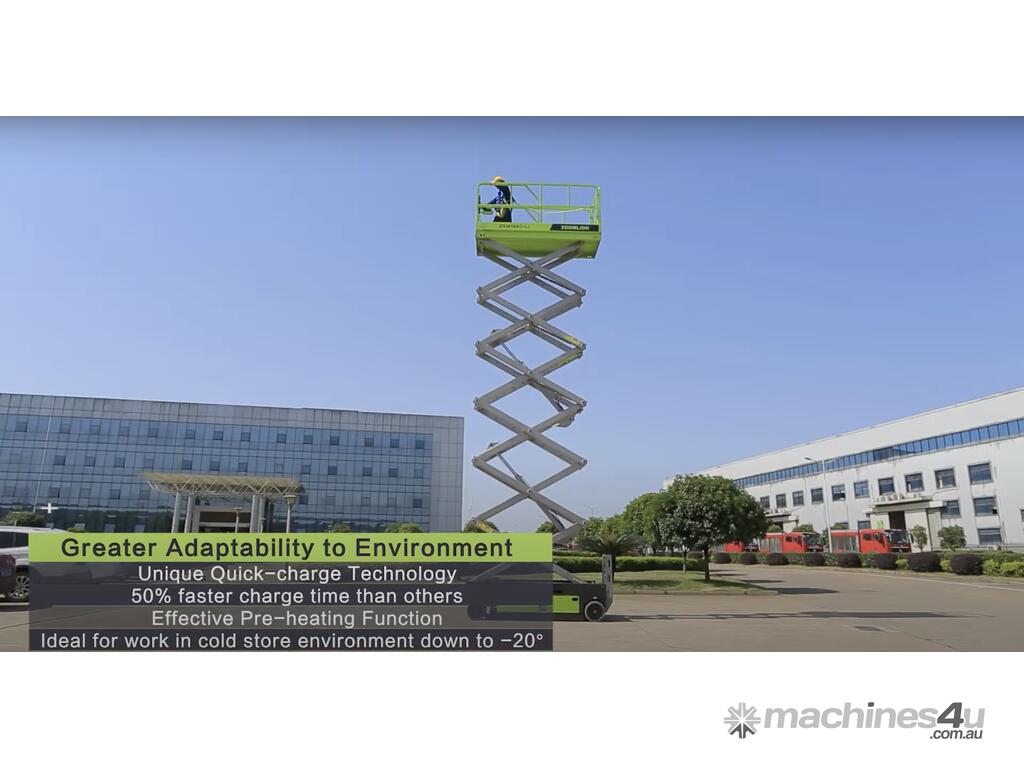

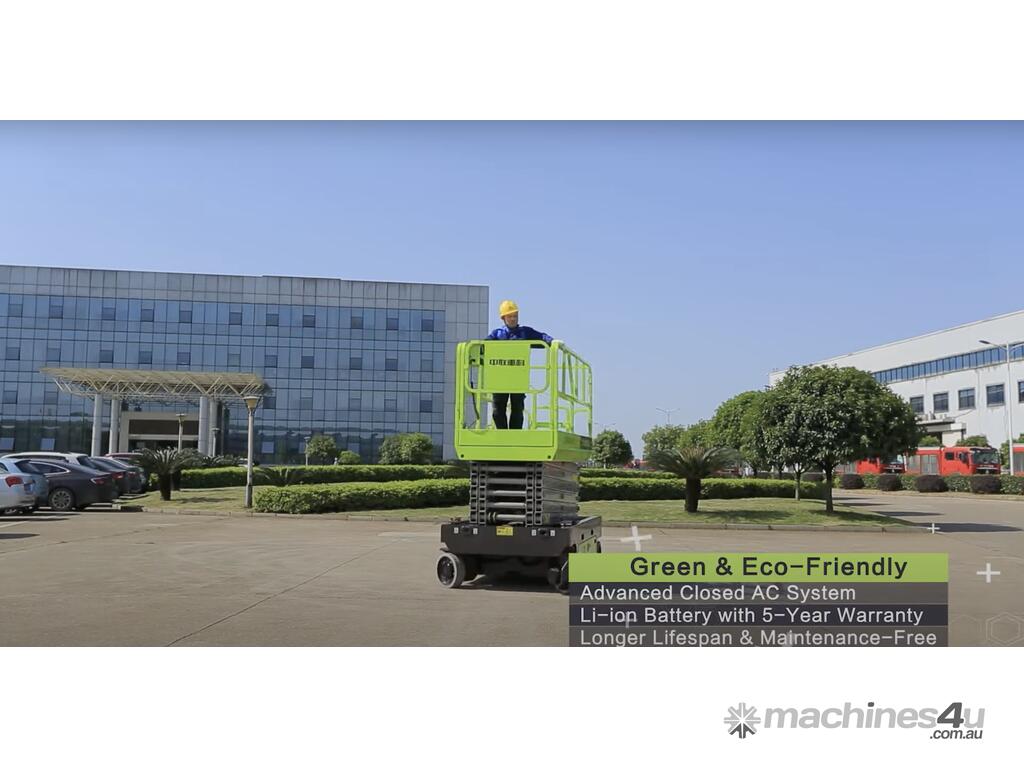

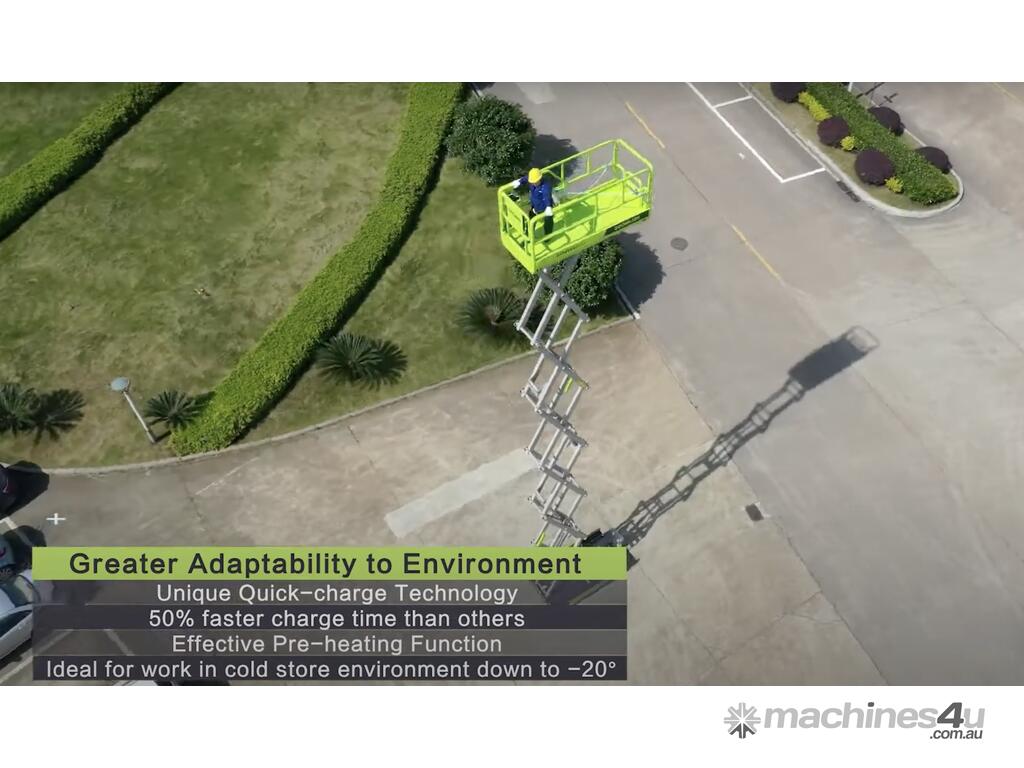

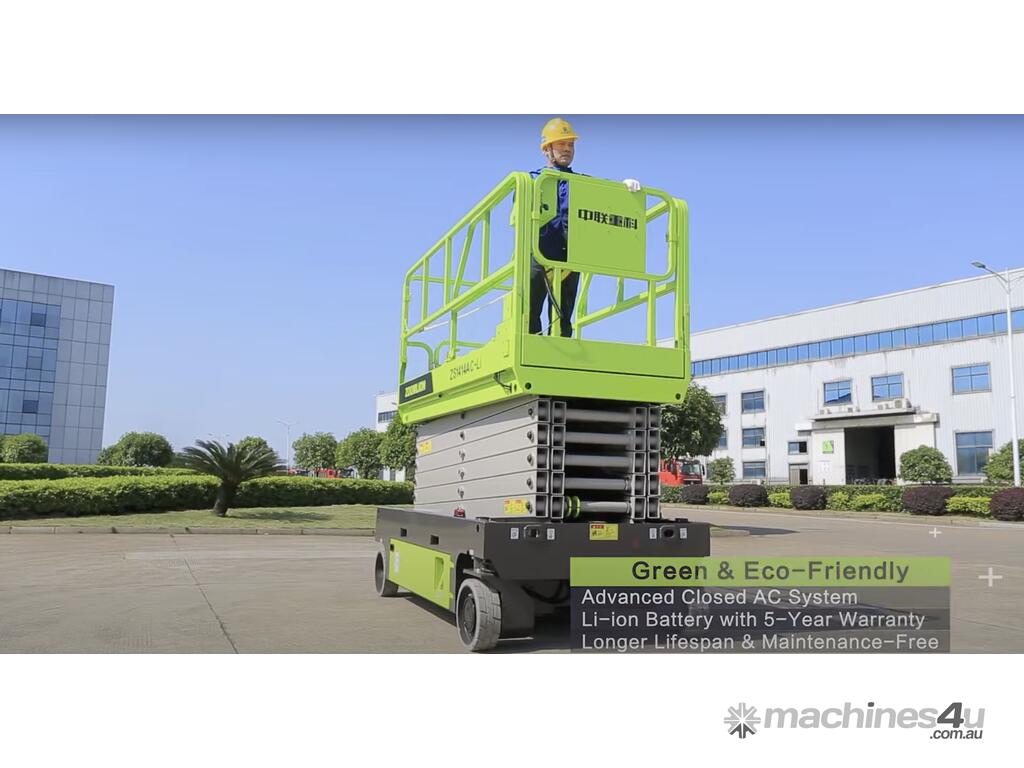

ZOOMLION ZS1212AC Scissor Lift.

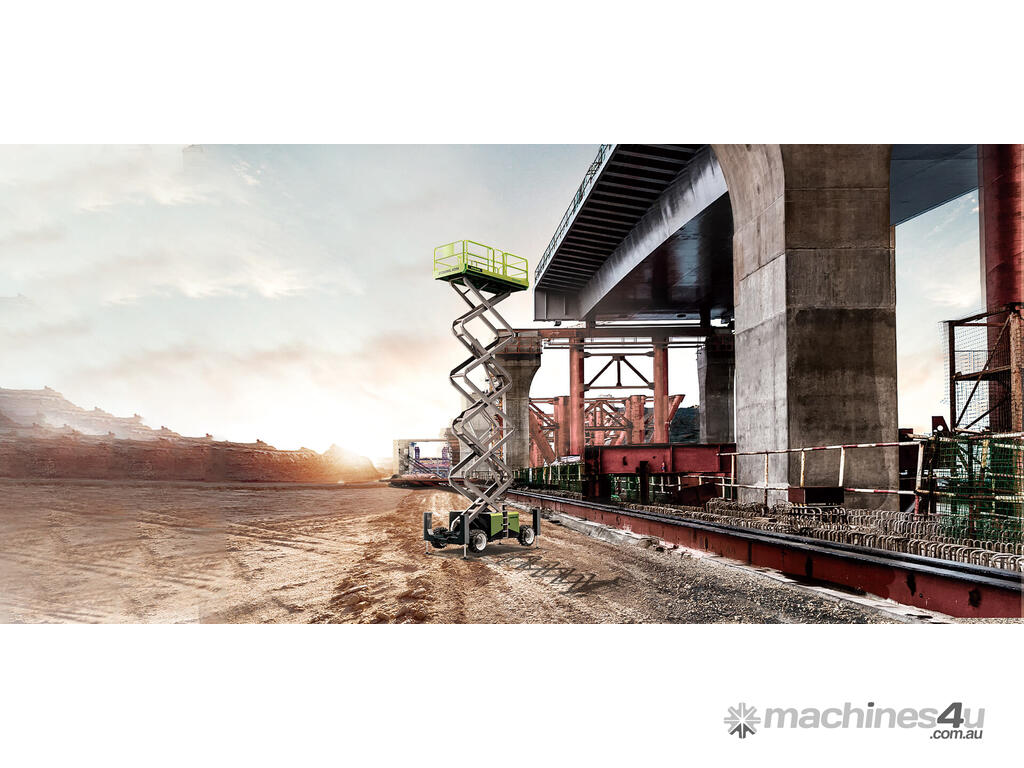

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

ADVANTAGE INTRODUCTION
High Performance
- AC system offers higher working efficiency;

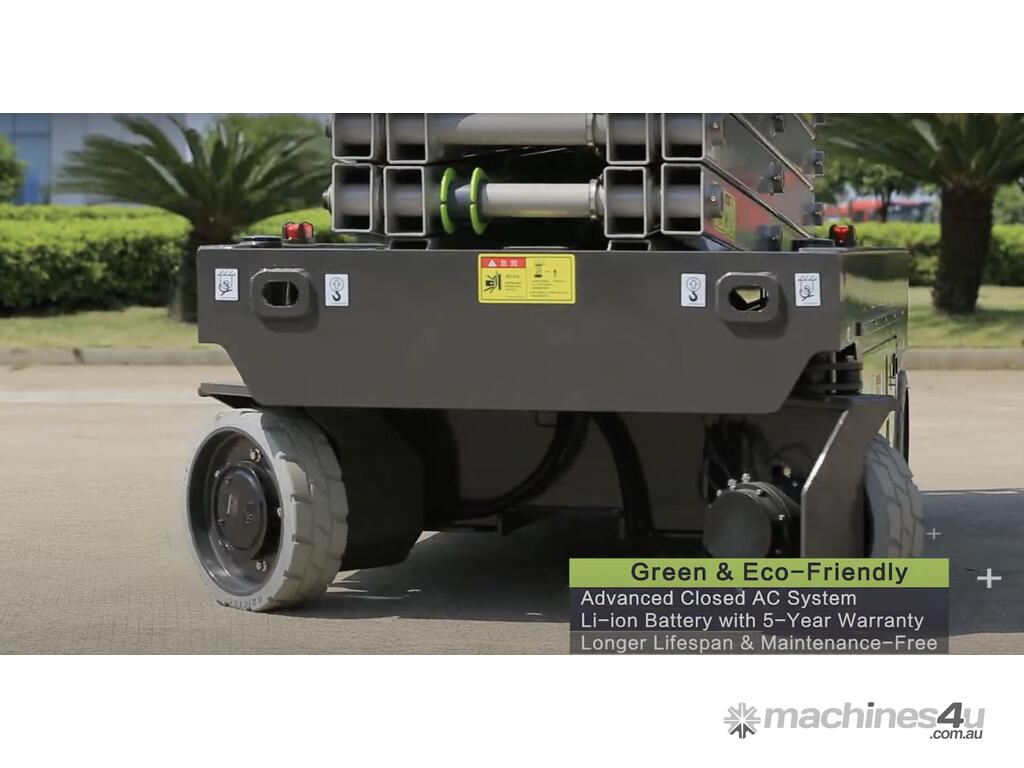

- IP67 rated waterproof protection on AC wheel motorsfor longer lifespan

Cost Effectiveness
- Knuckles lubrication-free and maintenance-free;
- AC motor full lifecycle maintenance-free;
- Swing-out tray easy to service.

Size
Work Height: 13.80m/10m
A - Platform Height-Elevated: 11.80m/8m
B - Platform Height-Stowed: 1.52m
C - Platform Length: 2.30m
D - Platform Width: 1.12m, Platform Extension: 0.91m
E - Overall Height (Rails Up): 2.66m, Overall Height (Rails Down): 2.13m
F - Overall Length: 2.49m
G - Overall Width: 1.15m
H - Wheelbase: 1.85m
I - Ground Clearance (Stowed): 0.11m
J - Ground Clearance (Raised): 0.02m

Performance
Platform Capacity: 350kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 3/1 (CE), 2/1 (ANSI)
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.2m
Lifting Motor: 24V/3.3KW
Drive Motor: 2x0.75KW
Up/Down Time: 62s/42s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 381mm×127mm

Power
Battery: 4×6V/220Ah(HOPPECKE), 4×12V/270Ah(QUIMO)
Charger: 24V/30A

Weight
Gross: 3000kg

Features
Standard
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Horn
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- AC power to platform
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
