ZOOMLION ZS1212DC-LI Scissor Lift - 13.80m Work Height & 350kg Platform Capacity

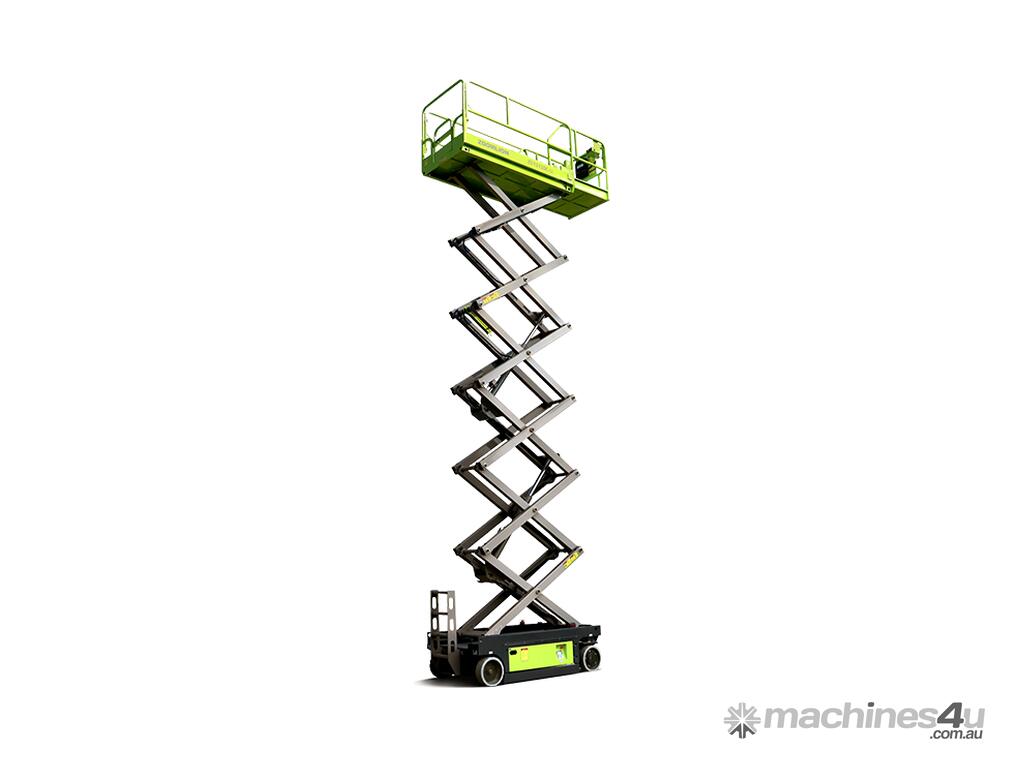

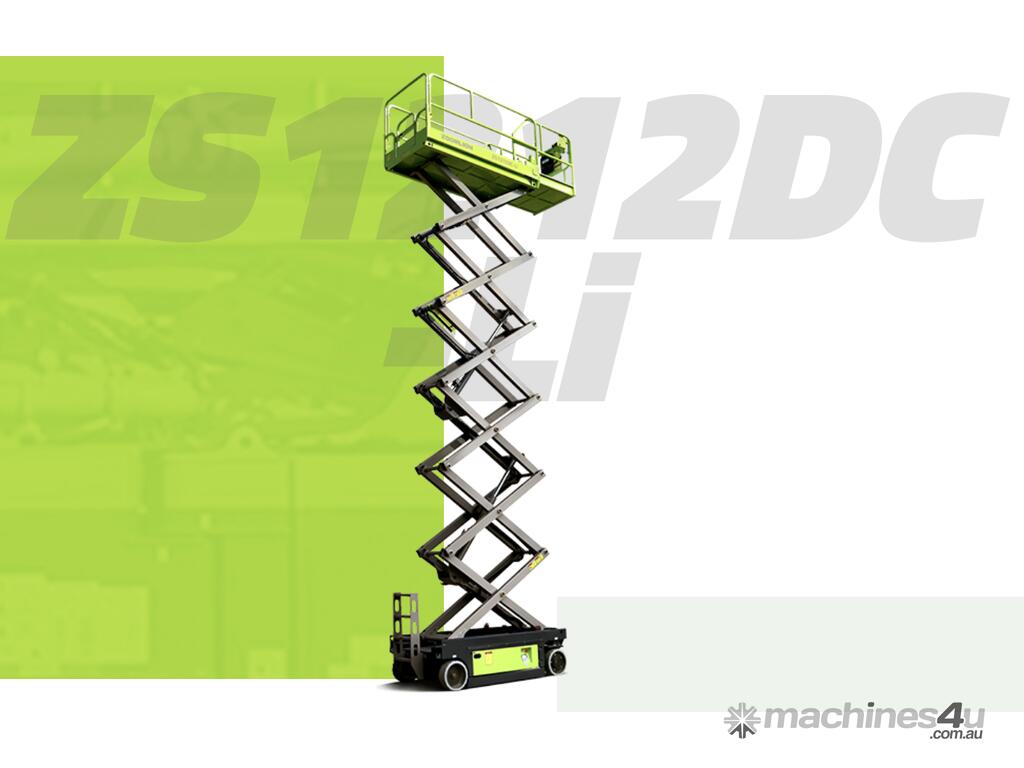

ZOOMLION ZS1212DC-LI Scissor Lift.

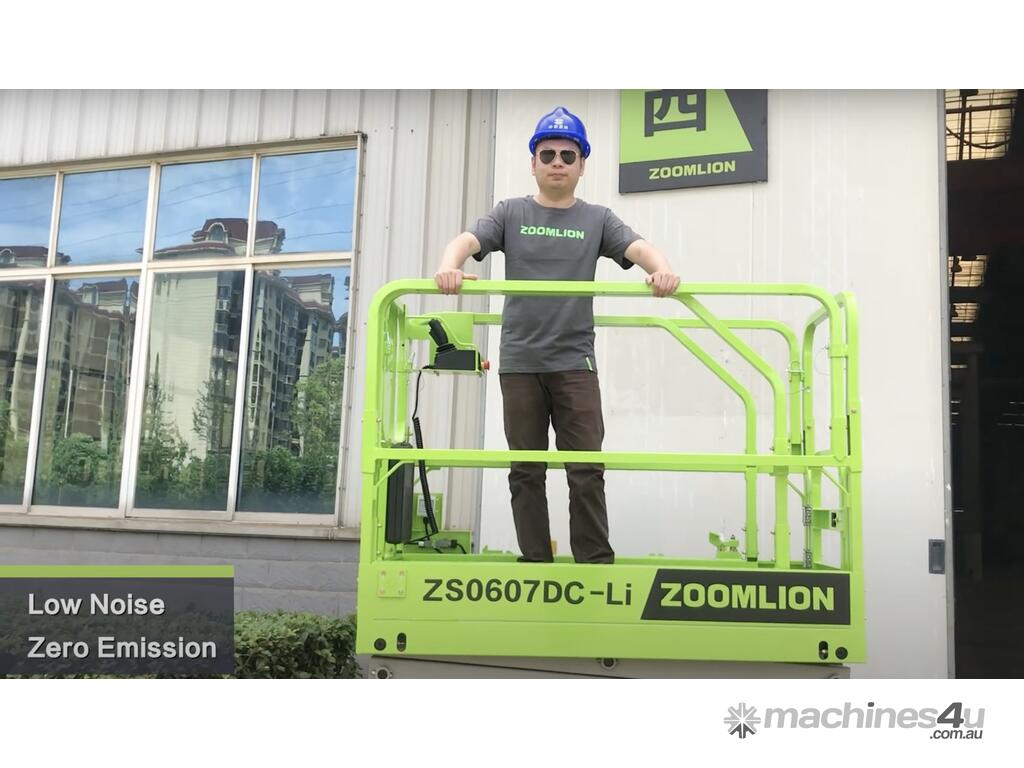

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

ADVANTAGE INTRODUCTION

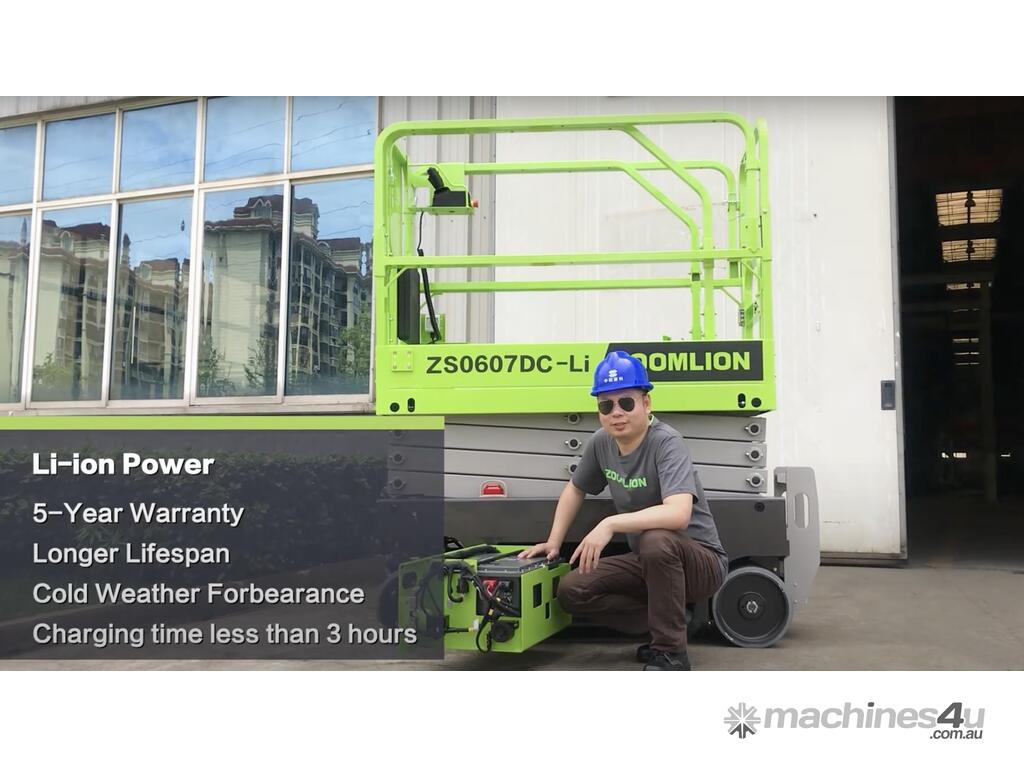

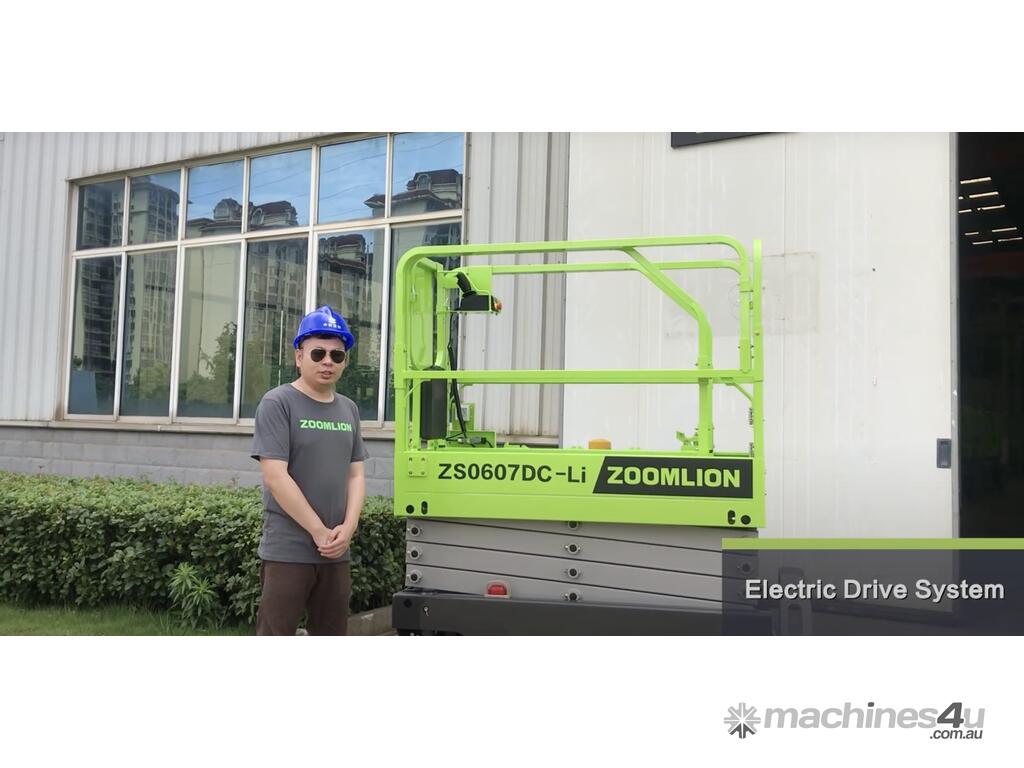

- Cutting-Edge Driving System with Lithium Power
- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with a triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System (BMS) guarantees safety power

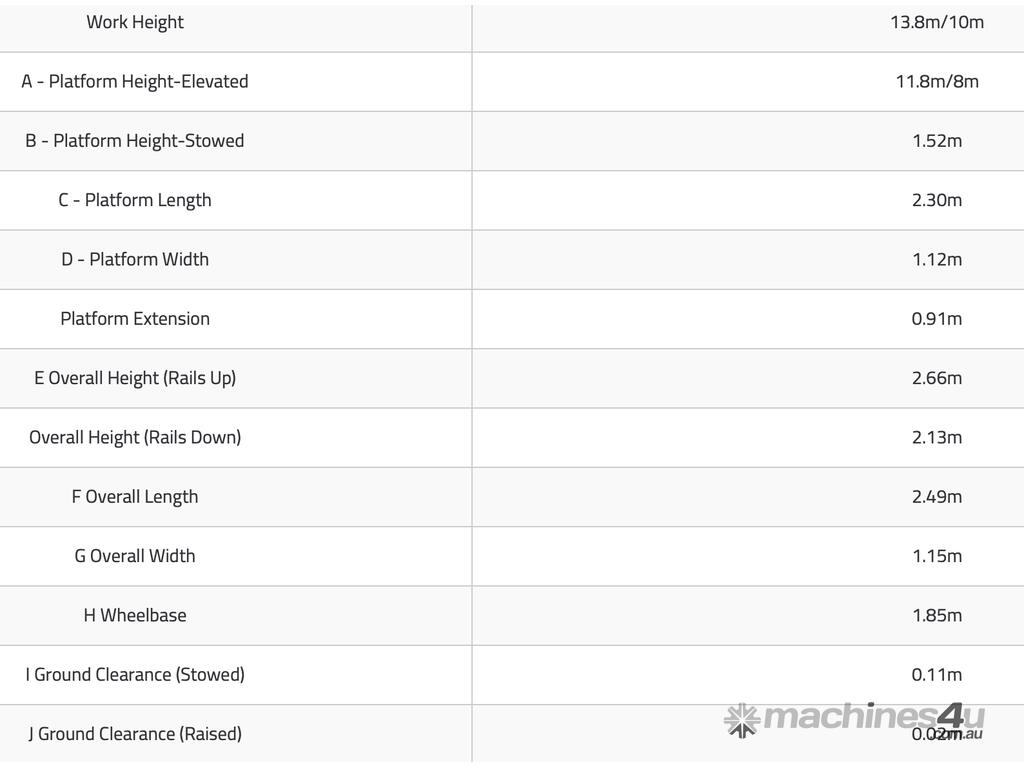

Size
Work Height: 13.8m/10m
A - Platform Height-Elevated: 11.8m/8m
B - Platform Height-Stowed: 1.52m
C - Platform Length: 2.30m
D - Platform Width: 1.12m, Platform Extension: 0.91m
E Overall Height (Rails Up): 2.66m, Overall Height (Rails Down): 2.13m
F Overall Length: 2.49m
G Overall Width: 1.15m
H Wheelbase: 1.85m
I Ground Clearance (Stowed): 0.11m
J Ground Clearance (Raised): 0.02m

Performance
Platform Capacity: 350kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 3/1 (CE), 2/1 (ANSI)
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.2m
Lifting Motor: 24V/4.5KW
Drive Motor: 2×0.75KW
Up/Down Time: 62s/42s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 381mm×127mm

Power
Battery: 230Ah Li-ion
Charger: 24V/30A
Charger (Option): 24V/60A

Weight
Gross: 3000kg

Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Horn
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- Load sensing system
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- AC power to platform

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
