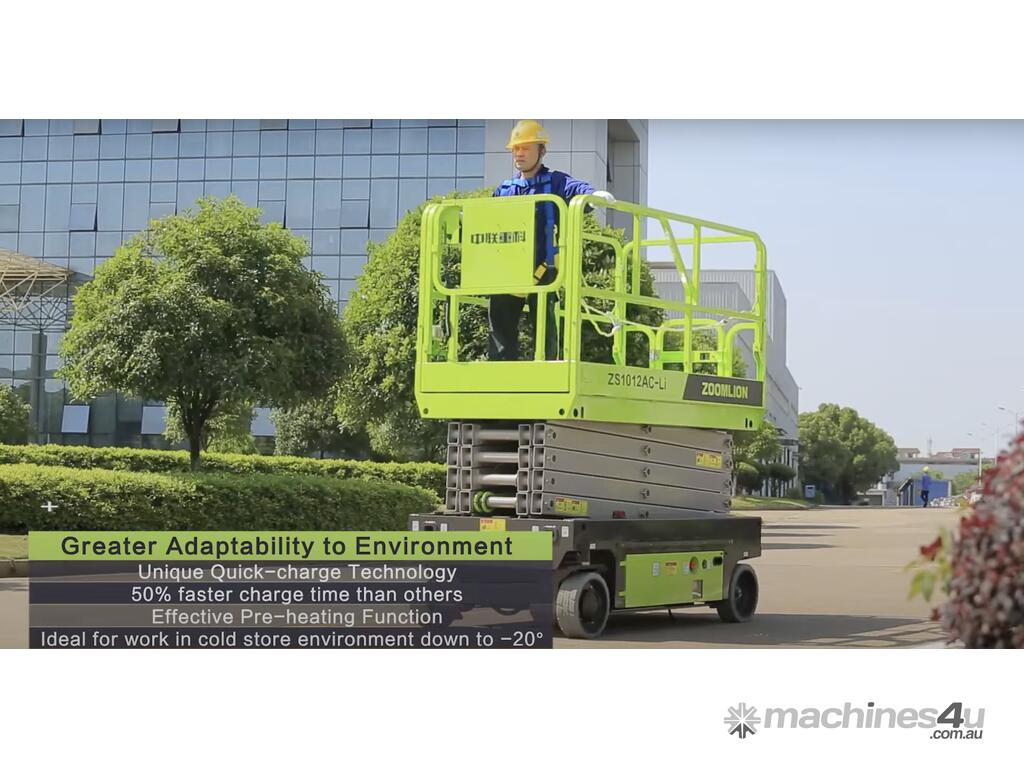

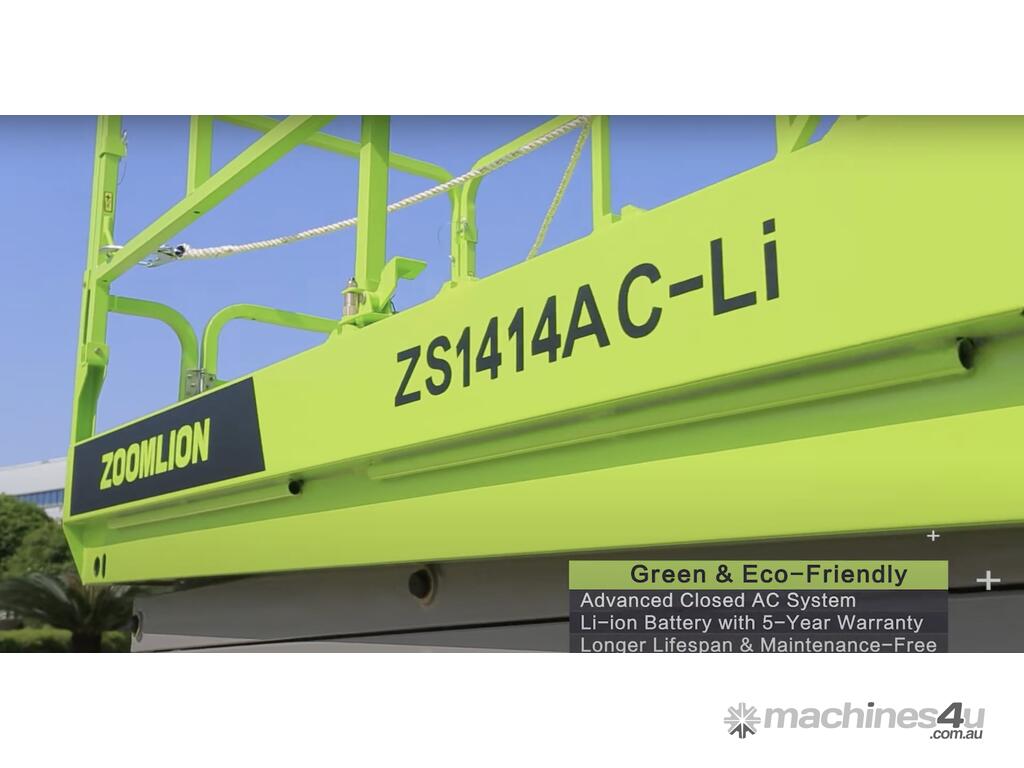

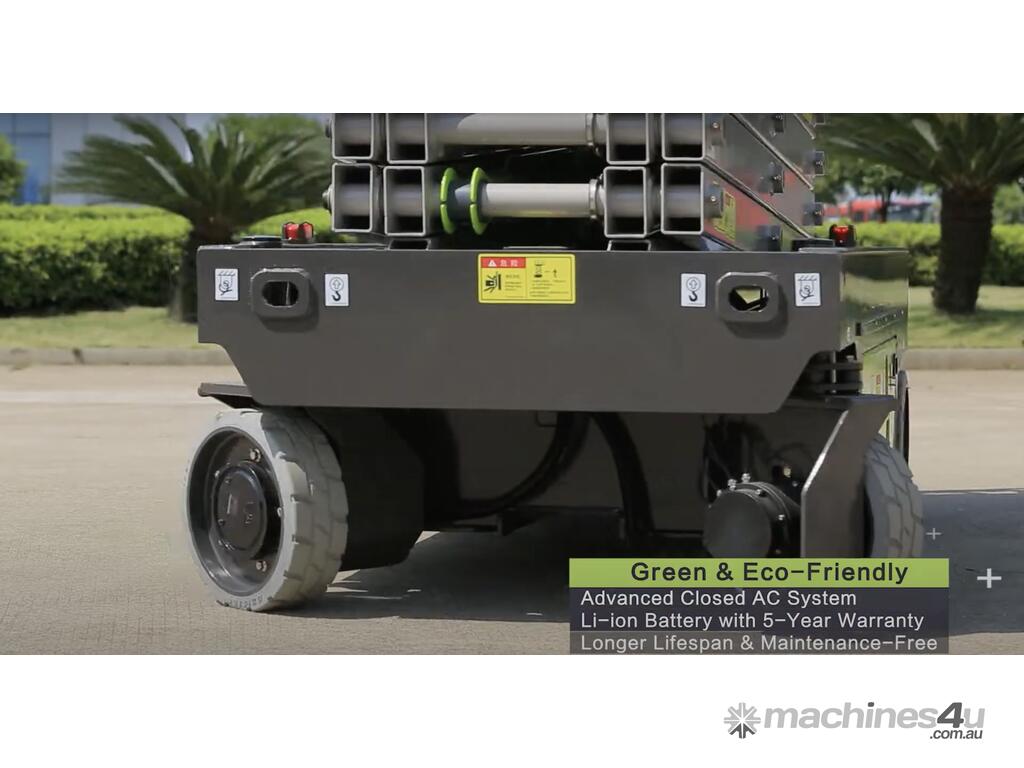

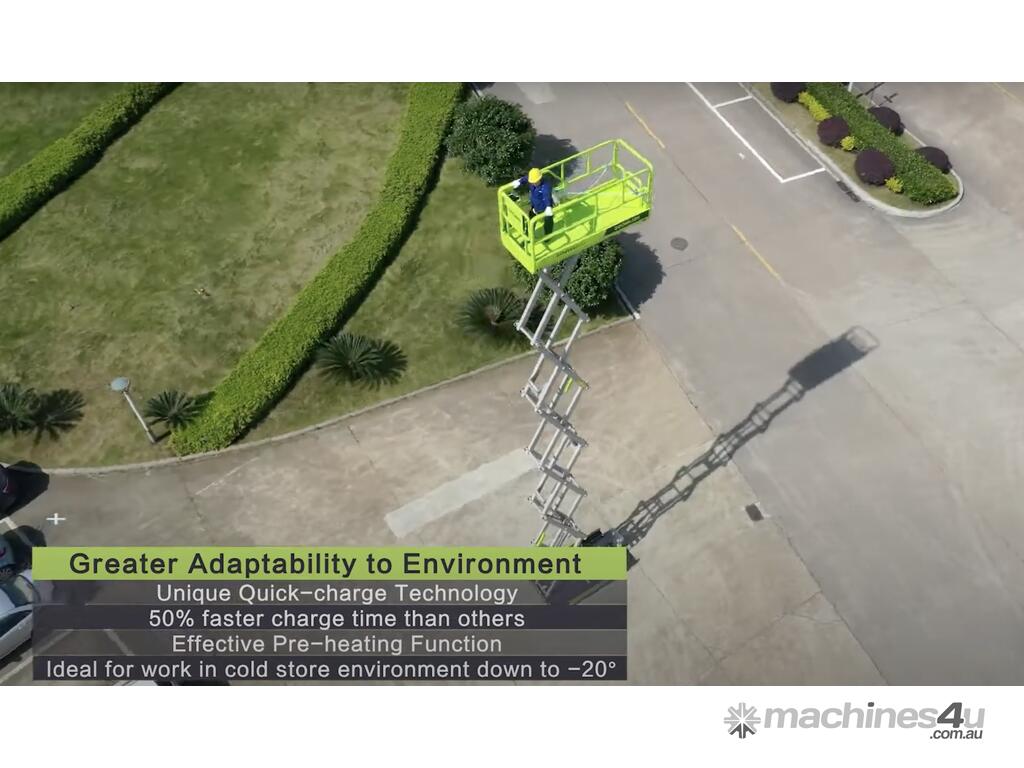

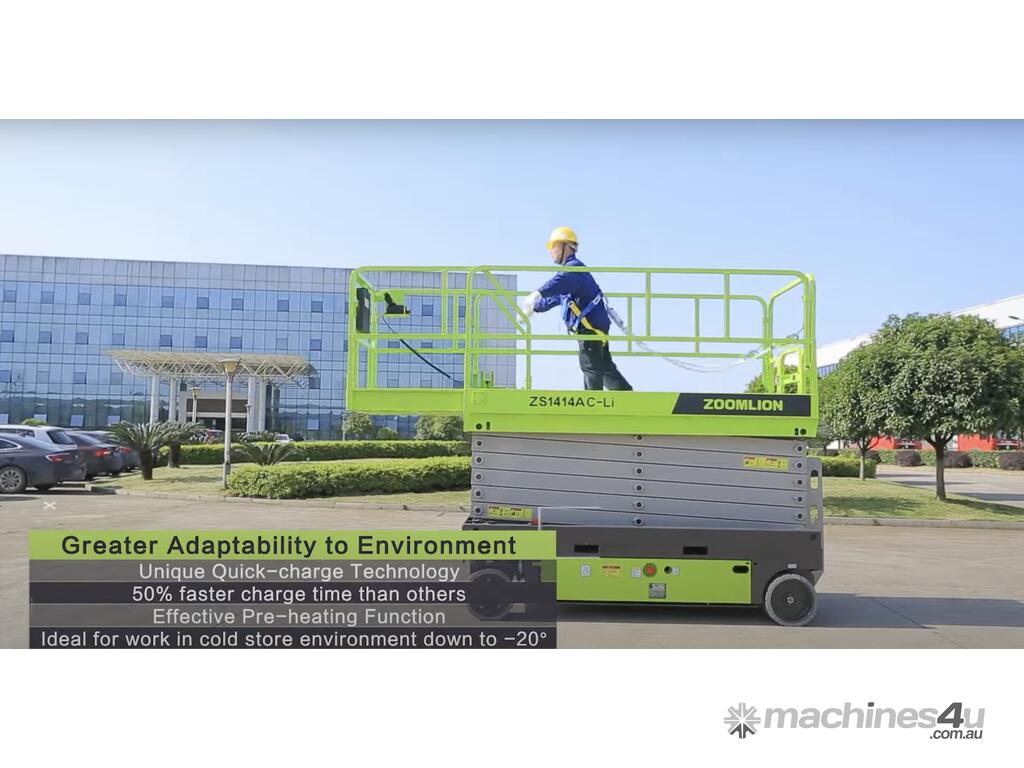

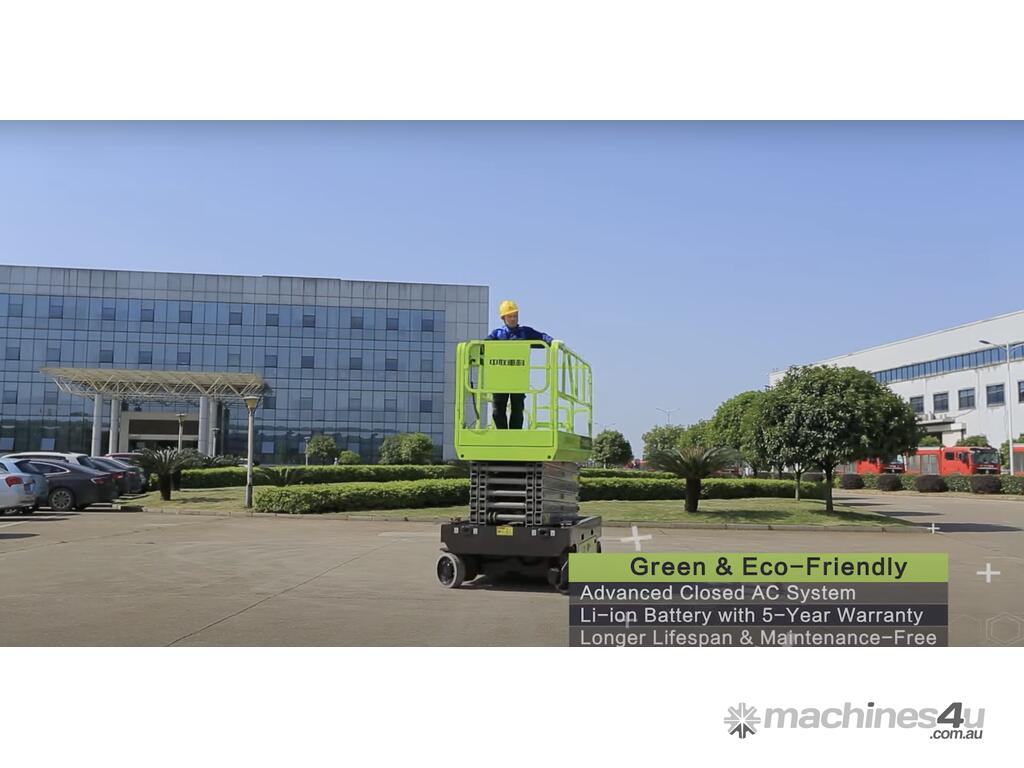

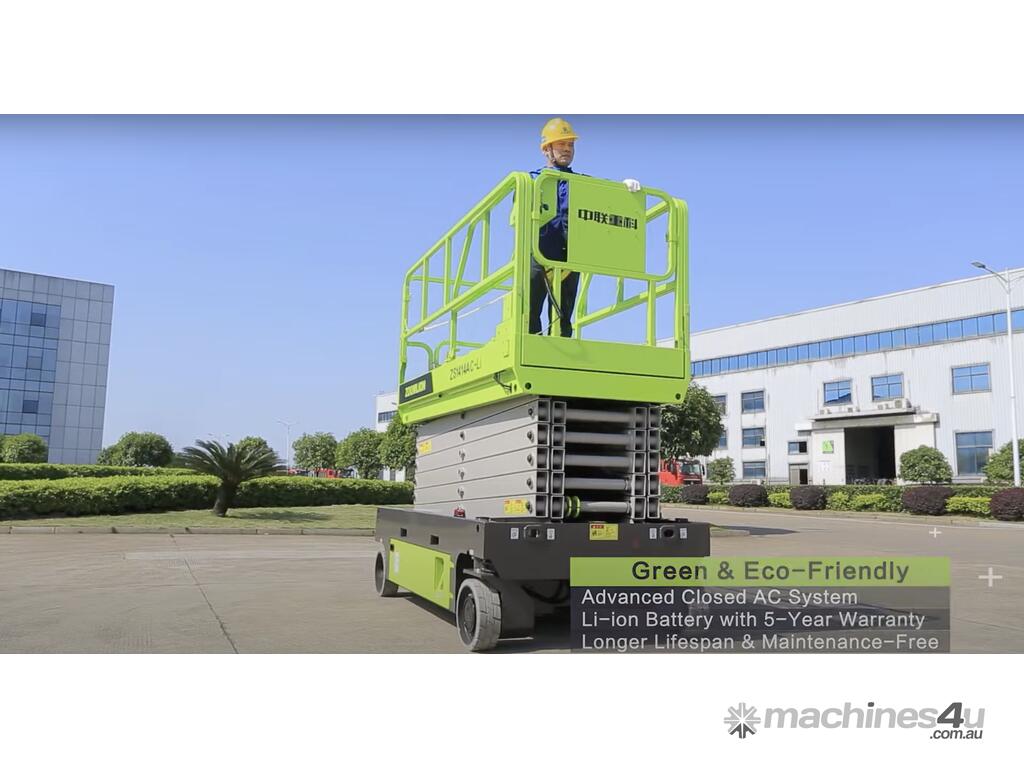

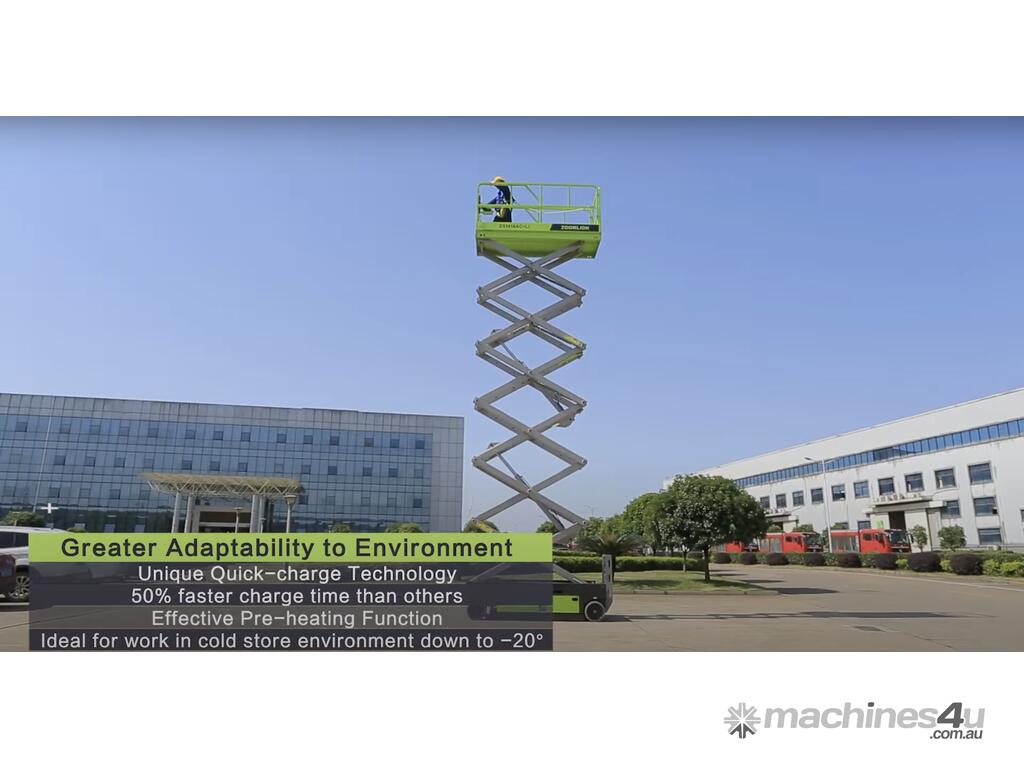

ZOOMLION ZS1414AC Scissor Lift.
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
ADVANTAGE INTRODUCTION
High Performance
- AC system offers higher working efficiency;
- IP67 rated waterproof protection on AC wheel motorsfor longer lifespan;
Cost Effectiveness
- Knuckles lubrication-free and maintenance-free;
- AC motor full lifecycle maintenance-free;
- Swing-out tray easy to service.
Size
Work Height: 15.7m/10.5m
A - Platform Height-Elevated: 13.7m/8.5m
B - Platform Height-Stowed: 1.54m
C - Platform Length: 2.67m
D - Platform Width: 1.12m, Platform Extension: 0.91m
E - Overall Height (Rails Up): 2.68m, Overall Height (Rails Down): 2.15m
F - Overall Length: 2.87m
G - Overall Width: 1.4m
H - Wheelbase: 2.22m
I - Ground Clearance (Stowed): 0.11m
J - Ground Clearance (Raised): 0.02m
Performance
Platform Capacity: 350kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2/1
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.6m
Lifting Motor: 24V/3.3KW
Drive Motor: 2x0.75KW
Up/Down Time: 88/60s
Gradeability: 25%
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 381mmX127mm
Power
Battery: 4×6V/220Ah (HOPPECKE), 4×12V/270Ah (QUIMO)
Charger: 24V/30A
Weight
Gross: 3310kg
Features
Standard
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Horn
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- AC power to platform
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
Option
- Platform work lights
- Airline to platform
- Overhead protection bar
