ZOOMLION ZS1414DC-LI Scissor Lift - 15.70m Work Height & 260kg Platform Capacity

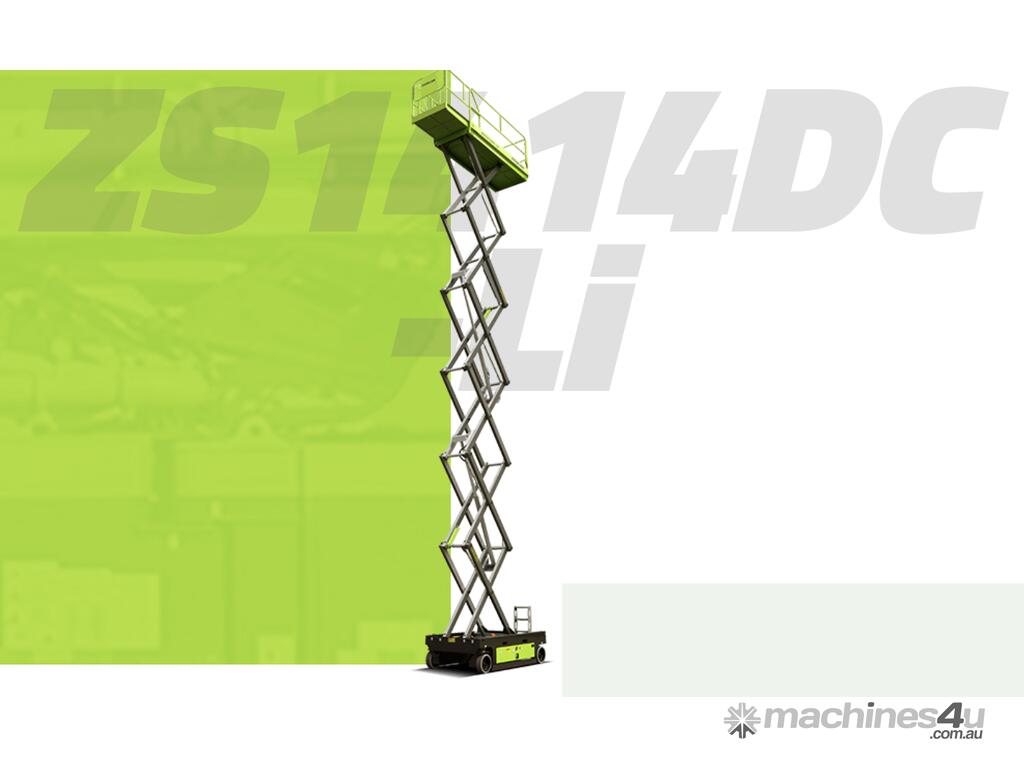

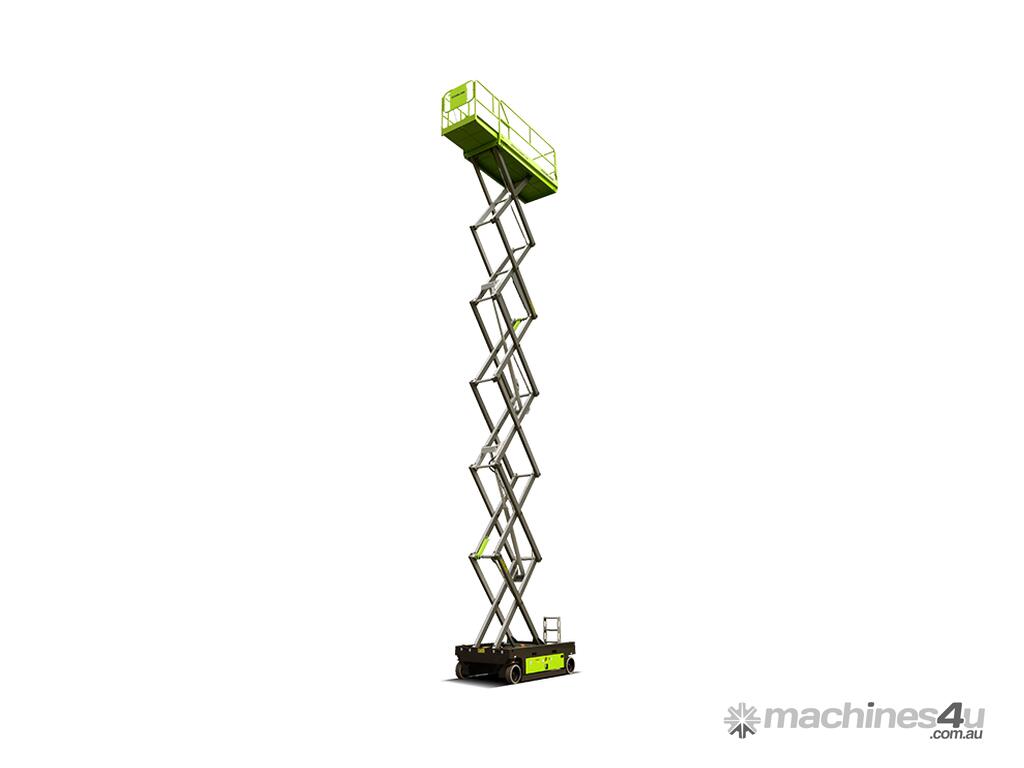

ZOOMLION ZS1414DC-LI Scissor Lift.

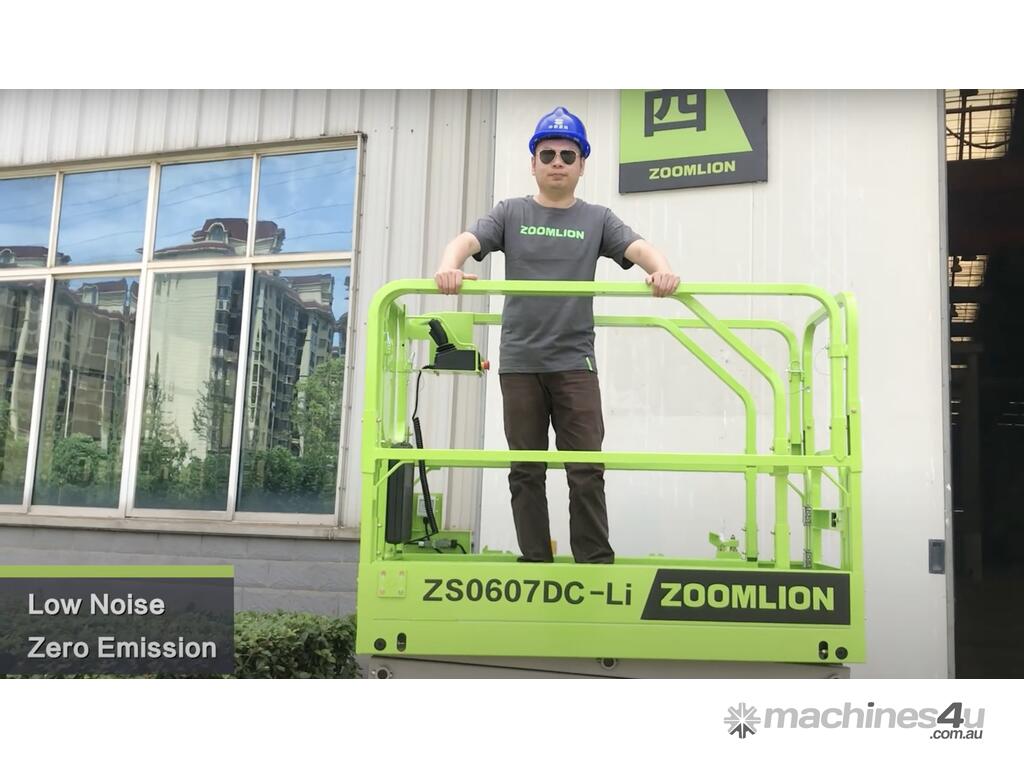

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

ADVANTAGE INTRODUCTION

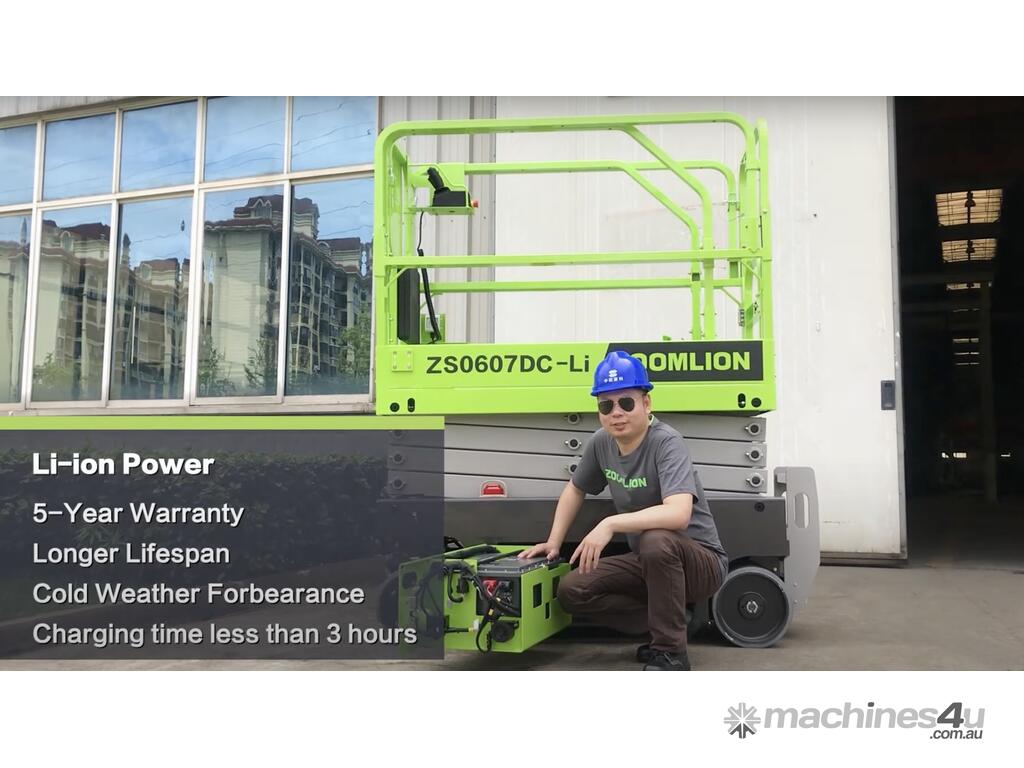

- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with a triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System(BMS) guarantees safety power

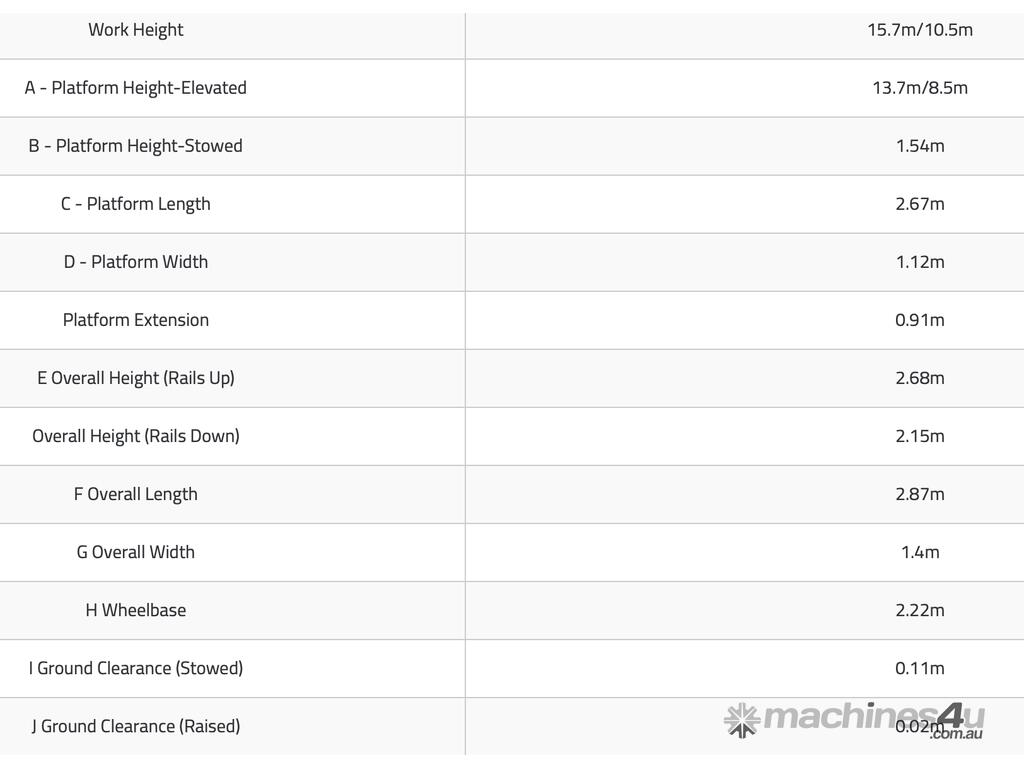

Size
Work Height: 15.7m/10.5m
A - Platform Height-Elevated: 13.7m/8.5m
B - Platform Height-Stowed: 1.54m
C - Platform Length: 2.67m
D - Platform Width: 1.12m, Platform Extension: 0.91m
E Overall Height (Rails Up): 2.68m, Overall Height (Rails Down): 2.15m
F Overall Length: 2.87m
G Overall Width: 1.4m
H Wheelbase: 2.22m
I Ground Clearance (Stowed): 0.11m
J Ground Clearance (Raised): 0.02m

Performance
Platform Capacity: 350kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: 2/1
Drive Speed (Stowed): 4km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.6m
Lifting Motor: 24V/4.5KW
Drive Motor: 2×0.75KW
Up/Down Time: 88/60s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Front Wheels
Tire: 381mmX127mm

Power
Battery: 230Ah Li-ion
Charger: 24V/30A
Charger (Option): 24V/60A

Weight
Gross: 3310kg

Features
Standard
- BMS (Battery Management System)
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Horn
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Active pothole protection system
- Load sensing system
- Drivable at full height
- Hour meter
- Extension deck (unidirectional)
- Charging protection system
- Scissor maintenance prop
- Forklift pockets
- AC power to platform

Option
- Platform work lights
- Airline to platform
- Overhead protection bar
