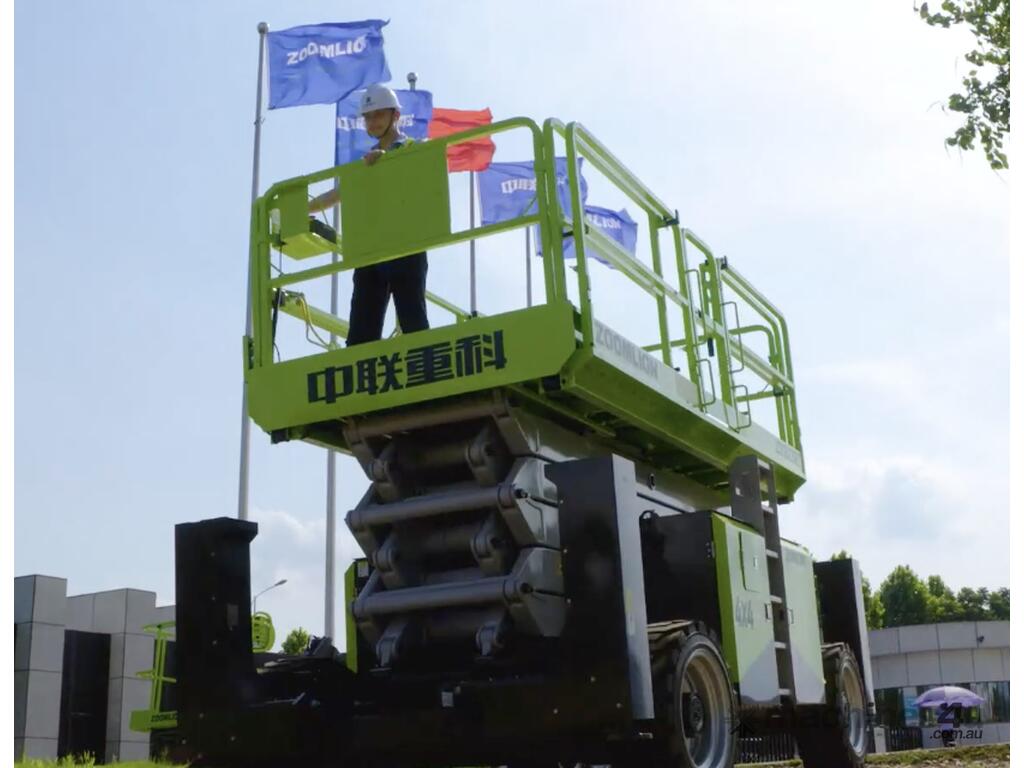

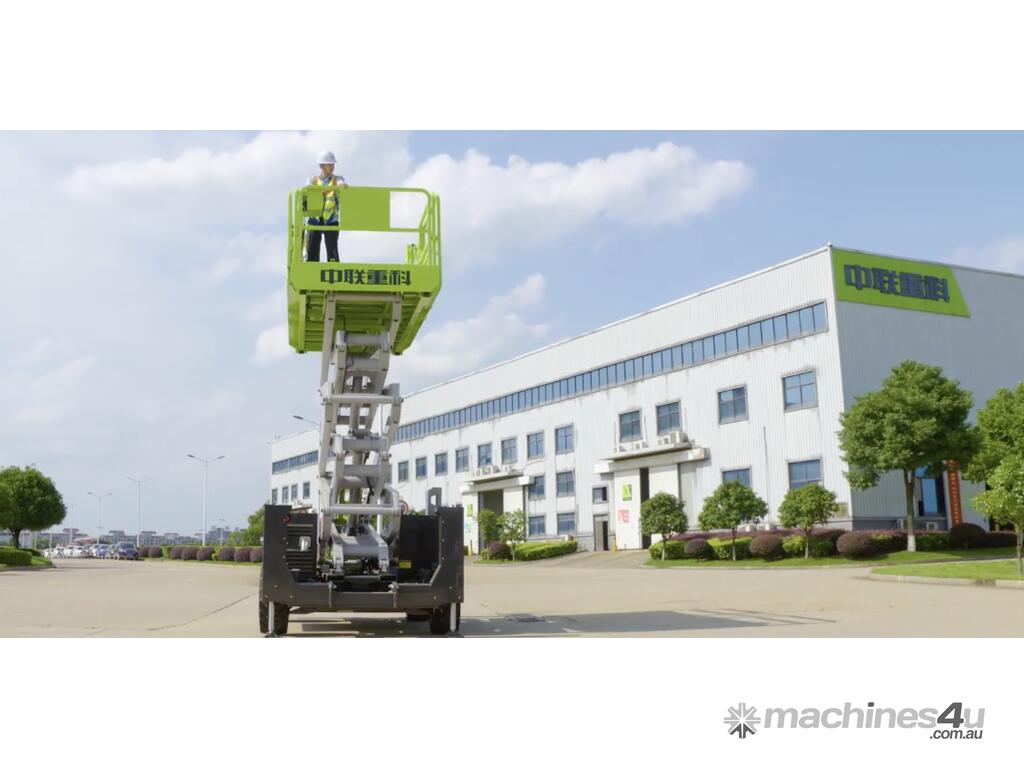

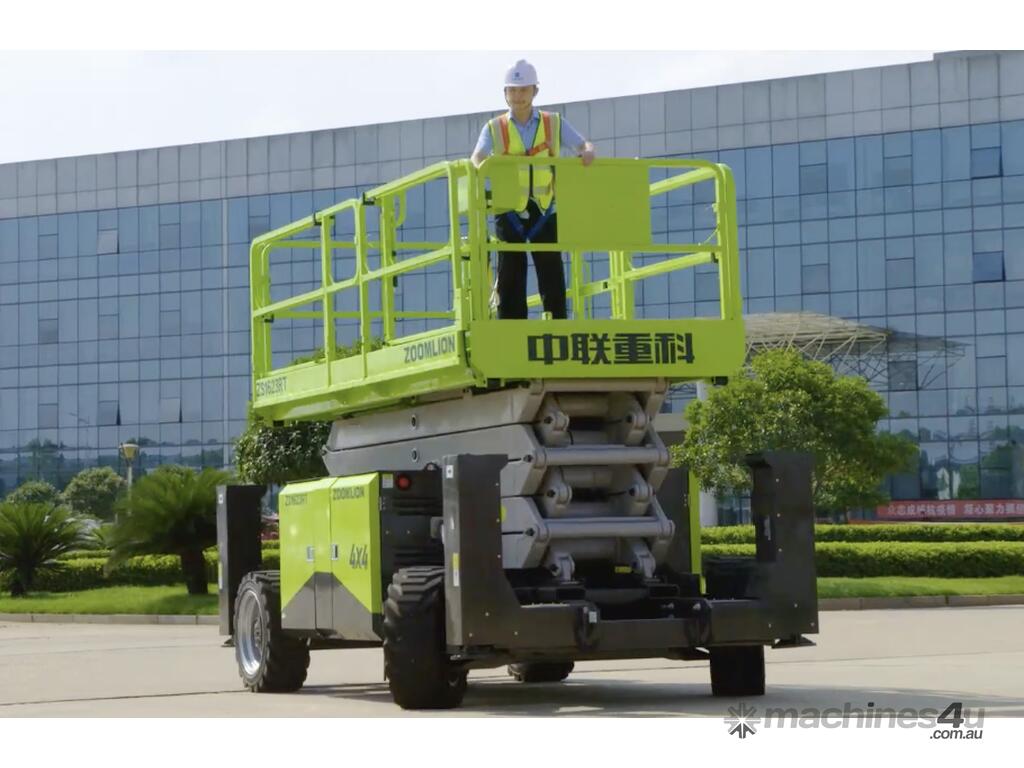

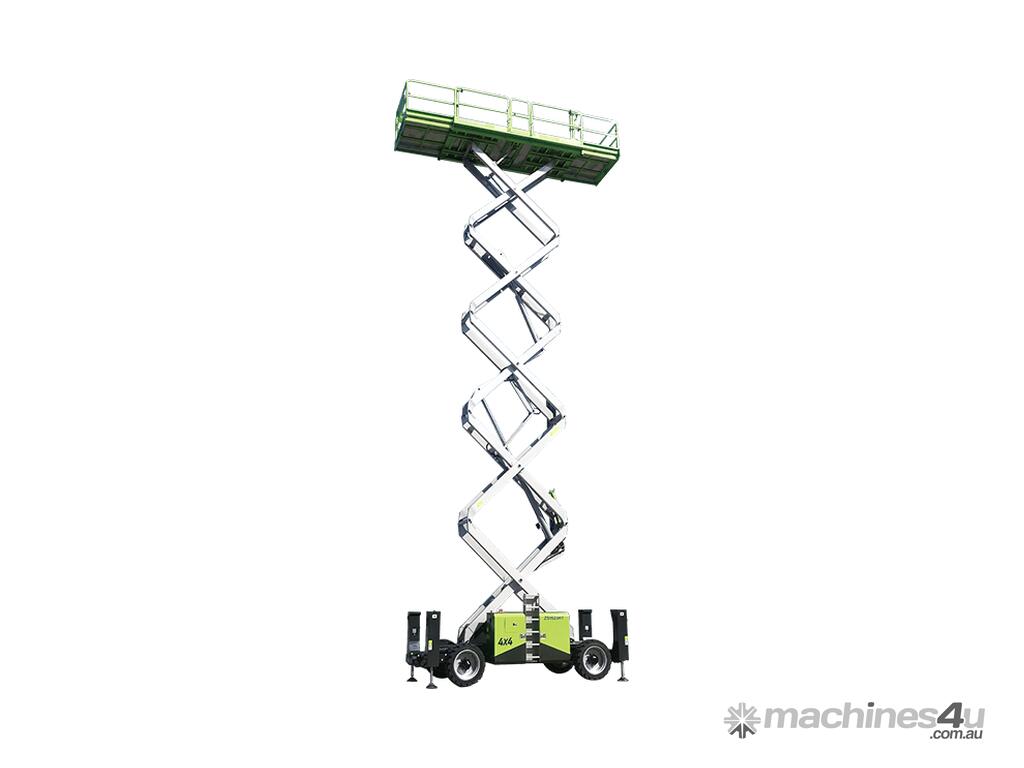

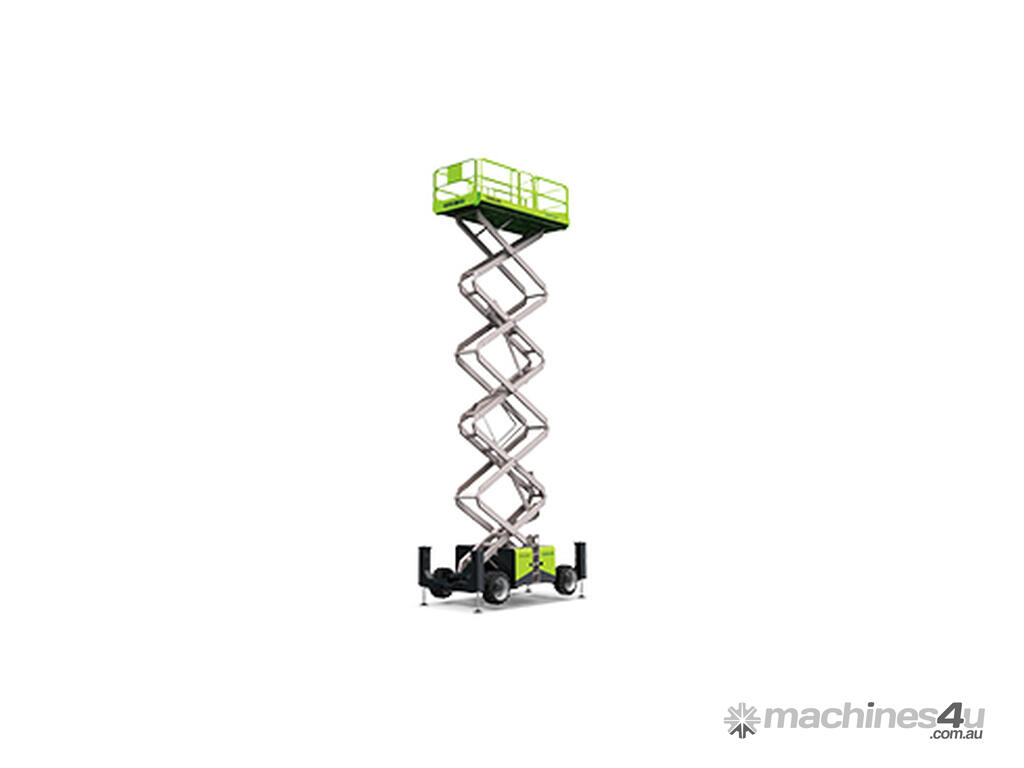

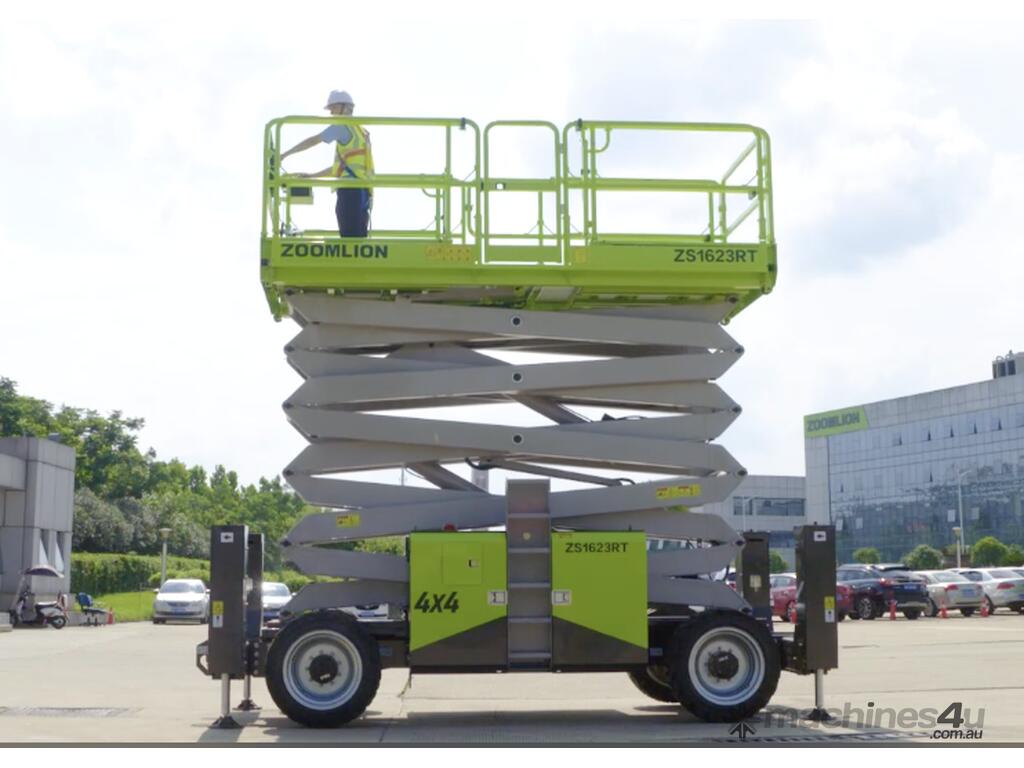

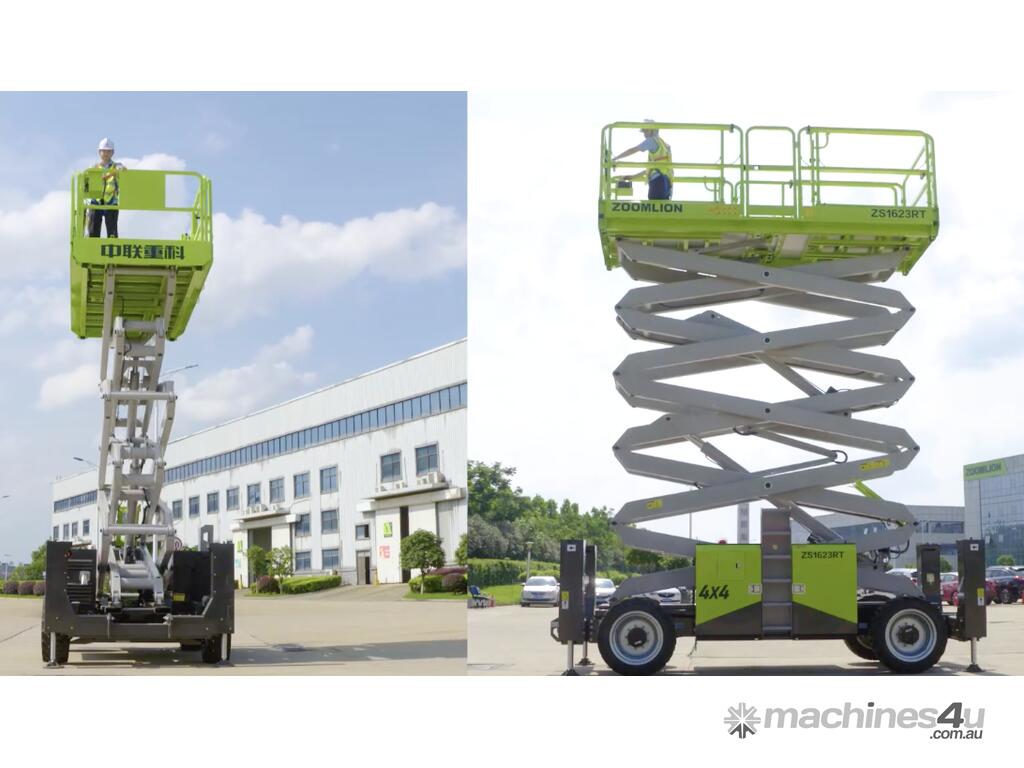

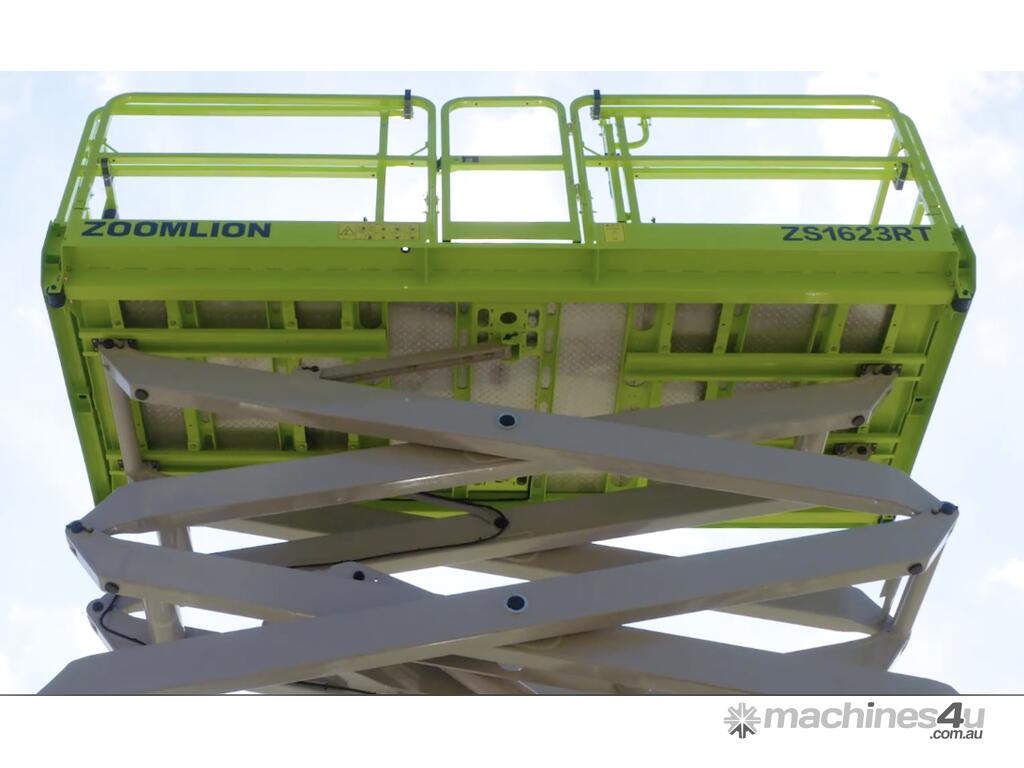

ZS1623RT adopts modern design such as modularization, light weight, communalization and intelligence and provides large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert for efficient fleet management.
ADVANTAGE INTRODUCTION
- Strong capacity of 680kg (1500lb) with high working efficiency;
- 4WD and axle oscillation provide great off-road capability;
- One-Click leveling function;
- Bilateral power system effective to lower noise.
- Knuckles lubrication-free and maintenance-free;
- Swing-out tray easy to service.
Size
Work Height: 18m
A Platform Height-Elevated: 16m
B Platform Height-Stowed: 2.03m
C Platform Dimension (Length): 3.98m
D Platform Dimension (Width): 1.83m, Platform Extension: 1.3m
E Overall Height (Rails Down): 2.47m, Overall Height (Rails Up): 3.16m
F Overall Length: 4.88m
G Overall Width: 2.3m
H Wheelbase: 2.9m
I Ground Clearance: 0.275m
Performance
Platform Capacity: 680kg
Capacity on Deck Extension: 230kg
Drive Height: 9m
Max. Number of Workers: 4
Drive Speed (Stowed): 6.5km/h
Drive Speed (Raised): 0.5km/h
Turning Radius (Inside): 2.75m
Turning Radius (Outside): 5.8m
Up/Down Time: 60/65s
Gradeability: 40% (22 degrees)
Max. Working Slope (Lateral/Vertical): 2 degrees/3 degrees
Drive: 4WD
Tire: 33x12-20/8 Solid Tire
Power
Engine: Kubota v2403-M-DI
Engine Power: 36kw/2600rpm
Fuel Tank Capacity: 105L
Diesel Tank: 100L
Weight
Gross: 8650kg
Features
Standard
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Load sensing system
- Autobrake system
- Emergency descent system
- Emergency stop button
- On-board diagnostic
- Over tilt protective system
- Horn
- Hour meter
- Extension deck (bidirectional)
- Scissor maintenance prop
- AC power to platform
Option
- Platform work lights
- Airline to platform
