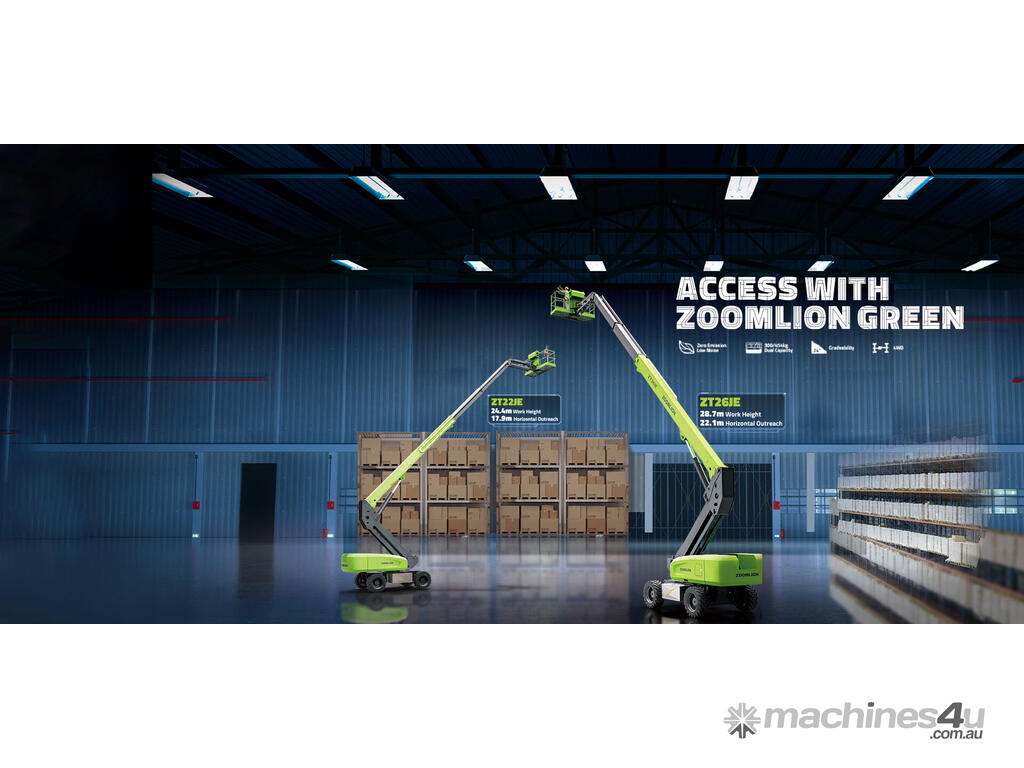

ZOOMLION ZT26JE Electric Telescopic Boom Lift

ZOOMLION ZT26JE Electric Telescopic Boom Lift.
Lithium-powered telescopic boom lifts, with 80-volt lithium battery that can be fully charged within 7 hours, are purpose-built for indoor applications with quiet, emission-free and cost-efficient solutions.

ADVANTAGE INTRODUCTION
- Customized lithium-ion battery features green, environmental protection, low noise and zero-emission, ideal for construction and plant maintenance.
- Accurate and efficient traveling AC drive system provides strong power and stable control. Gradeability reaches 45% and motor is maintenance-free for its lifttime.
- Large capacity lithium-ion batteries combined with excellent energy management system provide longer running time.
- Low-temperature regenerative current control and power self-adaptive control effectively improve the safety of Li-ion battery and greatly prolong the batteries service life of at least 10%.
- Provide a variety of standard charging plugs and 10A/16A/32A multi-power optional charging mode featuring strong charging adaptability.
- Brand-new appearance with lightweight GFRP composite material hood and integrally formed coating features anti-corrosion, heat preservation, aging resistance and easy cleaning.
- Assembled large-opening component box, open-close hood, and a variety of reserved inspection holes easy to service.

Size
Work Height: 28.70m
Platform Height: 26.70m
Horizontal Outreach: 22.1m
A - Stowed Length: 11.91m
B - Stowed Width: 2.49m
C - Stowed Height: 2.82m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 2.80m, Tread: 2.49m
G - Ground Clearance: 0.41m

Performance
Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 5.5km/h
Gradeability: 45%(24degrees)
Turning Radius (Inside): 3.11m
Turning Radius (Outside): 6.16m
Turntable Swing: 360degreescontinuous
Platform Rotation: ±90degrees
Tail Swing: 1.61m
Jib Rotation: 130degrees (-55degrees~75degrees)
Max. Wind Speed: 12.5m/s

Power
Charger: 5KW/80V
Drive Motor: 5.2KW
Lifting Motor: 30KW
Auxiliary Power: 12V DC
Hydraulic Tank: 120L

Tire
Type: 15-625 Foam-filled Tires, 385/65-24 Solid Tires

Weight
Gross: 17600kg

Features
Standard
- Horn
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Tilt protection system
- Oscillating axle
- Load sensing system
- 4.3' Led display
- Swing-out engine tray

Option
- Platform work light
- Anti-collision device
- AC power to platform
