ZOOMLION ZT34J Diesel Telescopic Boom Lift - 36.00m Work Height & 300/454kg Platform Capacity

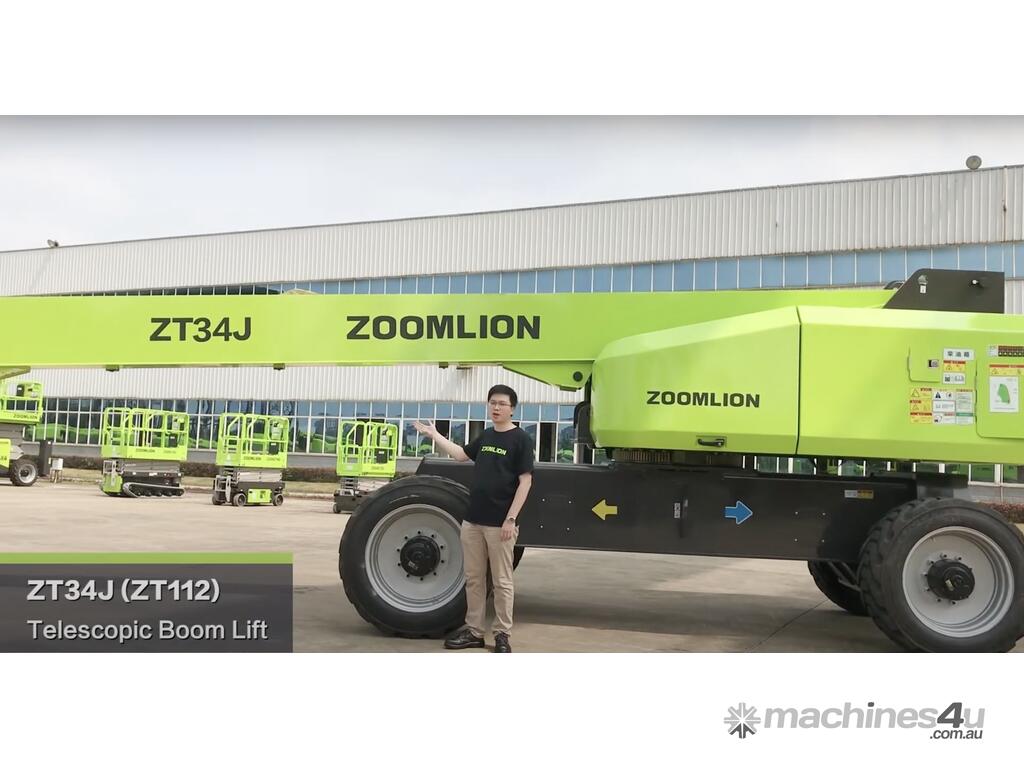

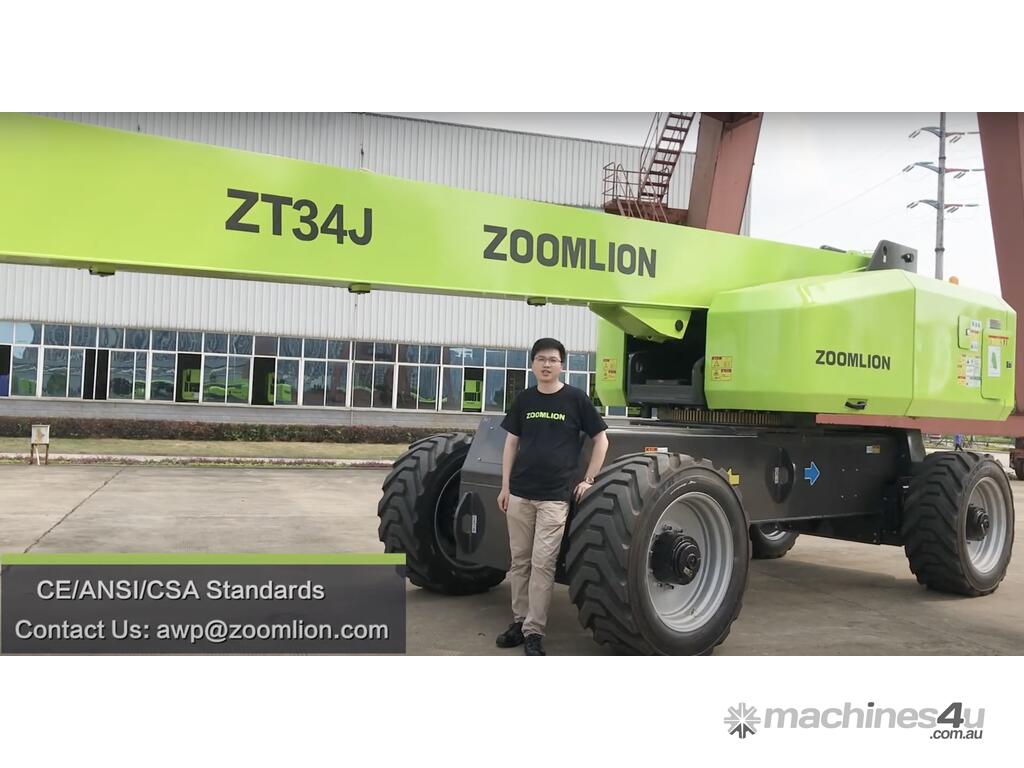

ZOOMLION ZT34J Diesel Telescopic Boom Lift.
Diesel-powered telescopic boom lifts can get the work done at height with super efficiency in large-scale, outdoor constructions and industrial applications.

ADVANTAGE INTRODUCTION
- Perform dual capacity design, up to 300/454kg (660/1000lb)
- Rough terrain chassis features swing axle function, easy to achieve 45% gradeability
- Creative outrigger telescopic method; strong field applicability, low telescopic failure rate, and effective prevention of abnormal tire wear (option)
- Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom
- Better work envelop performance, 10% larger than competitor

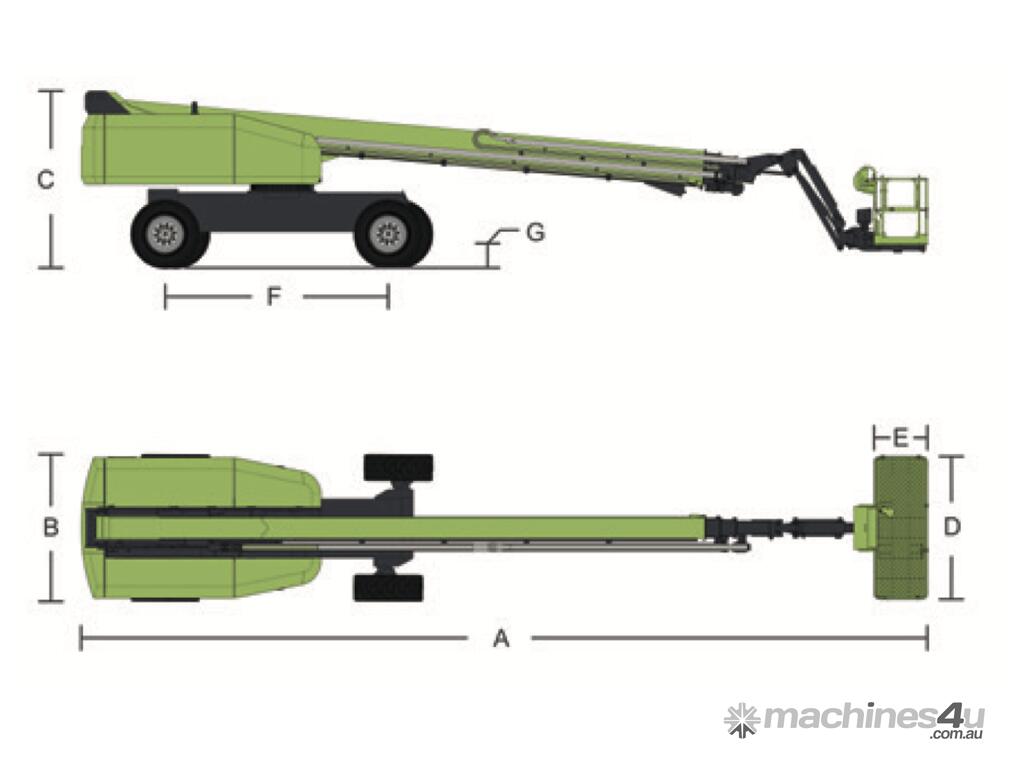

Size
Work Height: 36m

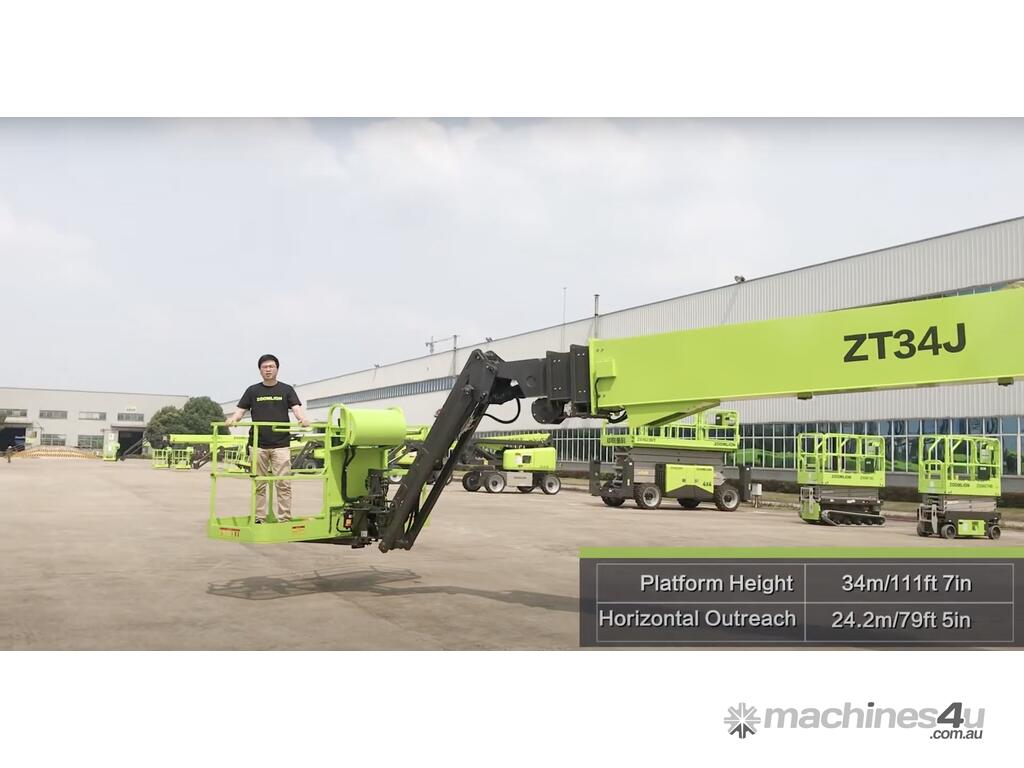

Platform Height: 34m

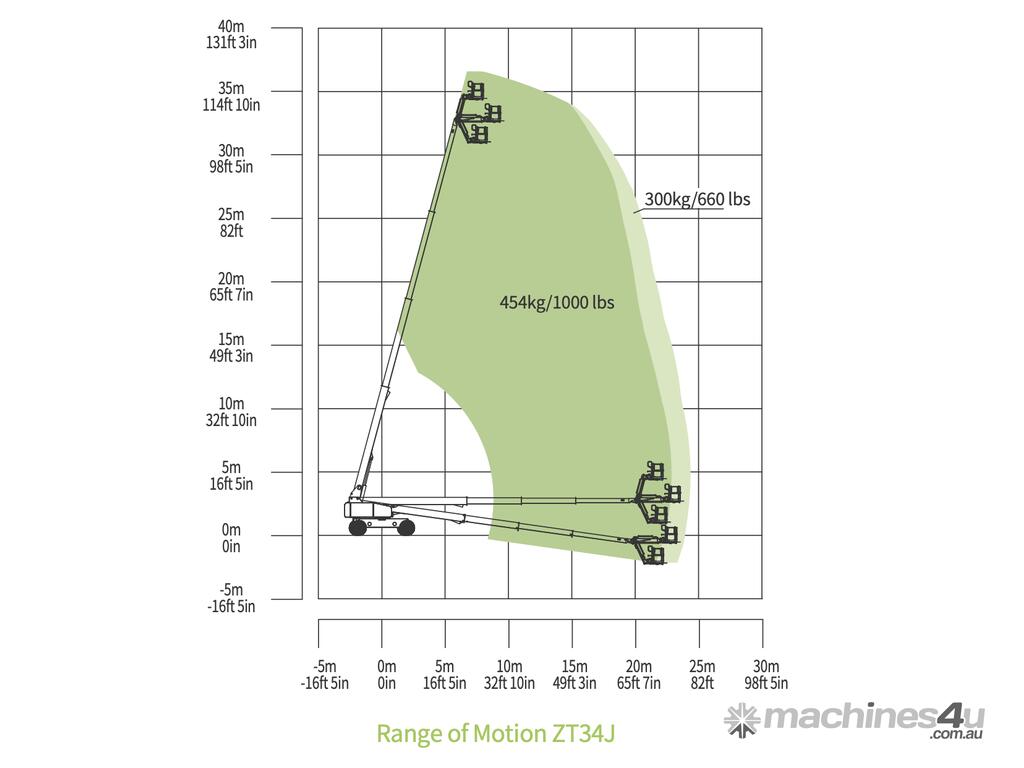

Horizontal Outreach: 24.2m
A - Stowed Length: 13.50m
B - Stowed Width: 2.49m
C - Stowed Height: 3m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 3.81m, Tread: 2.49/3.87m
G - Ground Clearance: 0.41m

Performance

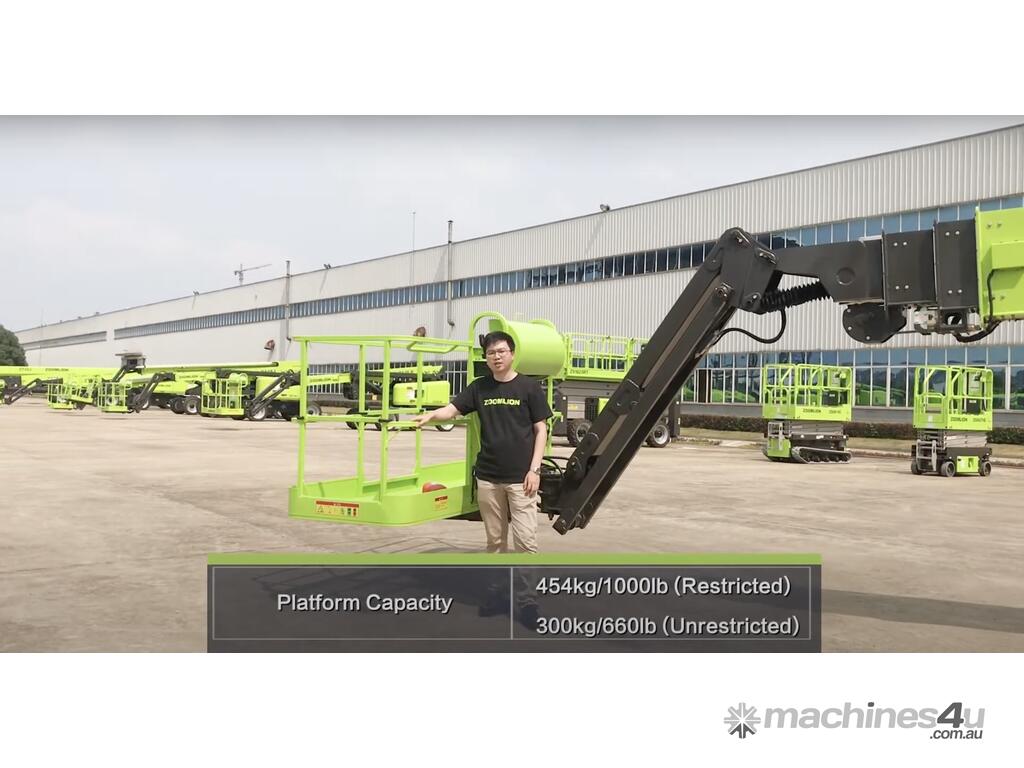

Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 5km/h

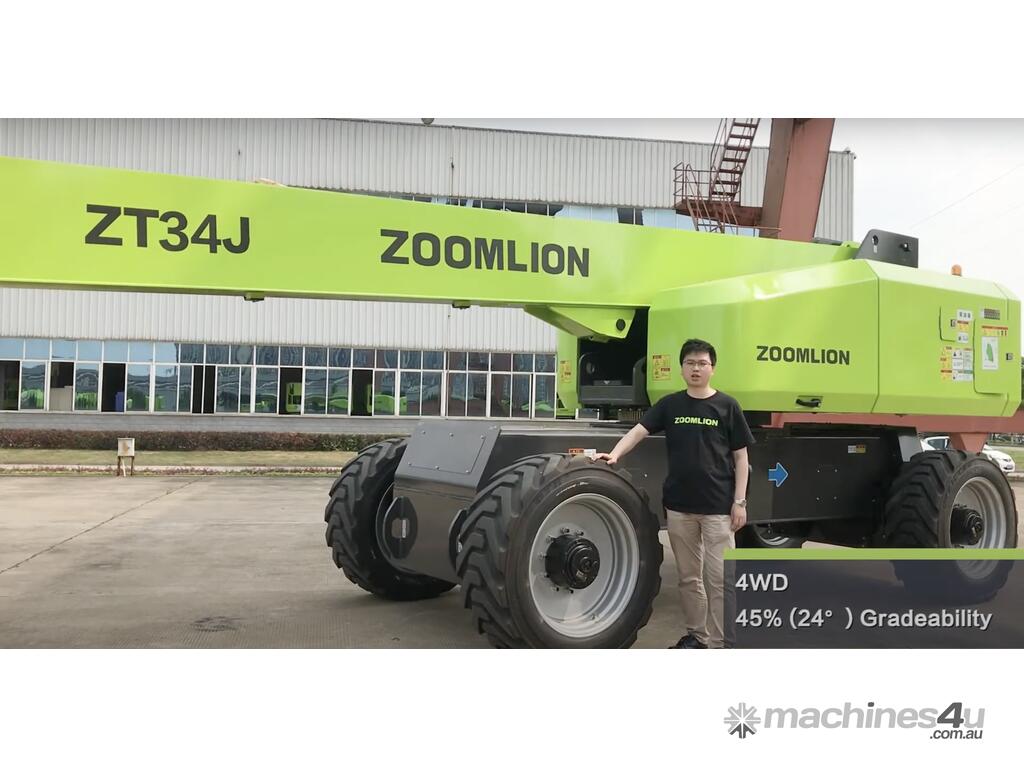

Gradeability: 45%(24degrees)
Turning Radius (Inside): 3.3/7.7m
Turning Radius (Outside): 8.2/10.8m
Turntable Swing: 360degreescontinuous
Platform Rotation: ±90degrees
Tail Swing: 1.20m
Jib (Range of Articulation): 130degrees (-55degrees~75degrees)
Max. Wind Speed: 12.5m/s

Power
Engine: Cummins QSF 2.8 54kW/2400rpm
Fuel Tank Capacity: 200L
Control Voltage: 12V DC
Hydraulic Tank Capacity: 250L
Drive Mode: 4WD
Steering Mode: Four wheels/Front wheel/Crab

Tire
Type: IN445/50D710 Foam-filled Tires

Weight
Gross: 19300kg

Features
Standard
- Horn
- Proportional control
- Al motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Tilt protection system
- Oscillating axle
- Load sensing system
- 4.3' Led display
- Swing-out engine tray

Option
- Platform work light
- Anti-collision device
- AC power to platform
- Outrigger in-situ telescopic function
