- Light weight design, low operating cost
- High frequency and low amplitude response control with buffer
- X-type chassis, large span, good stability on slope
- Compact transportation size makes it available for container
- Dual jib rotary actuator for large work range, folded jib for compact transportation size, reducing transporting cost
- Micro-motion technology of container transport for safe and stable container shipping
- Load-sensitive and engine condition matching energy-saving technology, as well as the boom self-weight lowering function, reducing energy consumption by 18% compared to peers
- Remote controller upgrade and mobile parameter adjustment, high service efficiency
Size

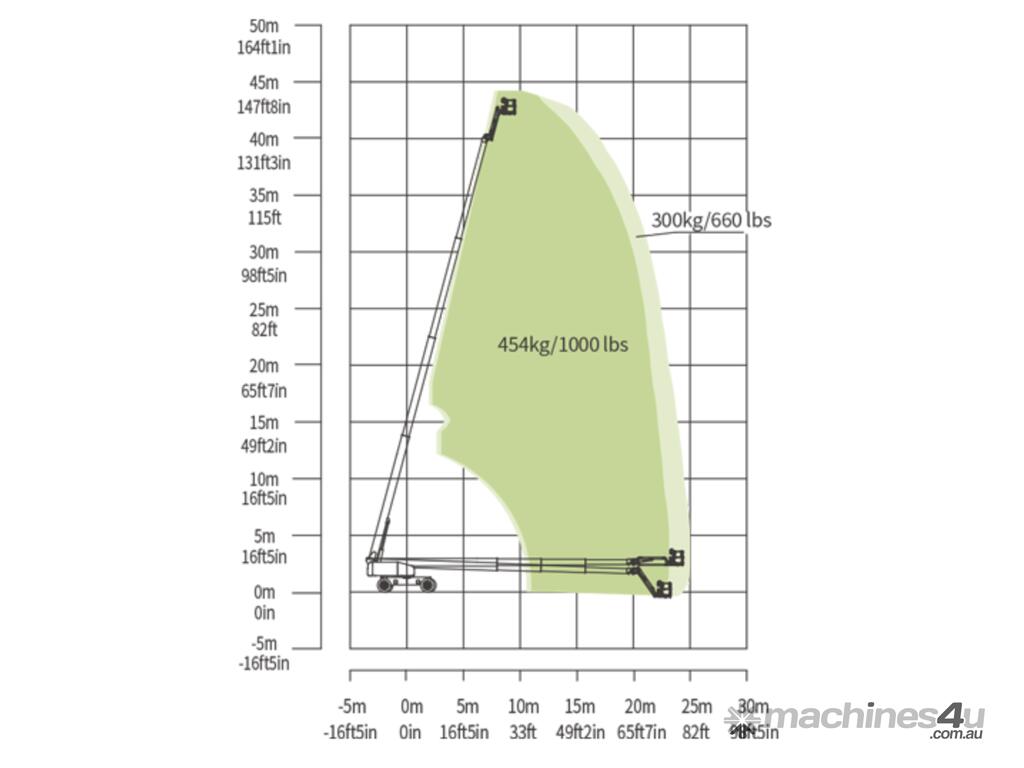

Work Height: 44m
Platform Height: 42m
Horizontal Outreach: 25m

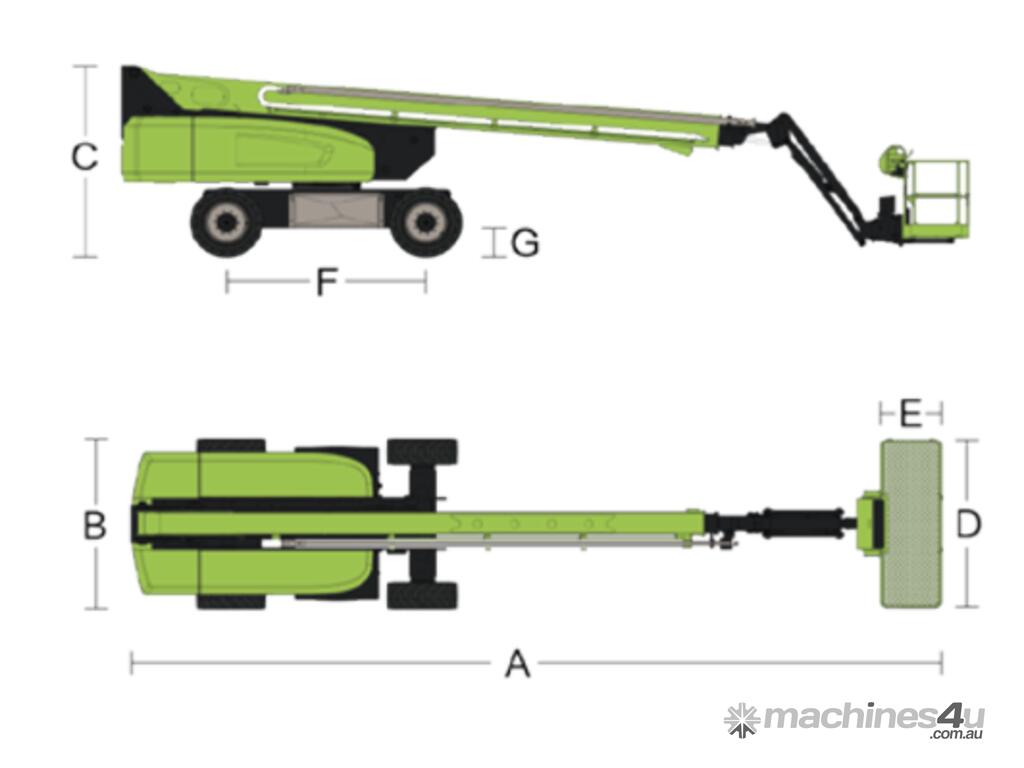

A - Stowed Length: 16.22m
B - Stowed Width: 2.46m
C - Stowed Height: 2.86m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 4.15m
Tread: 2.46/4.07m
G - Ground Clearance: 0.4m
Performance
Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 5km/h
Gradeability: 45% (24°)
Turning Radius (Inside): 2.5m
Turning Radius (Outside): 5.65m
Turntable Swing: 360° continuous
Platform Rotation: ±90°
Tail Swing: 1.67m
Jib (Range of Articulation): 130° (-55°~75°)
Max. Wind Speed: 12.5m/s
Power
Engine: Kubota V2607 (Euro Stage V)Kubota (China Stage III)Weichai WP2.3NG75 (China Stage IV )
Fuel Tank Capacity: 200L
Control Voltage: 12V DC
Hydraulic Tank Capacity: 200L
Drive Mode: 4WD
Steering Mode: Four wheels/Front wheel/Crab
Tire
Type: Foam-filled Tires
Weight
Gross: 22050kg
