ZOOMLION ZT58J Diesel Telescopic Boom Lift - 58.80m Work Height & 300/454kg Platform Capacity

ZOOMLION ZT58J Diesel Telescopic Boom Lift.

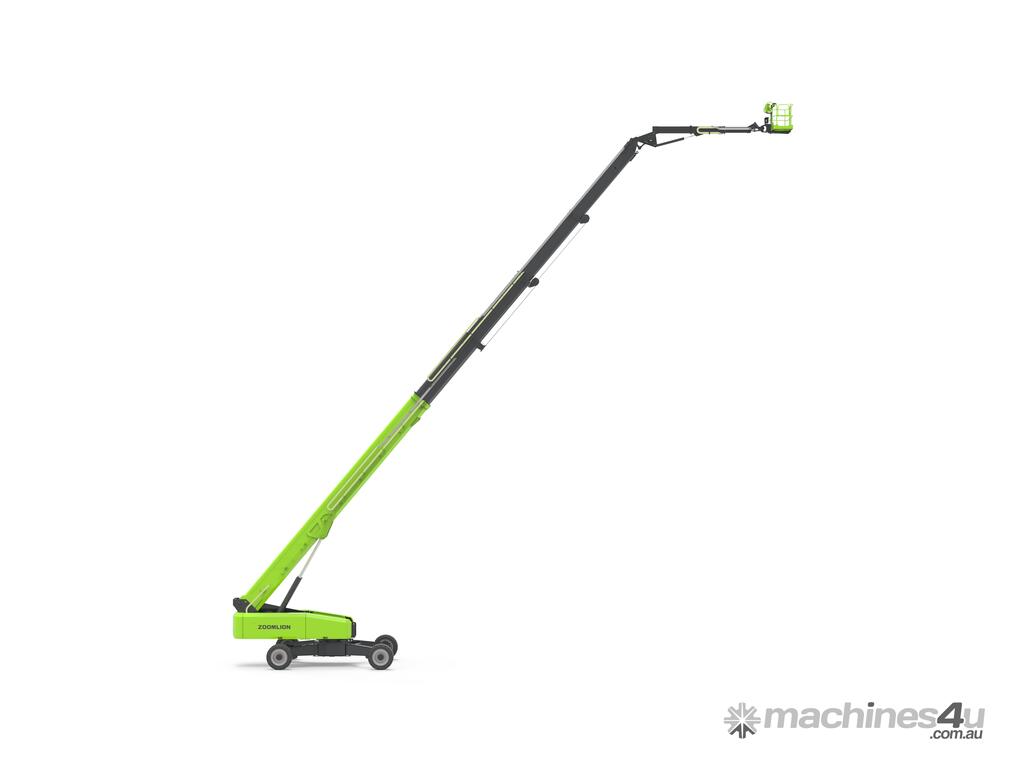

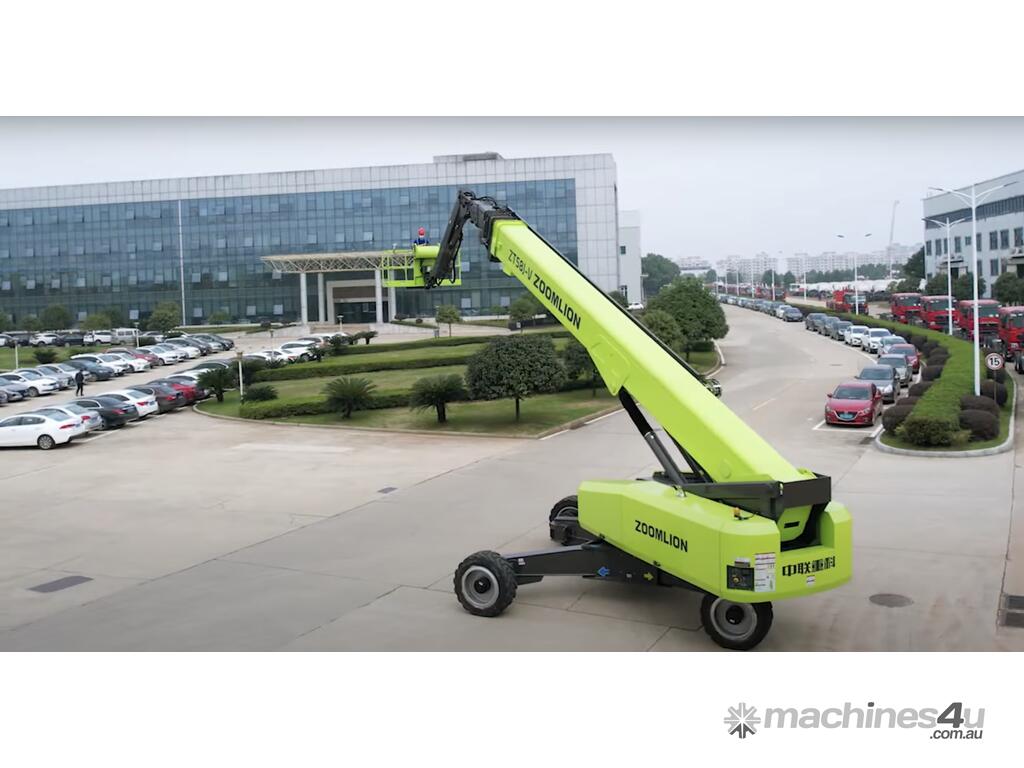

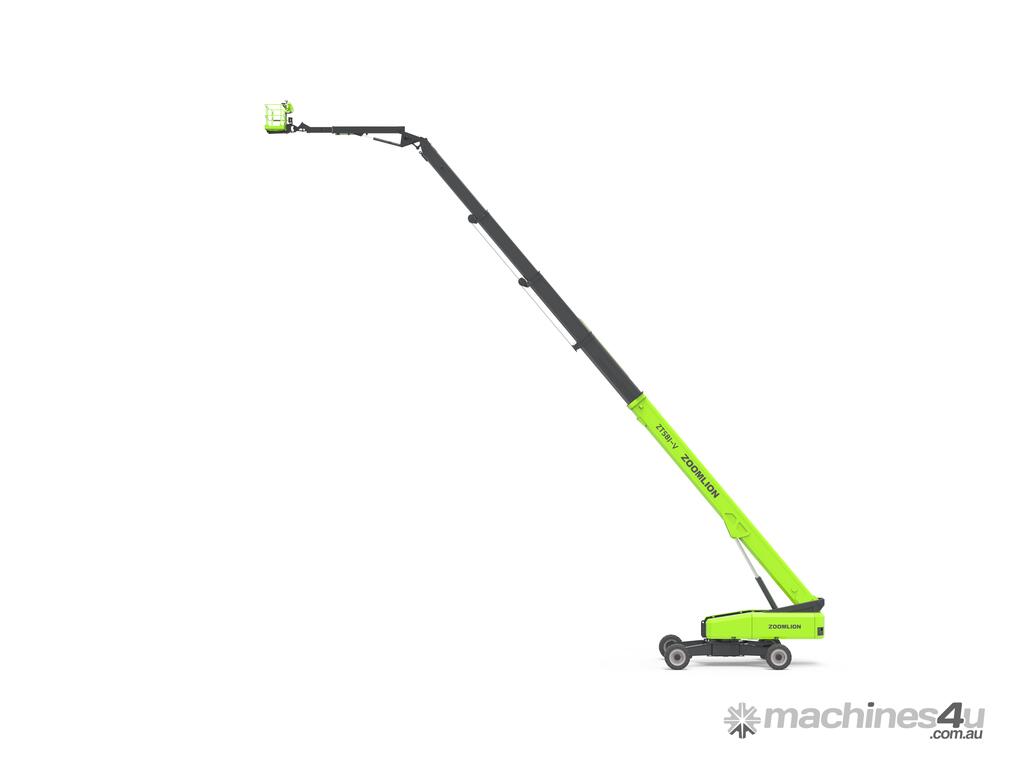

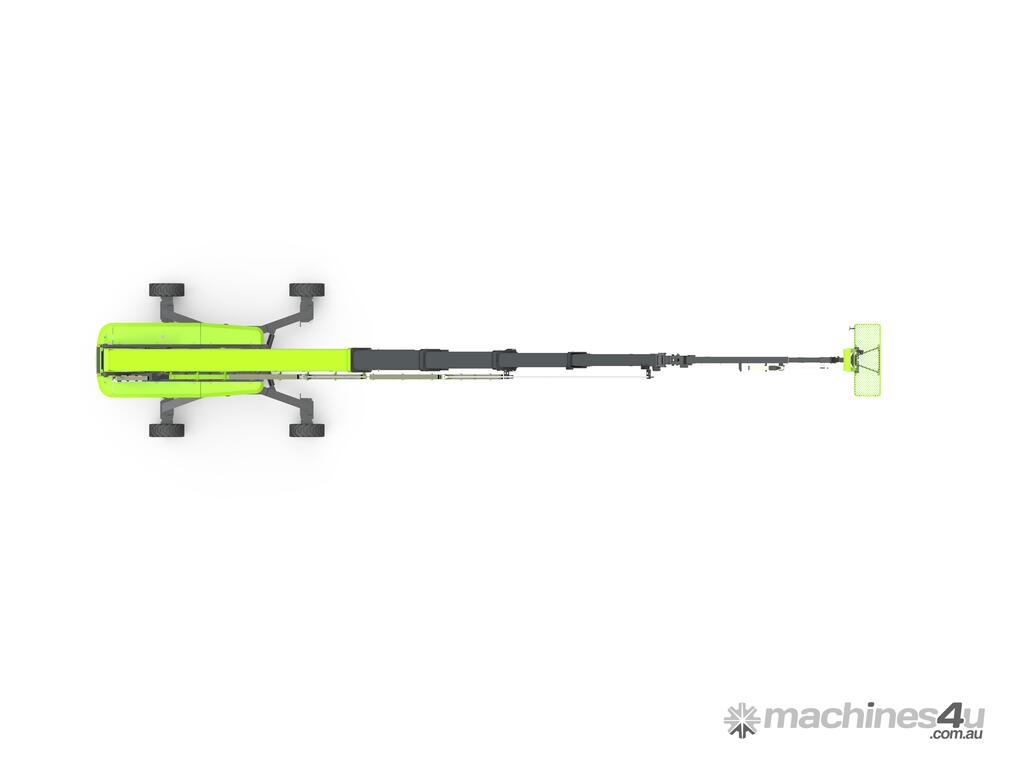

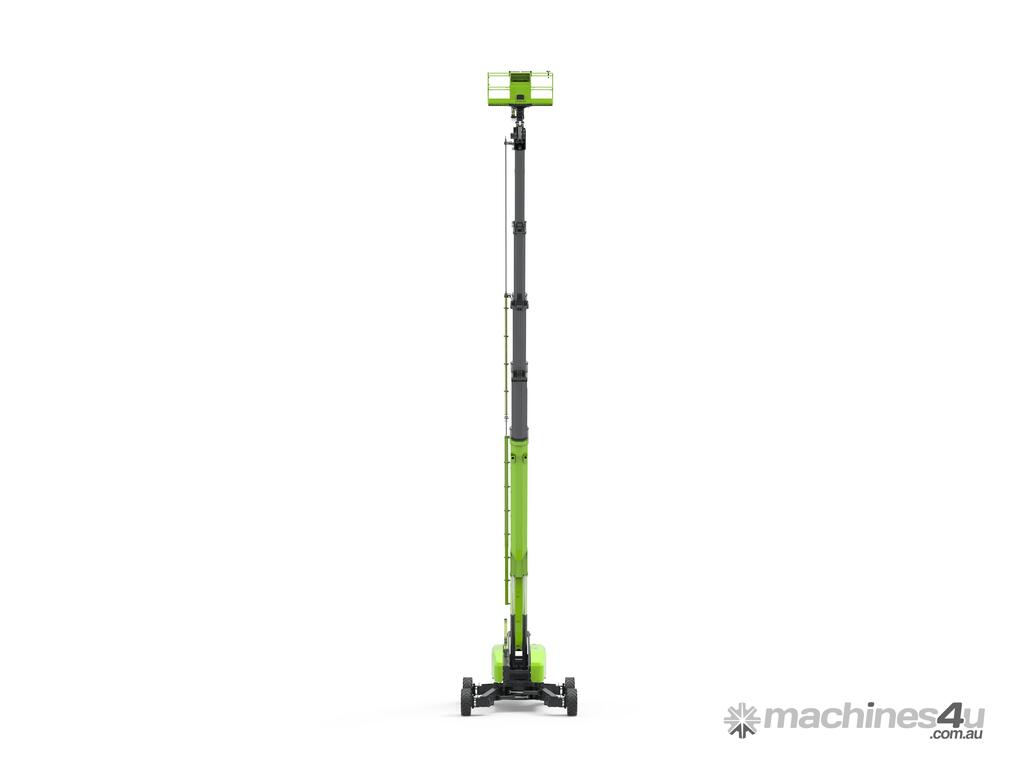

ZT58J-V is one of our representative products of Zoomlion's ultra-high telescopic boom lift. Provide a vertical reach of 58.8m (192ft 11in) and horizontal reach of 25.5m(83ft 8in) , offer a dual lift capacity of 300/454 kg (660/1000lb) and 17 safety protection measures, and equip with PLC control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault detection and alarm display function offer convenient maintenance. The polygonal boom system effectively reduce the boom weight and deflection, and offer better stability. Equipped with a 6.25m(20ft 6in) jib, it has a wider operating range and is more convenient to use.

ADVANTAGE INTRODUCTION

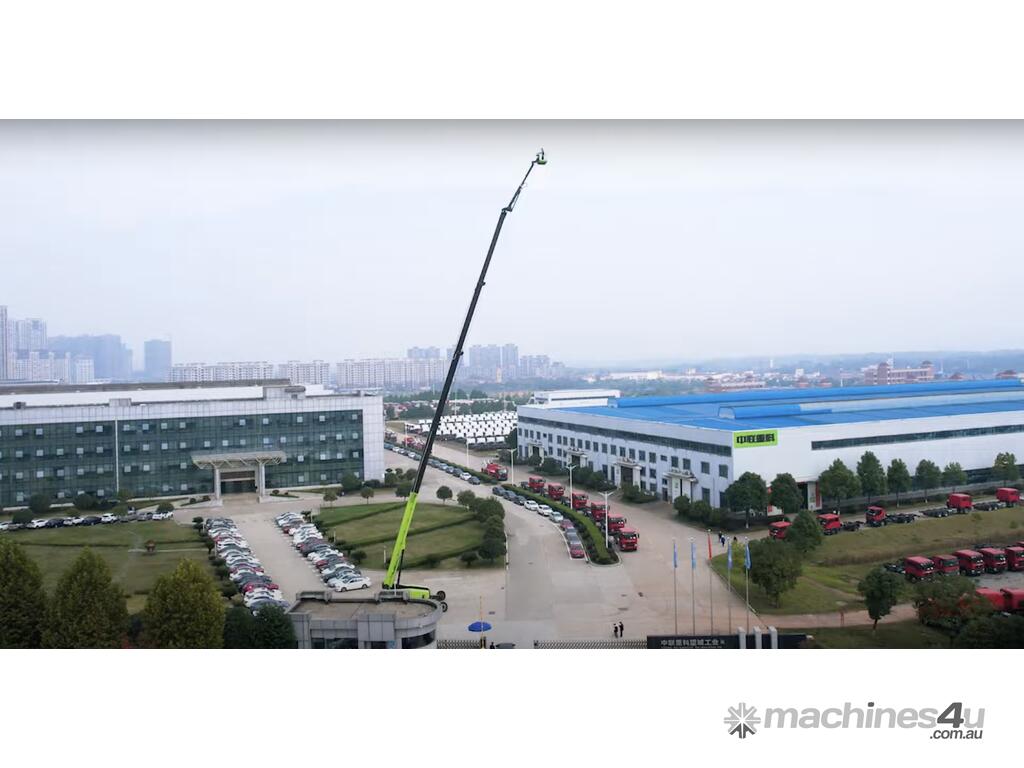

- Work height up to 58.8m and horizontal outreach up to 25.5m

Size
Work Height: 58.8m
Platform Height: 56.8m
Horizontal Outreach: 25.5m
A - Stowed Length: 14.4m
B - Stowed Width: 2.5m
C - Stowed Height: 3.06m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 5.357/4.69m, Tread: 2.5/5.15m
G - Ground Clearance: 0.40m

Performance
Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 4.5km/h

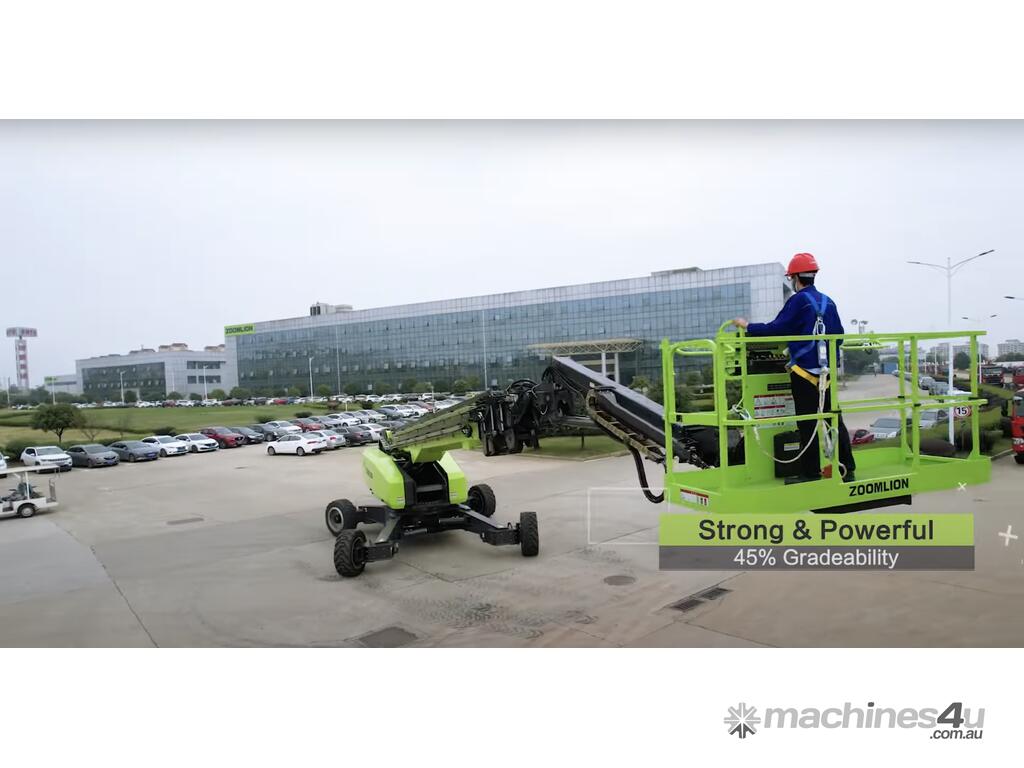

Gradeability: 45%(24degrees)
Turning Radius (Inside): 6.79/2.57m
Turning Radius (Outside): 8.43/6.39m
Turntable Swing: 360degrees continuous
Platform Rotation: ±90degrees
Tail Swing: 2.16m

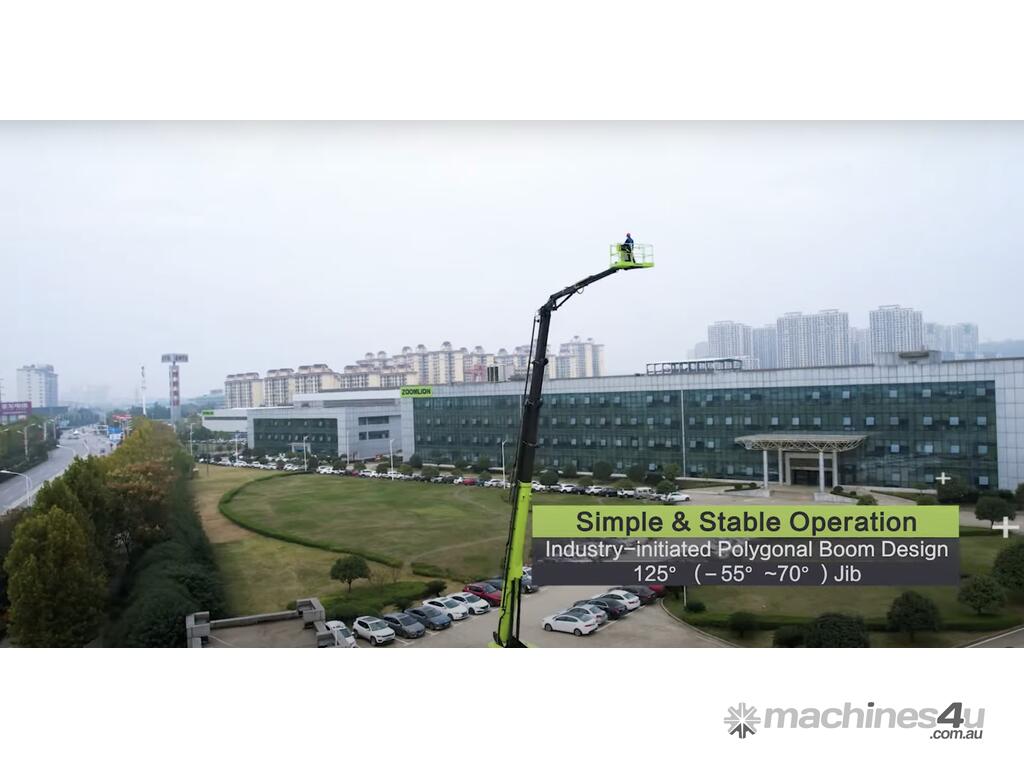

Jib (Range of Articulation): 125degrees (-55degrees~70degrees)
Max. Wind Speed: 12.5m/s

Power
Engine: Cummins QSF3.8
Fuel Tank Capacity: 200L
Control Voltage: 12V DC&&
Hydraulic Tank Capacity: 400L
Drive Mode: 4WD
Steering Mode: Four wheels/Front wheel/Crab

Tire
Type: 445/50 D710 Foam-filled Tires

Weight
Gross: 29600kg

Features
Standard
- Horn
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Tilt protection system
- Load sensing system
- 4.3' Led display
- Swing-out engine tray
- Anemograph

Option
- Platform work light
- Anti-collision device
