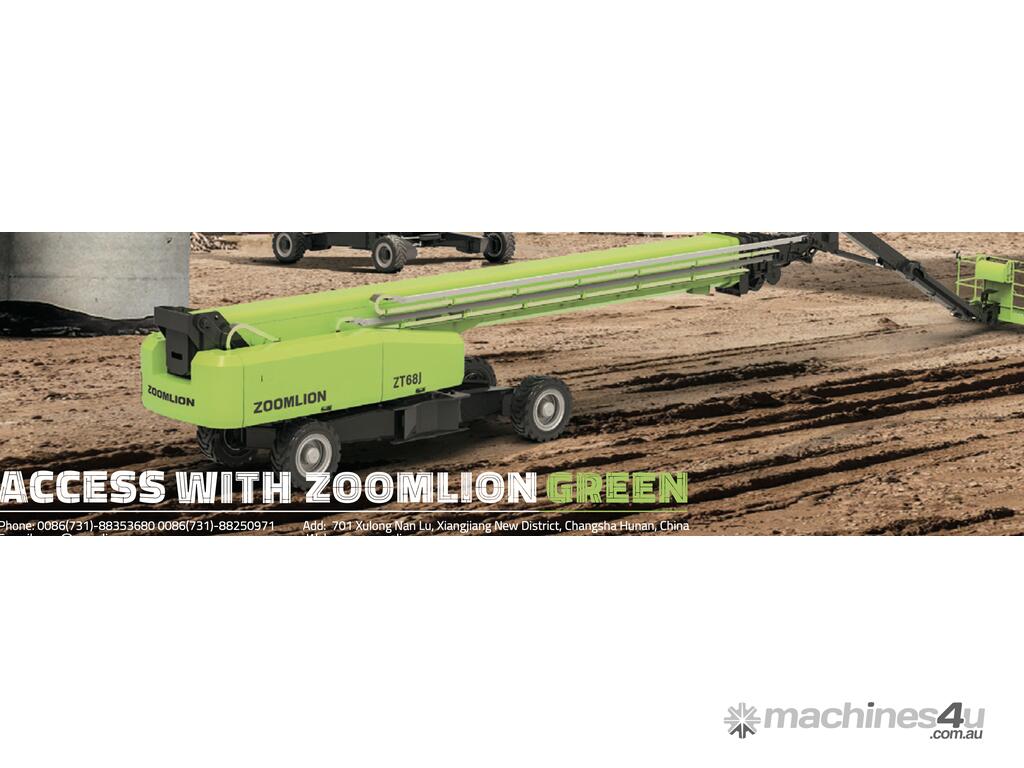

ZOOMLION ZT68J Diesel Telescopic Boom Lift - 67.50m Work Height & 300/454kg Platform Capacity

- Work height up to 58.8m and horizontal outreach up to 25.5m (ZT58J Only)
- Highest self-propelled telescopic boom lift with a Work height of 67.5m and a horizontal outreach of 31m (ZT68J Only)
- Industry's first polygonal innovative boom, boom weight reduced by more than 10%, vertical stiffness increased by 25%
- torsion resistance increased by 20%, and offers small deformation and stable control
- X outrigger offers larger working envelope, stronger off-road ability, and better stability
- Intelligent control of four-wheel steering ensure coordination and consistency of outriggers during steering and expansion
- All-wheel steering angles are automati cally matched ensure straight travel
- Five-section boom synchronously extends, efficient and stable

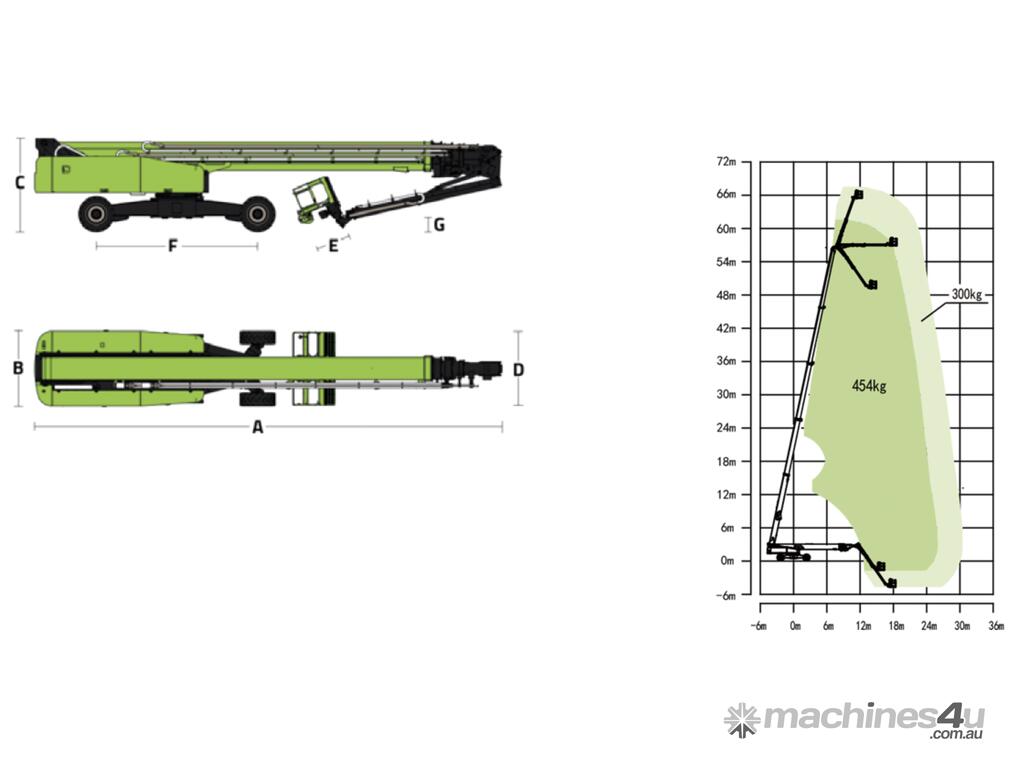

Size
Work Height: 67.5m
Platform Height: 65.5m
Horizontal Outreach: 31m
A - Stowed Length: 15.5m
B - Stowed Width: 2.5m
C - Stowed Height: 3.06m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 5.357/4.69m
Tread: 2.5/5.15m
G - Ground Clearance: 0.40m

Performance
Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 4.5km/h
Gradeability : 40%(22°)
Turning Radius (Inside): 6.79/2.57m
Turning Radius (Outside): 8.43/6.39m
Turntable Swing: 360° continuous
Platform Rotation: ±90°
Tail Swing: 2.15m
Jib (Range of Articulation): 125°(-55°~70°)
Max. Wind Speed: 12.5m/s

Power
Engine: Cummins F3.8(EU Stage V)
Fuel Tank Capacity: 200L
Control Voltage: 12V DC
Hydraulic Tank Capacity: 400L
Drive Mode: 4WD
Steering Mode: Four wheels/Front wheel/Crab

Tire
Type: 445/50 D710 Foam-filled Tires

Weight
Gross: 35900kg
