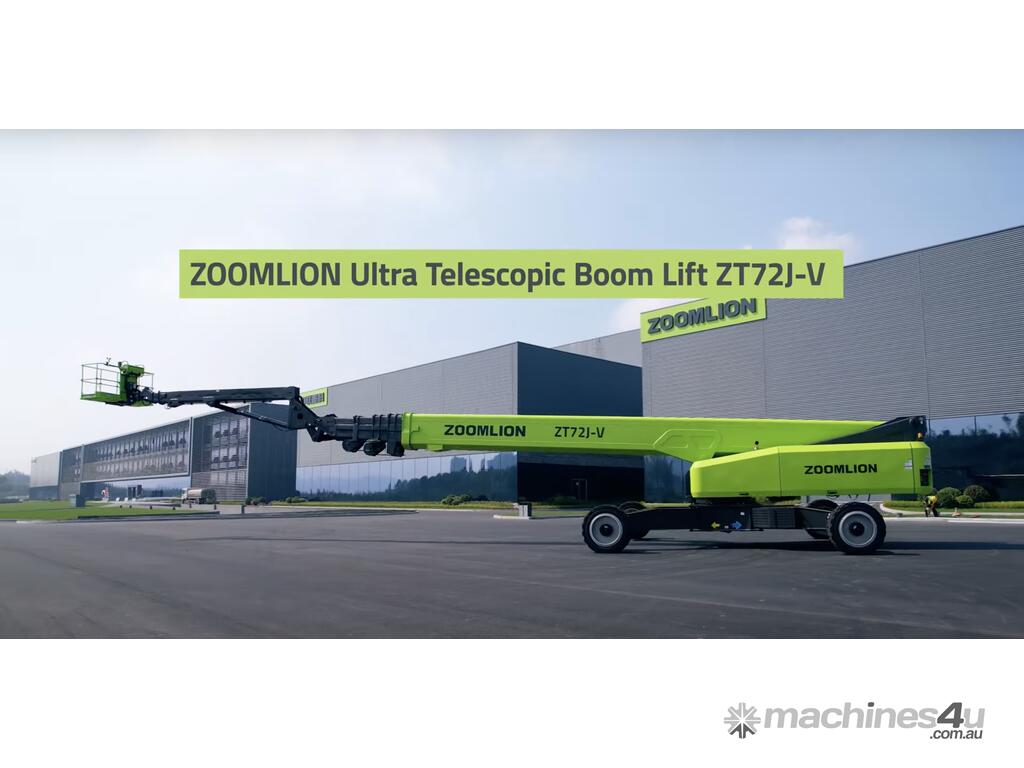

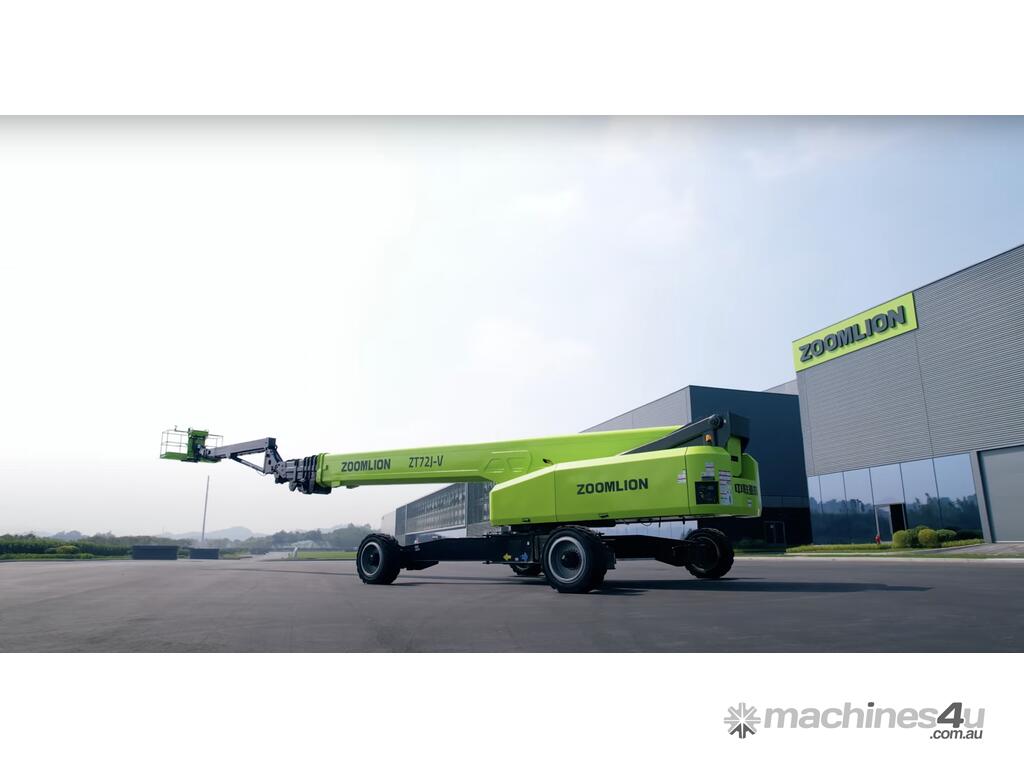

- Highest telescopic boom lift that work height up to 72.3m and horizontal outreach up to 32m

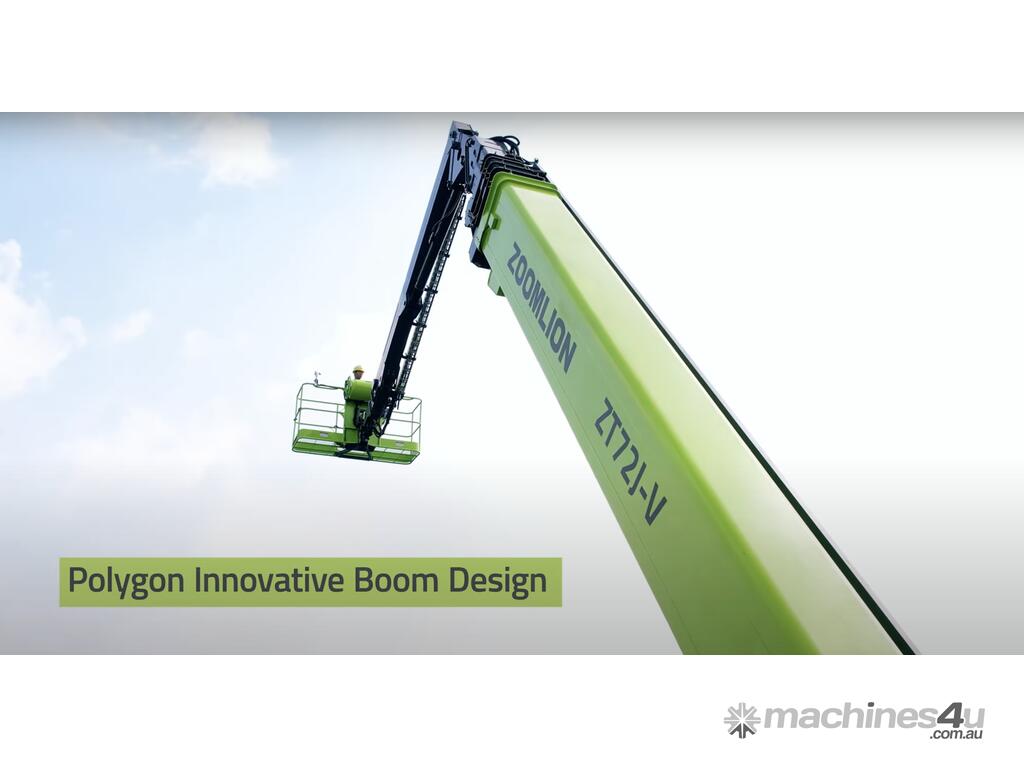

- Innovative polygonal boom with light weight and small side deformation for stable operation
- X outrigger offers larger working envelope, stronger off-road ability, and better stability
- 13.1m ultra-long telescopic jib for large work envelope and convenient application
- Ultra long boom with multiple sensors for safe and efficent application
- Double lifting cylinder layout provides more smooth lifting, better boom rigidity and less platform shakes

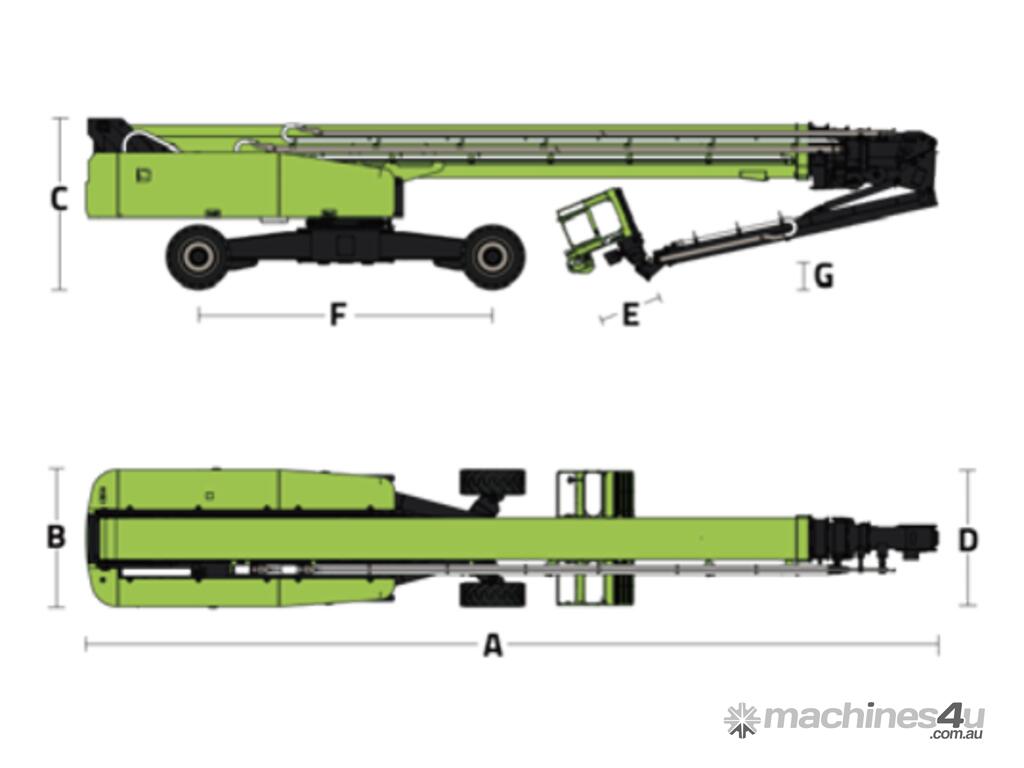

Size

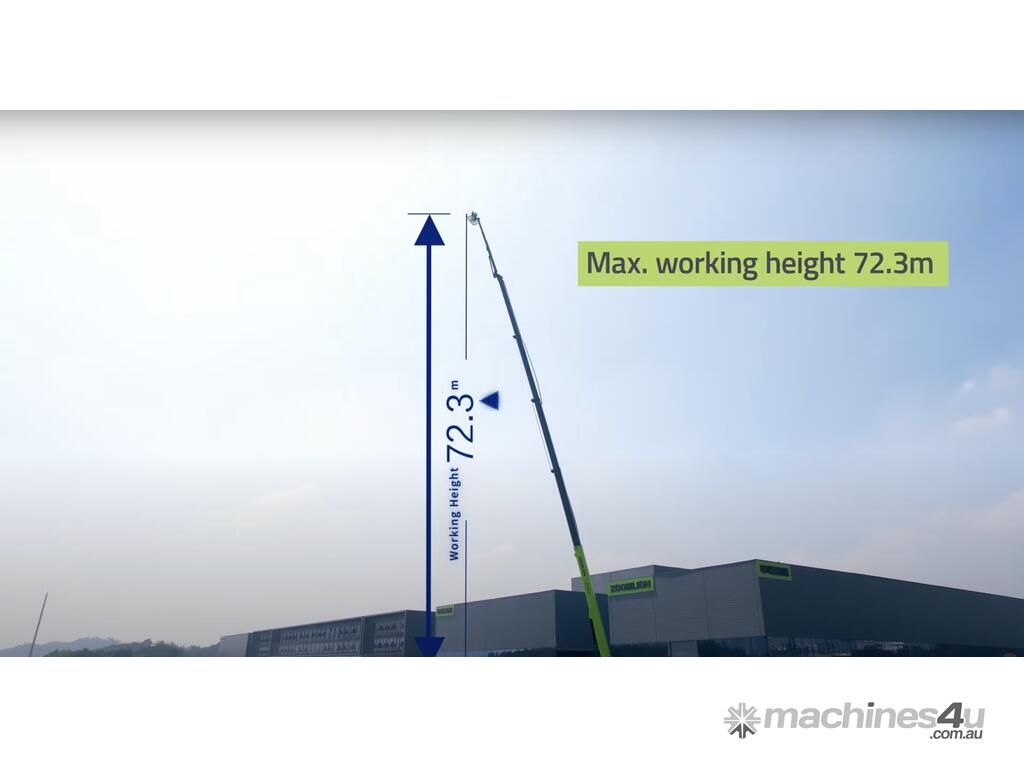

Work Height 72.3m
Platform Height 70.3m
Horizontal Outreach 32.6m
A - Stowed Length 16.5m
B - Stowed Width 2.5m
C - Stowed Height 3.16m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 6.2/5.4m
Tread 2.5/5.6m
G - Ground Clearance 0.40m
Performance

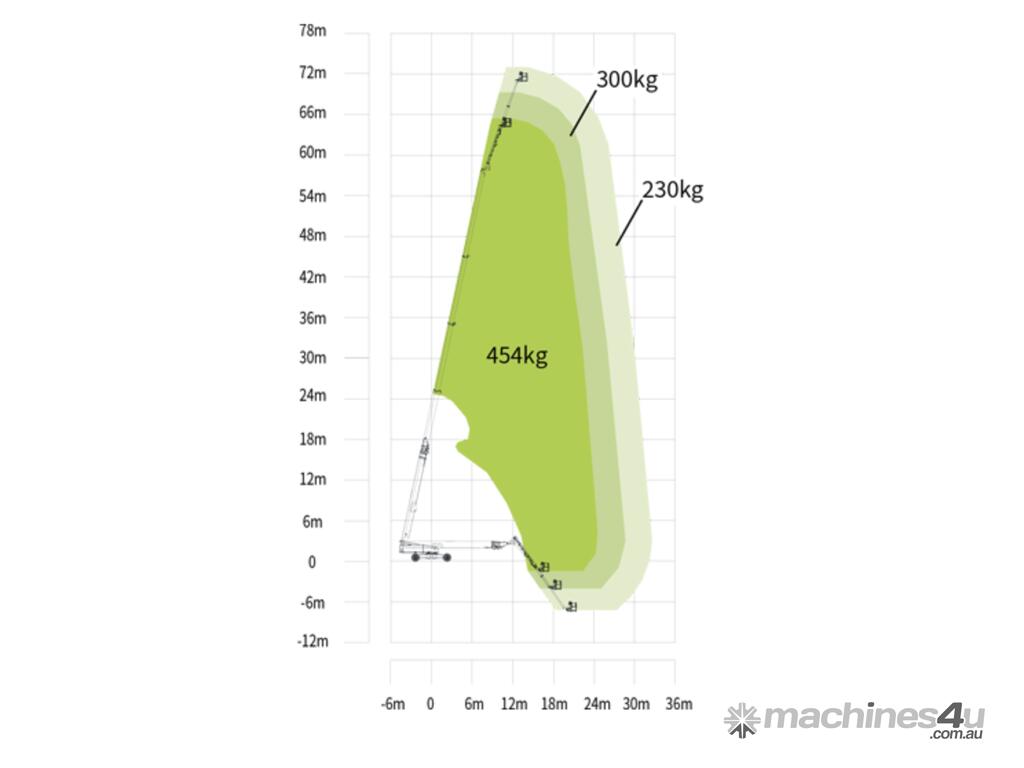

Platform Capacity (Unrestricted/Restricted) 230/300/454kg
Drive Speed (Stowed) 4.5km/h
Gradeability 40% (22°)
Turning Radius (Inside) 7.42/2.69m
Turning Radius (Outside) 9.8/7.39m
Turntable Swing 360° continuous
Platform Rotation ±90°
Tail Swing 2.1m
Jib (Range of Articulation) 125° (-55°~70°)
Max. Wind Speed 12.5m/s
Power
Engine Cummins F3.8 (Eu Stage V)Cummins F4.5 (China Stage IV)Cummins QSF3.8 (China Stage Ill)
Fuel Tank Capacity 200L
Control Voltage 12V DC
Hydraulic Tank Capacity 480L
Drive Mode 4WD

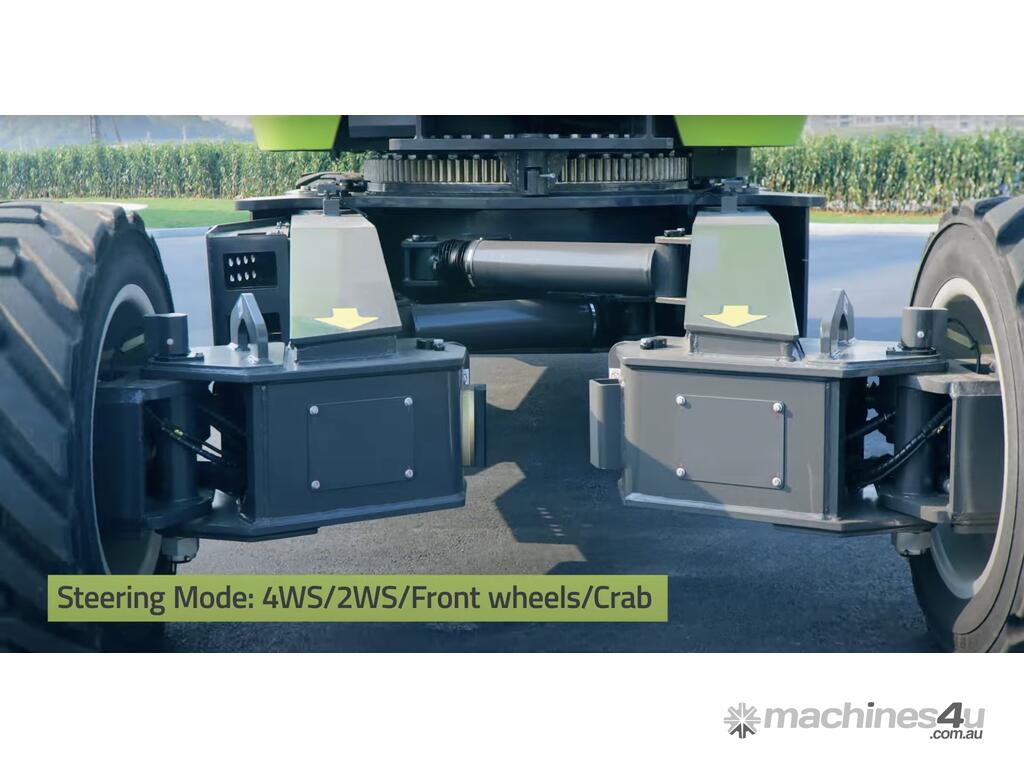

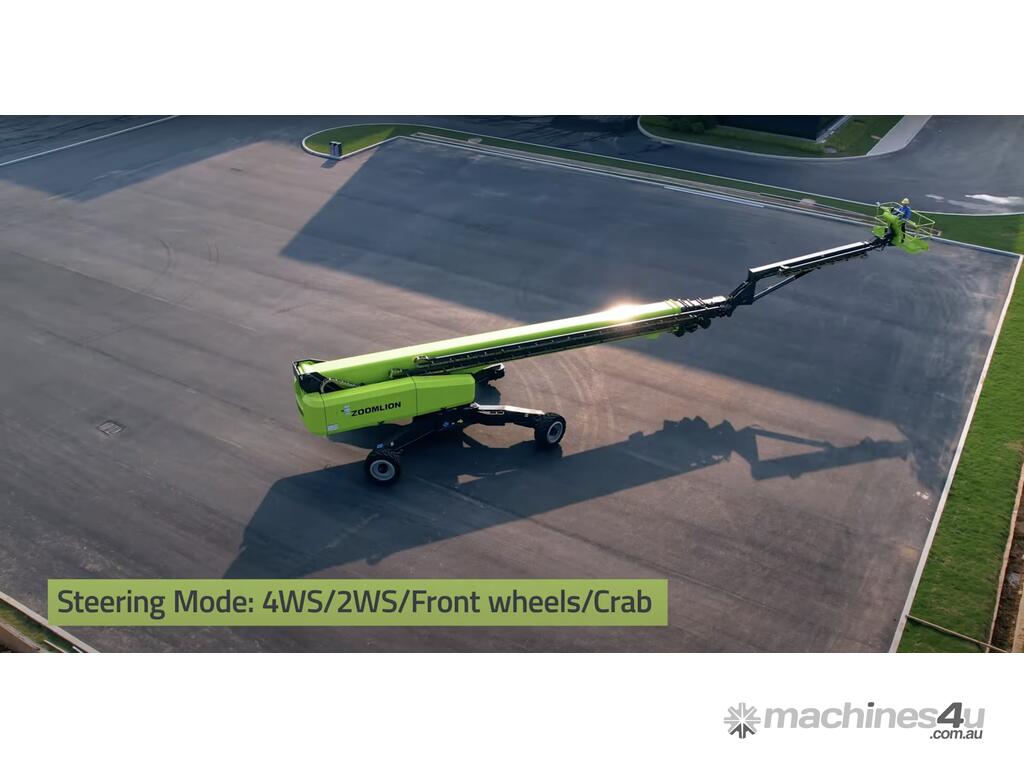

Steering Mode 4WS/Front wheel/Crab
Tire
Type Foam-filled Tires Foam-filled Tires
Weight
Gross 38300kg
