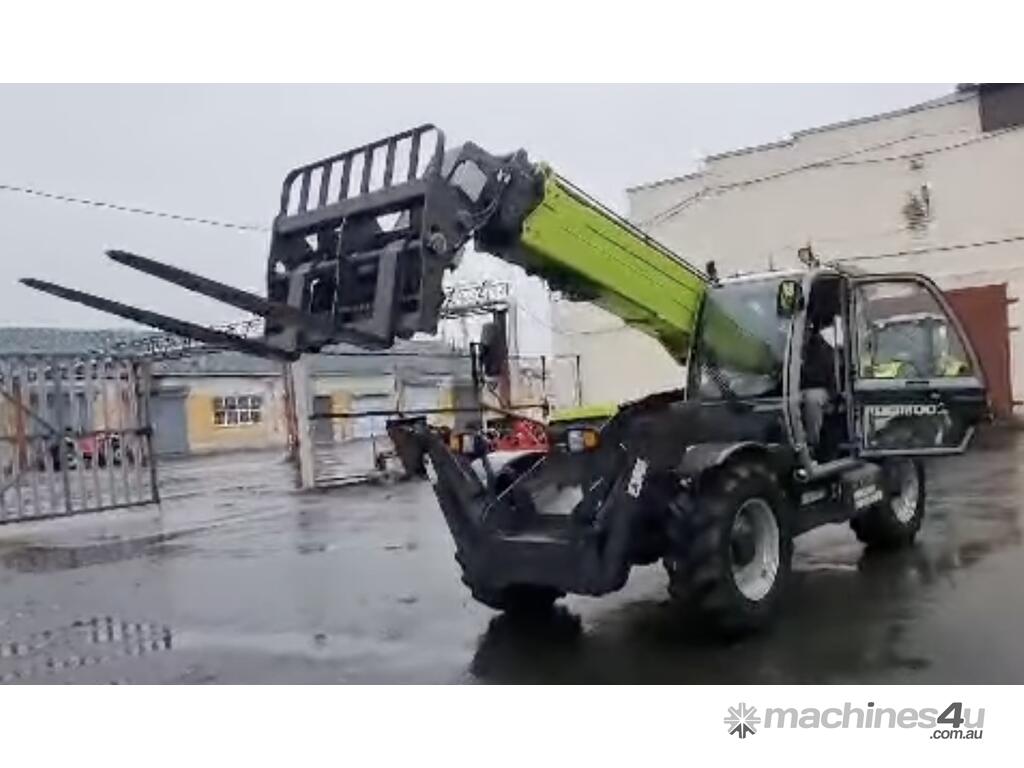

ZOOMLION ZTH2506 Non-Rotating Telehandler - 6.10m Work Height & 2500kg Platform Capacity

- Strong power chassis with excellent driving performance and off-road capacity
- 4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability
- Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope
- 10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience
- Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

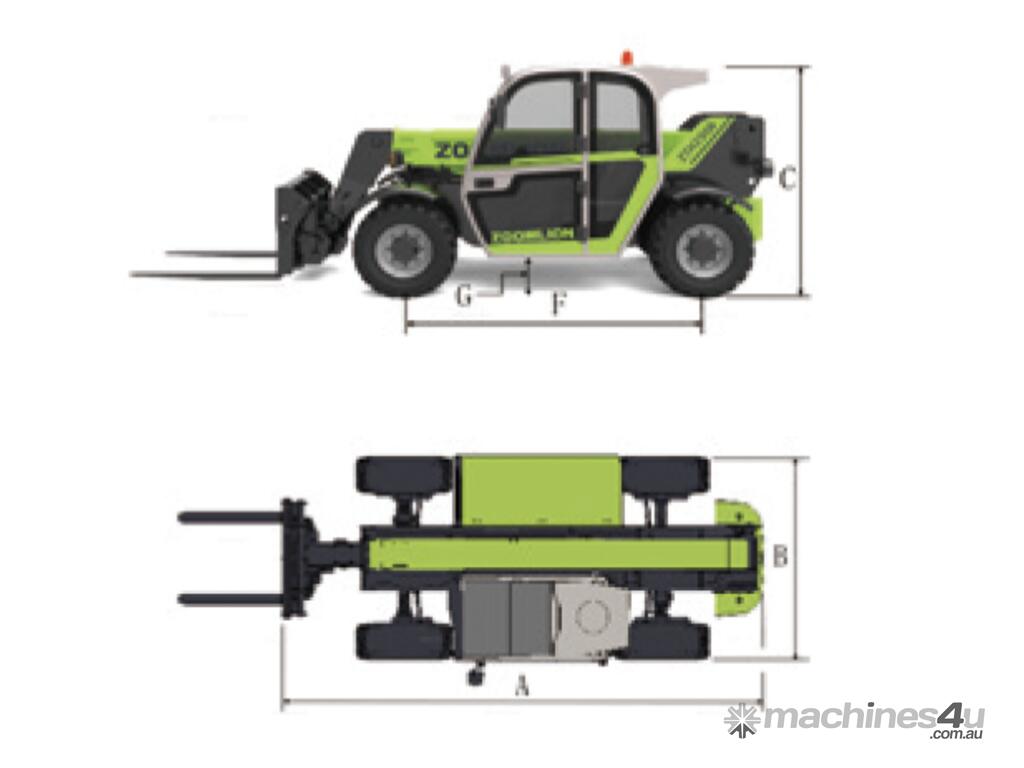

Size
A Overall length: 4.01m
B Overall width: 1.83m
C Overall height: 1.95m
F Wheelbase: 2.35m
G Min ground clearance: 0.3m

Performance

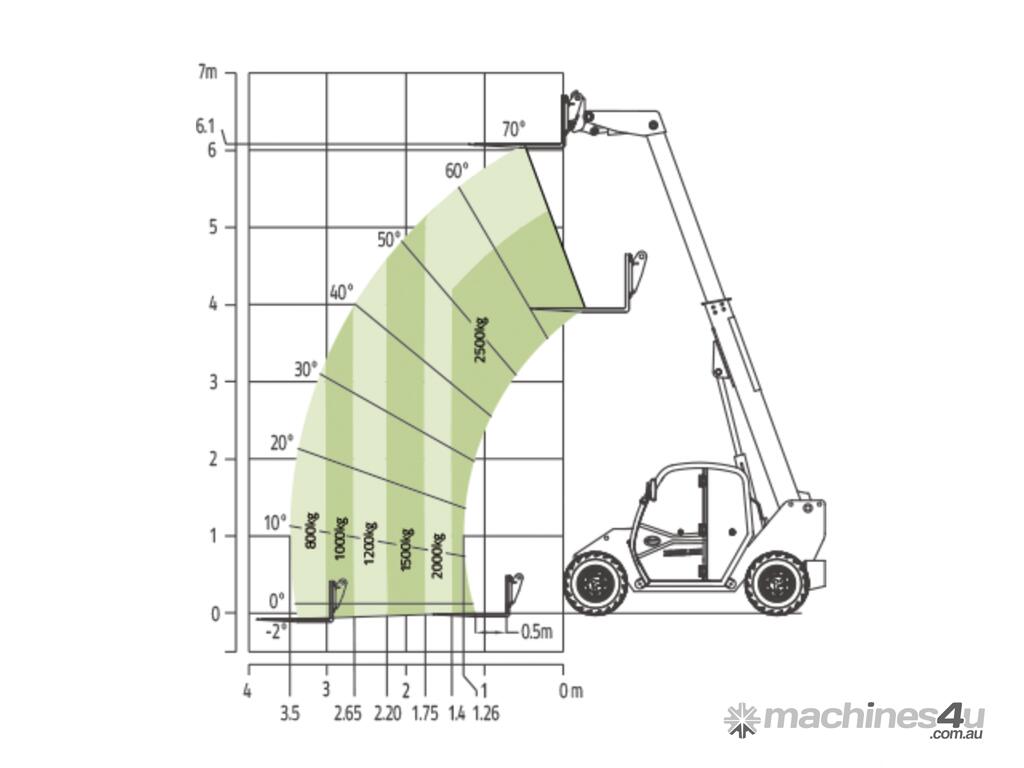

Max lift height: 6.1m
Rated capacity: 2500kg
Lift capacity at max height: 2000kg
Max forward reach: 3.5m
Lift capacity at max reach: 800kg
Weight: 5000kg
Max traction force: 73.25kN
Frame leveling angle: /
Turning radius - outside: 3.38m

Power
Engine: KUBOTA V3307-CR-TE5
Rated power: 55.4kw
Max torque: 265Nm
Cylinder: 4
Displacement: 3310m
Transmission: Hydrodynamic
Max drive speed: 27km/h
Steering: 2WS/4WS/Crab

Tire
Type: 12.00-16.5-12PR

Hydraulic
Implement pump: Gear pump
Hydraulic flow - pressure: 88L/min-270bar

Tank
Hydraulic tank capacity: 100L
Fuel tank capacity: 65L

Fork
Fork size: 1220mm×122mm×45mm
Fork rotary: 132°

Working speed
Boom up/down: 7.9/5.2s
Boom extend/retract: 5.7/4.5s
Fork lift: 3.5s
Fork retract: 3.5s
