ZOOMLION ZTH4518R Rotating Telehandler

- Hydrostatic driving for comfort driving experience and fast traveling speed
- 4×4 driving system provides large traction force and good off-road ability
- 360° continuous rotating, large working range, adapt to various working conditions
- 10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience
- Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

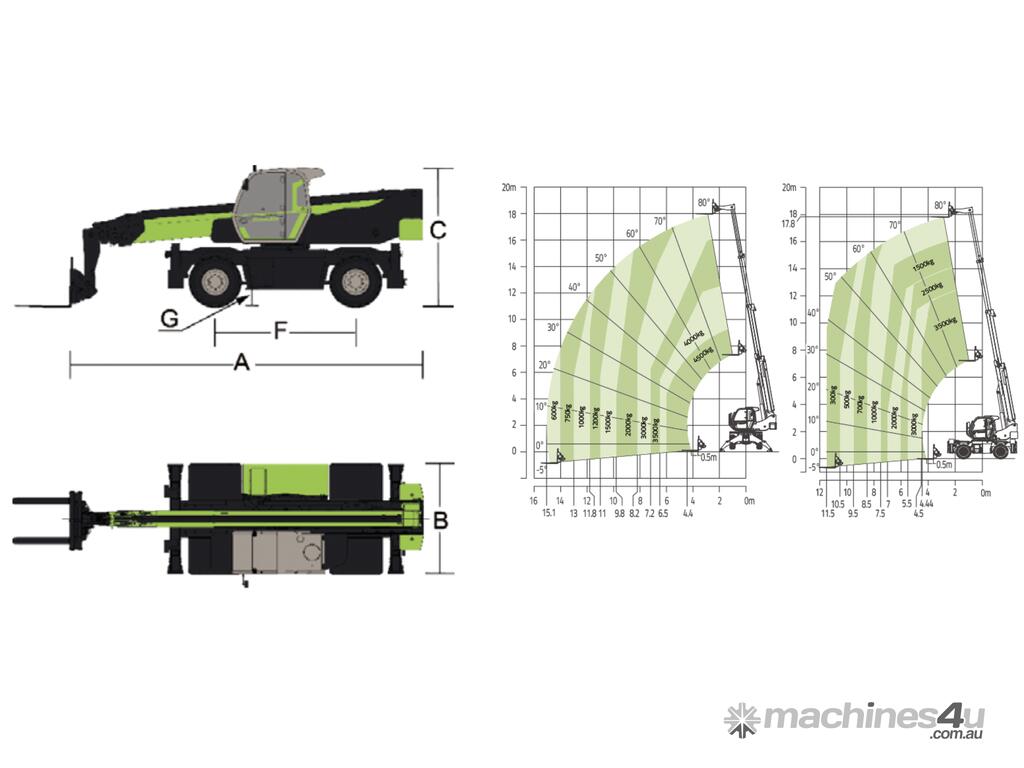

Size
A Overall length: 7.33m
B Overall width: 2.45m
C Overall height: 3.11m
F Wheelbase: 2.6m
G Min ground clearance: 0.37m

Performance
Max lift height: 18m
Rated capacity: 4500kg
Lift capacity at max height: 3000kg
Max forward reach: 15.1m
Lift capacity at max reach: 600kg
Weight: 14300kg
Max traction force: 90kN
Turning radius - outside: 3.6m

Power
Engine Cummins: F4.5
Rated power: 89kw
Max torque: 500Nm
Cylinder: 4
Displacement: 4500ml
Transmission: Hydrodynamic
Max drive speed: 40km/h
Steering: 2WS/4WS/Crab

Tire
Type: 405/PR

Hydraulic
Implement pump: Piston pump
Hydraulic flow - pressure: 107L/min-270bar

Tank
Hydraulic tank capacity: 145L
Fuel tank capacity: 140L

Fork
Fork size: 1220mm×150mm×50mm
Fork rotary: 118°

Working speed
Boom up/down: 26/19s
Boom extend/retract: 20/21s
Fork lift: 6s
Fork retract: 5s
Rotate speed: 2.3s
Outrigger lowering: 6s
Outrigger retracting: 5s
