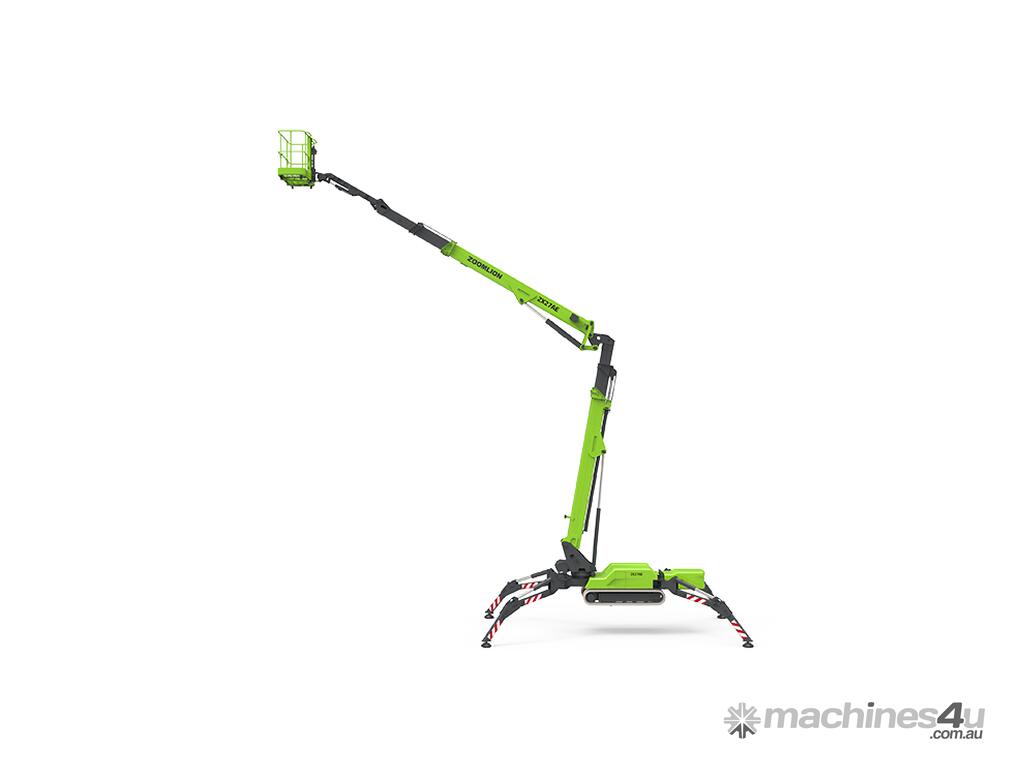

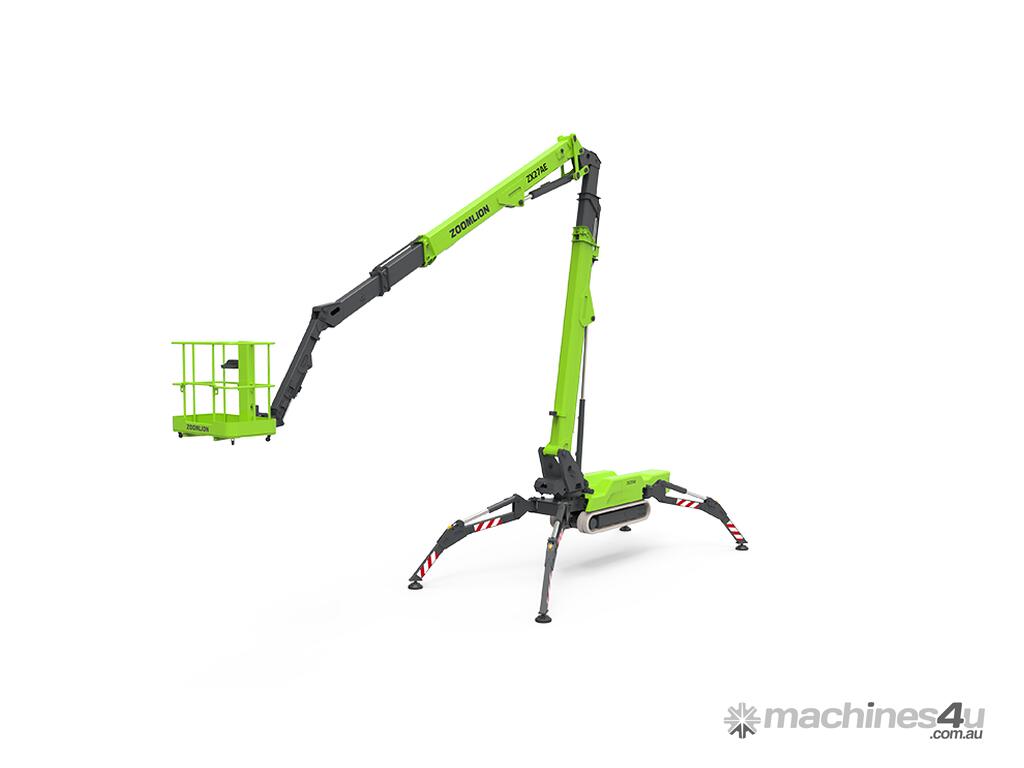

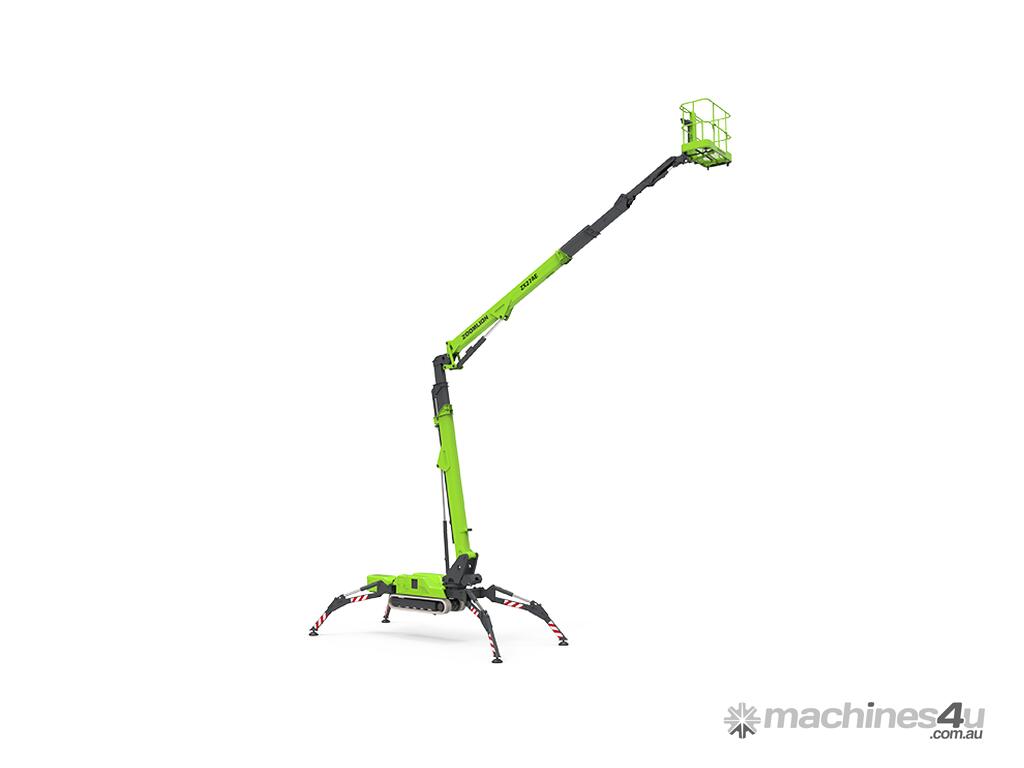

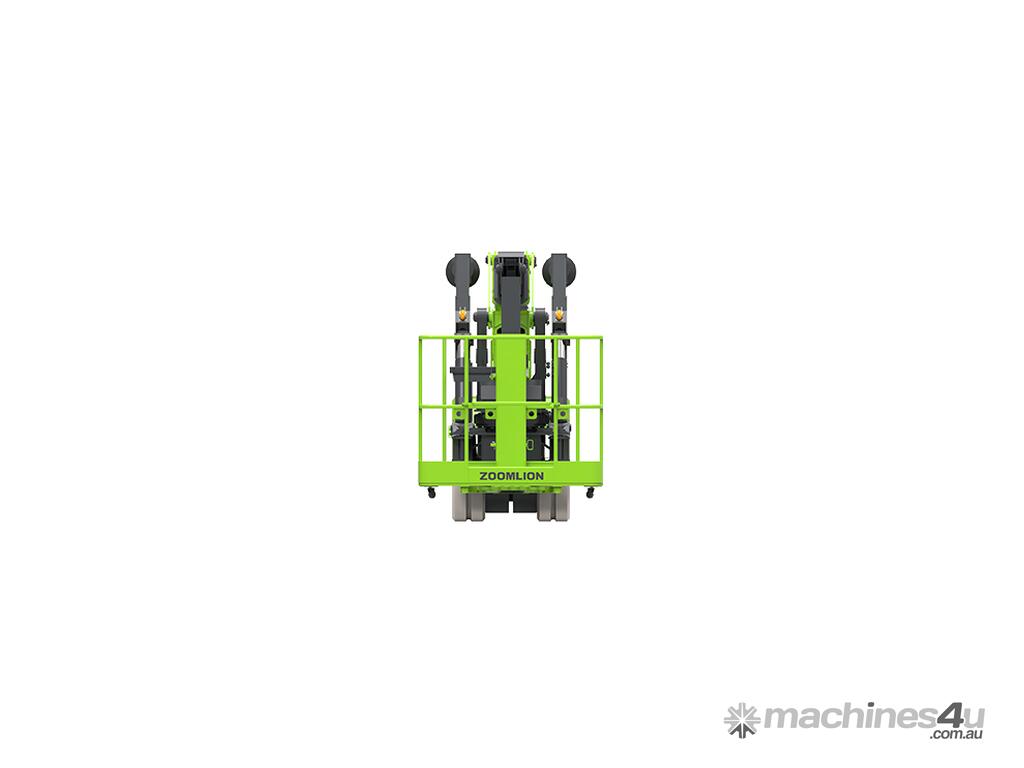

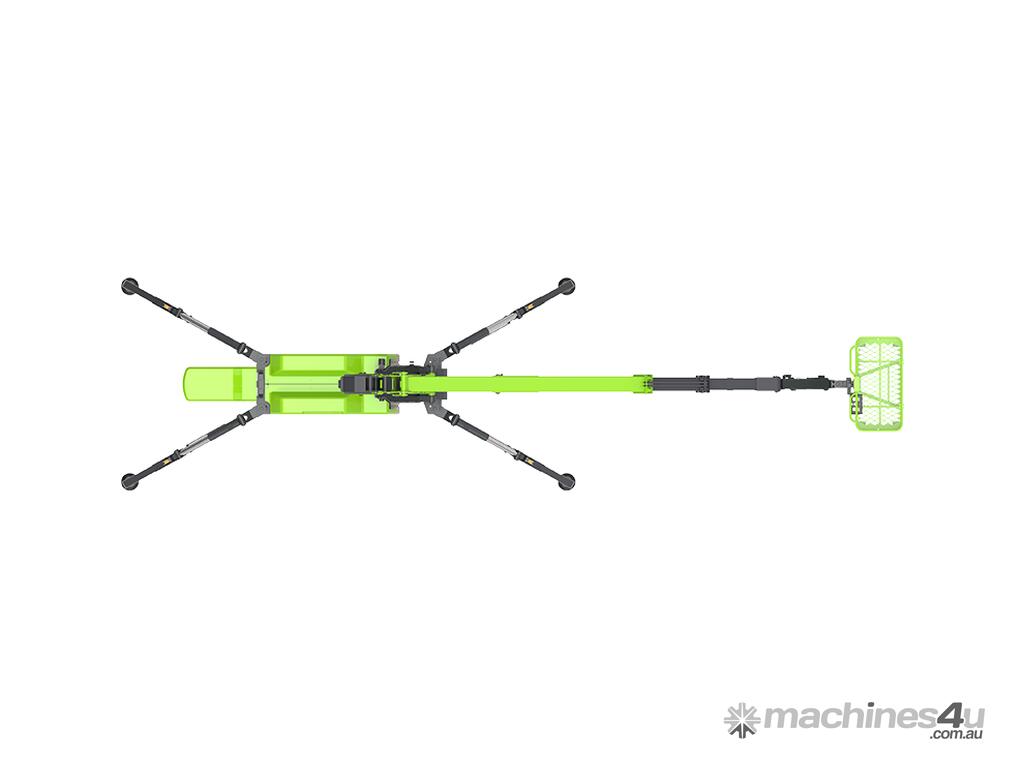

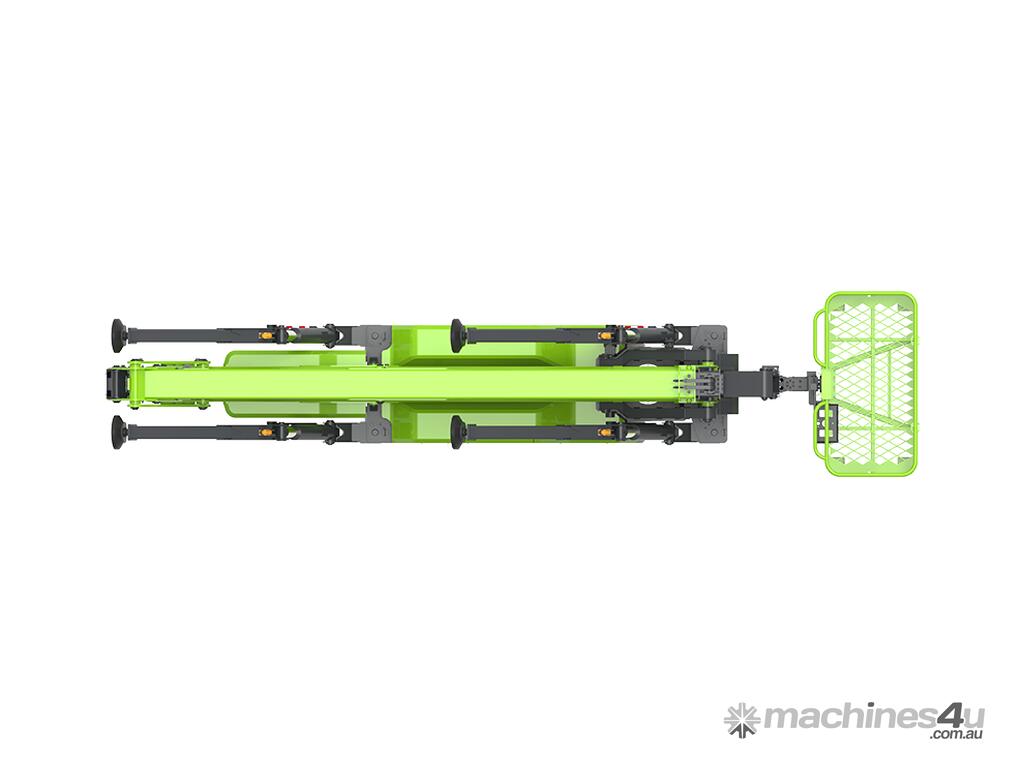

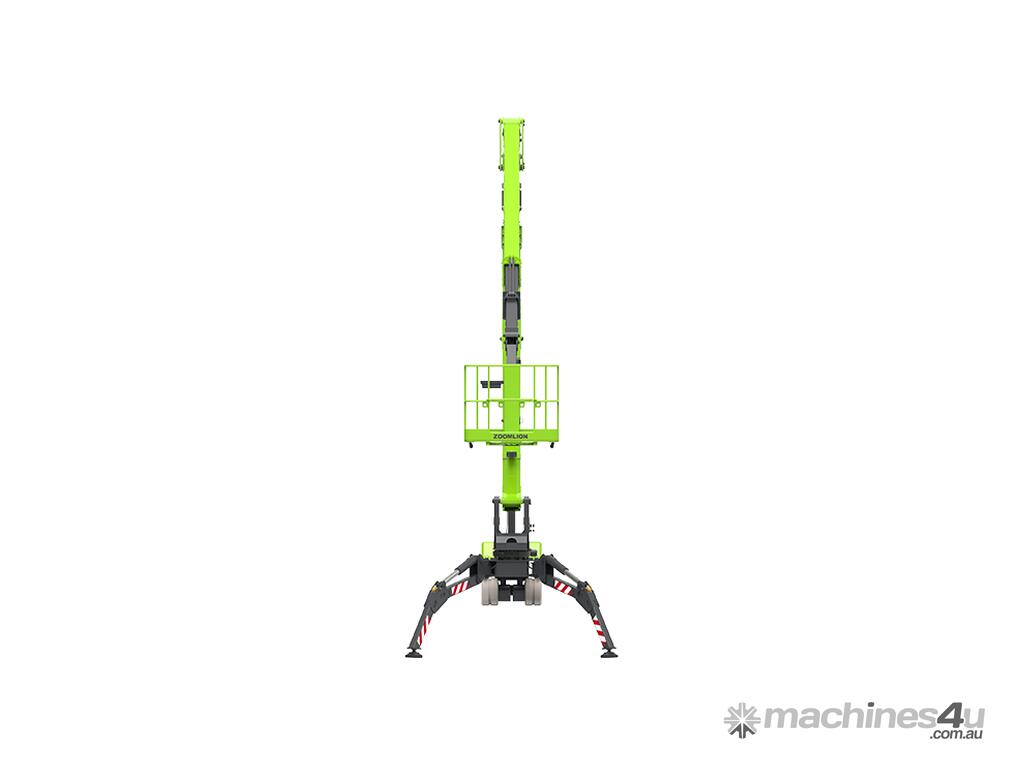

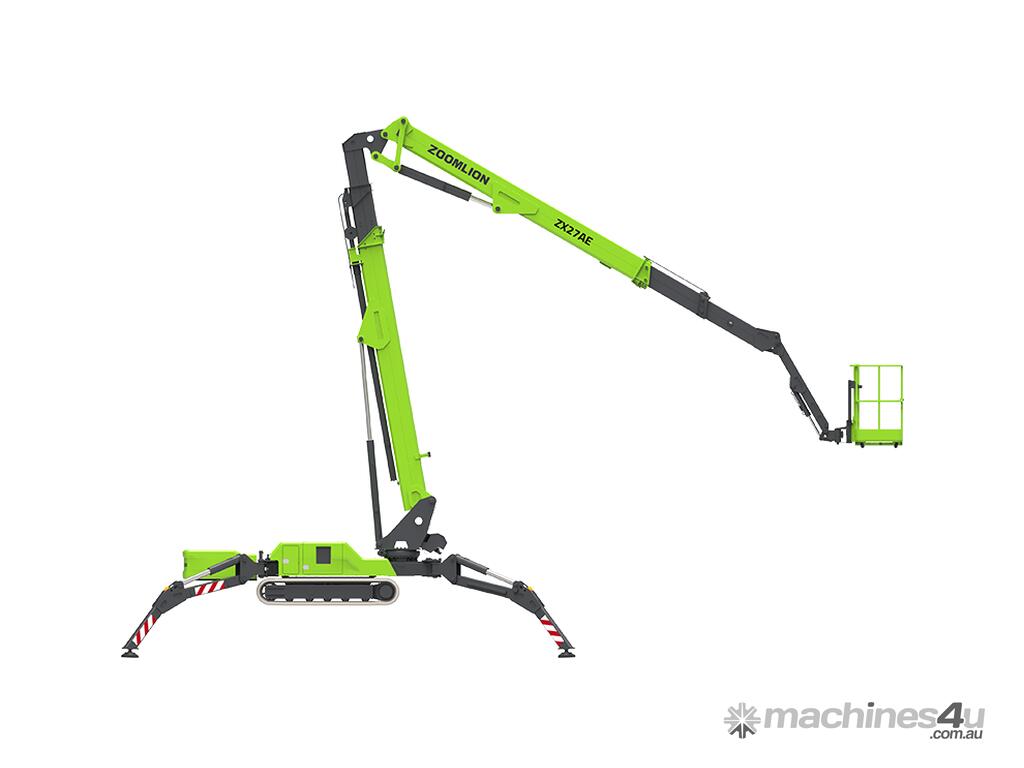

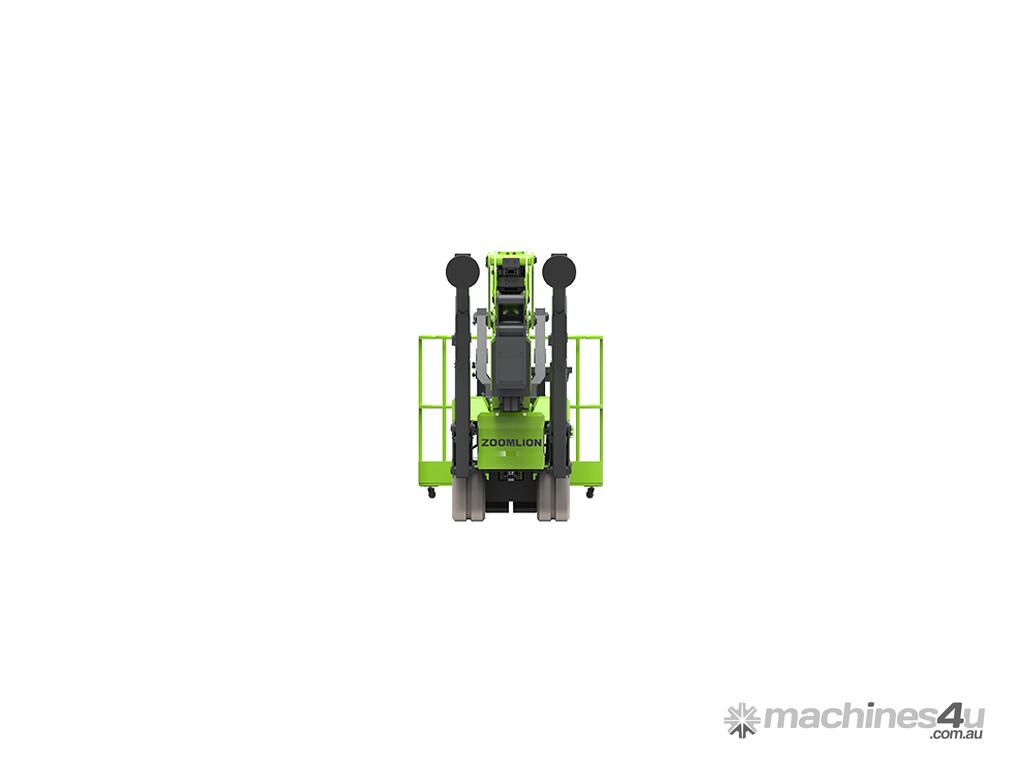

Zoomlion ZX27AE Spider Boom Lift - Higher Working Height & Longer Battery Life!

ZX27AE spider lift features lithium electric power, electric drive walking, compact structure, excellent off-road performance and passing performance, providing higher working height and longer battery life in the industry. It can meet the construction needs of various working conditions, especially in the indoor operation of large-scale buildings such as airport, railway stations, science and technology museums, shopping mall, gymnasiums and hotels. The chassis is small in width and light in weight ideal for narrow doorways and indoor compact space applications. It has low floor load pressure, strong off-road capability, and automatic levelling of outriggers, which can meet various complex indoor and outdoor conditions. It is a product with a wide range of applications, strong site adaptability and flexible operation.

ADVANTAGE INTRODUCTION
- 0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces
- Pure lithium-ion battery power features environmental protection and quiet operation
- Accuate and efficient permanent magnet synchronous motor provides strong power and stable control
- Non-marking rubber track suitable for all terrains
- Central layout, great structural rigidity, and small boom deflection
- Bus hydraulic valve control system offers stable and reliable movement
- Advanced energy management system supports synchronous power supply from external power supply, providing long-lasting battery life

Size
Work Height: 27m
Platform Height: 25m
Horizontal Outreach: 14.2m
Up and Over Height: 12.7m
Below Ground Reach: 5.8m
A - Stowed Length (w/ platform) 6.15m
D - Stowed Length (w/o platform): 5.7m
B - Stowed Width: 0.89m
C - Stowed Height: 2.05m
E - Platform Length: 1.4m
F - Platform Width: 0.7m
G - Platform Height: 1.25m
H - Crawler Size (LengthxWidth): 1.52mx0.25m
I - Max Length w/ Outrigger Extending (Standard): 4.95m
J - Max Width w/ Outrigger Extending (Standard): 4.48m
K - Max Length w/ Outrigger Extending (Narrow): 6.45m
L - Max Width w/ Outrigger Extending (Narrow): 2.88m
Outrigger Pad Size (Diameter): 0.26m
Approach Angle: 15 degrees
Depature Angle: 24 degrees

Performance
Platform Capacity: 230kg (restricted) /120kg (unrestricted)
Drive Speed: 2km/h&&
Gradeability: 16.7 degrees/30%
Allowable Tilting Angle When Driving: 10 degrees/17%
Turntable Swing: 400 degrees non-continuous
Platform Rotation: ±90 degrees
H-Tail Swing: 0m
Max Leveling Angle: 16 degrees
Max Wind Speed: 12.5m/s

Power
Battery: 315Ah 48V
Charger: 48V/60A
Drive Motor: Permanent magnet synchronous motor 48V
Lift Motor: Permanent magnet synchronous motor 48V
Auxiliary Power: Electric pump
Hydraulic Tank Capacity: 50L

Tire
Crawler type: K250x47x88 non-marking rubber crawler belt

Weight
Gross weight: 4650kg
Ground Pressure When Driving: 33.68kN/m²
Ground Pressure When Working (Standard): 2.05kN/m²
Ground Pressure When Working (Narrow): 2.45kN/m²
Pressure on Single Outrigger When Working: 31.89KN

Features
Standard
- Horn
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Tilt protection system
- Load sensing system
- 4.3' Led display
- Swing-out engine tray
- Anemograph

Option
- Platform work light
- Anti-collision device
- Anti-collision device
