cs-55 Circular Plunge & Mitre Cut Saw Package Deal 55mm Depth Capacity Ø160mm Blade

SCHEPPACH cs-55 Circular Plunge & Mitre Cut Saw Package Deal 55mm Depth Capacity Ø160mm Blade
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W874

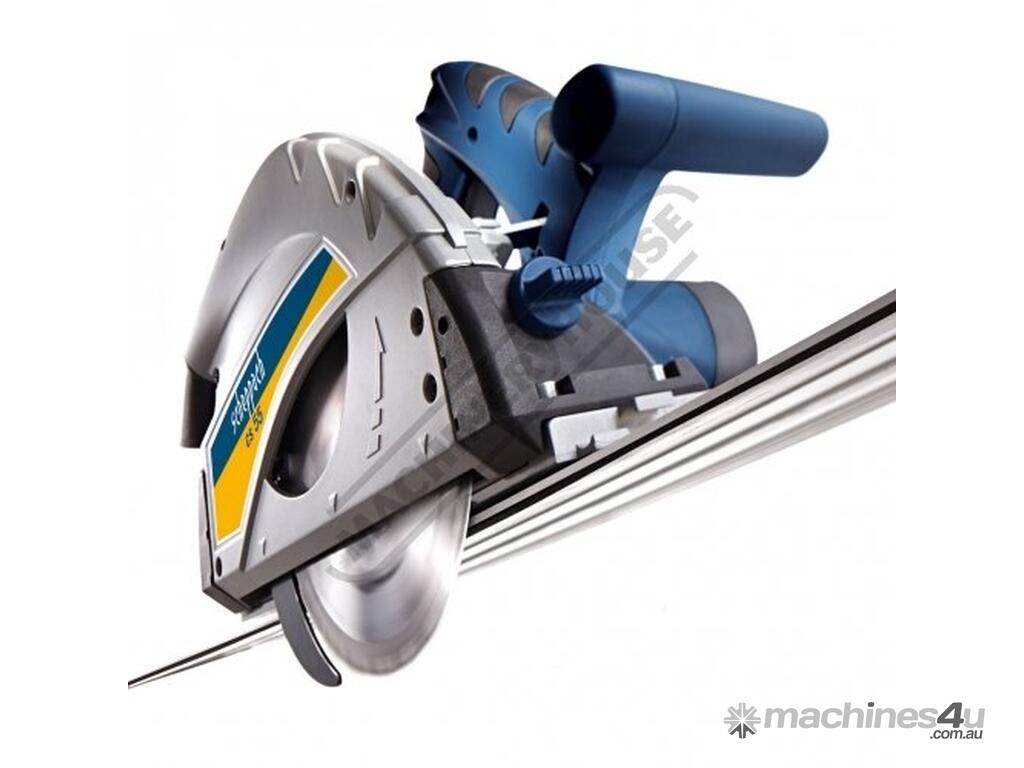

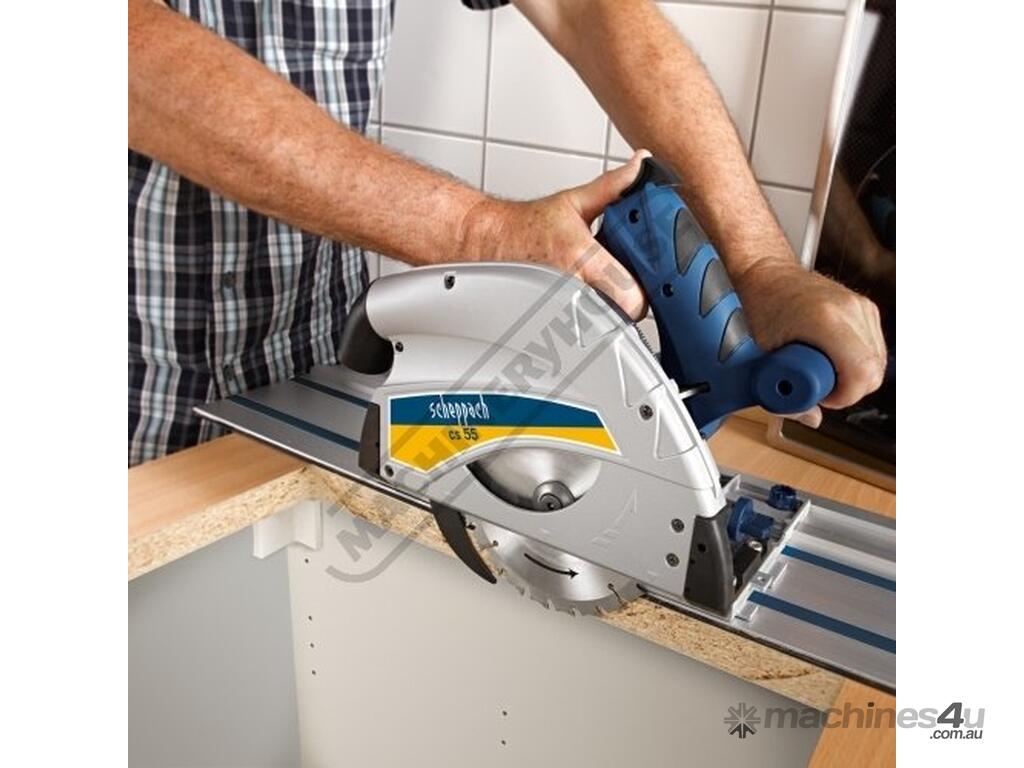

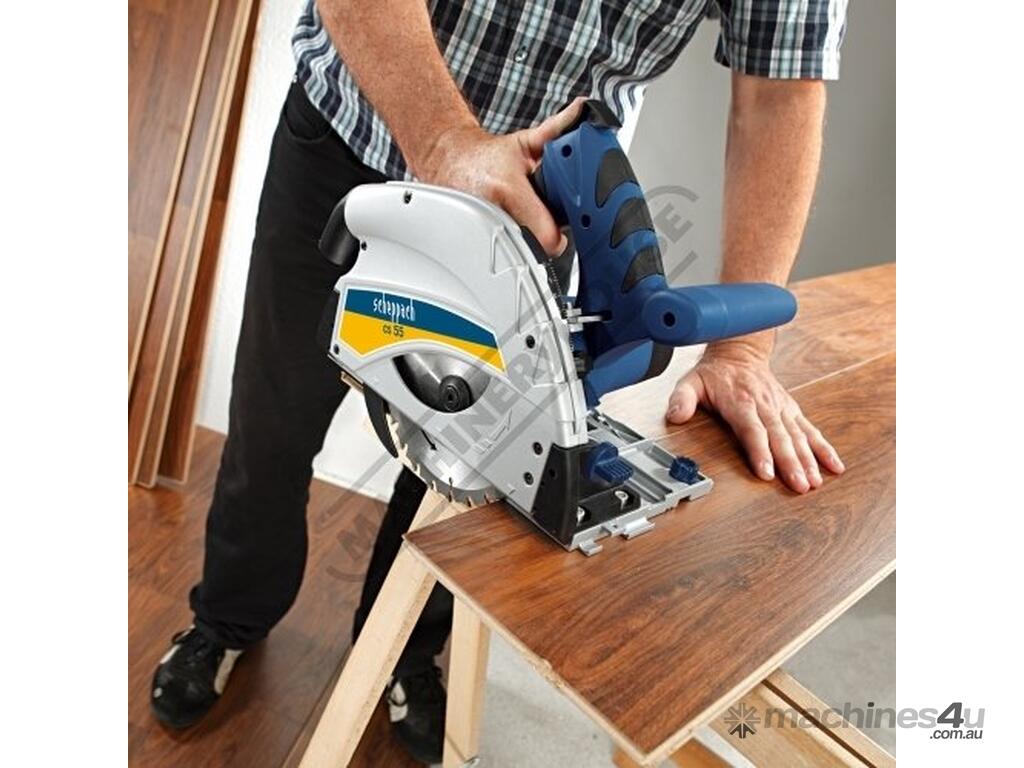

The Scheppach circular plunge cut saw cs-55 – "Three Saws in One" can be used as a plunge saw, Portable hand saw & a Panel sizing saw, anyone can get great results in the shop or on the job site.

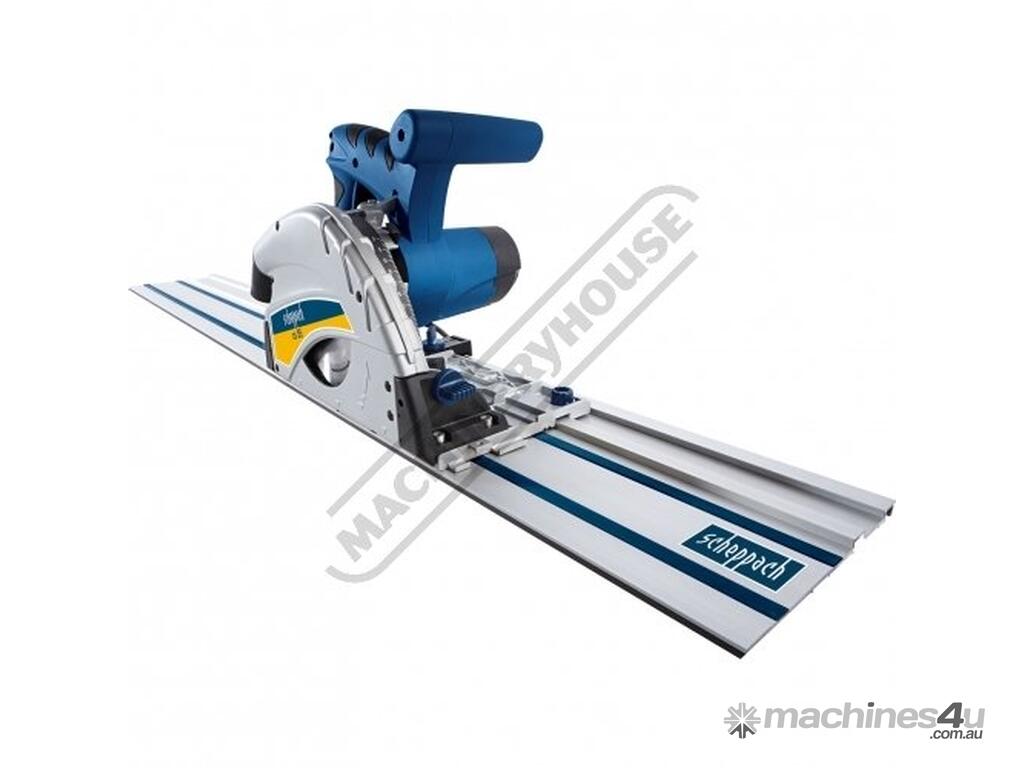

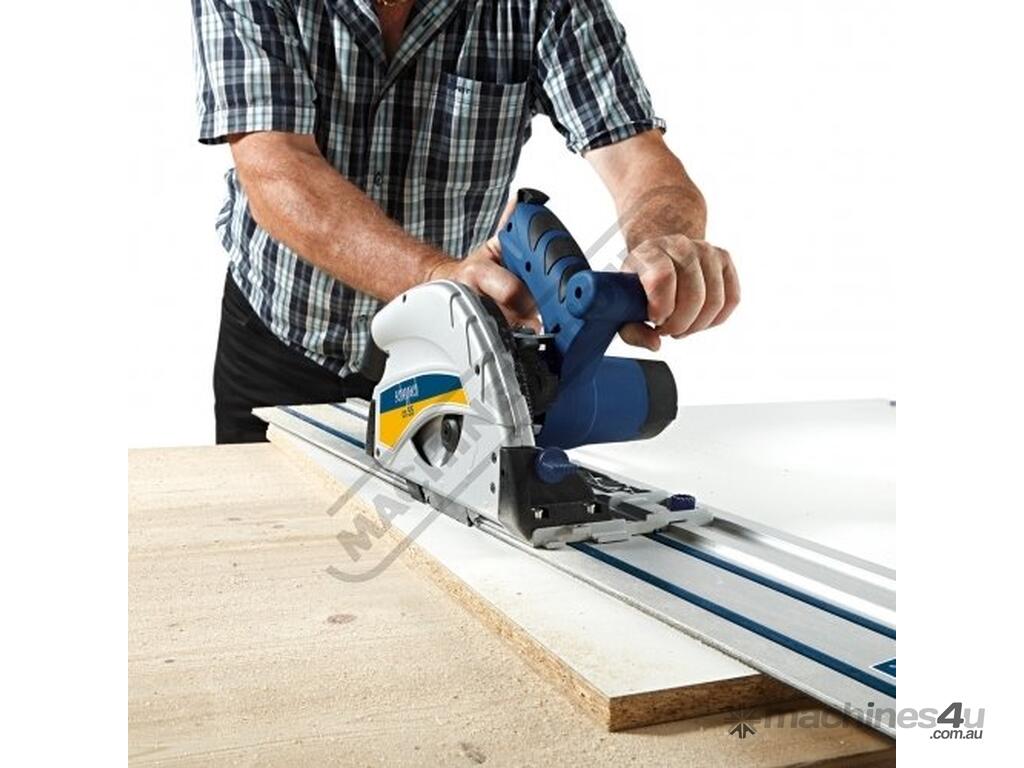

The combination of a Scheppach cs-55 parallel plunge saw with the guide rail allows the user to maintain a smooth and constant hand position while cutting 90º or 45º cuts.

Features:
German design & technology
Powerful 1.2kW / 1.6hp 240V Motor
Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
The enclosed guard gives a 90% dust extraction capability

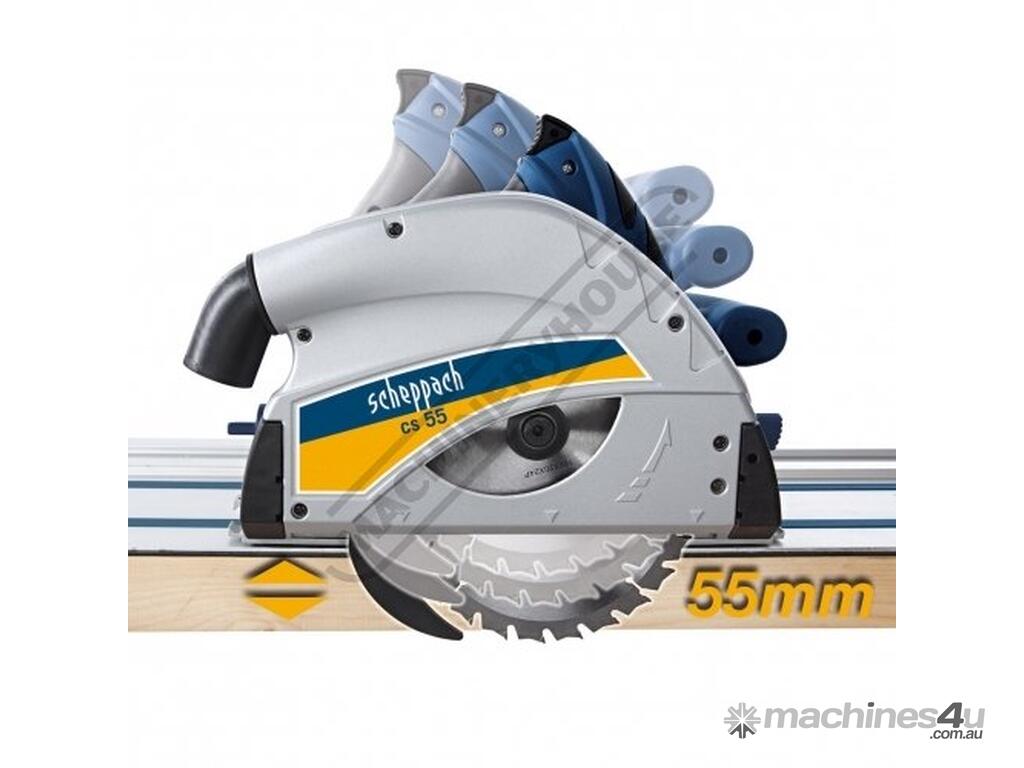

55mm 90º maximum depth of cut allows the trimming and sizing of most common door sizes - Plunge Saw Only

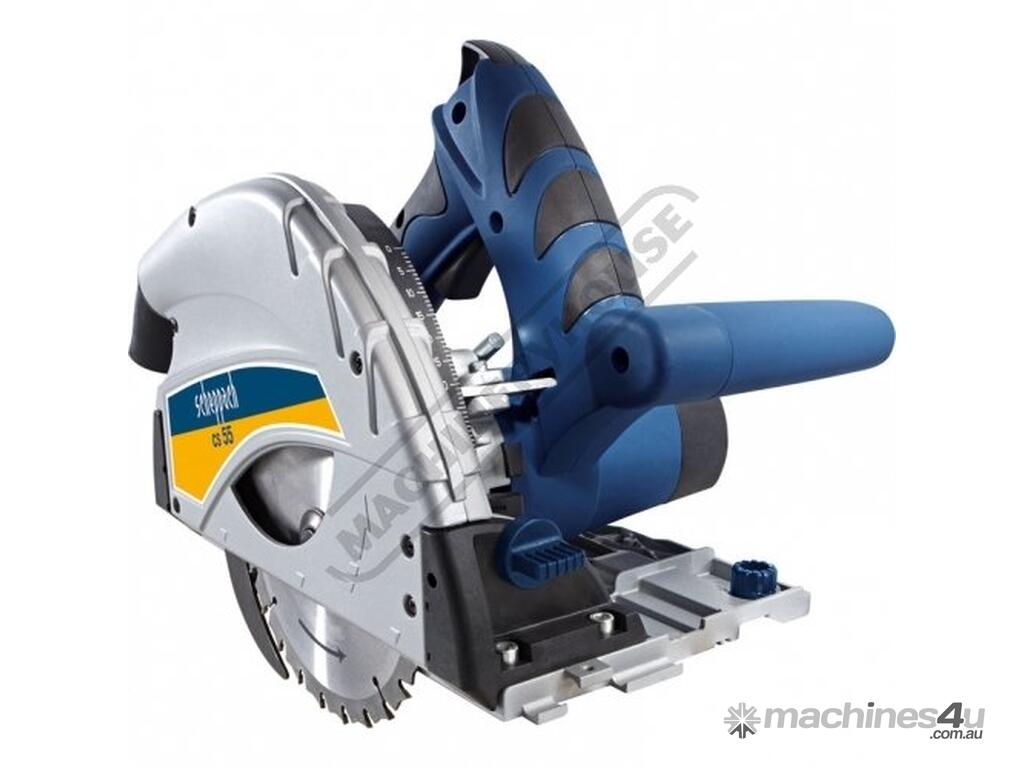

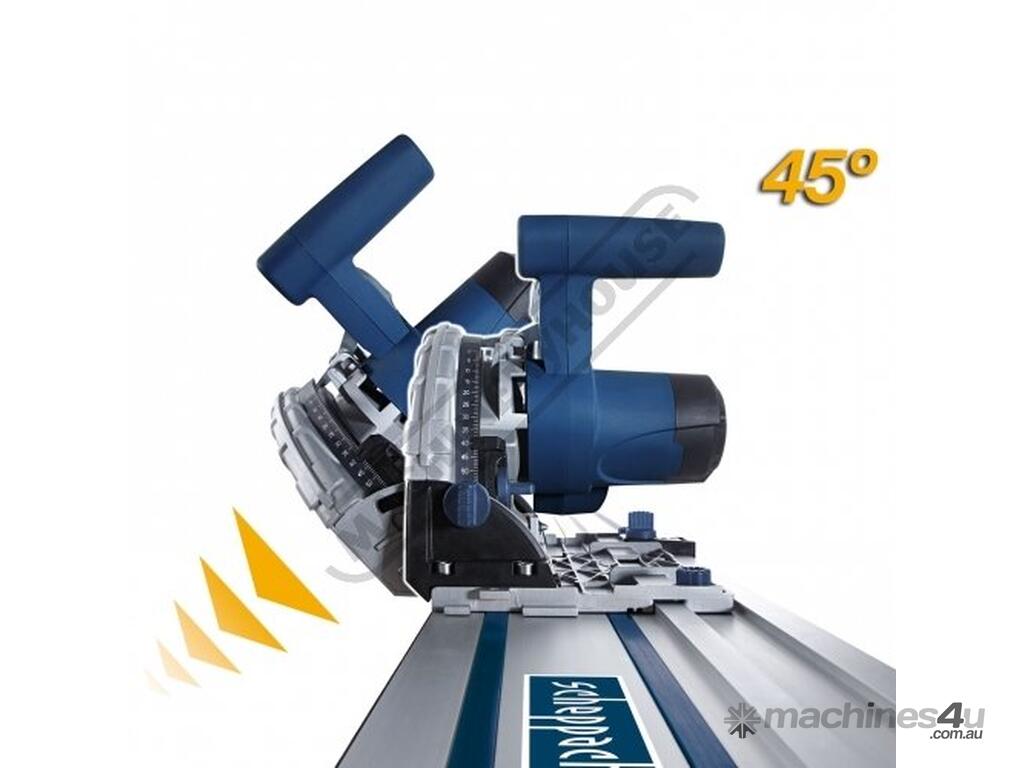

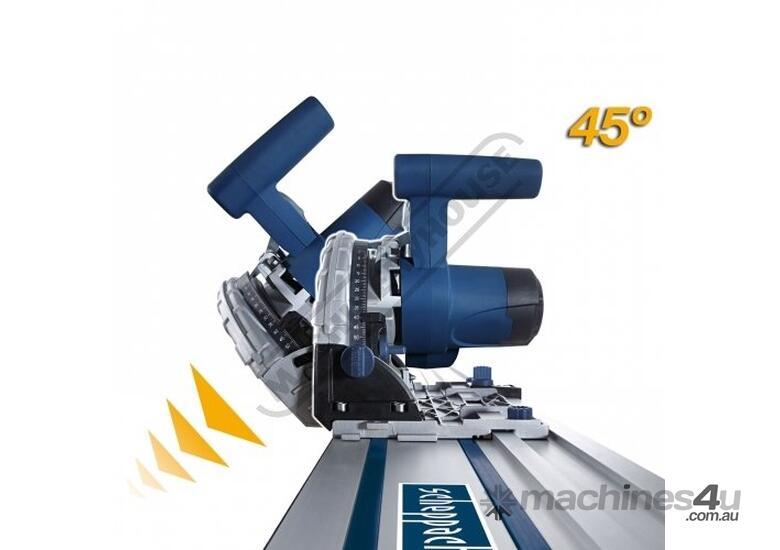

Can tilt saw head up to 45º and will cut 41mm maximum depth - Plunge Saw Only
Maximum precision even when cutting free hand

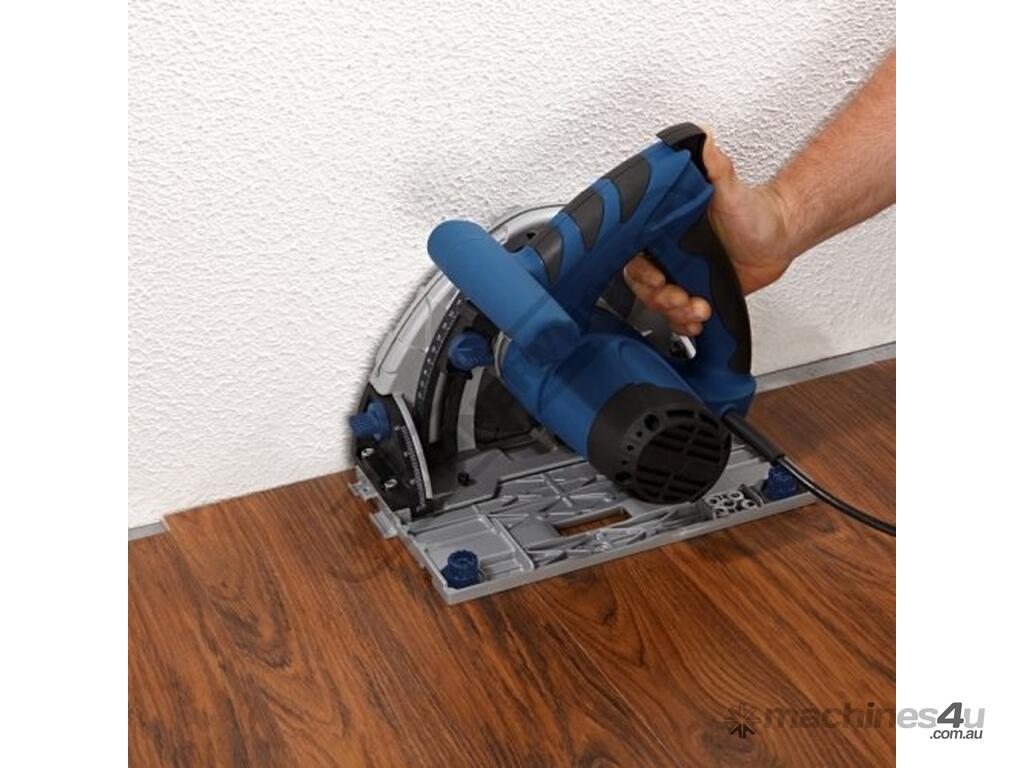

15.5mm – close to wall cutting is achievable with cs-55 saw
Includes 24 tooth blade that gives a fine and accurate finish with very little breakout in laminates

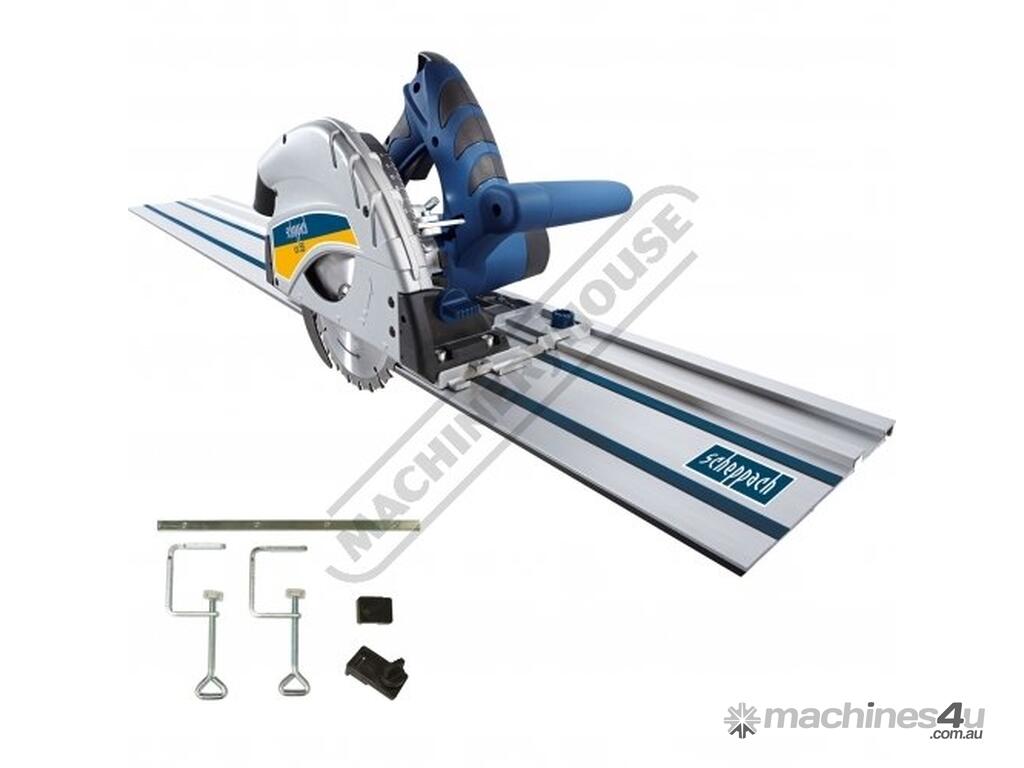

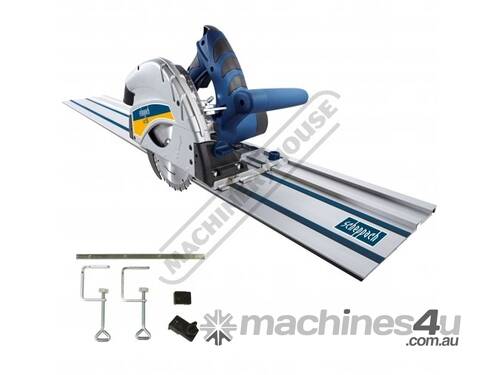

Includes:
- 1 x cs-55 circular plunge cut saw
- 1 x 1400 x 200mm Aluminium guide rail
- 1 x Guide Rail Clamps & Stop Accessory Kit
- 1 x Anti-fall over saw clamp



Specifications:
ORDER CODE: W874
MODEL: cs-55 Package
Type: Circular Plunge Saw Kit
Blade Diameter x Teeth (mm x T): Ø160mm x 24T
Blade Thickness (mm): 2.4
Blade Bore (mm): 20
Blade Speed (rpm): 5500
Cut Depth 90º - Plunge Saw only (mm): 55
Cut Depth 45º - Plunge Saw only (mm): 41
Cut Depth 90º - with Guide Rail (mm): 50.5
Cut Depth 45º - with Guide Rail (mm): 35.5
Mitre Cutting Angle (deg): 0 - 45º
Closest to Wall Cutting (mm): 15.5
Dust Collector Connection Size (mm): 38
Voltage (V): 240
Motor Power (kW / hp): 1.2 / 1.6
Nett Weight (kg): 9.5
