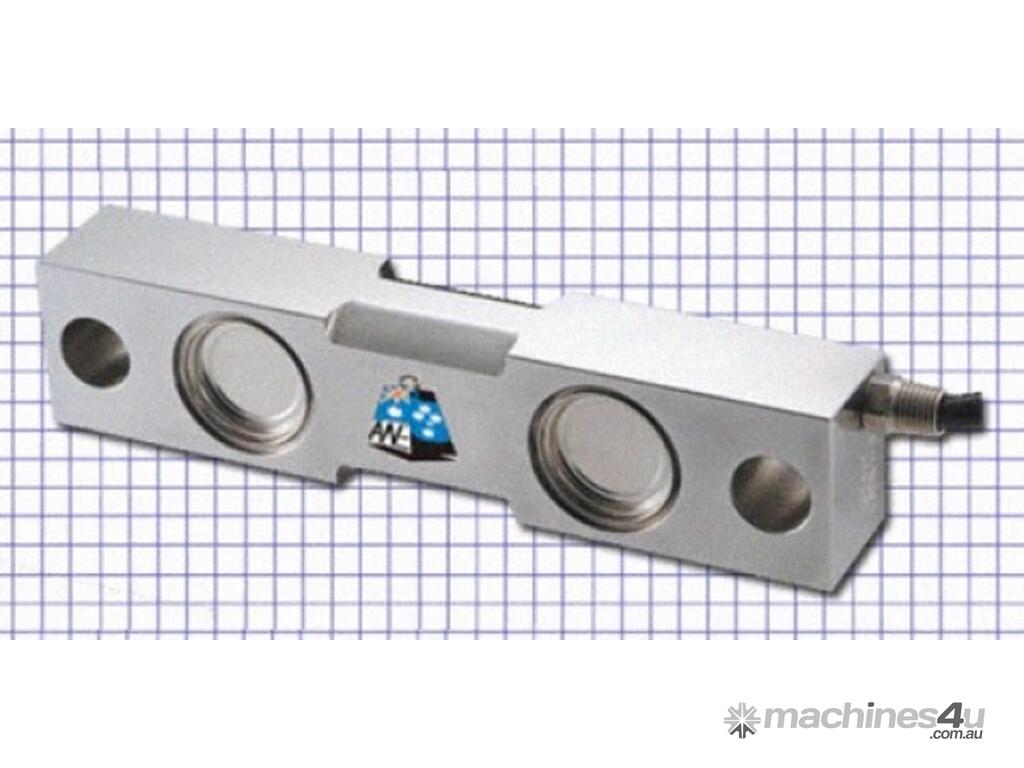

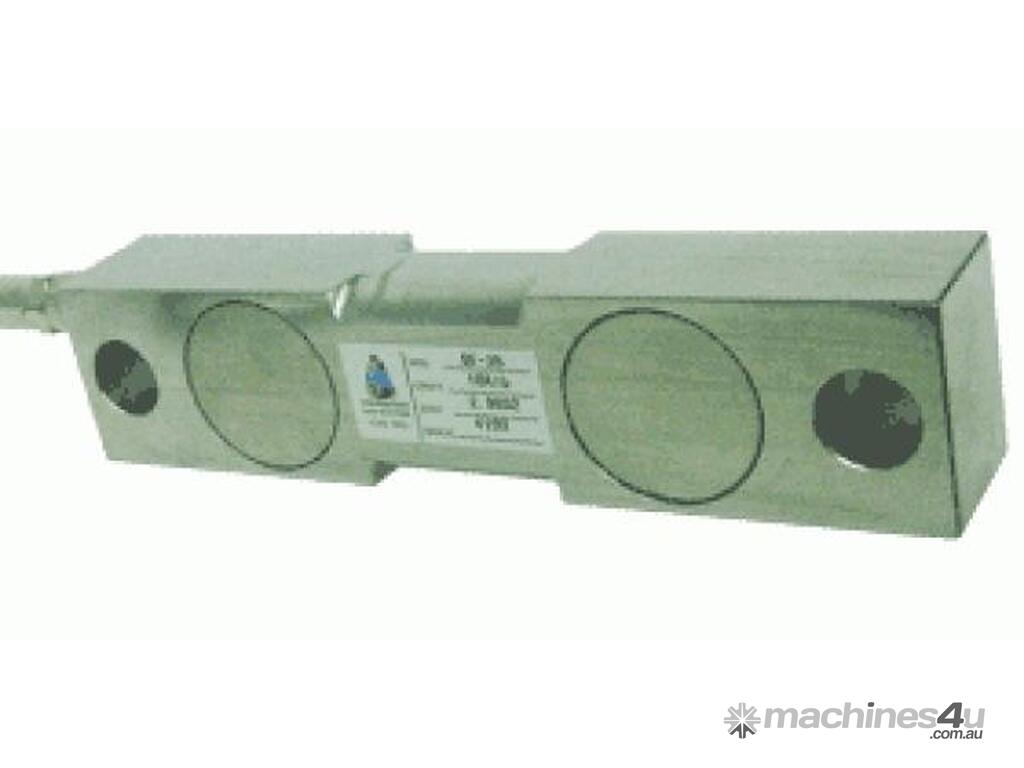

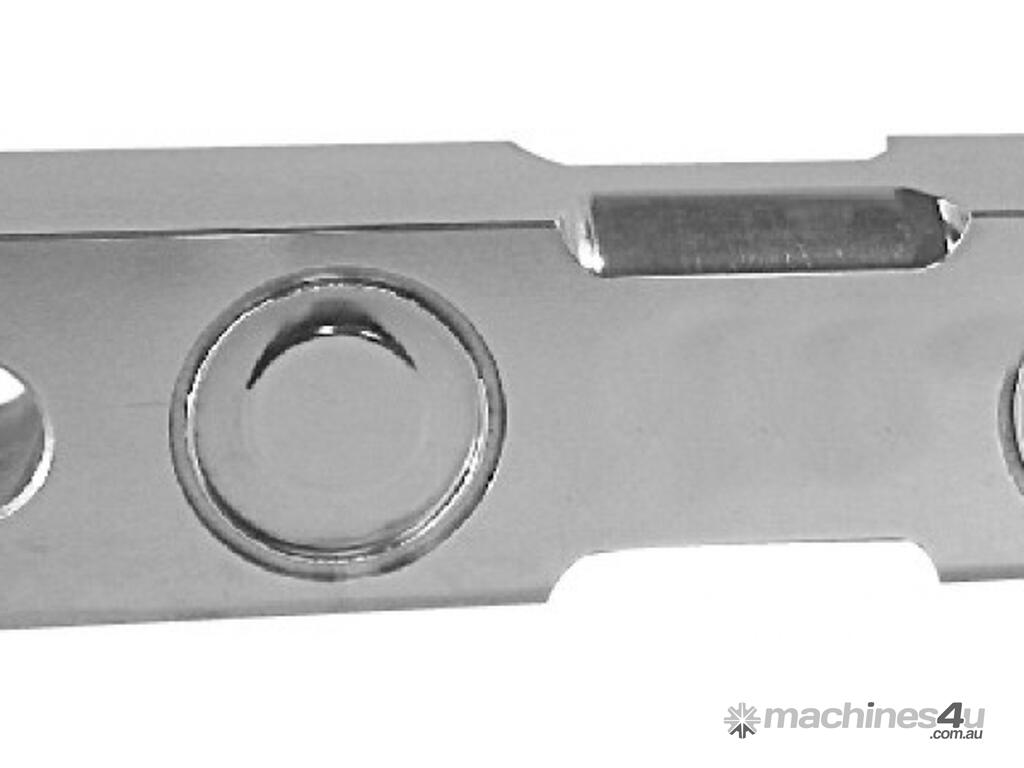

double shear beam load cell: AGF-2

Shear beam Load Cell with a unique floating bearing structure. Good side force resistance and shock resistance. Ideal for hostile environment. Simple to install and easy to use. Suitable for electronic truck scale, railroad scale, hopper scale and various special scales.

AGF-2 Double Shear Beam Load Cell Features:

Unique floating bearing structure
Self-reseting
Good Side force resistance and shock resistance
Moistureproof sealed, ideal for hostile environments
Ideal for electronic truck scales, railroad scale, hopper scales



AGF-2 Double Shear Beam Load Cell Specifications

Rated Output (mV/V) 3.00 ± 0.01
Nonlinearity ± 0.02% of Full Scale
Hysteresis ± 0.02% of Full Scale
Repeatability ± 0.01% of Full Scale
Creep (30 minutes) ± 0.02% of Full Scale
Zero Balance ± 1.00% of Full Scale
Temperature Effect on Zero ± 0.02% of Full Scale/10°C
Temperature Effect on Output ± 0.02% of Full Scale/10°C
Input Resistance (?) 700± 10
Output Resistance (?) 700± 3
Insulation Resistance (?) ? 5000M
Excitation Voltage 10V (DC/AC)
Compensated Temperature Range -10°C to +50°C
Operation Temperature Range -20°C to +60°C
Safe Overload 120% of Full Scale
Cable ?6x12m
Cable Colour Code Input: Red(+) Black(-)
Output: Green(+) White(-)
